BP5005
THRU
BP506
PRESS-FIT BOSCH
特征
FEATURES
DIODES
BP
.50安培工½温度为125度,无热损耗下.
50 Ampere Operation At TL=125℃ With No Thermal Runaway.
.正向压降½.Low forward voltage drop
.½漏电. Low leakage current
.高浪涌承受½力.High surge current capability
机械数据
MECHANICAL DATA
.
封装:铜材质
BP封装. Case: Copper BP
.端子:镀金端子,焊接按照 MIL-STD-202,方法 208.
Terminals: Plated terminals, solderable per
MIL-STD-202, method 208.
.极性:
灌注红色环氧树脂（端子为正/P 型）
灌注黑色环氧树脂（端子为负/N 型）
Polarity : By RED Color Epoxy Potting. (Positive)
By BLACK Color Epoxy Potting. (Negative)
.重
量：6.8克.
Weight: 6.8grams

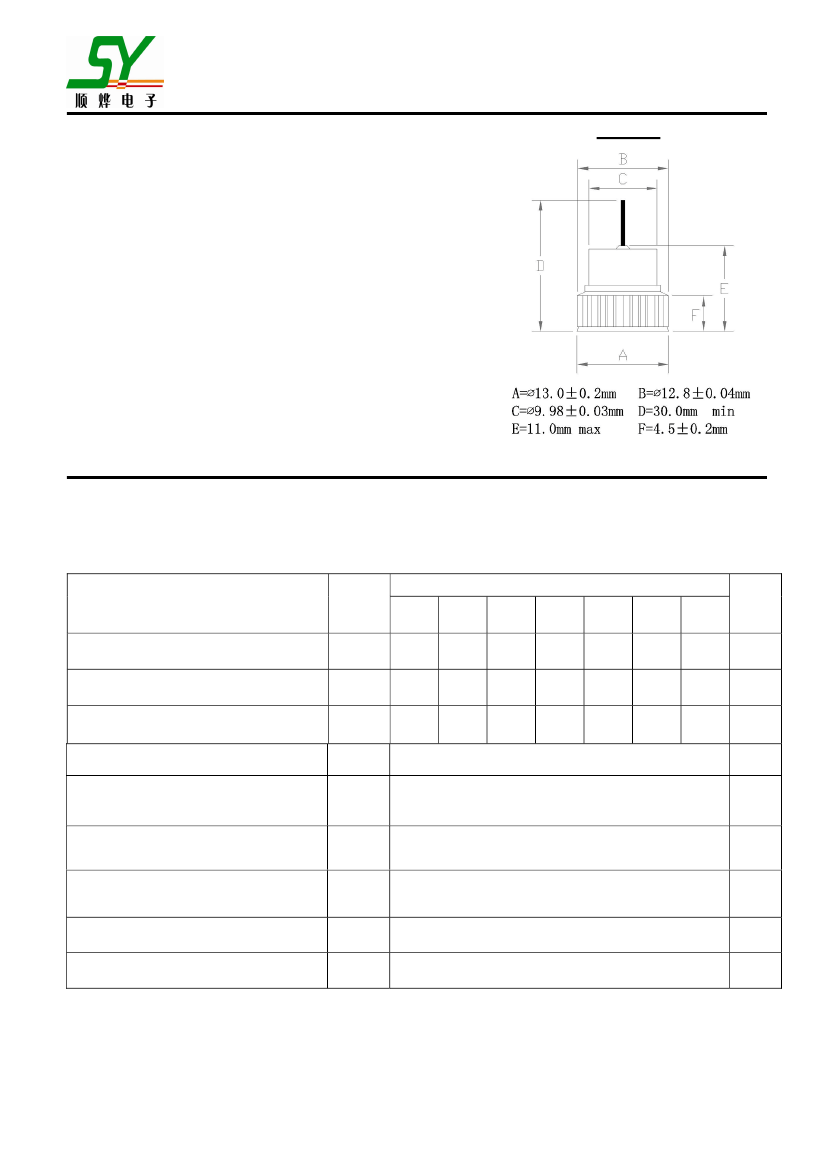

Dimension in millimeters
极限值和电参数
TA=
25℃除非另有规定.
单相,正半弦波,60HZ,阻抗或电感负½½.为电容装½½,减 少电流的
20%
MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS
Rating at 25℃ Ambient temp. Unless otherwise specified.Single phase, half sine wave, 60HZ,resistive or inductive load.
For capacitive load, derate current by 20%
SYMBO
5005
L
最大峰值反向电压
Maximum Current Peak Reverse Voltage
最大反向有效电压
Maximum RMS Voltage
最大直流阻断电压
Maximum DC Blocking Voltage
最大正向平均整流电流
T
L
=125℃
Maximum Average Forward Rectified Current
正向峰值浪涌电流
Peak Forward Surge Current 8.3ms Single
Sine-wave on Rated Load (JEDEC Method)
50A
直流电时最大正向瞬间电压降
Maximum Instantaneous Forward Voltage
Drop at 50A DC
最大反向漏电流
Maximum DC Reverse Current T
A
=25℃
at Rated DC Blocking Voltage
T
A
=100℃
典型结电容
Typical Junction Capacitance (NOTE 1)
工½温度存储温度
Operating AND Storage Temperature Range
501
100
70
100
BP
502
503
200
140
200
300
210
300
50
500
1.0
5
500
140
504
400
280
400
505
500
350
500
506
600
420
600
UNITS
V
RRM
V
RMS
V
DC
I(
AV
)
I
FSM
V
F
I
R
CJ
T
STG/
T
J
50
35
50
Volts
Volts
Volts
Amps
Amps
Volts
uA
pF
℃
-55 to +150
NOTE: 1.Measured at 1 MHz and Applied Reverse Voltage of 4.0 Volts D.C.
www.shunyegroup.com.cn

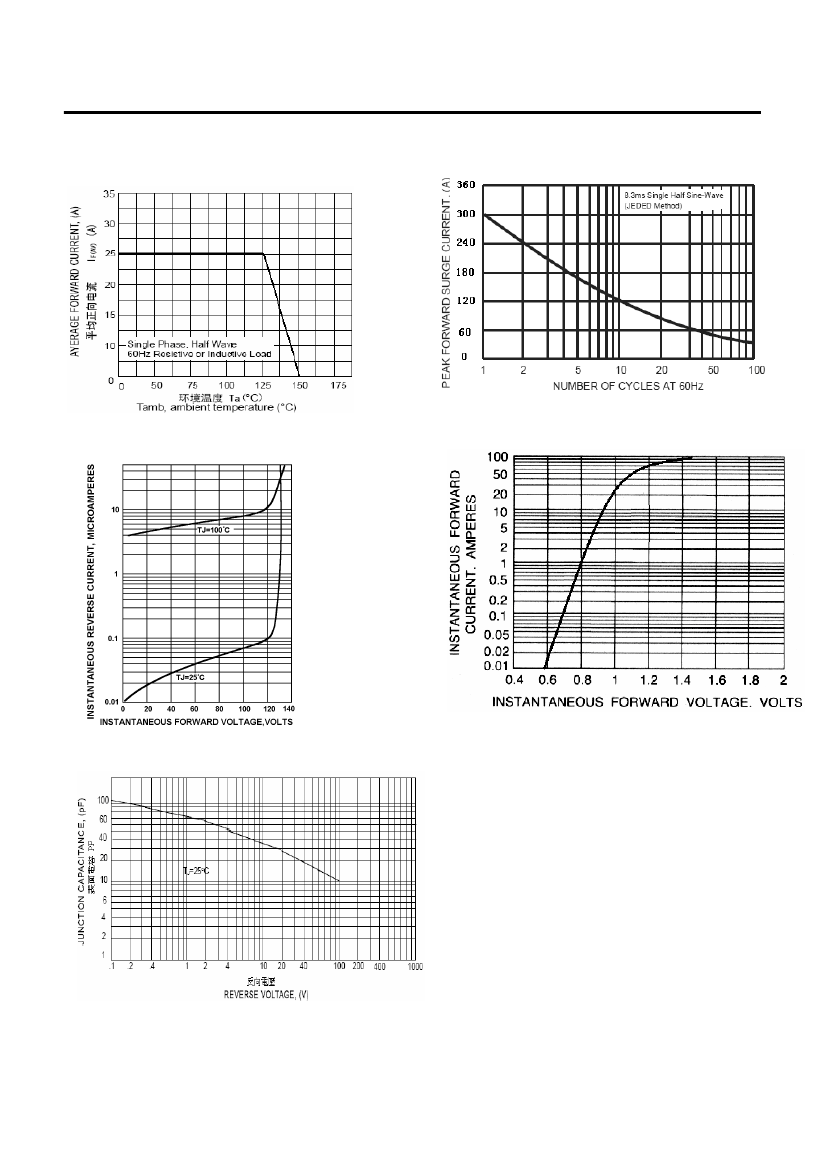

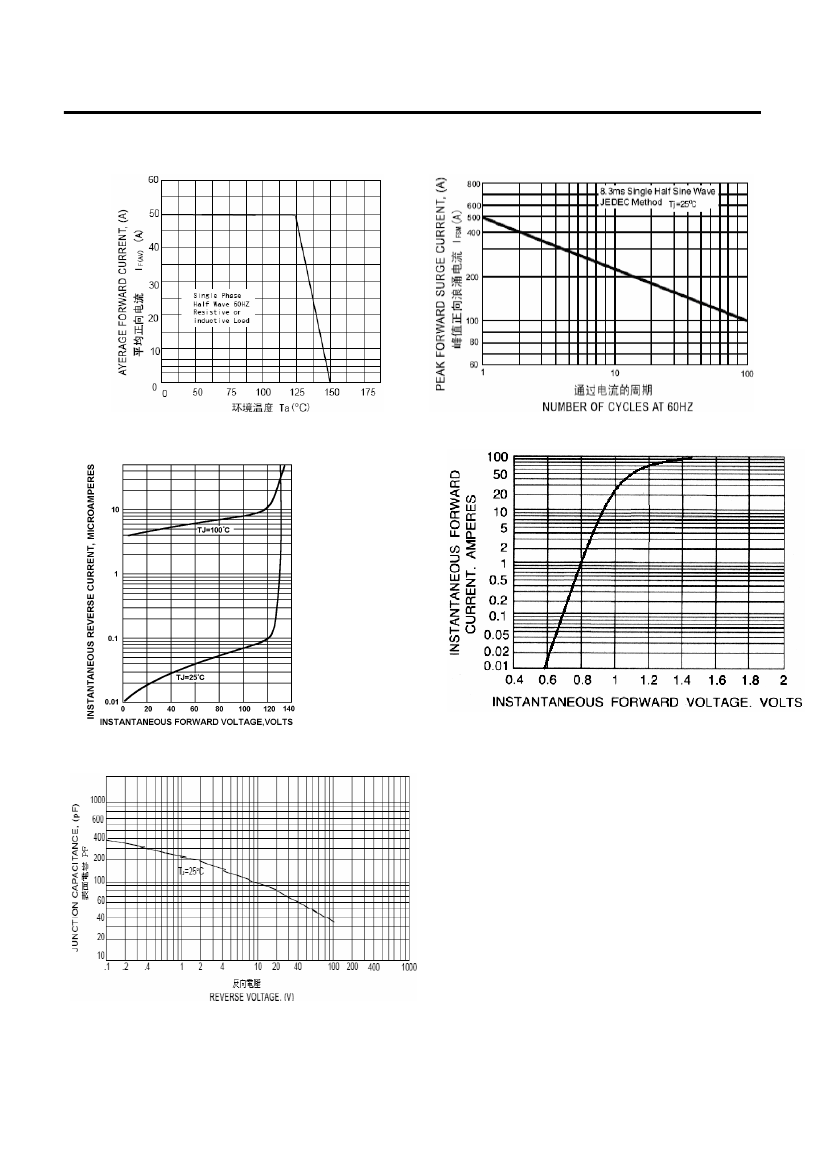

RATING ANDCHARACTERISTIC CURVES BP5005 THRU BP506
FIG. 1 –最大正向平均电流降额
FIG. 1 –MAXIMUM AVERAGE FORWARD CURRENT
DERATING
FIG. 2 –最大非重复正向浪涌电流
FIG. 2 –MAXIMUM NON-REPETITIVE FORWARD
SURGE CURRENT
FIG. 3 –反向特性曲线(典型)
FIG. 3 – TYPICA REVERSE CHARACTERISTICS
FIG. 4–正向特性曲线(典型)
FIG.4 – TYPICA FORWARD CHARACTERISTICS
FIG.5–结电容特性曲线
FIG.5–TYPICAL JUNCTION CAPACITANCE
