84CNQ060
Technical Data
Data Sheet N1153, Rev. A
84CNQ060 SCHOTTKY RECTIFIER
Features
125℃ T
J
operation
Center tap module
Very Low forward voltage drop
High purity, high temperature epoxy encapsulation for
enhanced mechanical strength and moisture resistance
High frequency operation
Guard ring for enhanced ruggedness and long term
reliability
Low profile, high current package
This is a Pb − Free Device
All SMC parts are traceable to the wafer lot
Additional electrical and life testing can be performed
upon request
Applications
Switching power supply
Converters
Free-Wheeling diodes
Reverse battery protection
84CNQ060
84CNQ060SL
84CNQ060SM
PRM2
PRM2-SL
PRM2-SM
Maximum Ratings:
Characteristics
Peak Repetitive Reverse Voltage
Working Peak Reverse Voltage
DC Blocking Voltage
Average Rectified Forward Current
Peak One Cycle Non-Repetitive Surge
Current(Per leg)
Non-Repetitive Avalanche Energy
(Peg leg)
Repetitive Avalanche Current(Peg leg)
Symbol
V
RRM
V
RWM
V
R
I
F (AV)
I
FSM
E
AS
I
AR
Condition
-
50% duty cycle @T
C
=91°C,
rectangular wave form
8.3 ms, half Sine pulse
T
J
=25℃,I
AS
=8A,L=18mH
Current decaying linearly to zero in 1
μsec Frequency limited by T
J
max.
V
A
=1.5×V
R
typical
Max.
60
40(Per Leg)
80(Per Device)
750
54
8
Units
V
A
A
mJ
A
China - Germany - Korea - Singapore - United States
http://www.smc-diodes.com - sales@ smc-diodes.com
84CNQ060
Technical Data
Data Sheet N1153, Rev. A
Electrical Characteristics:
Characteristics
Forward Voltage Drop
(Per leg) *
Symbol
V
F1
V
F2
Reverse Current (Per leg) *
Junction Capacitance
(Per leg)
* Pulse width < 300 µs, duty cycle < 2%
Condition
@ 40A, Pulse, T
J
= 25
C
@ 80A, Pulse, T
J
= 25
C
@ 40A, Pulse, T
J
= 100
C
@ 80A, Pulse, T
J
= 100
C
@V
R
= rated VR T
J
= 25
C
@V
R
= rated VR T
J
= 125
C
@V
R
= 5V, T
C
= 25
C
f
SIG
= 1MHz
Typ.
0.43
0.52
0.37
0.50
4
200
2100
Max.
0.49
0.62
0.44
0.60
5
600
2600
Units
V
V
mA
mA
pF
I
R1
I
R2
C
T
Thermal-Mechanical Specifications:
Characteristics
Junction Temperature
Storage Temperature
Typical Thermal Resistance
Junction to Case
(per leg)
Typical Thermal Resistance
Junction to Case
(per package)
Typical Thermal Resistance, case
to Heat Sink
Mounting Torque
Approximate Weight
Case Style
Symbol
T
J
T
stg
R
JC
R
JC
R
cs
TM
wt
DC operation
DC operation
Mounting surface, smooth and
greased
-
-
PRM2 PRM2-SL PRM2-SM
Condition
-
-
Specification
-55 to +125
-55 to +125
0.85
0.42
0.30
40(min)
58(max)
7.8
Units
C
C
C/W
C/W
C/W
Kg-cm
g
China - Germany - Korea - Singapore - United States
http://www.smc-diodes.com - sales@ smc-diodes.com
84CNQ060
Technical Data
Data Sheet N1153, Rev. A

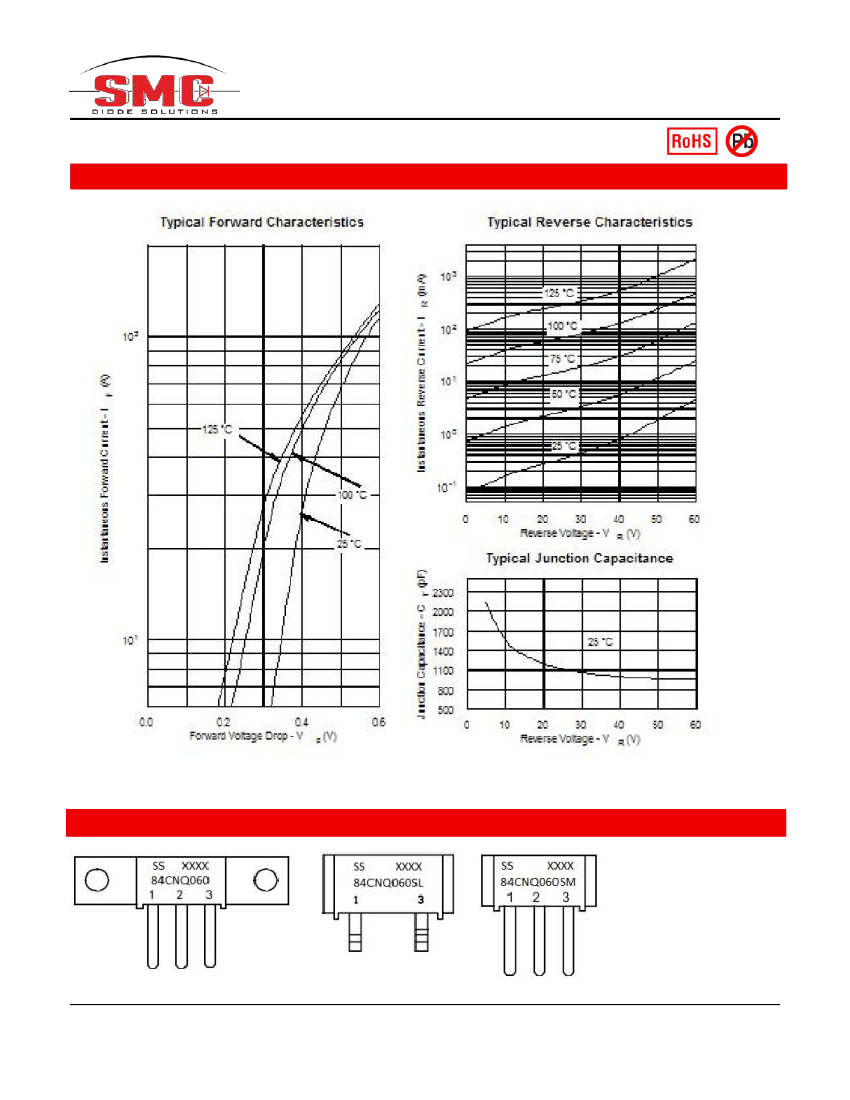

Ratings and Characteristics Curves
Marking Diagram
Where XXXX is YYWW
1st row SS YYWWL
2nd row 84CNQ060/SL/SM
3rd row 1 2 3 (pin)
SS
= SS
YY
= Year
WW
= Week
Cautions：Molding
resin
Epoxy resin UL:94V-0
China - Germany - Korea - Singapore - United States
http://www.smc-diodes.com - sales@ smc-diodes.com
84CNQ060
Technical Data
Data Sheet N1153, Rev. A
Ordering Information
Device
84CNQ060
84CNQ060S
84CNQ060SL
84CNQ060SM
84CNQ060SMS
Package
PRM2
PRM2
PRM2-SL
PRM2-SM
PRM2-SM
Terminals finish
Nickel plated
Pure Sn dipped
(dipped height 6-8 mm)
Pure Sn plated
Nickel plated
Pure Sn dipped
(dipped height 6-8 mm)
Shipping
48pcs / box
48pcs / box
100pcs / box
48pcs / box
48pcs / box

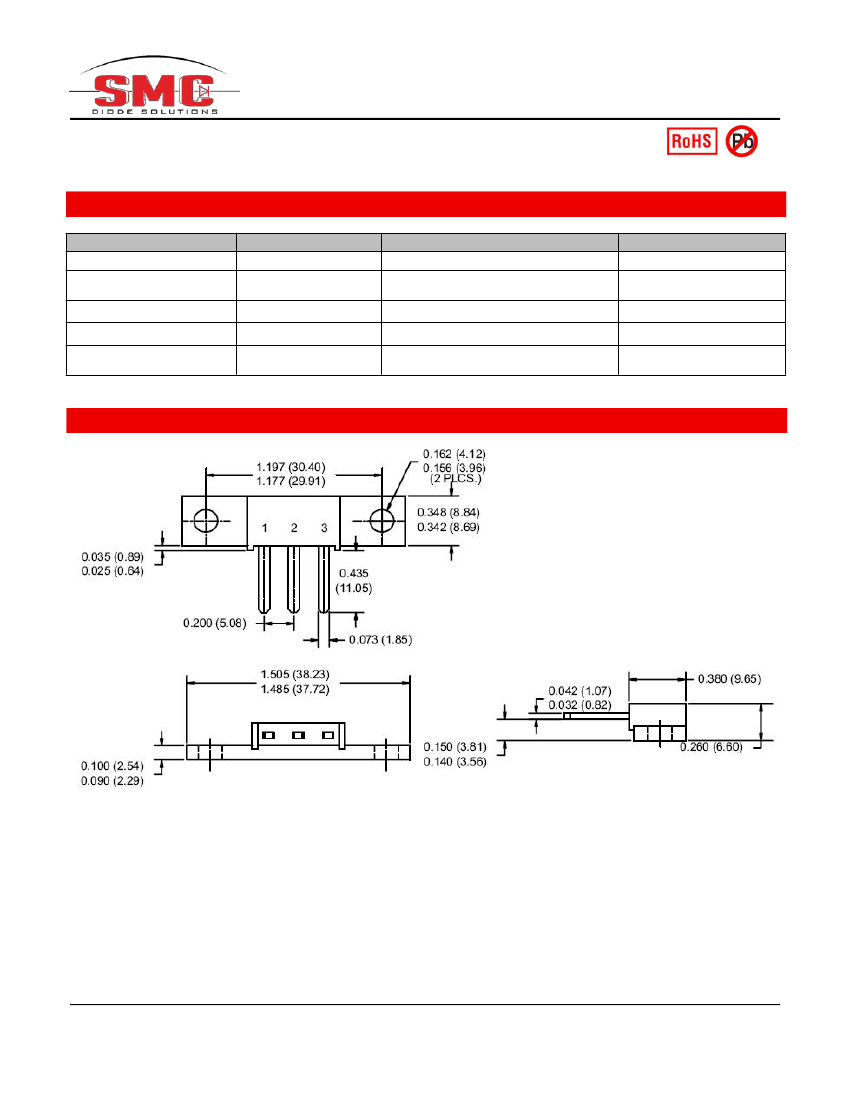

Mechanical Dimensions PRM2 (Inches/Millimeters)
China - Germany - Korea - Singapore - United States
http://www.smc-diodes.com - sales@ smc-diodes.com
84CNQ060
Technical Data
Data Sheet N1153, Rev. A

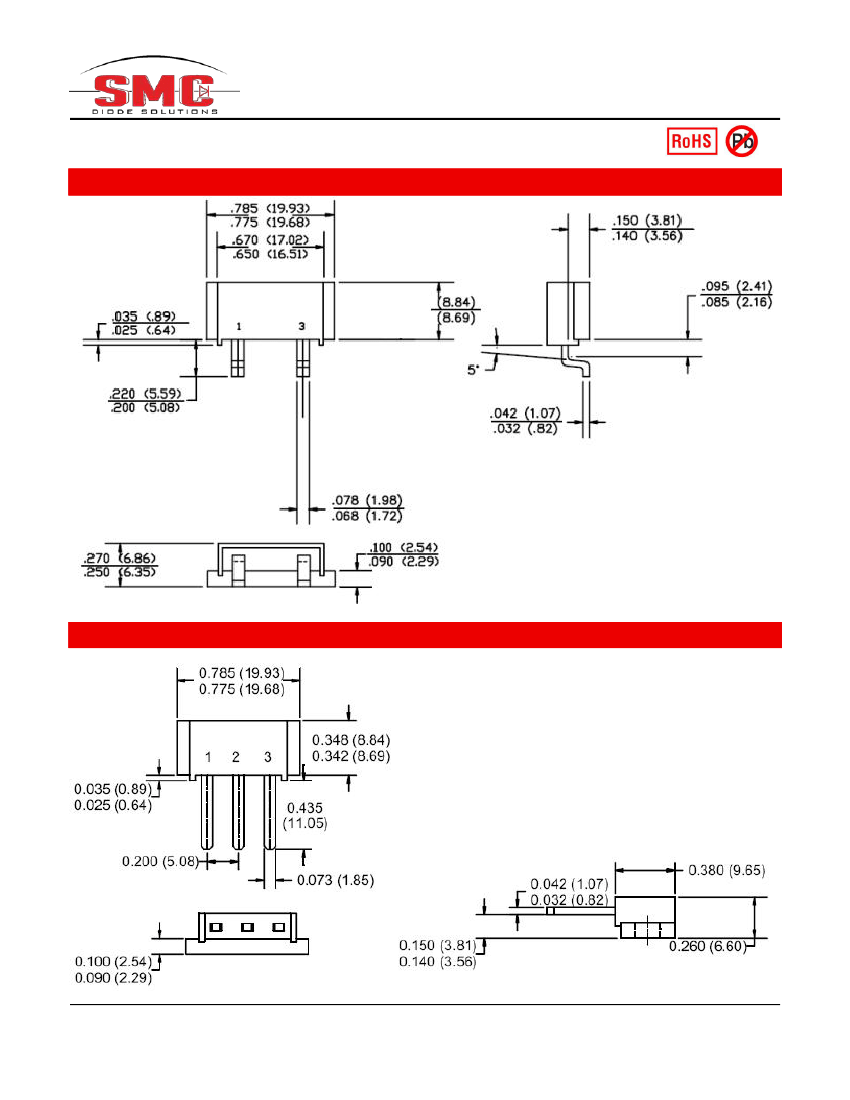

Mechanical Dimensions PRM2-SL (Inches/Millimeters)
