BD3505N
特征
FEATURES
THRU
BD3505P
BLOCK DIODE
35 AMP BLOCK DIODES
.大电流承受½力.High current capability
.高压利用½力.High voltage available
.玻璃被钝化的压模结构.Glass passivated die construction
.高浪涌承受½力.High surge current capability
.35A
工½在表面温度是
125℃,无热损耗的情况下.
35Ampere Operation At TL=125℃ With No Thermal Runaway
机械数据
BD3505-N
MECHANICAL DATA
N-Lead ,P-Case
.BD3505N
代表阴性的
.BD3505P
代表阳性的
BD3505-P
P-Lead ,N-Case

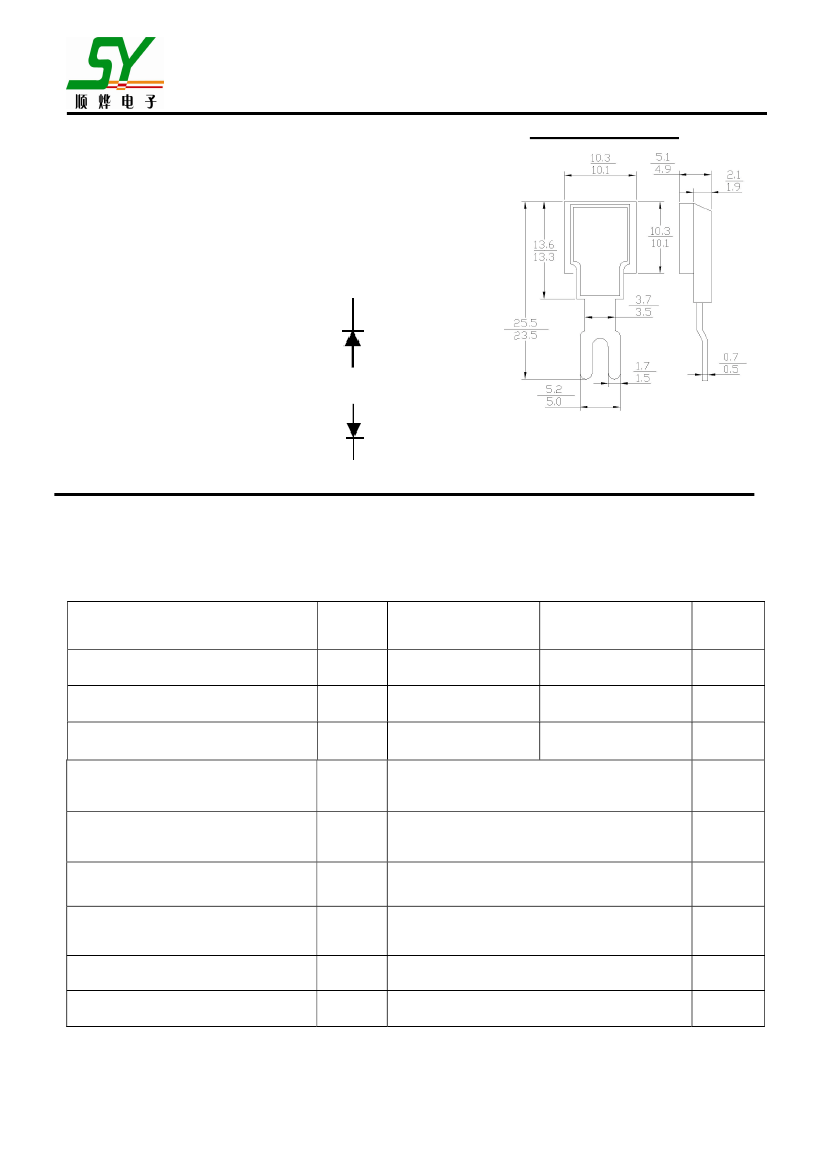

Dimension in millimeters
极限值和电参数
TA=
25℃除非另有规定.
单相,正半弦波,60HZ,阻抗或电感负½½.为电容装½½,减 少电流的
20%
MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS
Rating at 25℃ Ambient temp. Unless otherwise specified.Single phase, half sine wave, 60HZ,resistive or inductive load.
For capacitive load, derate current by 20%
SYMBOL
最大峰值反向电压
Maximum Current Peak Reverse Voltage
最大反向有效电压
Maximum RMS Voltage
最大直流阻断电压
Maximum DC Blocking Voltage
最大正向平均整流电流
T
L
=100℃
Maximum Average Forward Rectified
Current
正向峰值浪涌电流
Peak Forward Surge Current 8.3ms Single
Sine-wave on Rated Load (JEDEC Method)
35A
直流电时最大正向瞬间电压降
Maximum Instantaneous Forward Voltage
Drop at 35A DC
最大反向漏电流
Maximum DC Reverse Current T
A
=25℃
at Rated DC Blocking Voltage
T
A
=100℃
典型热阻抗
Typical thermal resistance
BD3505N
50
35
50
35
350
1.1
5
500
1.0
BD3505P
50
35
50
UNITS
V
RRM
V
RMS
V
DC
I(
AV
)
Volts
Volts
Volts
Amps
I
FSM
V
F
I
R
RΘJA
Amps
Volts
uA
℃/W
℃
工½温度存储温度
T
STG/
T
J
Operating AND Storage Temperature Range
-55 to +150
www.shunyegroup.com.cn
RATING ANDCHARACTERISTIC CURVES BD3505N THRU BD3505P

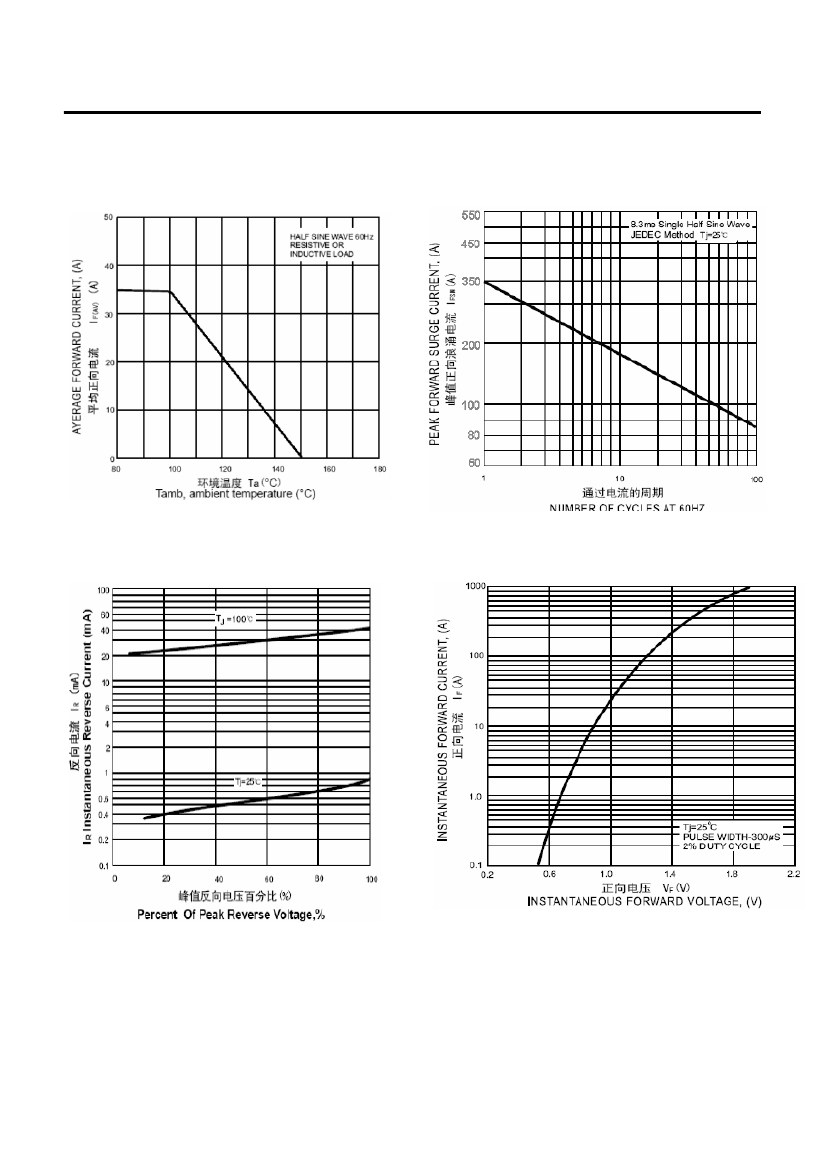

FIG. 1 –最大正向平均电流降额
FIG. 1 –MAXIMUM AVERAGE FORWARD CURRENT
DERATING
FIG. 2 –最大非重复正向浪涌电流
FIG. 2 –MAXIMUM NON-REPETITIVE FORWARD
SURGE CURRENT
FIG. 3 –反向特性曲线(典型)
FIG. 3 – TYPICA REVERSE CHARACTERISTICS
FIG. 4–正向特性曲线(典型)
FIG.4 – TYPICA FORWARD CHARACTERISTICS
