BD402N: Description40 AMP BLOCK DIODES; File Size195KB，2 Pages; ManufacturerSHUNYE; Websitehttp://www.shunyegroup.com.cn/

Download Datasheet Compare View All

BD402N Overview

40 AMP BLOCK DIODES

Preview

Download Datasheet

View All

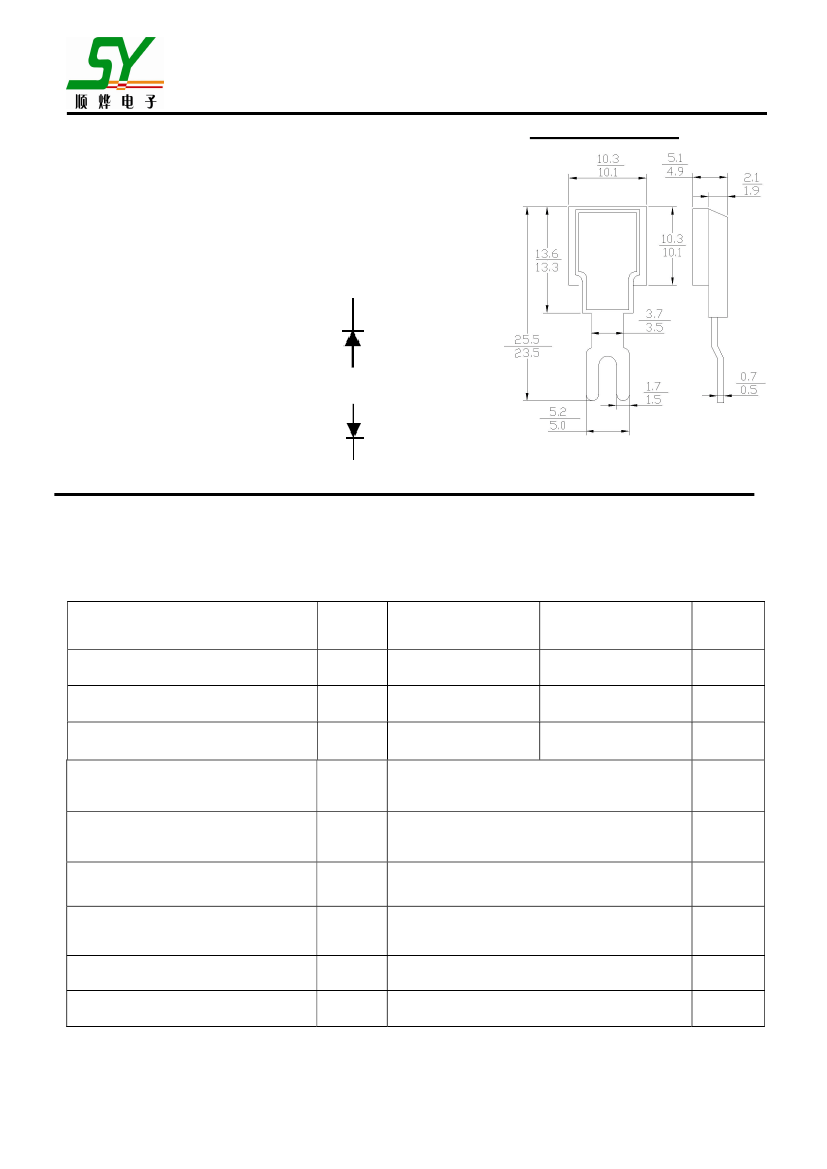

BD402N

特征

FEATURES

THRU

BD402P

BLOCK DIODE

40 AMP BLOCK DIODES

.大电流承受½力.High current capability

.高压利用½力.High voltage available

.玻璃被钝化的压模结构.Glass passivated die construction

.高浪涌承受½力.High surge current capability

.40 A

工½在表面温度是

125℃,无热损耗的情况下.

40Ampere Operation At TL=125℃ With No Thermal Runaway

机械数据

BD402-N

MECHANICAL DATA

N-Lead ,P-Case

.BD402N

代表阴性的

.BD402P

代表阳性的

BD402-P

P-Lead ,N-Case

Dimension in millimeters

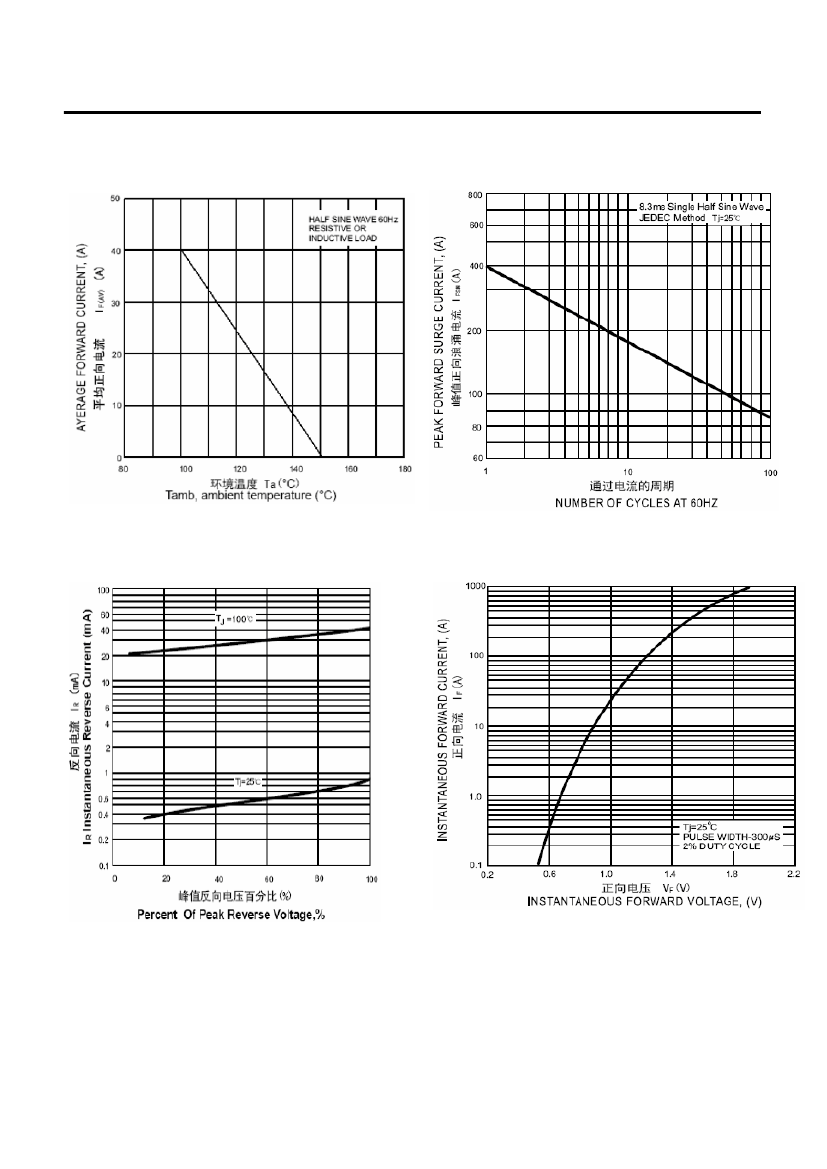

极限值和电参数

TA=

25℃除非另有规定.

单相,正半弦波,60HZ,阻抗或电感负½½.为电容装½½,减少电流的

20%

MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS

Rating at 25℃ Ambient temp. Unless otherwise specified.Single phase, half sine wave, 60HZ,resistive or inductive load.

For capacitive load, derate current by 20%

SYMBOL

最大峰值反向电压

Maximum Current Peak Reverse Voltage

最大反向有效电压

Maximum RMS Voltage

最大直流阻断电压

Maximum DC Blocking Voltage

最大正向平均整流电流

=100℃

Maximum Average Forward Rectified

Current

正向峰值浪涌电流

Peak Forward Surge Current 8.3ms Single

Sine-wave on Rated Load (JEDEC Method)

40A

直流电时最大正向瞬间电压降

Maximum Instantaneous Forward Voltage

Drop at 40A DC

最大反向漏电流

Maximum DC Reverse Current T

=25℃

at Rated DC Blocking Voltage

=100℃

典型热阻抗

Typical thermal resistance

BD402N

200

140

200

400

1.1

500

1.0

BD402P

200

140

200

UNITS

RRM

RMS

)

Volts

Amps

FSM

RΘJA

Amps

Volts

℃/W

℃

工½温度存储温度

STG/

Operating AND Storage Temperature Range

-55 to +150

www.shunyegroup.com.cn
