MBRB2045
Green Products
MBRB2045 SCHOTTKY RECTIFIER
Applications:
•
•
•
•
Switching power supply
Converters
Free-Wheeling diodes
Reverse battery protection
Features:
•
•
•
•
•
•
•
•
•
150
°C
T
J
operation
Center tap configuration
Low forward voltage drop
High purity, high temperature epoxy encapsulation for enhanced
mechanical strength and moisture resistance
High frequency operation
Guard ring for enhanced ruggedness and long term reliability
This is a Pb
−
Free Device
All SMC parts are traceable to the wafer lot
Additional testing can be offered upon request

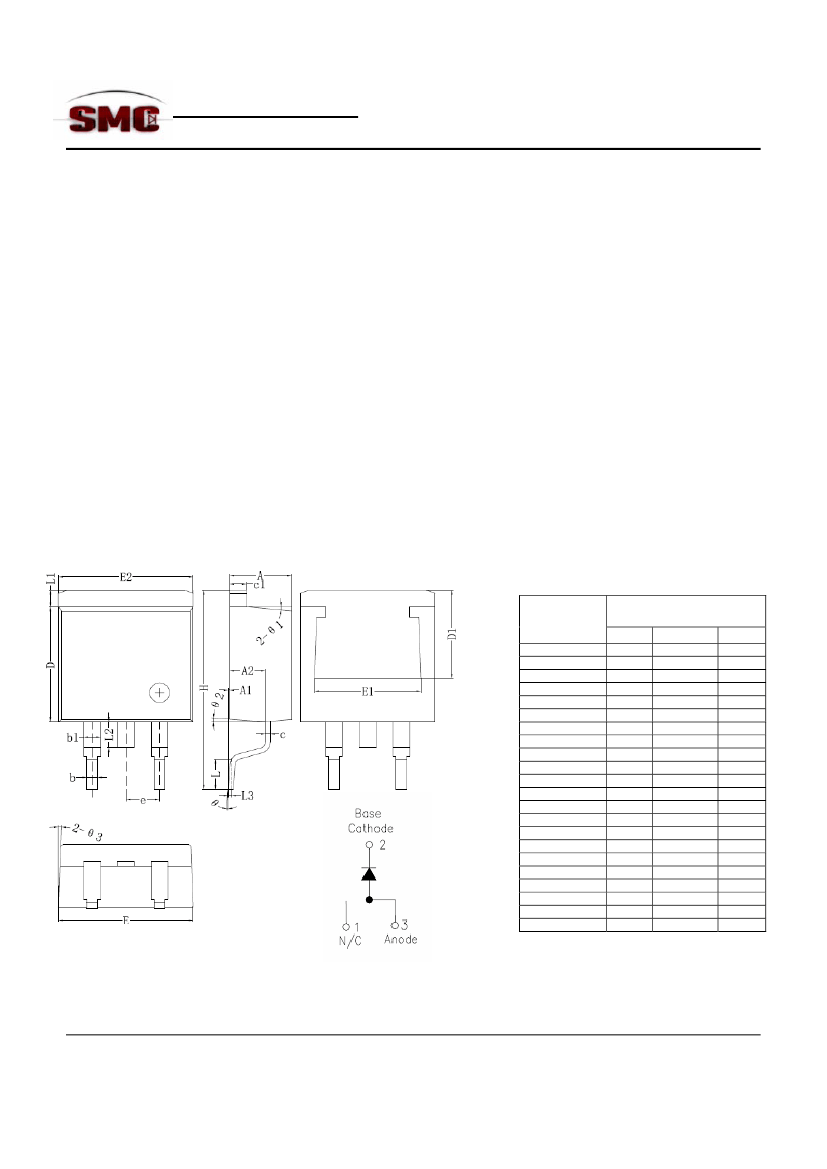

Mechanical Dimensions: In Inches / mm
Symbol
A
A1
A2
b
b1
c
c1
D
D1
E
E1
E2
e
H
L
L1
L2
L3
e
e1
e2
e3
Dimensions in
millimeters
Min. Typical Max.
4.55
0
2.59
0.71
0.36
1.17
8.55
6.40
10.01
7.6
9.98
14.6
2.00
1.17
4.70
0.10
2.69
0.81
1.27
0.38
1.27
8.70
10.16
10.08
2.54
15.1
2.30
1.27
0.25BSC
-
5°
4°
4°
4.85
0.25
2.89
0.96
0.61
1.37
8.85
10.31
10.18
15.6
2.70
1.40
2.20
8°
0
D
2
PAK
•
Weiqi Street, Airport Development Zone, Jiangning District, Nanjing, China 211113
(86) 25-87123907
•
•
FAX (86) 25-87123900
•
World Wide Web Site - http://www.sangdest.com.cn
•
E-Mail Address - sales@ sangdest.com.cn
•
SANGDEST
MICROELECTRONICS
Technical Data
Data Sheet N0042, Rev. -
MBRB2045
Green Products
Marking Diagram:
Where XXXXX is YYWWL
MBR
B
20
45
SSG
YY
WW
L
= Device Type
= Package type
= Forward Current (20A)
= Reverse Voltage (45V)
= SSG
= Year
= Week
= Lot Number
Cautions：
Molding resin
Epoxy resin UL:94V-0
Ordering Information:
Device
MBRB2045
Package
D²PAK
(Pb-Free)
Shipping
800pcs / reel
For information on tape and reel specifications, including part orientation and tape sizes, please refer to our Tape and Reel Packaging
Specification
Maximum Ratings:
Characteristics
Peak Inverse Voltage
Max. Average Forward
Max. Peak One Cycle
Non-Repetitive Surge Current
Symbol
V
RWM
I
F(AV)
I
FSM
Condition
-
@T
C
= 105°C, Rated V
R
8.3 ms, half Sine pulse
Max.
45
20
252
Units
V
A
A
•
Weiqi Street, Airport Development Zone, Jiangning District, Nanjing, China 211113
(86) 25-87123907
•
•
FAX (86) 25-87123900
•
World Wide Web Site - http://www.sangdest.com.cn
•
E-Mail Address - sales@ sangdest.com.cn
•
SANGDEST
MICROELECTRONICS
Technical Data
Data Sheet N0042, Rev. -
MBRB2045
Green Products
Electrical Characteristics:
Characteristics
Max. Forward Voltage Drop*
Max. Reverse Current
Max. Junction Capacitance
Typical Series Inductance
Max. Voltage Rate of Change
*
Pulse Width < 300µs, Duty Cycle <2%
Symbol
V
F1
V
F2
I
R1
I
R2
C
T
L
S
dv/dt
Condition
@ 20A, Pulse, T
J
= 25
°C
@ 20A, Pulse, T
J
= 125
°C
@V
R
= rated V
R
T
J
= 25
°C
@V
R
= rated V
R
T
J
= 100°C
@V
R
= 5V, T
C
= 25
°C
f
SIG
= 1MHz
Measured lead to lead 5 mm from
package body
-
Max.
0.60
0.58
1
50
900
8.0
10,000
Units
V
V
mA
mA
pF
nH
V/μs
Thermal-Mechanical Specifications:
Characteristics
Junction Temperature Range
Storage Temperature Range
Maximum Thermal
Resistance Junction to Case
Maximum Thermal
Resistance, Junction to
Case(Per package)
Maximum Thermal
Resistance, Case to Heat
Sink
Approximate Weight
Case Style
Symbol
T
J
T
stg
R
θJC
R
θJC
Condition
-
-
DC operation
DC operation
Specification
-55 to +150
-55 to +150
1.5
50
Units
°C
°C
°C/W
°C/W
°C/W
R
θCS
wt
Mounting surface, smooth and
greased
-
D²PAK
0.50
1.85
g
•
Weiqi Street, Airport Development Zone, Jiangning District, Nanjing, China 211113
(86) 25-87123907
•
•
FAX (86) 25-87123900
•
World Wide Web Site - http://www.sangdest.com.cn
•
E-Mail Address - sales@ sangdest.com.cn
•
SANGDEST
MICROELECTRONICS
Technical Data
Data Sheet N0042, Rev. -
MBRB2045
Green Products
10000
Junction Capacitance-CT(PF)
100
10
Reverse Current (MA)
TJ=125℃
1
1000
TJ=25℃
0.1
0.01
TJ=25℃
100
0
5
10
15
20
25
30
35
40
Reverse Voltage-VR(V)
0.001
10
20
30
40
50
60
70
80
90
100
Reverse Voltage (%)
Fig.1-Typical Junction Capacitance
Fig.2-Typical Reverse Characteristics
Instantaneous Forward Current(A)
100
TJ=125℃
10
TJ=25℃
1
0.2
0.3
0.4
Forward Voltage Drop(V)
0.5
0.6
Fig.3-Typical Instantaneous Forward Voltage Characteristics
•
