Printview: Angled female connector; with fixing flanges; 15-pole; Pin spacing 5 mm / 0.197 in; 100%
protected against mismating; for panel mounting; for screw or similar mounting types - Item No.: 721-
315/031-000
.
Angled female connector; with fixing flanges; 15-pole; Pin spacing
5 mm / 0.197 in; 100% protected against mismating; for panel
mounting; for screw or similar mounting types
Item No.: 721-315/031-000
.
Angled female connector; with fixing flanges; 15-pole; Pin spacing 5 mm / 0.197 in; 100% protected against
mismating; for panel mounting; for screw or similar mounting types
.
Marking
.
Business data
Supplier
Item no.
GTIN / EAN
Content
Order amount
Customer item number
.
Notes
WAGO
721-315/031-000
4044918574518
1
10
Item description:Universal connection for all conductor typesAvailable with snap-in mounting feet or fixing flanges for
panel or through-panel mountingWith snap-in mounting feet and mounting adapter for DIN 35 rail mountingEasy
conductor termination, even when halves are mated100% protected against mismating
Technical data
Miscellaneous
No. of poles
Pin spacing
Total number of connection points
Total number of potentials
Ratings according to 1
15
5 mm (0.197 in %)
15
15
IEC/EN 60664-1
WAGO Kontakttechnik GmbH & Co. KG
1
Printview: Angled female connector; with fixing flanges; 15-pole; Pin spacing 5 mm / 0.197 in; 100%
protected against mismating; for panel mounting; for screw or similar mounting types - Item No.: 721-
315/031-000
Technical data
Rated voltage (III / 3) [V]
Rated surge voltage (III / 3) [kV]
Rated voltage (III / 2) [V]
Rated surge voltage (III / 2) [kV]
Rated voltage (II / 2) [V]
Rated surge voltage (II / 2) [kV]
Nominal current [A]
Number of individual connection objects at the product
Number of levels
Connection technology
Number of connection points
Actuation type
Solid sizes
Fine-stranded wires
Fine-stranded wires with insulated ferrule
Fine-stranded wires with uninsulated ferrule
Strip length
Material group
Insulating material
Flammability rating per UL 94
Limit temperature range
Clamping spring material
Contact material
Contact plating
Fire load [MJ]
Weight [g]
Width
Height
Length
Type of mounting
Mounting type
320 [V]
4 [kV]
250 [V]
4 [kV]
630 [V]
4 [kV]
12 [A]
1
1
CAGE CLAMP®
1
Betätigungswerkzeug
0.08 … 2.5 mm² / 28 … 12 AWG
0.08 … 2.5 mm² / 28 … 12 AWG
0.25 … 1.5 mm² / …
0.25 … 2.5 mm² / …
8 … 9 mm / 0.31 … 0.35 in
I
Polyamide 66 (PA 66)
V0
-60 … 85 C
Chrome-nickel spring steel (CrNi)
Copper alloy
tin-plated
0.478 [MJ]
21.787 [g]
89.8 mm / 3.535 in
13.1 mm / 0.516 in
27.25 mm / 1.073 in
Oberflächenmontage
Rastfuß
WAGO Kontakttechnik GmbH & Co. KG
2
Printview: Angled female connector; with fixing flanges; 15-pole; Pin spacing 5 mm / 0.197 in; 100%
protected against mismating; for panel mounting; for screw or similar mounting types - Item No.: 721-
315/031-000

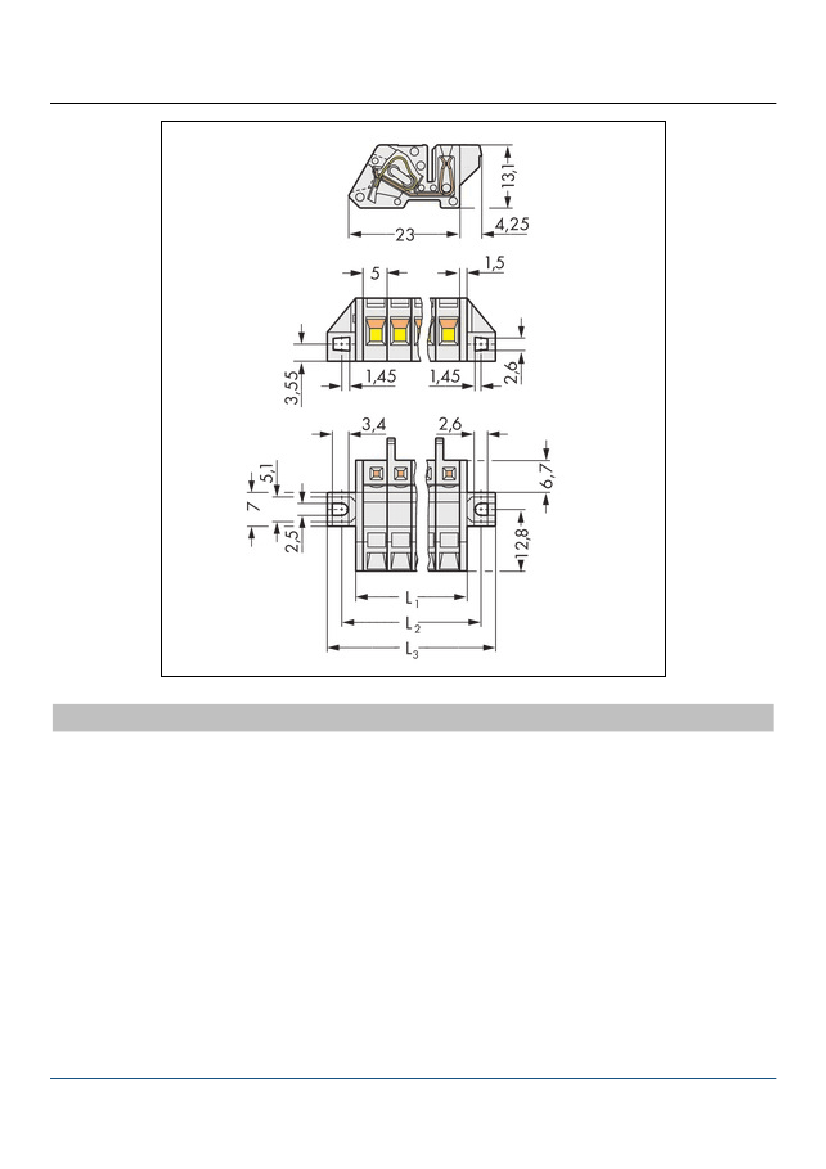

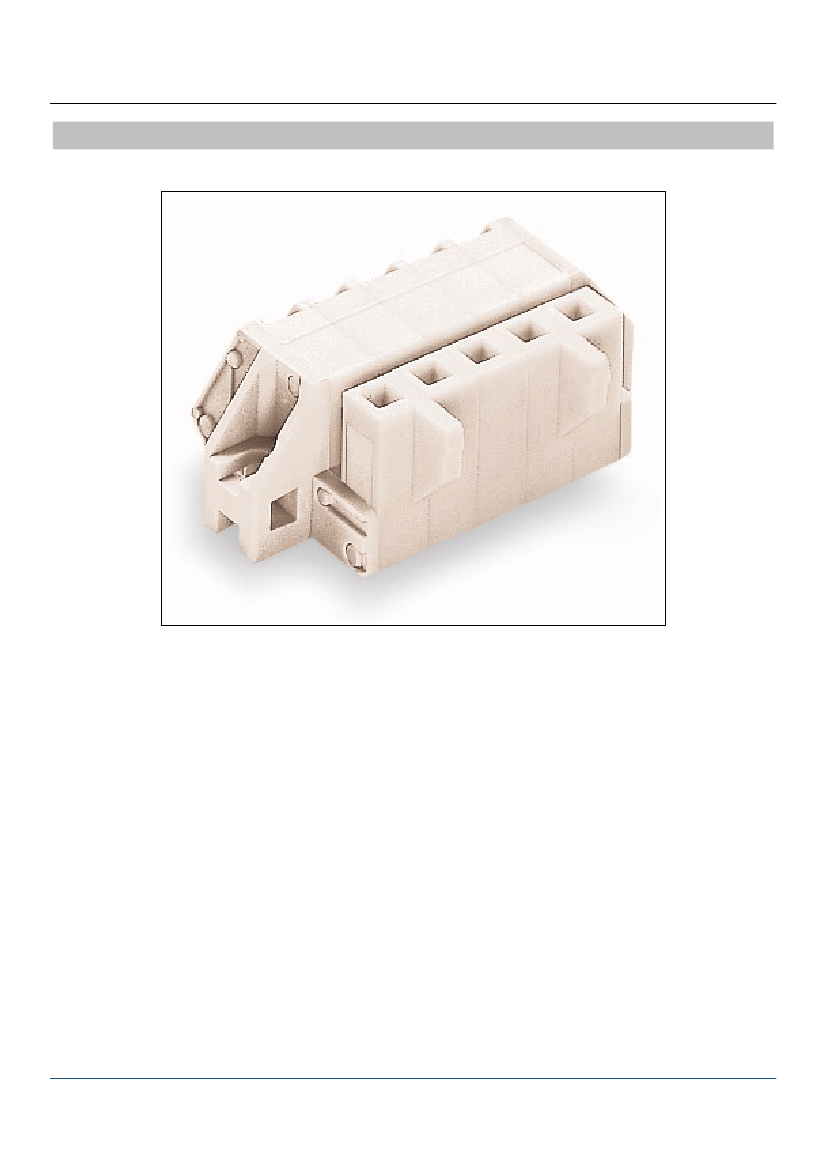

Images & drawings
WAGO Kontakttechnik GmbH & Co. KG
3
Printview: Angled female connector; with fixing flanges; 15-pole; Pin spacing 5 mm / 0.197 in; 100%
protected against mismating; for panel mounting; for screw or similar mounting types - Item No.: 721-
315/031-000
.
Address
WAGO Kontakttechnik GmbH & Co. KG
Hansastr. 27
32423 Minden
Telefon: 0571/887-0
Fax: 0571/887-169
http://www.wago.com
© WAGO Kontakttechnik GmbH & Co. KG
Technische Änderungen und Irrtümer vorbehalten.
