XP-71EA0032.768KHZ datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Passive components> oscillator> XP-71EA0032.768KHZ

Preview

XP-71EA0032.768KHZ: DescriptionCMOS Output Clock Oscillator,; CategoryPassive components oscillator; File Size132KB，1 Pages; ManufacturerMatel Sas

Download Datasheet Parametric View All

XP-71EA0032.768KHZ Overview

CMOS Output Clock Oscillator,

XP-71EA0032.768KHZ Parametric

Parameter Name	Attribute value
Objectid	7221326020
Reach Compliance Code	unknown
Other features	TRI-STATE; ENABLE/DISABLE FUNCTION
maximum descent time	10 ns
Frequency Adjustment - Mechanical	NO
frequency stability	100%
Installation features	SURFACE MOUNT
Nominal operating frequency	0.032768 MHz
Maximum operating temperature	70 °C
Minimum operating temperature	-20 °C
Oscillator type	CMOS
Output load	15 pF
physical size	3.2mm x 2.5mm x 1.0mm
longest rise time	10 ns
Maximum supply voltage	1.89 V
Minimum supply voltage	1.71 V
Nominal supply voltage	1.8 V
surface mount	YES
maximum symmetry	45/55 %

Preview

Download Datasheet

View All

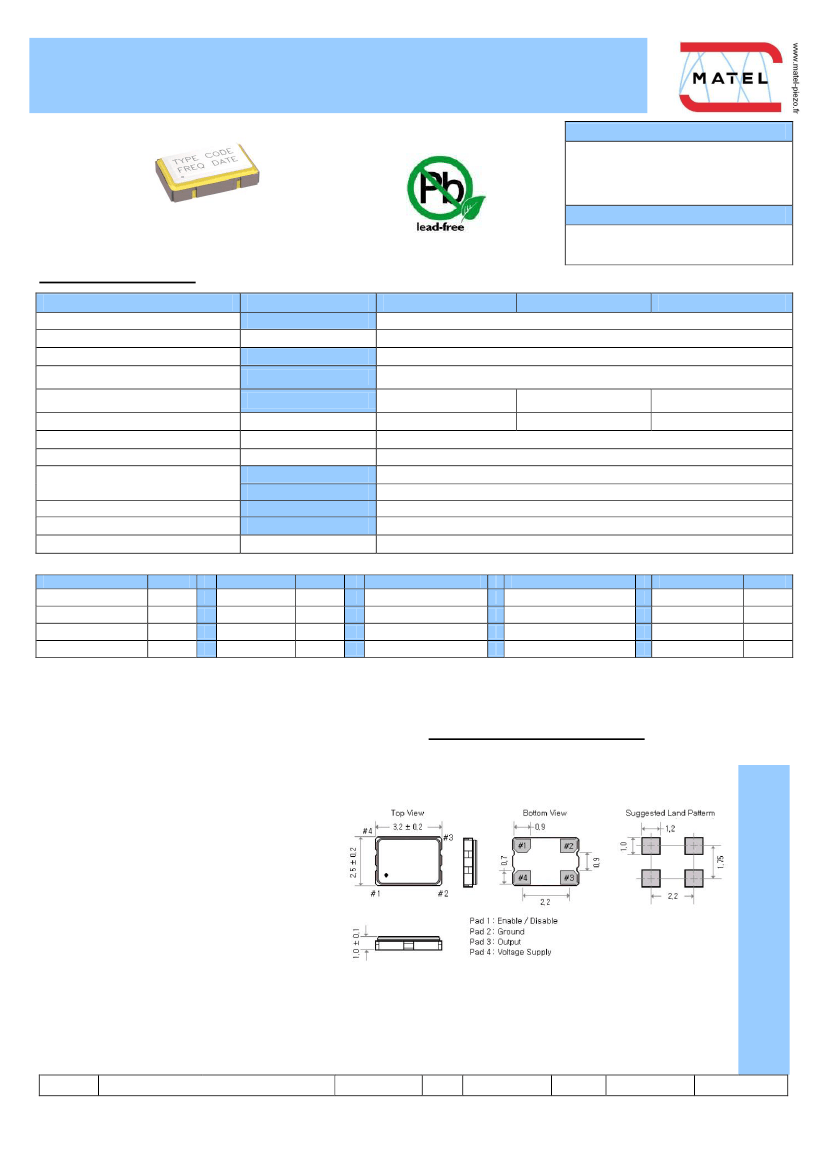

SMD Clock Oscillator CXO

3.2x2.5x1.0

XP-21 & XP-41 & XP-71

FEATURES

14 to 100 KHz

CMOS

Low current consumption

Tri state fonction

APPLICATIONS

Microprocessor Clocks

Timing application

Electrical Parameters

Parameters

Frequency Range

Frequency Stability*

Storage Temperature Range

Operating Temperature Range

Power Supply Voltage

Supply Current

Output Symmetry

Rise Time/Fall Time

Output Voltage

Output Load CMOS

Start-up Time

Ageing (First Year)

Temperature Range

-10 + 70°C

- 20 + 70°C

- 40 + 85°C

Code

Conditions

All Conditions*

XP-21

XP-41

XP-71

14 to 100 KHz Popular frequency 32.768KHz

±25 ppm, ±30 ppm, ±50 ppm, ±100 ppm

-55°C

~ 125°C

-10 ~ +70°C, -20 ~ +70°C, -45 ~ +85°C

+3.3V ± 5%

100 µA Max

+2.5V ± 5%

90 µA Max

45/55%

10 nS Max

90% V

DD

Min

10% V

DD

Max

15 pF Max

5 mS Max

± 3 ppm Max

Internal Code

+1.8V ± 5%

80 µA Max

At ½ V

DD

10% ↔ 90% of V

DD

25°C ± 3°C

Stability*

± 25 ppm

± 30 ppm

± 50 ppm

± 100 ppm

Code

Internal Code

Option

Code

D

E

H

D

Y

C

A

0

*Includes: 25°C calibration, operating temperature range, input voltage and load changes, ageing, shocks and vibrations (first year)

Example: XP-21HD00 32.768KHz

Mechanical Dimensions (mm)

TYPE

XP-21& XP-41& XP-71

REVISION

01

02/12/2015

CHECKED

PB

DATE

All specifications are subject to change without notice

SMD CXO
