RV-8803-C7
Real Time Clock Module with I
2
C-Bus

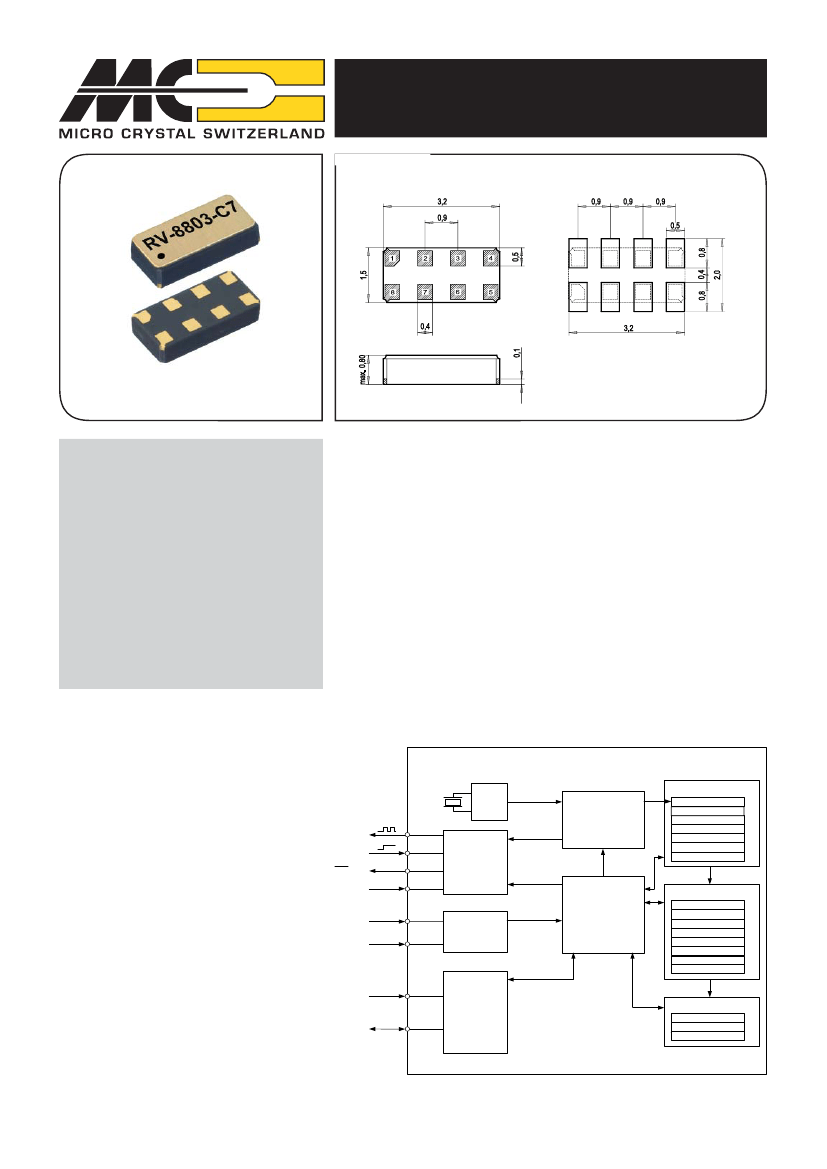

DIMENSIONS
Package:
Recommended Solder Pad:
100% leadfree, RoHS - compliant
All dimensions in mm typical
Extremely Accurate RTC Module
with embedded Quartz Crystal.
Ultra Low Power consumption
I
2
C Interface
Automotive qualified, according to
AEC-Q200 Rev. C
Temperature Compensation:
T
emperature
0°C to +50°C
-40°C to +85°C
Time Deviation
± 0.13 s/day ± 1.5 ppm
± 0.26 s/day ± 3.0 ppm
DESCRIPTION:
The RV-8803-C7 is an high accuracy, ultra low power Real-Time-Clock
Module with embedded 32.768 kHz Crystal.
High accuracy, high stability is achieved by factory calibrated, temperature
compensated DTCXO and results to time-accuracy of ± 3.0 ppm accross
the temperature range from -40°C to +85°C.
Standard Clock & Calendar function tracks second, minute, hour in 24-
hour format, year and leap -year flags. Beside standard RTC function like
Timer & Alarm, it includes integrated Temperature Sensor, Time Stamp
Event Input and User RAM and offers I2C-bus (2-wire Interface).
RV-8803-C7 is the smallest and offers the lowest current consumption
among all temperature compensated RTC modules.
Lowest current consumption &
smallest temperature compensated
RTC Module!
For pick-and-place equipment, the parts are available in 12 mm tape:
7” (178 mm) reel with 1'000 parts
7” (178 mm) reel with 3'000 parts
BLOCKDIAGRAM:
32.768 kHz
Xtal
OSC
DIVIDER
and
TEMPERATURE
COMPENSATION
LOGIC
CLOCK & CALENDAR
Seconds
Minutes
Hours
Weekday
Date
Month
Year
00
2
CLKOUT
CLKOE
INT
EVI
4
6
7
INPUT /
OUTPUT
CONTROL
TEMPERATUR
SENSOR
&
SYSTEM
CONTROL
LOGIC
06
ALARM & TIMER
Minutes Alarm
Hour Alarm
Weekday Alarm
Day Alarm
Month Alarm
Year Alarm
Timer Low
Timer High
08
V
DD
V
SS
3
5
POWER UP
RESET
0C
SCL
8
I
2
C-BUS
2-wire
CONTROL & FLAG
CTRL Extension
CTRL Flag
CTRL_0
0D
0F
SDA
1
Serial
Interface
ELECTRICAL CHARACTERISTICS
AT 25°C:
Supply voltage
Supply voltage
Current consumption
CLKOUT frequency
Freq. Tol:
Freq. Tol:
Freq.vs.Temp.
Aging first year
Time accuracy
Temperature
Compensated
1 Hz
32768 Hz
Symbol
V
DD
V
DD
I
DDO
F
CLKOUT
F/F
F/F
TOPR
F/F
TOPR
F/F
Condition
Time keeping
Temp. comp.
V
DD
= 3V
programmable
-40 to +85°C
@ 25°C
-40 to +85°C
@ 25°C
0 to +50°C
Min. Typ. Max
1.5
1.5
240
0
± 10
5.5
5.5
400
±3
± 20
±3
Unit
V
V
nA
Hz
ppm
ppm
ppm
ppm
32768 / 1024 / 1
–0.035
ppm
/
°C²
(T - T
0
)
2
±10%
±0.13 s/day
±1.5
ppm
t/t
-40 to +85°C
±0.26 s/day
±3.0
ppm
ENVIRONMENTAL
CHARACTERISTICS:
Storage temp. range
Operating temperature range
Shock resistance
Vibration resistance
PACKAGE, TERMINATIONS AND
PROCESSING:
Package-Type
SON 8-pin
FREQUENCY TEMPERATURE
CHARACTERISTICS:
25.0
Conditions
–55 to +125°C
–40 to +85°C
Max. Dev.
F/F 5000 g, 0.3 ms, ½ sine
F/F
Termination
For SMD mounting
Au plated pads
20 g / 10–2000 Hz
± 5 ppm
± 5 ppm
Processing
Reflow soldering
260°C/20 s max.
0.0
-25.0
-50.0
Dt/t [ppm]
-75.0
-100.0
-125.0
-150.0
-175.0
-50.0
-40.0
-30.0
-20.0
-10.0
0.0
10.0
20.0
30.0
40.0
50.0
60.0
70.0
80.0
90.0
Temperature [°C]
PIN CONNECTIONS
TOP VIEW:
Production Date Code
#8
#5
M 303 A 1
8803
#1
Pin 1 Index
#4
Part Designation
Pin
1
2
3
4
5
6
7
8
Connection
SDA
Serial Data
CLKOUT Clock Output
Supply Voltage
V
DD
CLKOE Clock Output Enable
Ground
V
SS
INT
Interrupt Output
EVI
Event Input
SCL
Serial Clock Input
All specifications subject to change without notice.
Micro Crystal AG
Mühlestrasse 14
CH-2540 Grenchen
Switzerland
Tel.
+41 32 655 82 82
Fax
+41 32 655 82 83
sales@microcrystal.com
www.microcrystal.com
Version 2.0/01.2015
