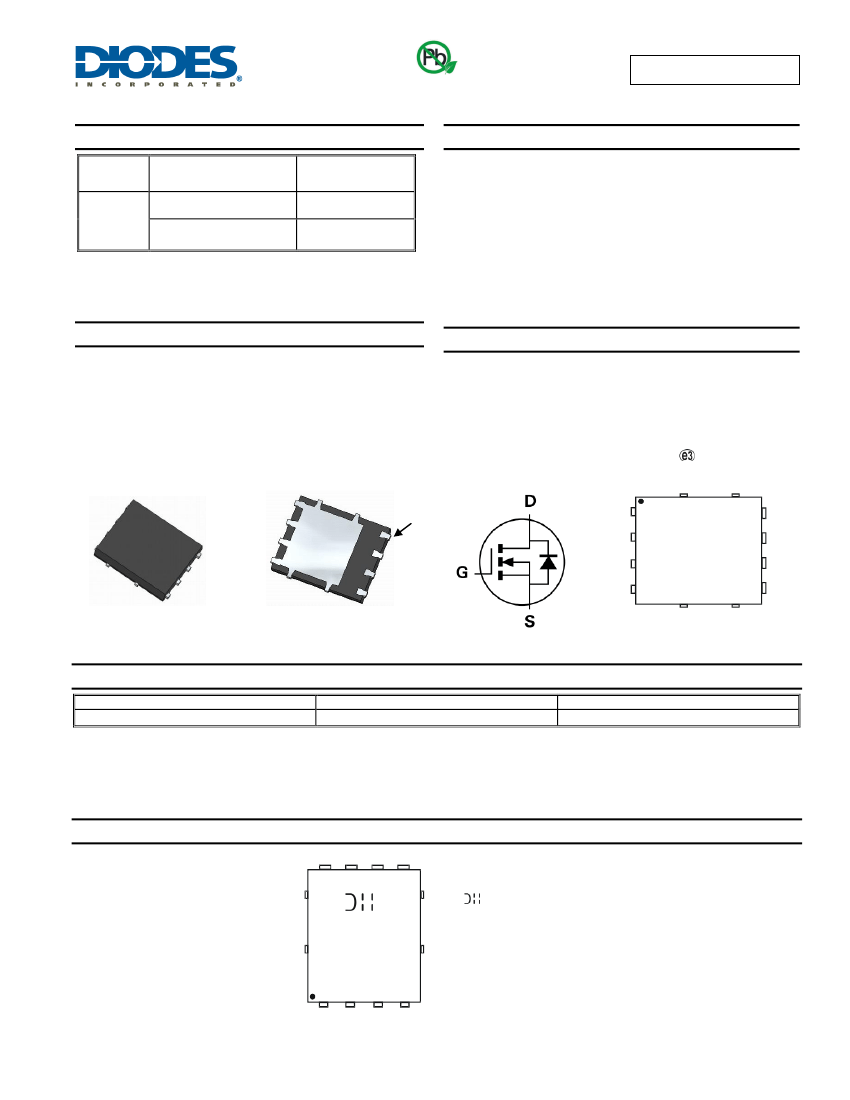

Small Form Factor Thermally Efficient Package Enables Higher
Density End Products
100% Unclamped Inductive Switching – Ensures More Reliability
Rated to +175° – Ideal for High Ambient Temperature
C
Environments
Lead-Free Finish; RoHS Compliant (Notes 1 & 2)
Halogen and Antimony Free. “Green” Device (Note 3)
Qualified to AEC-Q101 Standards for High Reliability
PPAP Capable (Note 4)
NEW PRODUCT
ADVANCE INFORMATION
30V
6mΩ @ V
GS
= 4.5V
Description and Applications
This MOSFET is designed to meet the stringent requirements of
automotive applications. It is qualified to AEC-Q101, supported by a
PPAP and is ideal for use in:
Backlighting
Power Management Functions
DC-DC Converters
POWERDI 5060-8
Pin1
®
Mechanical Data
Case: POWERDI
®
5060-8
Case Material: Molded Plastic, "Green" Molding Compound.
UL Flammability Classification Rating 94V-0
Moisture Sensitivity: Level 1 per J-STD-020
Terminal Connections Indicator: See Diagram
Terminals: Finish
Matte Tin Annealed over Copper Leadframe.
Solderable per MIL-STD-202, Method 208
Weight: 0.097 grams (Approximate)
S
S
S
G
D
D
D
D
Top View
Bottom View
Internal Schematic
Top View
Pin Configuration
Ordering Information
(Note 5)
Part Number
DMTH3004LPSQ-13
Notes:
Case
POWERDI 5060-8
®
Packaging
2,500/Tape & Reel
1. EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant. All applicable RoHS exemptions applied.
2. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green"
and Lead-free.
3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and
<1000ppm antimony compounds.
4. Automotive products are AEC-Q101 qualified and are PPAP capable. Refer to http://www.diodes.com/product_compliance_definitions.html.
5. For packaging details, go to our website at http://www.diodes.com/products/packages.html.
Marking Information
D
D
D
D
H3004LS
YY WW
= Manufacturer’s Marking
H3004LS = Product Type Marking Code
YYWW = Date Code Marking
YY = Year (ex: 15 = 2015)
WW = Week (01 to 53)
S
PowerDI is a registered trademark of Diodes Incorporated.
