100DP7T6B11M1QE

Description
Toggle Switch, DPDT, On-on-(on), 5A, 28VDC, Solder Lug Terminal, Toggle Bat Actuator, Panel Mount
CategoryMechanical and electronic products    switch
File Size3MB,10 Pages
ManufacturerE-Switch
Websitehttp://www.e-switch.com
Download Datasheet Parametric View All

100DP7T6B11M1QE Online Shopping

Suppliers Part Number Price MOQ In stock
100DP7T6B11M1QE - - View Buy Now

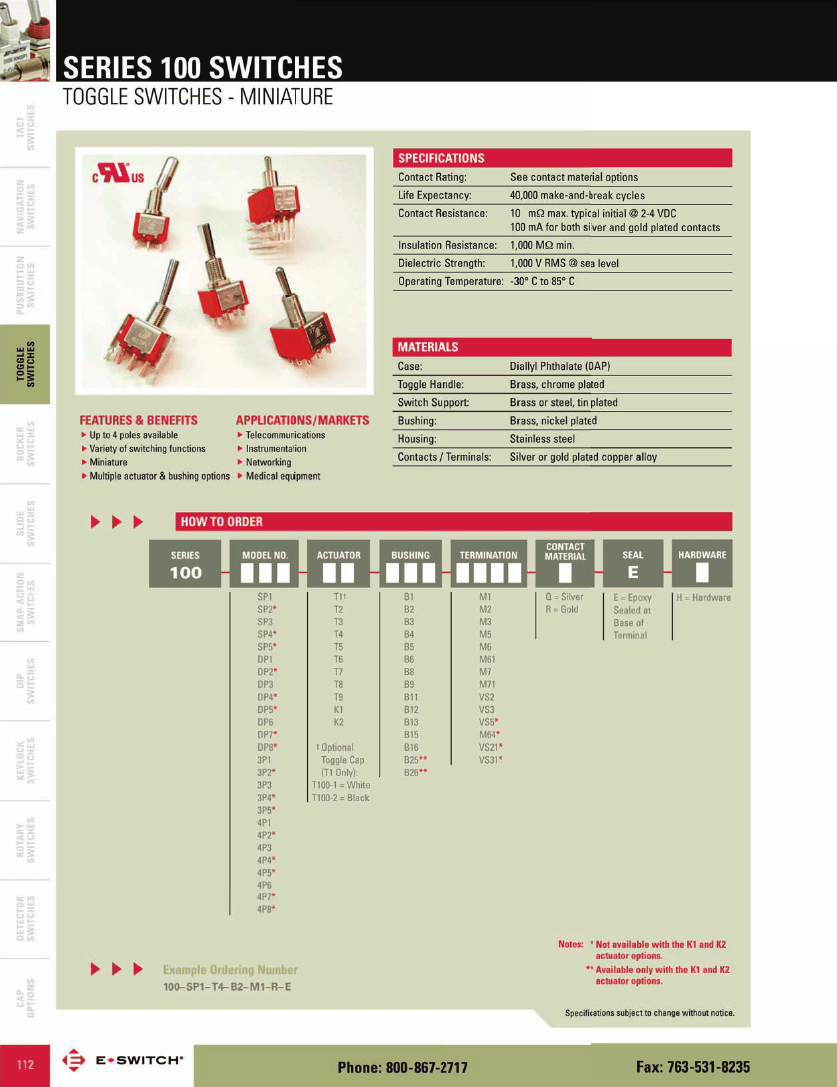

100DP7T6B11M1QE Overview

Toggle Switch, DPDT, On-on-(on), 5A, 28VDC, Solder Lug Terminal, Toggle Bat Actuator, Panel Mount

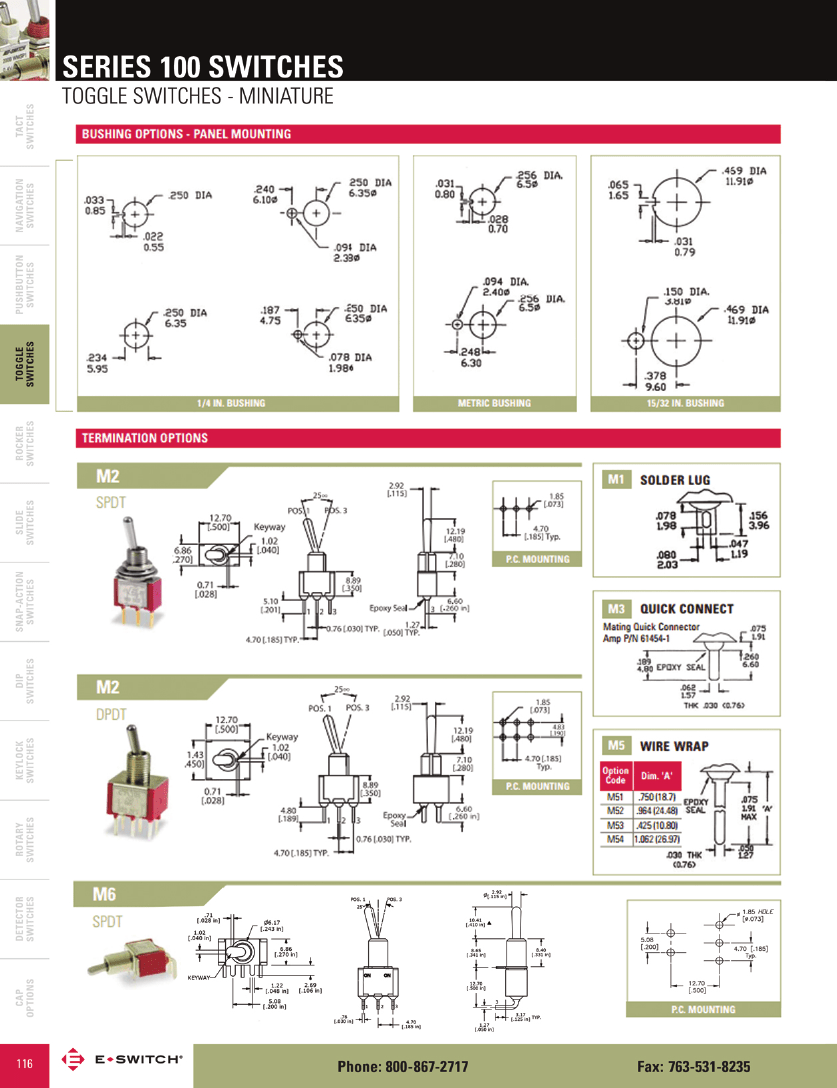

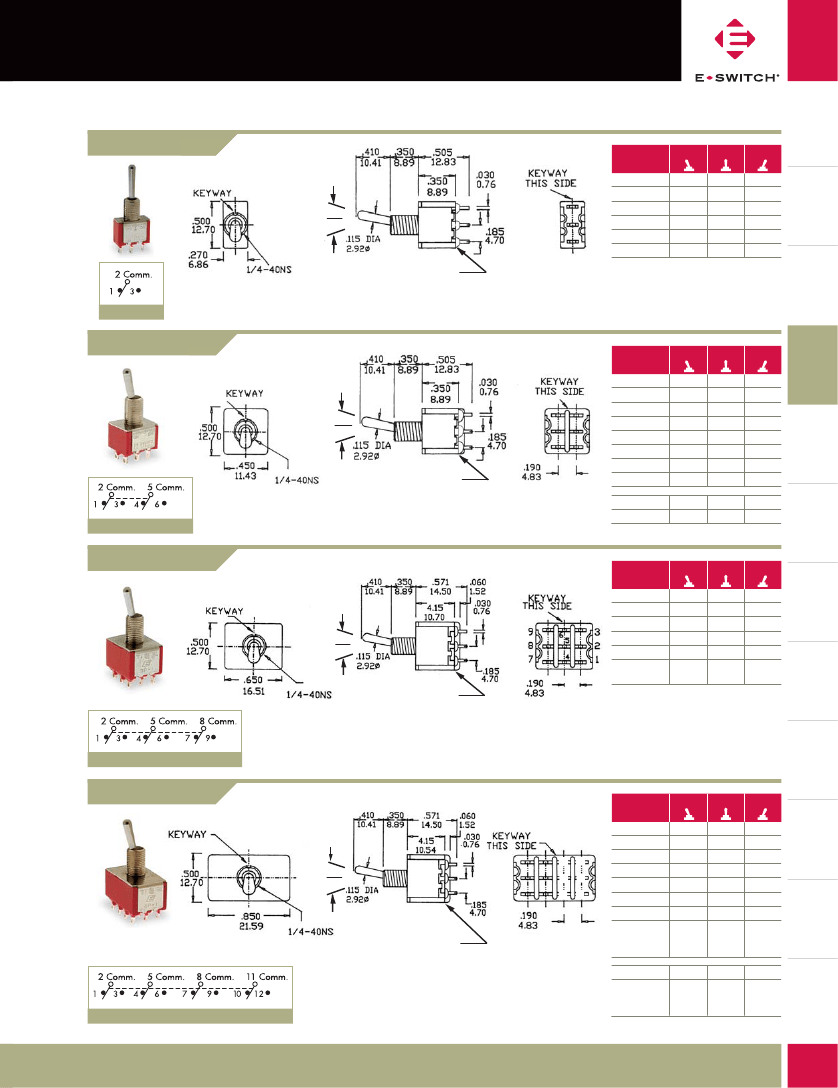

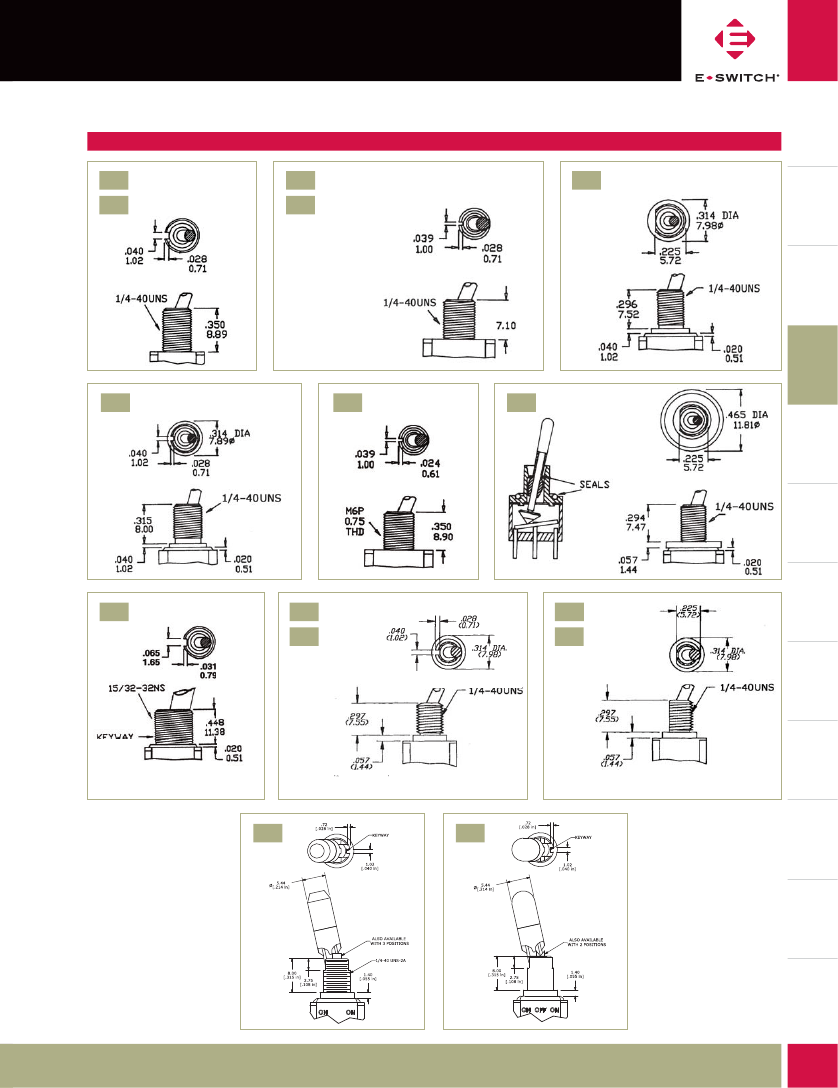

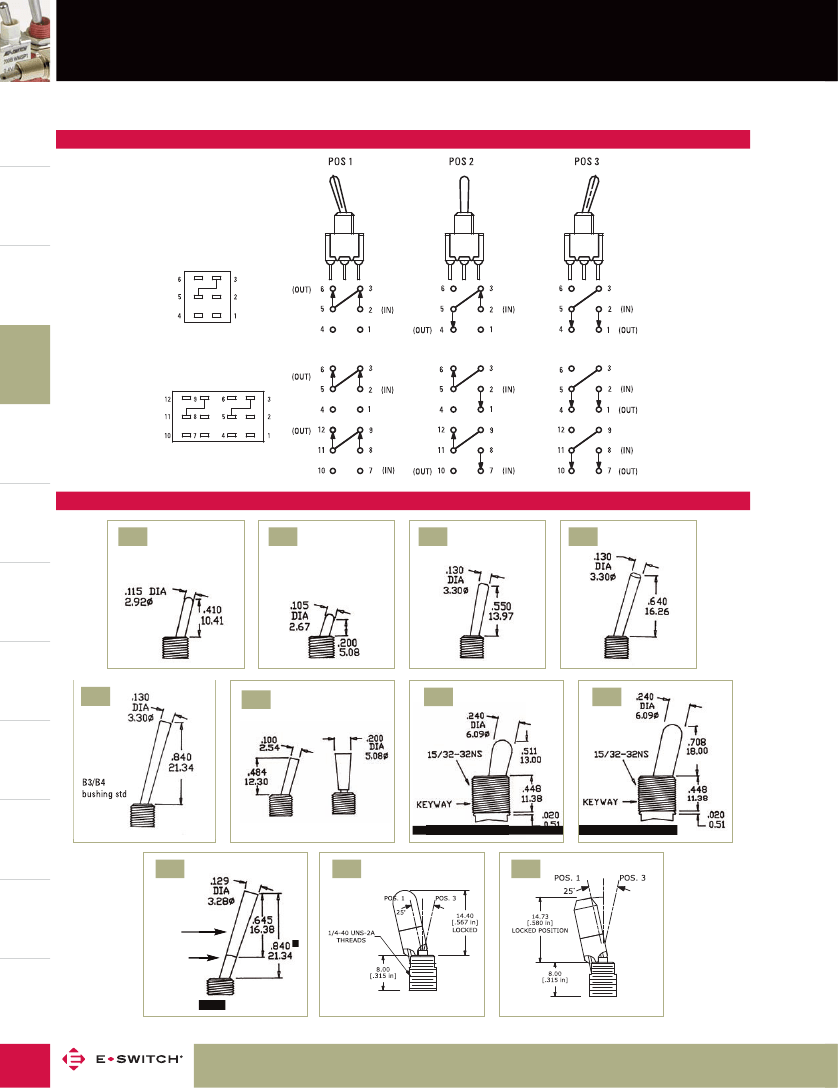

100DP7T6B11M1QE Parametric

Parameter NameAttribute value
Reach Compliance Codecompli
ECCN codeEAR99
Executor completedCHROME
Actuator length0.484 inch
Actuator materialBRASS
Actuator typeTOGGLE BAT
body width11.43 mm
Body length or diameter12.7 mm
Casing diameter0.25 inch
Nozzle length0.297 inch
Casing type1/4-40
center contact materialCOPPER ALLOY
Center contact platingSILVER
Contact (AC) maximum rated R load2A@250VAC
Maximum contact current (AC)2 A
Maximum contact current (DC)5 A
Contact (DC) maximum rated R load5A@28VDC
Contact functionON-ON-(ON)
Contact resistance0.01 mΩ
Maximum contact voltage (AC)250 V
Maximum contact voltage (DC)28 V
Dielectric withstand voltage1000VRMS V
Electrical life40000 Cycle(s)
Shell materialSTAINLESS STEEL
Insulation resistance1000000000 Ω
insulator materialDIALLYL PHTHALATE
Manufacturer's serial number100DP7T6B11M1QE
Installation featuresPANEL MOUNT
Maximum operating temperature85 °C
Minimum operating temperature-30 °C
sealEPOXY
surface mountNO
switch functionDPDT
Switch typeTOGGLE SWITCH
Terminal materialCOPPER ALLOY
Termination typeSOLDER LUG
Base Number Matches1
