MABA-011010
Transformer, 1:1.33
5 – 1200 MHz
Electrical Specifications: T
A
= 25°C, Z
0
= 75
Ω,
P
in
= 0dBm
Frequency Range
Impedance
Impedance Ratio
Insertion Loss
(Pin6 - Pin1)
Insertion Loss
(Pin6 - Pin3)
Amplitude Balance
Phase Balance
Input Return Loss
(Pin6)
5 - 500 MHz
500 - 1000 MHz
1000 - 1200 MHz
5 - 500 MHz
500 - 1000 MHz
1000 - 1200 MHz
5 - 500 MHz
500 - 1200 MHz
5 - 500 MHz
500 - 1200 MHz
ͦ
dB
dB
dB
5 - 500 MHz
500 - 1000 MHz
1000 - 1200 MHz
dB
dB
dB
dB
dB
dB
dB
dB
ͦ
-
-
-
-
-
-
-
-
-
-
20
17
15.5
MHz
Ω
5
75
1:1.33
0.95
0.95
0.98
0.90
1.00
1.30
0.06
0.1
3.0
5.0
25
21
19
1.1
1.2
1.3
1.1
1.4
1.65
0.3
0.9
±6
±8
-
-
-
1200
Rev. V2
Recommended Maximum Ratings
Input RF Power
DC Current
Operating Temperature Range
mW
mA
ºC
-40
250
200
+85
Tape & Reel Information
Qty per reel
Reel size
Tape width (W)
Pitch (P
1
)
A
0
B
0
K
0
Orientation
-
mm
mm
mm
mm
mm
mm
-
2000
330
12.00
8.00
4.5
4.5
2.73
F31
Full temperature plots available on request
Reference Application note ANI-019 for orientation
2
M/A-COM Technology Solutions Inc. (MACOM) and its affiliates reserve the right to make changes to the product(s) or information contained herein without notice.
Visit www.macomtech.com for additional data sheets and product information.
•
North America
Tel: 800.366.2266 / Fax: 978.366.2266
•
Europe
Tel: 44.1908.574.200 / Fax: 44.1908.574.300
•
Asia/Pacific
Tel: 81.44.844.8296 / Fax: 81.44.844.8298
MABA-011010
Transformer, 1:1.33
5 – 1200 MHz
Outline Drawing
SQ
Rev. V2
PCB Layout
1.
2.
3.
4.
Dimensions in mm.
Tolerance: ±0.2mm unless otherwise noted.
Model number and lot code are printed on the reel.
Plating finish: CuSn6
Application Circuit
1.33xZ
0
3
M/A-COM Technology Solutions Inc. (MACOM) and its affiliates reserve the right to make changes to the product(s) or information contained herein without notice.
Visit www.macomtech.com for additional data sheets and product information.
•
North America
Tel: 800.366.2266 / Fax: 978.366.2266
•
Europe
Tel: 44.1908.574.200 / Fax: 44.1908.574.300
•
Asia/Pacific
Tel: 81.44.844.8296 / Fax: 81.44.844.8298
MABA-011010
Transformer, 1:1.33
5 – 1200 MHz

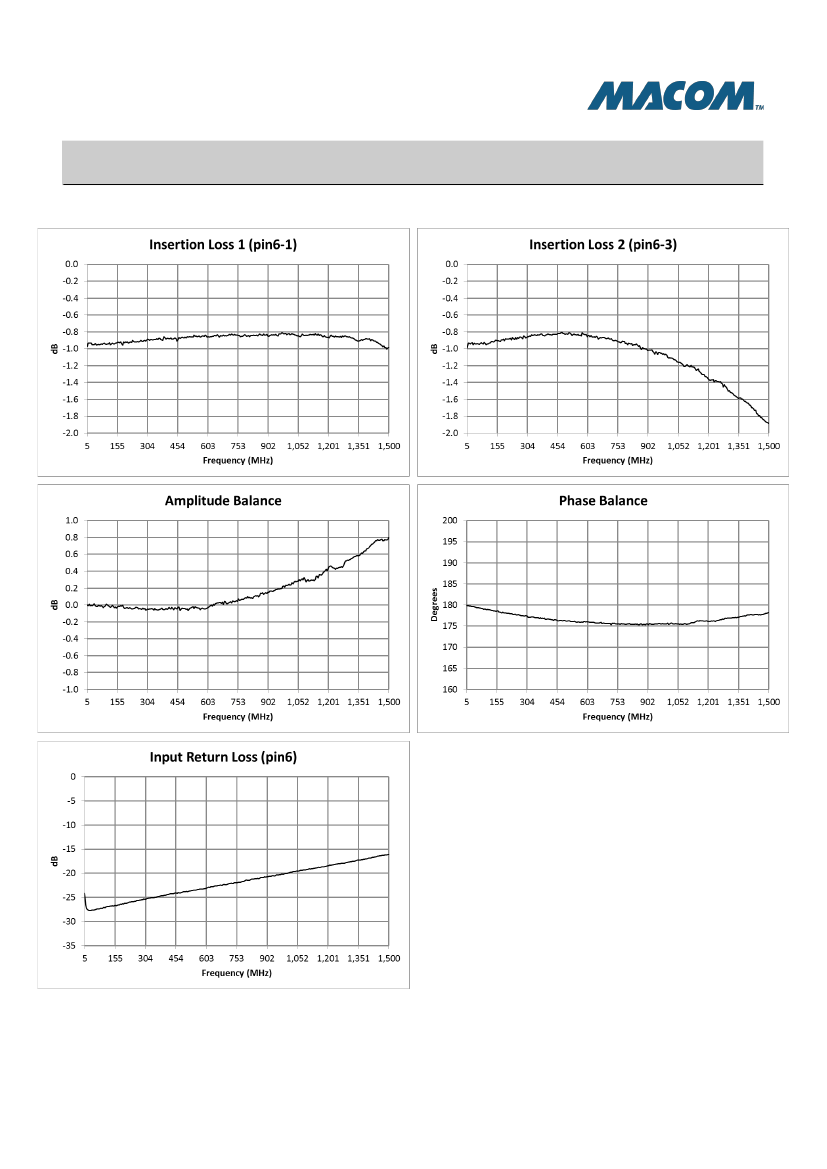

Typical Performance Curves
Rev. V2
4
Electrical Specifications: Z
0
= 75Ω, T
A
= 25°C, P
in
= 0dBm
