Suitable for all CATV, Broadband and FTTX applications.
Rev. V1
Description

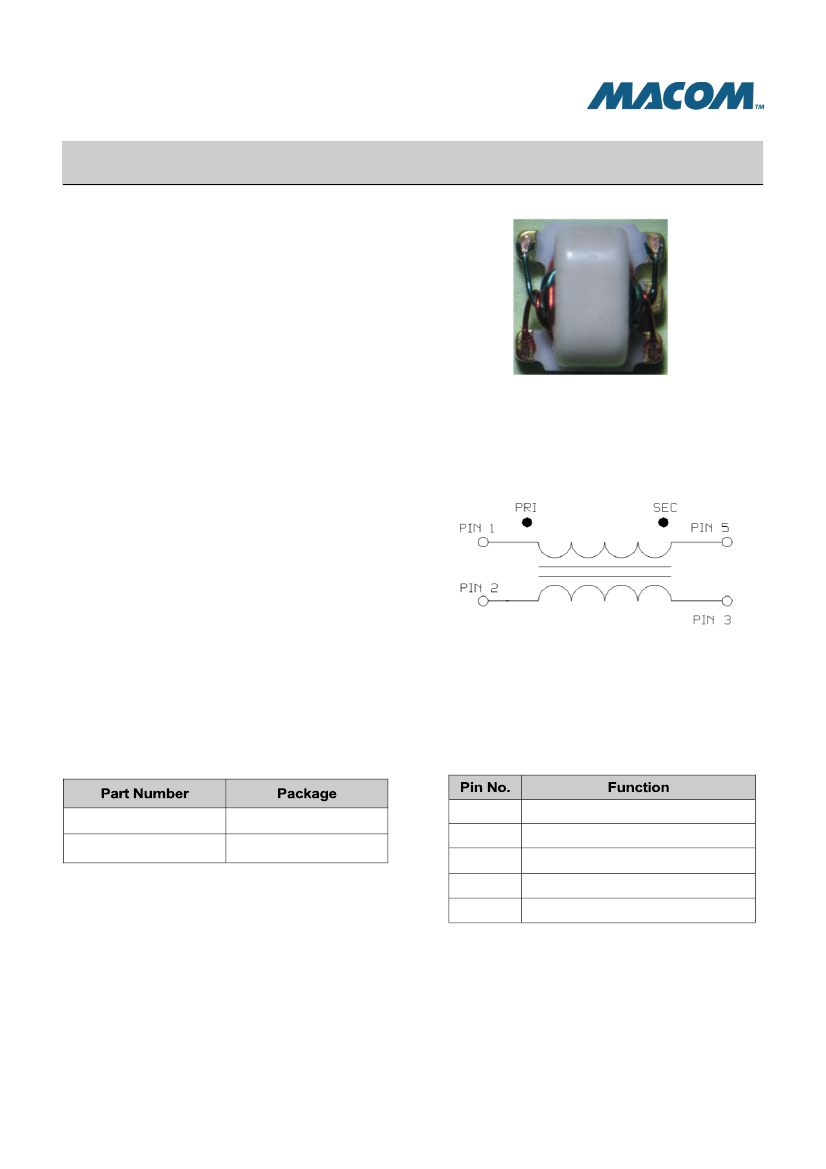

MACOM’s MABA-011042 is a 1:1 transformer. This
transformer is ideally suited for CATV Broadband
applications.
Functional Schematic
Ordering Information
Pin Configuration
MABA-011042
MABA-011042-TB
Tape & Reel
Customer test board
1
2
3
4
5
Primary Dot (ground)
Primary (input)
Secondary (output 2)
Not Connected
Secondary Dot (output 1)
1
M/A-COM Technology Solutions Inc. (MACOM) and its affiliates reserve the right to make changes to the product(s) or information contained herein without notice.
Visit www.macomtech.com for additional data sheets and product information.
•
North America
Tel: 800.366.2266 / Fax: 978.366.2266
•
Europe
Tel: 44.1908.574.200 / Fax: 44.1908.574.300
•
Asia/Pacific
Tel: 81.44.844.8296 / Fax: 81.44.844.8298
MABA-011042
1:1 Transformer
2500 – 3200 MHz
Electrical Specifications: T
A
= 25°C, Z
0
= 50
, P
in
= 0dBm
Rev. V1
Frequency Range
Impedance
Impedance Ratio
Insertion Loss 1
(Pin2
-
Pin5)
Insertion Loss 2
(Pin2
-
Pin3)
Amplitude Balance
Phase Balance
Input Return Loss
(Pin2)
2500
-
2800 MHz
2800
-
3200 MHz
2500
-
2800 MHz
2800
-
3200 MHz
2500
-
3200 MHz
2500
-
2800 MHz
2800
-
3200 MHz
2500
-
3200 MHz
MHz
2500
50
1:1
3200
dB
dB
dB
dB
dB
-
-
-
-
-
-
-
0.9
1.0
0.6
0.8
0.2
1.5
0.2
20
1.4
1.9
1.3
1.6
1.1
6.0
7.0
-
dB
10
Recommended Maximum Ratings
Input Power
DC Current
Operating Temperature Range
mW
mA
ºC
-40
500
500
+125
Full temperature plots available on request
2
M/A-COM Technology Solutions Inc. (MACOM) and its affiliates reserve the right to make changes to the product(s) or information contained herein without notice.
Visit www.macomtech.com for additional data sheets and product information.
•
North America
Tel: 800.366.2266 / Fax: 978.366.2266
•
Europe
Tel: 44.1908.574.200 / Fax: 44.1908.574.300
•
Asia/Pacific
Tel: 81.44.844.8296 / Fax: 81.44.844.8298
MABA-011042
1:1 Transformer
2500 – 3200 MHz

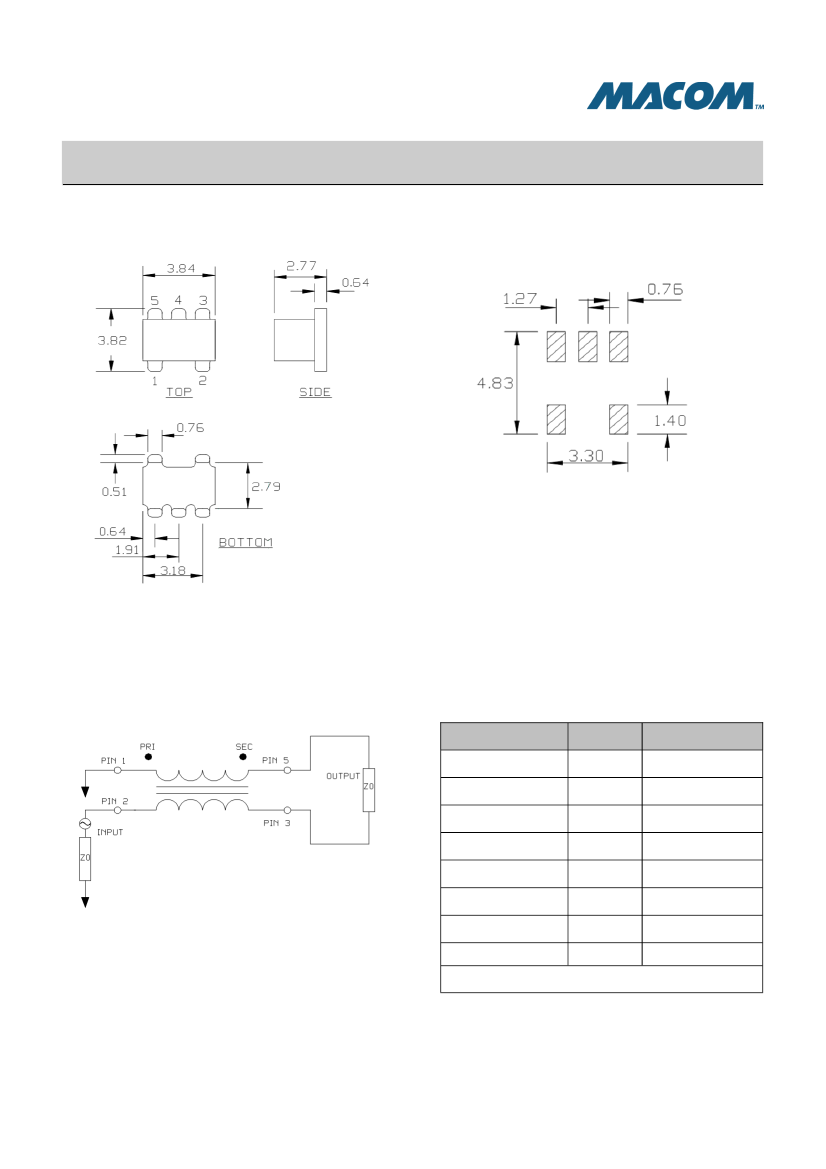

Outline Drawing
PCB Layout
Rev. V1
1.
2.
3.
4.
Dimensions in mm.
Tolerance: ±0.2mm unless otherwise noted.
Model number and lot code are printed on the reel.
Lead plating (Au)
Application circuit
Tape & Reel Information
Parameter
Qty per reel
Reel Size
Tape Width
Pitch
Ao
Bo
Ko
Orientation
Units
-
mm
mm
mm
mm
mm
mm
-
Value
2000
330
12.00
8.00
4.00
4.00
2.90
F5
Reference Application Note ANI-019 for orientation
3
M/A-COM Technology Solutions Inc. (MACOM) and its affiliates reserve the right to make changes to the product(s) or information contained herein without notice.
Visit www.macomtech.com for additional data sheets and product information.
•
North America
Tel: 800.366.2266 / Fax: 978.366.2266
•
Europe
Tel: 44.1908.574.200 / Fax: 44.1908.574.300
•
Asia/Pacific
Tel: 81.44.844.8296 / Fax: 81.44.844.8298
MABA-011042
1:1 Transformer
2500 – 3200 MHz

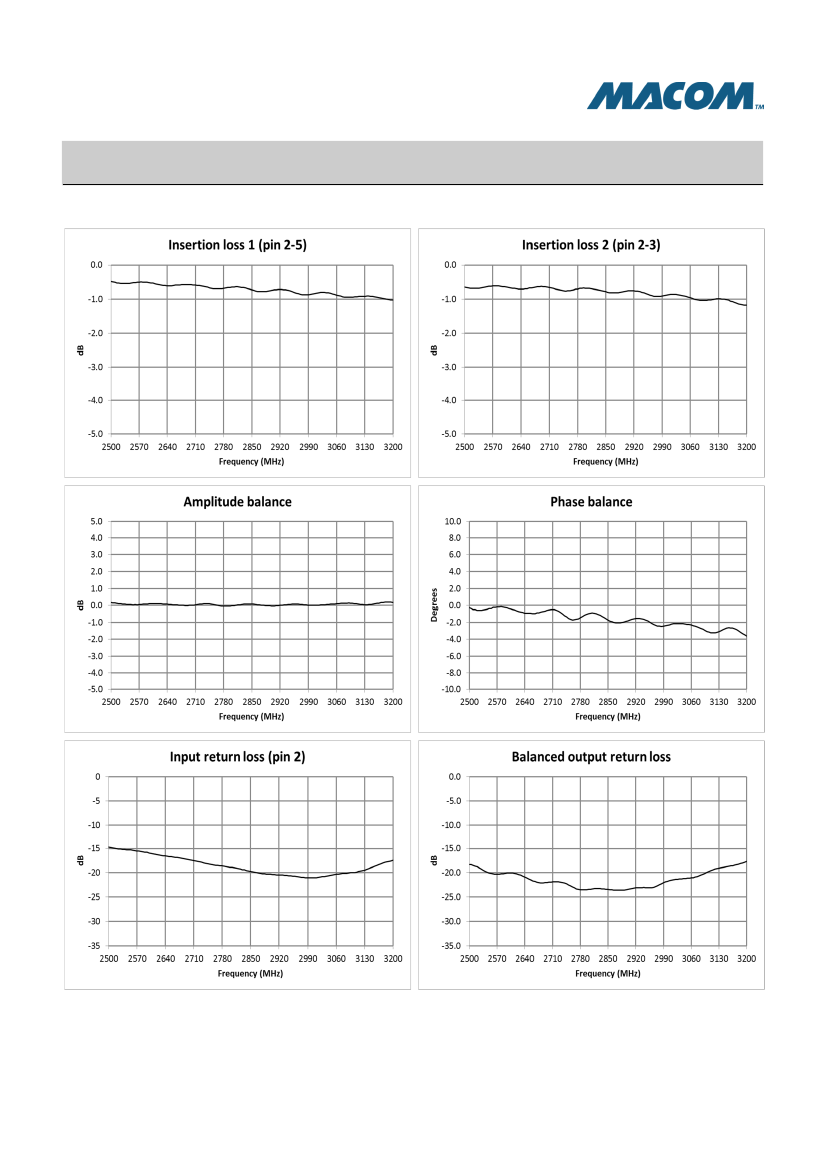

Typical Performance Curves
Rev. V1
4
M/A-COM Technology Solutions Inc. (MACOM) and its affiliates reserve the right to make changes to the product(s) or information contained herein without notice.
Visit www.macomtech.com for additional data sheets and product information.
