SERIES 860
MouseBud
™
The snap-lock, trigger-release connector

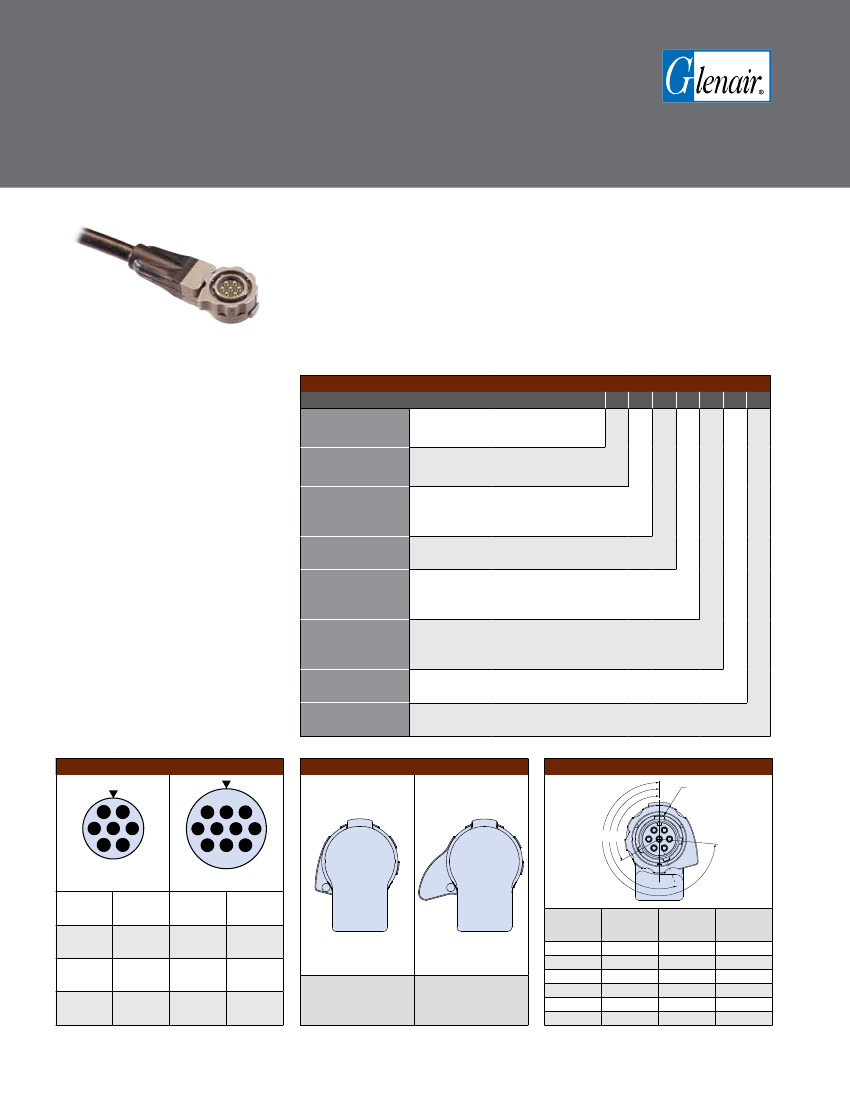

860-001P Plug Cordsets
860-001P MouseBud™ harsh environment cordsets are overmolded, shielded and 100%
tested. High-performance cable is equipped with a braided tinned copper shield with
90% minimum optical coverage. Shield is terminated to connector with a stainless
steel Band-Master® ATS strap. Ultra-lightweight, low profile and water-resistant. Auto-
coupling mechanism—simply push to mate and lock. To release, actuate thumb trigger
on coupling ring. Style 2 cordset with thermoplastic rubber jacket and overmold has
excellent cold bend performance to -55° C. Connectors feature spring-loaded gold
plated contacts, stainless steel shells and self-actuating bayonet coupling rings. 5A
current rating, 500VAC dielectric withstanding voltage rating.
How To Order
860-001P- B7 ZR
Product
Contact Arrangement
(Table 1)
Finish
Release Trigger Style
(Table 2)
Key Position
(Table 3)
860-001P
Specifications
• Operating temperature:
-30°C to +105°C (cordset style 1)
-55°C to +125°C (cordset style 2)
• Dielectric withstanding voltage: 500 VAC
• Current rating: 5 A
• Contact resistance: 20 milliohms
• Water immersion: MIL-STD-810G Meth. 512.5
• Ingress protection: IP67
• Mechanical life: 5000 cycles
1
A
2
4- 36
860-001P
= overmolded MouseBud
cordset
Connector Construction
• Shell: stainless steel
• Bayonet pins, retainer ring and torsion spring:
stainless steel
• Coupling ring: aluminum
• Lid: aluminum
• Contacts: copper alloy, gold plated
• Insert: glass-filled thermoplastic
• Ground spring: gold-plated stainless steel
• Gasket: fluorosilicone
• Potting compound: RTV silicone
B7
= seven contacts, size B shell
C10
= ten contacts, size C shell
M
= electroless NI
MT
= Nickel-PTFE
ZR
= Black zinc-nickel
1
= Standard low-profile release trigger (fig. 1)
2
= Extended release trigger (fig. 2)
A
= position A
B
= position B
C
= position C
D
= position D
E
= position E
F
= position F
Cable Construction
• Wires: silver-coated copper, TFE insulation
• Overmold: polyamide or thermoplastic
elastomer
• shield: tin-coated copper microfilament, 900
minimum optical coverage
• Jacket: thermoplastic polyurethane (TPU) or
thermoplastic elastomer (TPV)
Cordset Style
(Table 4)
1
= polyurethane cable jacket with polyurethane overmold
2
= polyurethane cable jacket with polyamide overmold
3
= rubber cable jacket with rubber overmold
4
= #24
8
= #28
Cable Length
in inches, 12 inch minimum
Wire Size (AWG)
Length
Table 1: Contact Arrangements
1
6
5
7
4
2
3
7
10
3
6
9
2
5
8
1
4
Table 2: Release Trigger Style
Table 3: Key Positions
MASTER
KEY
CB A
B7
Contact
Arr.
# of
Contacts
Contact
Diameter
Current
Rating
C10
B7
7
.038
(0.96)
5A
Contact
Arr.
# of
Contacts
Contact
Diameter
Current
Rating
C10
10
.038
(0.96)
5A
Code
A°
1200
800
950
950
950
1200
B°
2000
1500
1500
2000
2250
2250
C°
2650
2650
2350
3200
2650
3200
Low-profile release
trigger
Extended release
trigger
A
B
C
D
E
F
3
© 2014 Glenair, Inc • 1211 Air Way, Glendale, CA 91201 • 818-247-6000 • www.glenair.com • U.S. CAGE code 06324. Dimensions in inches (mm).
SERIES 860
MouseBud
™
The snap-lock, trigger-release connector
860-001P Plug Cordsets

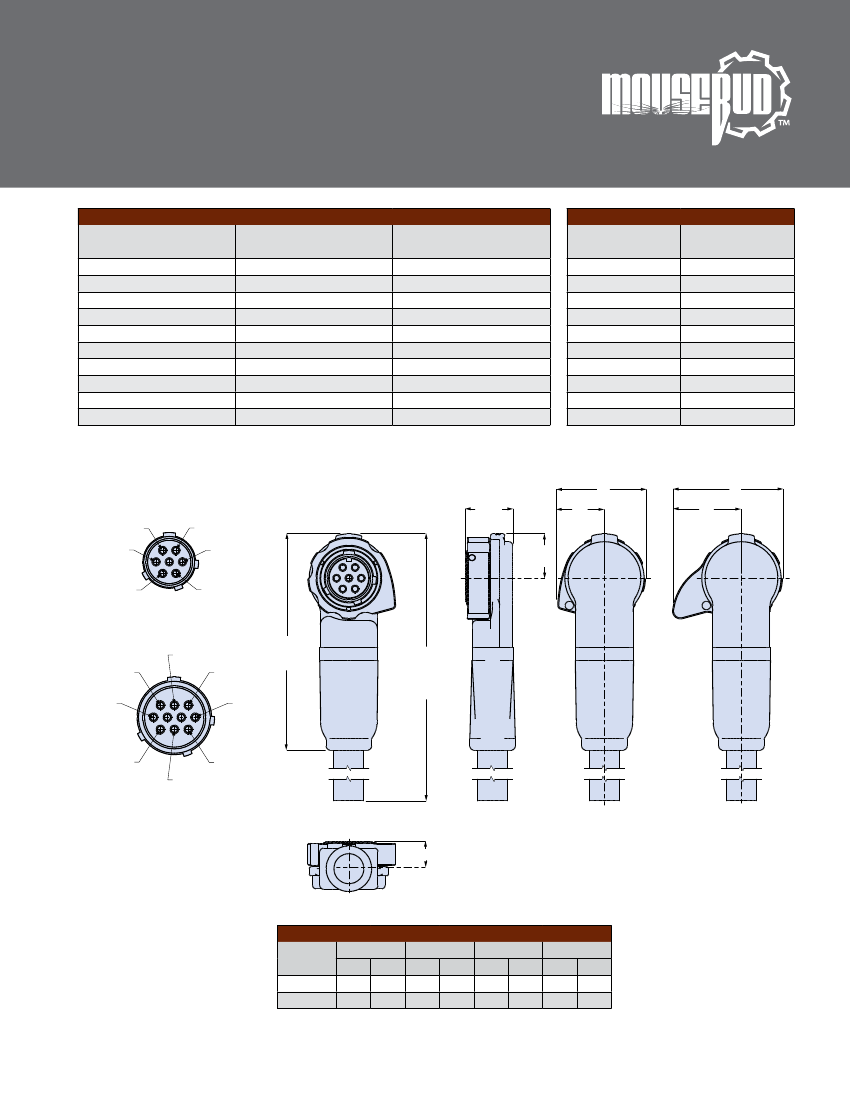

Table 4: Cordset Style
Property
Style 1
Style 2
Table 5: Wire Color
Contact
Number
1
2
3
4
5
6
7
8
9
10
Color
Black
Brown
Red
Orange
Yellow
Green
Blue
Violet
Grey
White
Cable jacket
Thermoplastic polyurethane (TPU) Thermoplastic elastomer (TPV)
Overmold
Polyamide
Thermoplastic elastomer (TPV)
Operating temperature
-30° C to +105° C
-55° C to +125° C
Flexibility
Good
Excellent
Water Resistance
Waterproof
Waterproof
Solvent Resistance, Cable Jacket
Excellent
Good
Solvent Resistance, Overmold
Fair
Good
Weatherability
Excellent
Excellent
Abrasion Resistance
Excellent
Good
Flammability
Flame retardant UL 94 V-0
Flame retardant UL 94 HB
PIN 1
PIN 6
PIN 5
PIN 2
PIN 3
PIN 4
.36
(9.1)
.34
(8.6)
B
A
C
D
B7 Contact Arrangement
PIN 2
PIN 3
PIN 7
PIN 1
PIN 4
2.00
(50.8)
MAX
OAL IN
INCHES
-.00/+1.00
(-0.0/+25.4)
PIN 10
PIN 9
PIN 8
C10 Contact Arrangement
LOW-PROFILE
RELEASE
TRIGGER
EXTENDED
RELEASE
TRIGGER
.21(5.3)
Contact
Arr.
B7
C10
Dimensions
A
B
C
In. mm. In. mm. In. mm.
.36
.43
9.1
10.9
.67
.80
17.0
20.3
.53
.59
13.5
15.0
In.
.84
.97
D
mm.
21.3
24.6
4
