have thicker intrinsic regions to provide lower distor-
tion in attenuator circuits.
The MA4P290/MADP-007167 series devices have
the thickest I-Region, offering the lowest distortion
and highest IP3 for current controlled attenuator cir-
cuits. These devices are ideal for AGC functions for
infrastructure and CATV applications.
These parts are available as single diodes, series
tees (ST), series tee reverse (STR), common
cathode pairs (CK), common anode pairs (CA), and
unconnected pairs in the respective featured
packages.
M/A-COM’s PIN diodes are available in the SOT-23
(case style 287), the SOT-143 (case style 1068), the
SOT-323/SC-70 (3L) (case style 1146), the
SOD-323 (case style 1141), and the
SC-79 (case style 1279) packages. These packages
are supplied on tape and reel for automatic pick and
place assembly. The tape and reel suffix designation
is a “T” at the end of the part number.
Description and Applications
M/A-COM offers silicon PIN diodes in five standard,
low cost, surface mount plastic packages for use as
switches and attenuators. These diodes are offered
with standard Sn/Pb plating, as well as with 100%
matte Sn plating on our RoHS compliant devices.
M/A-COM’s PIN diodes feature a variety of I-region
lengths resulting in lower resistance, and lower
capacitance devices for various microwave control
circuit applications.
The MA4P275/MA4P7436/MADP-007436 series
offer the lowest series resistance for best perform-
ance as low loss series switches and high isolation
shunt switches.
The MA4P789/ MA4P7433/MADP-007433 series
have the lowest capacitance and offers the highest
isolation in series and series-shunt switches through
3GHz.
The MA4P282/ MA4P7447/MADP-007155 series,
the MA4P274/MA4P7455/ MADP-007455 series and
the MADP-007448 series are general purpose PIN
diodes useful as either switches or attenuators.
Package Outlines
SOT-23
SOT-143
SOT-323
SOD-323
SC-79
1
M/A-COM Technology Solutions Inc. (MACOM) and its affiliates reserve the right to make changes to the product(s) or information contained herein without notice.
Visit
www.macom.com
for additional data sheets and product information.
For further information and support please visit:
https://www.macom.com/support
SMPP Series
Surface Mount Plastic PIN Diodes
Rev. V22
Absolute Maximum Ratings @ 25 °C
1
(Unless Otherwise Noted)
Parameter
Operating Temperature
Storage Temperature
Junction Temperature
RF C.W. Incident Power @ 25 °C:
MA4P282 / MA4P7447/MADP-007155 Series(
die = 15 °C/ W ), RF & DC Incident De-rating Coefficient = - 21.3 mW / °C
MA4P275 / MA4P7436/MADP-007436 Series(
die = 25 °C/ W ), RF & DC Incident De-rating Coefficient = - 16.8 mW / °C
MA4P278 / MA4P7438/MADP-007438Series (
die = 30 °C/ W ), RF & DC Incident De-rating Coefficient = - 13.3 mW / °C
MA4P274 / MA4P7455/MADP-007455 Series (
die = 35 °C/ W ), RF & DC Incident De-rating Coefficient = - 13.3 mW / °C
MA4P277 / MA4P7437/MADP-007437 Series (
die = 45 °C/ W ), RF & DC Incident De-rating Coefficient = - 13.3 mW / °C
MA4P290 / MADP-007167 Series (
die = 55 °C/ W ), RF & DC Incident De-rating Coefficient = - 13.3 mW / °C
MA4P789 / MA4P7433/MADP-007433 Series(
die = 80 °C/ W ), RF & DC Incident De-rating Coefficient = - 10.7 mW / °C
MADP-007448 Series(
die = 80 °C/ W ), RF & DC Incident De-rating Coefficient = - 10.7 mW / °C
1. Operation of these devices above any one of these parameters may cause permanent damage.
Absolute
Maximum
-65C to +150
C
-65C to +125
C
+ 175
C
+ 32 dBm
+ 31 dBm
+ 30 dBm
+ 30 dBm
+ 30 dBm
+ 30 dBm
+ 29 dBm
+ 32 dBm
250 mW
200 mW
Voltage Rating
150 mA DC
Electrical Specifications @ 25C
Nominal Characteristics
Standard
Part
Number
MA4P275
MA4P789
MA4P282
RoHS Compliant
Part Number
MA4P7436
MADP-007436 Series
MA4P7433
MADP-007433 Series
MA4P7447
MADP-007155 Series
MADP-007448 Series
Reverse
Voltage
2
(V)
75
75
100
100
100
200
200
200
Total
Capacitance
3
Max.
(pF)
1.00 @ 20V
0.35 @ 20V
1.20 @ 20V
0.25 @ 50V
0.35 @ 50V
0.35 @ 50V
0.35 @ 50V
0.30 @ 50V
RS @ 10 mA
4
Max.
(Ohms)
0.5
1.5
0.6
2.0
3.0
6.0
10.0
16.0
Carrier Lifetime
5
(s)
0.2
0.2
1.0
0.4
1.0
2.0
3.0
3.0
I-Region
Thickness
(mils)
0.4
0.4
0.8
0.6
2.0
4.0
5.0
7.0
MA4P274
MA4P277
MA4P278
MA4P290
MA4P7455
MADP-007455 Series
MA4P7437
MADP-007437 Series
MA4P7438
MADP-007438 Series
MADP-007167
2. The reverse current will not exceed 10
A
at the reverse voltage rating.
2
M/A-COM Technology Solutions Inc. (MACOM) and its affiliates reserve the right to make changes to the product(s) or information contained herein without notice.
Visit
www.macom.com
for additional data sheets and product information.
For further information and support please visit:
https://www.macom.com/support
SMPP Series
Surface Mount Plastic PIN Diodes
Rev. V22
Packaging and Configurations
Single
SC-79
Standard
Part Number
RoHS Compliant
Part Number
MADP-007436-12790T
MADP-007433-12790T
Single
SOD-323
SOT-23
Standard
Part Number
MA4P275-287T
MA4P789-287T
MA4P282-287T
Standard
Part Number
RoHS Compliant
Part Number
MA4P7436-1141T
MA4P7433-1141T
MA4P7447-1141T
RoHS Compliant
Part Number
MA4P7436-287T
MA4P7433-287T
MA4P7447-287T
MADP-007448-0287AT
MADP-007448-12790T
MADP-007455-12790T
MADP-007448-11410T
MA4P7455-1141T
MA4P7437-1141T
MA4P7438-1141T
MADP-007167-11410T
MA4P274-287T
MA4P277-287T
MA4P278-287T
MA4P290-287T
MA4P7455-287T
MA4P7437-287T
MA4P7438-287T
MADP-007167-0287AT
L
S
= 1.4 nH
C
P
= 0.12 pF
L
S
= 0.6 nH
C
P
= 0.10 pF
L
S
= 1.3 nH
C
P
= 0.11 pF
Common Cathode
SOT-23
Standard
Part Number
MA4P275CK-
287T
MA4P289CK-
287T
MA4P282CK-
287T
Common Anode
SC70 (3L)
SOT-23
RoHS
Compliant
Part Number
MA4P7436CA-287T
MA4P7433CA-287T
MA4P7447CA-287T
MADP-007448-
0287GT
MADP-007448-
1146GT
MA4P274CA-
1146T
MA4P7455CA-
1146T
SC70 (3L)
Standard
Part Num-
ber
MA4P275CA-
1146T
MA4P789CA-
1146T
RoHS
Compliant
Part Number
MA4P7436CK-
287T
MA4P7433CK-
287T
MA4P7447CK-
287T
MADP-007448-
0287FT
Standard
Part Num-
ber
MA4P275CK-
1146T
MA4P789CK-
1146T
RoHS Com-
Standard
pliant
Part Number
Part Number
MA4P7436CK-
1146T
MA4P7433CK-
1146T
MA4P275CA-
287T
MA4P789CA-
287T
MA4P282CA-
287T
RoHS
Compliant
Part Number
MA4P7436CA-
1146T
MA4P7433CA-
1146T
MA4P274CK-
287T
MA4P277CK-
287T
MA4P278CK-
287T
MA4P290CK-
287T
MA4P7455CK-
287T
MADP-007437-
0287FT
MADP-007438-
0287FT
MADP-007167-
0287FT
MA4P274CK-
1146T
MA4P7455CK-
1146T
MA4P274CA-
287T
MA4P277CA-
287T
MA4P278CA-
287T
MA4P7455CA-287T
MA4P7437CA-287T
MA4P7438CA-287T
MADP-007167-
0287GT
L
S
= 1.4 nH
C
P
= 0.12 pF
L
S
= 1.3 nH
C
P
= 0.12 pF
L
S
= 1.4 nH
C
P
= 0.12 pF
L
S
= 1.3 nH
C
P
= 0.12 pF
3
M/A-COM Technology Solutions Inc. (MACOM) and its affiliates reserve the right to make changes to the product(s) or information contained herein without notice.
Visit
www.macom.com
for additional data sheets and product information.
For further information and support please visit:
https://www.macom.com/support
SMPP Series
Surface Mount Plastic PIN Diodes
Rev. V22
Packaging and Configurations
Series Tee
SOT-23
Standard
Part Number
MA4P275ST-
287T
MA4P789ST-
287T
MA4P282ST-
287T
Series Tee Reverse
SC70 (3L)
SOT-23
RoHS
Compliant
Part Number
MADP-007436-
0287DT
MADP-007433-
0287DT
MADP-007155-
0287DT
MADP-007448-
0287DT
MA4P274STR-
287T
MA4P277STR-
287T
MA4P278STR-
287T
MA4P290STR-
287T
MADP-007455-
0287DT
MADP-007437-
0287DT
MADP-007438-
0287DT
MADP-007167-
0287DT
MA4P274STR-
1146T
MADP-007448-
1146DT
MADP-007455-
1146DT
SC70 (3L)
Standard
Part Number
MA4P275STR-
1146T
MA4P789STR-
1146T
RoHS
Standard
RoHS
Standard
Compliant Part Number Compliant Part Number
Part Number
Part Number
MA4P7436ST-
287T
MA4P7433ST-
287T
MA4P7447ST-
287T
MADP-007448-
0287BT
MADP-007448-
1146BT
MA4P274ST-
1146T
MA4P7455ST-
1146T
MA4P275ST-
1146T
MA4P789ST-
1146T
MA4P7436ST-
1146T
MA4P7433ST-
1146T
MA4P275STR-
287T
MA4P789STR-
287T
MA4P282STR-
287T
RoHS
Compliant
Part Number
MADP-007436-
1146DT
MADP-007433-
1146DT
MA4P274ST-
287T
MA4P277ST-
287T
MA4P278ST-
287T
MA4P7455ST-
287T
MADP-007437-
0287BT
MADP-007438-
0287BT
MADP-007167-
0287BT
L
S
= 1.4 nH
C
P
= 0.12 pF
L
S
= 1.3 nH
C
P
= 0.12 pF
L
S
= 1.4 nH
C
P
= 0.12 pF
L
S
= 1.3 nH
C
P
= 0.12 pF
Low Inductance
SOT-23
Standard
Part Number
MA4P290-LI-287T
Unconnected Pair
SOT-143
RoHS Compliant
Part Number
MADP-007167-0287HT
MADP-007433-0287HT
Standard
Part Number
MA4P275-1068T
MA4P789-1068T
RoHS Compliant
Part Number
MA4P7436-1068T
MA4P7433-1068T
MADP-007448-1068ET
MA4P274-1068T
LS = 0.4 nH
CP = 0.12 pF
LS = 1.3 nH
CP = 0.12 pF
MA4P7455-1068T
4
M/A-COM Technology Solutions Inc. (MACOM) and its affiliates reserve the right to make changes to the product(s) or information contained herein without notice.
Visit
www.macom.com
for additional data sheets and product information.
For further information and support please visit:
https://www.macom.com/support
SMPP Series
Surface Mount Plastic PIN Diodes
Rev. V22

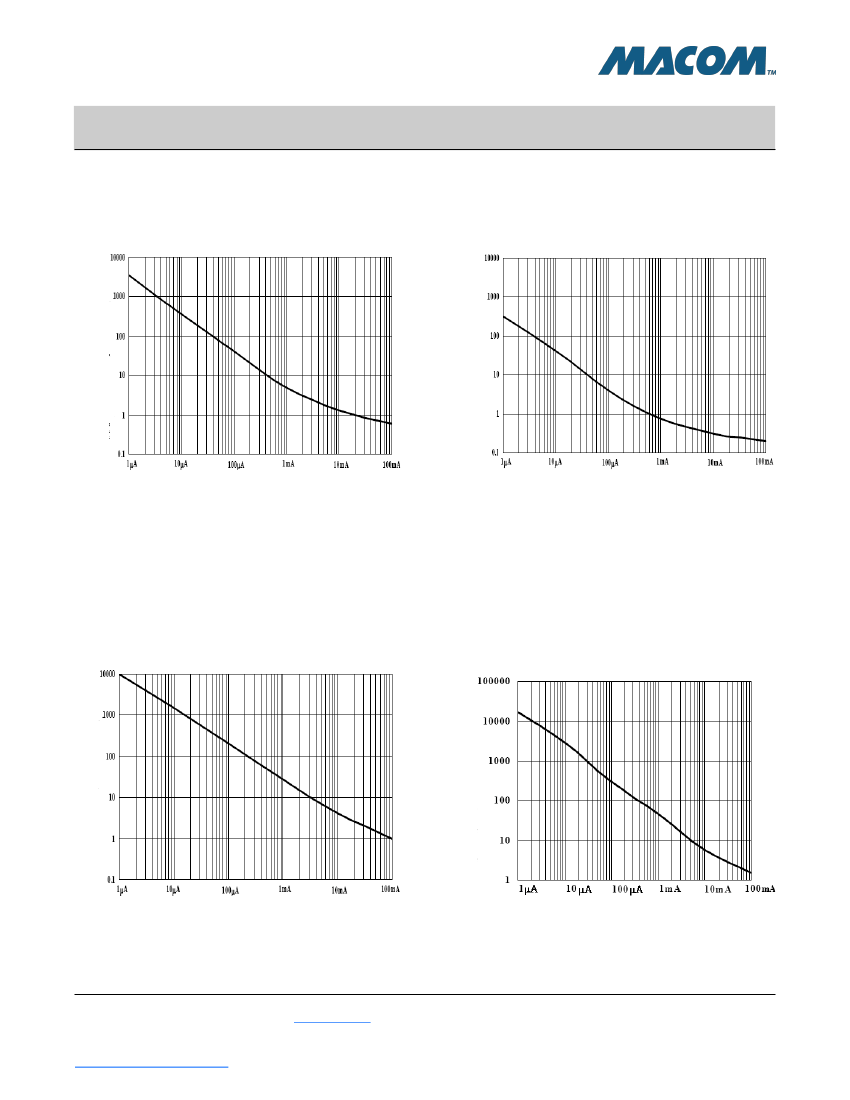

Typical Forward Resistance vs DC Bias Current Curves @ 100 MHz
Resistance vs Forward Current
(MA4P274 / MA4P7455 MADP-007155 Series)
Resistance vs Forward Current
(MA4P275 / MA4P7436 /MADP-007436 Series)
Series Resistance ()
Forward Bias Current
Series Resistance ()
Forward Bias Current
Resistance vs Forward Current
(MA4P277 / MA4P7437 /MADP-007437 Series)
Resistance vs Forward Current
(MA4P278 / MA4P7438 /MADP-007438 Series)
Series Resistance ()
Forward Bias Current
Series Resistance ()
Forward Bias Current
5
M/A-COM Technology Solutions Inc. (MACOM) and its affiliates reserve the right to make changes to the product(s) or information contained herein without notice.
Visit
www.macom.com
for additional data sheets and product information.
Now I have encountered a difficult problem. The problem is that the client needs to add Korean to my project. The interface of the solution gives the definition, but I need to first convert a turetype...
What is the reason for the frequency deviation after the msp430f413 external crystal 32.768khz works normally for 2 months? Has anyone encountered a similar problem? How did you solve it?...
In wince system, I changed the font of the menu bar in the registry, but I don't know how to change the height of the menu bar. The text is only half displayed. How can I change the height of the menu...
I don't know how to load a 320×240, 8-bit bmp image into SRAM. I want to do some image processing. I know there is a way to convert bmp into ccs data format and then use the method of loading data, bu...
In the past few days, the news that ZTE was "banned" by the US Department of Commerce has triggered widespread reflection and concern in various domestic industries about the lack of independent co...[Details]
The most significant event in the technology circle during this period is undoubtedly the news that ZTE was banned by the United States. Once the news came out, it shocked the entire Chinese techno...[Details]
In the past few days, the Chinese display panel giant
BOE
has been flooded with articles supported by Liu Shuwei. Let's follow the embedded editor to learn about the relevant content.
...[Details]
In the
AI
boom, the most talked about is
neural network
. However,
AI
is much more than that. Let's learn about the relevant content with the network communication editor.
...[Details]
For STM32, there are two ways to reset the software: 1) Use the official software library The system reset function is directly provided in the stm32f10x_nvic.c file of the official software li...[Details]
Unique device identifiers are suitable for: ● Used as a serial number (e.g. USB string serial number or other terminal applications) ● Use the unique ID as a security key when used in conjunction wit...[Details]
Using Systick timer to achieve delay 1. SysTick timer characteristics The SysTick timer is a 24-bit down counter, that is, when vlue is decremented to 0, an interrupt is triggered and the load va...[Details]
0. Preparation First use st-link to connect the stm32 core board and PC for burning St-link Stm32 3.3V 3.3V GND GND SWDIO PART SWCLK DCLK Then connect with USB serial port board to v...[Details]
1. Basic Concepts of LCD/LCM The structure of Liquid Crystal Display (LCD) is to place liquid crystals between two parallel pieces of glass. There are many vertical and horizontal fine wires between...[Details]
As many companies listed with
the concept of
touch screen
begin to "transform and upgrade", the official voice of the TP industry is getting smaller and smaller. At the same time, the list o...[Details]
Autonomous driving
and
5G
are the two hot topics that global companies and media are paying the most attention to, and the combination of the two is the focus of everyone's attention....[Details]
As the weather gets colder, the way the north and south spend the winter has become a hot topic and people talk about it. Although the north is particularly cold, because there is heating, it can s...[Details]
1. Heart rate measurement principle 1. What is a heart rate module? The heart rate module is professionally used to monitor the heart rate of the wrist, fingers, forehead, earlobe, chest and other ...[Details]
According to TechRadar, given rumors that
Google
is developing a Pixel Watch
,
the
recently renamed Wear OS
smartwatch
operating system may soon be able to show its full cap...[Details]
If you do not use an external crystal on the STM32, the connection method of OSC_IN and OSC_OUT If you use the internal RC oscillator instead of an external crystal, please follow the following metho...[Details]
stm32/stm8
京公网安备 11010802033920号
EEWORLD
