DATA SHEET
SEMICONDUCTOR
BAV19WFL-A Thru BAV21WFL-A
400mW SOD-123 SURFACE MOUNT
Small Outline Flat Lead Plastic Package
High Voltage & High Conductance
Fast Switching Diode
Absolute Maximum Ratings
Symbol
P
D
T
STG
T
J
V
RRM
I
F(AV)
Power Dissipation
Storage Temperature Range
Operating Junction Temperature
Repetitive Peak Reverse Voltage
Repetitive Peak Forward Current
T
A
= 25°C unless otherwise noted
Value
400
-65 to +150
+150
250
200
Units
mW
°C
°C
V
mA
H
DEVICE MARKING CODE:
Device Type
BAV19WFL
BAV20WFL
BAV21WFL
Device Marking
H1
H2
H3
Parameter
These ratings are limiting values above which the serviceability of the diode may be impaired.
Specification Features:
Fast Switching Diode
General Purpose Diodes High Voltage Application Diodes
Flat Lead SOD-123 Small Outline Plastic Package
Surface Device Type Mounting
Moisture Sensitivity Level 1
Clip Bonding Construction, Good Thermal Capability
Pb Free Version and RoHS Compliant
Matte Tin(Sn) Lead Finish with Nickel(Ni) Underplate
Band Indicates Cathode
AEC-Q 101 qualified
Cathode
ELECTRICAL SYMBOL
Anode
SOD-123 Flat Lead
Base P/N - RoHS compliant, commercial grade
Base P/N-A - RoHS compliant, AEC-Q101 qualified
Electrical Characteristics
Symbol
B
V
Breakdown Voltage
T
A
= 25°C unless otherwise noted
Parameter
BAV19WFL
BAV20WFL
BAV21WFL
Test Condition
I
R
=100µA
Limits
Min
120
200
250
V
R
=100V
V
R
=150V
V
R
=200V
I
F
=100mA
I
F
=200mA
---
---
---
---
---
Max
---
---
---
100
100
100
1.0
1.25
Volts
Volts
Volts
nA
nA
nA
Volts
Volts
Unit
I
R
Reverse Leakage Current ]
BAV19WFL
BAV20WFL
BAV21WFL
V
F
Forward Voltage
T
RR
Reverse Recovery Time
I
F
=I
R
=30mA
R
L
=100Ω
I
RR
=3mA
---
50
nS
C
Capacitance
V
R
=0V, f=1M
HZ
---
5.0
pF
http://www.yeashin.com
1
REV.02 20120705
PACKAGE OUTLINE AND DIMENSIONS
BAV19WFL-A Thru BAV21WFL-A
Reverse Current vs Reverse VoltageReverse

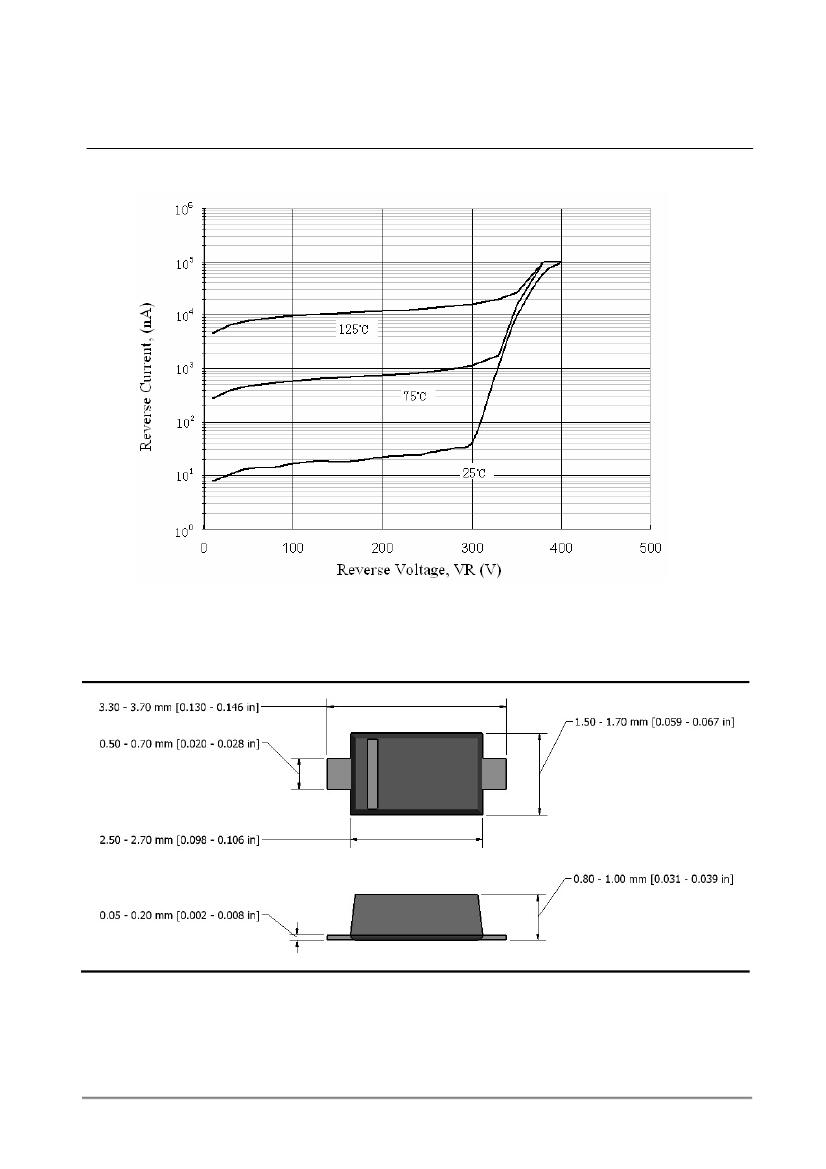

Flat Lead SOD-123 Package Outline
http://www.yeashin.com
3
REV.02 20120705
