DATA SHEET
SEMICONDUCTOR
BAV19WSFL-A Thru BAV21WSFL-A
200mW SOD-323 SURFACE MOUNT
Small Outline Flat Lead Plastic Package
High Voltage Switching Diode
Absolute Maximum Ratings
Symbol
P
D
V
RRM
T
STG
T
J
I
F (AV)
I
FSM
Power Dissipation
Maximum Repetitive Reverse Voltage
Storage Temperature Range
Operating Junction Temperature
Average Rectified Forward Current
Non-repetitive Peak Forward Current
Pulse Width = 1.0 Second
Pulse Width = 1.0 µsecond
T
A
= 25°C unless otherwise noted
Value
200
250
-65 to +150
+150
200
1.0
4.0
Units
mW
V
°C
°C
mA
A
A
Cathode
H
Parameter
SOD-323 Flat Lead
These ratings are limiting values above which the serviceability of the diode may be impaired.
Anode
ELECTRICAL SYMBOL
Specification Features:
Flat Lead SOD-323 Small Outline Plastic Package
Surface Device Type Mounting
Moisture Sensitivity Level 1
RoHS Compliant
Green EMC
Matte Tin(Sn) Lead Finish
Band Indicates Cathode
AEC-Q 101 qualified
DEVICE MARKING CODE:
Device Type
Device Marking
S5
BAV19WSFL
BAV20WSFL
S6
BAV21WSFL
S7
Base P/N - RoHS compliant, commercial grade
Base P/N-A - RoHS compliant, AEC-Q101 qualified
Electrical Characteristics
Symbol
B
V
Breakdown Voltage
T
A
= 25°C unless otherwise noted
Parameter
BAV19WSFL
BAV20WSFL
BAV21WSFL
Test Condition
I
R
=100µA
Limits
Min
120
200
250
V
R
=100V
V
R
=150V
V
R
=200V
I
F
=100mA
I
F
=200mA
---
---
---
---
---
Max
---
---
---
100
100
100
1.0
1.25
Volts
Volts
Volts
nA
nA
nA
Volts
Volts
Unit
I
R
Reverse Leakage Current
BAV19WSFL
BAV20WSFL
BAV21WSFL
V
F
Forward Voltage
T
RR
Reverse Recovery Time
I
F
=I
R
=30mA
R
L
=100:
I
RR
=3mA
---
50
nS
C
Capacitance
V
R
=0V, f=1M
HZ
---
5.0
pF
http://www.yeashin.com
1
REV.02 20121119

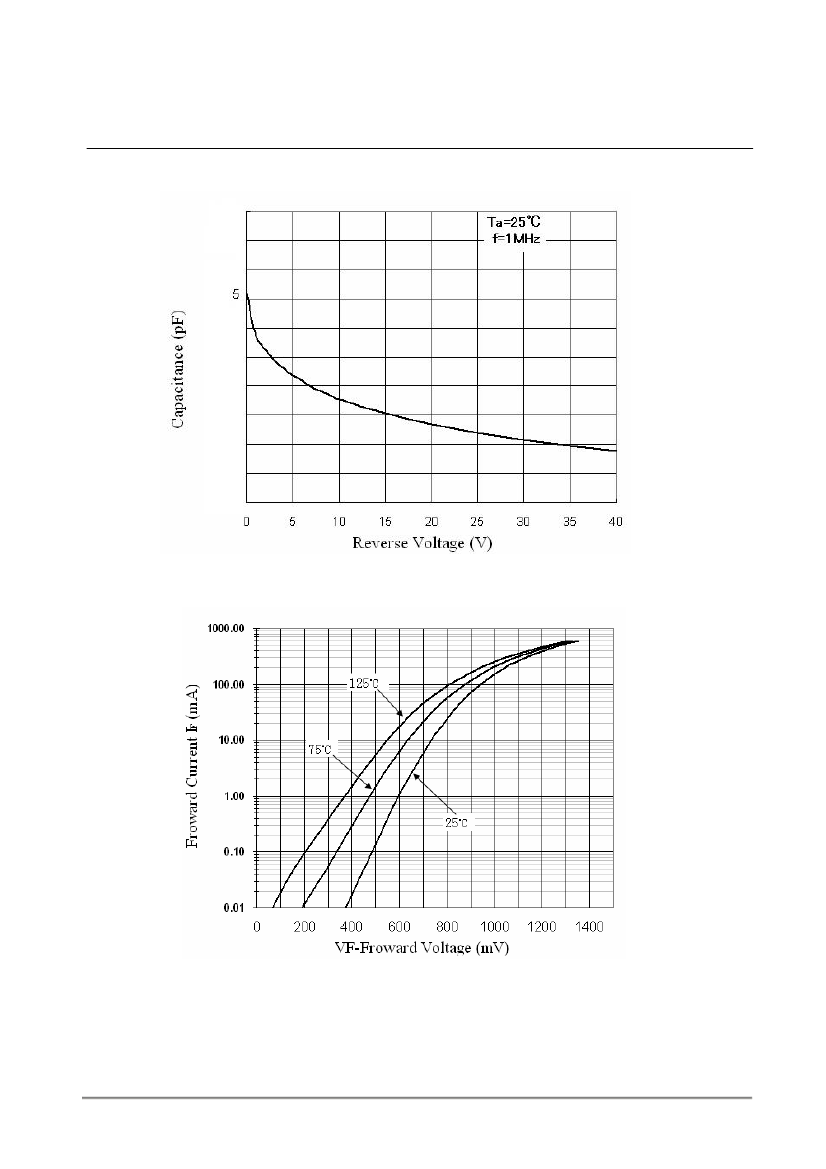

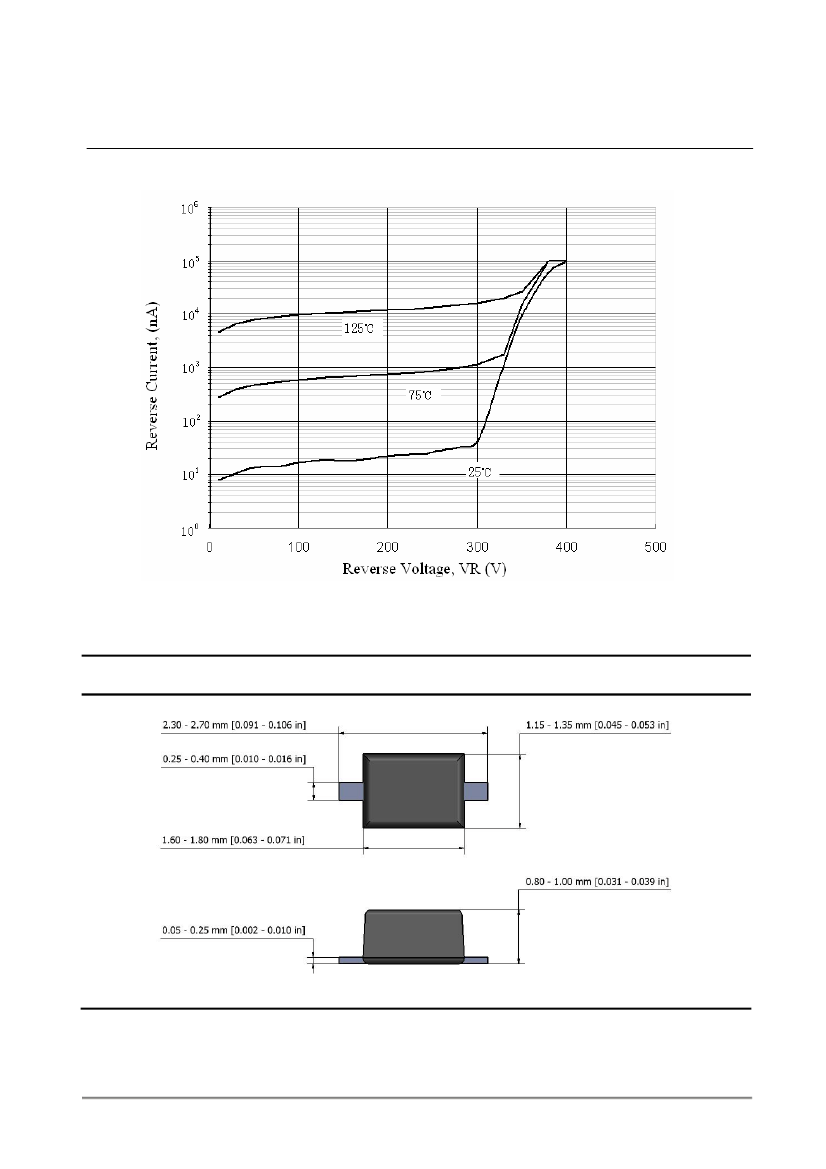

PACKAGE OUTLINE & DIMENSIONS
BAV19WSFL-A Thru BAV21WSFL-A
Reverse Current vs Reverse VoltageReverse
SOD-323 Package Outline
http://www.yeashin.com
3
REV.02 20121119
