C1812S103M8RAC Overview

Ceramic Capacitor, Multilayer, Ceramic, 10V, 20% +Tol, 20% -Tol, X7R, -/+15ppm/Cel TC, 0.01uF, 1812,

C1812S103M8RAC Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	928790376
package instruction	, 1812
Reach Compliance Code	compliant
ECCN code	EAR99
capacitance	0.01 µF
Capacitor type	CERAMIC CAPACITOR
dielectric materials	CERAMIC
high	1 mm
JESD-609 code	e3
length	4.5 mm
multi-layer	Yes
negative tolerance	20%
Number of terminals	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package form	SMT
method of packing	Bulk
positive tolerance	20%
Rated (DC) voltage (URdc)	10 V
series	C(SIZE)S
size code	1812
Temperature characteristic code	X7R
Temperature Coefficient	15% ppm/°C
Terminal surface	Matte Tin (Sn) - with Nickel (Ni) barrier
width	3.2 mm

Preview

Download Datasheet

View All

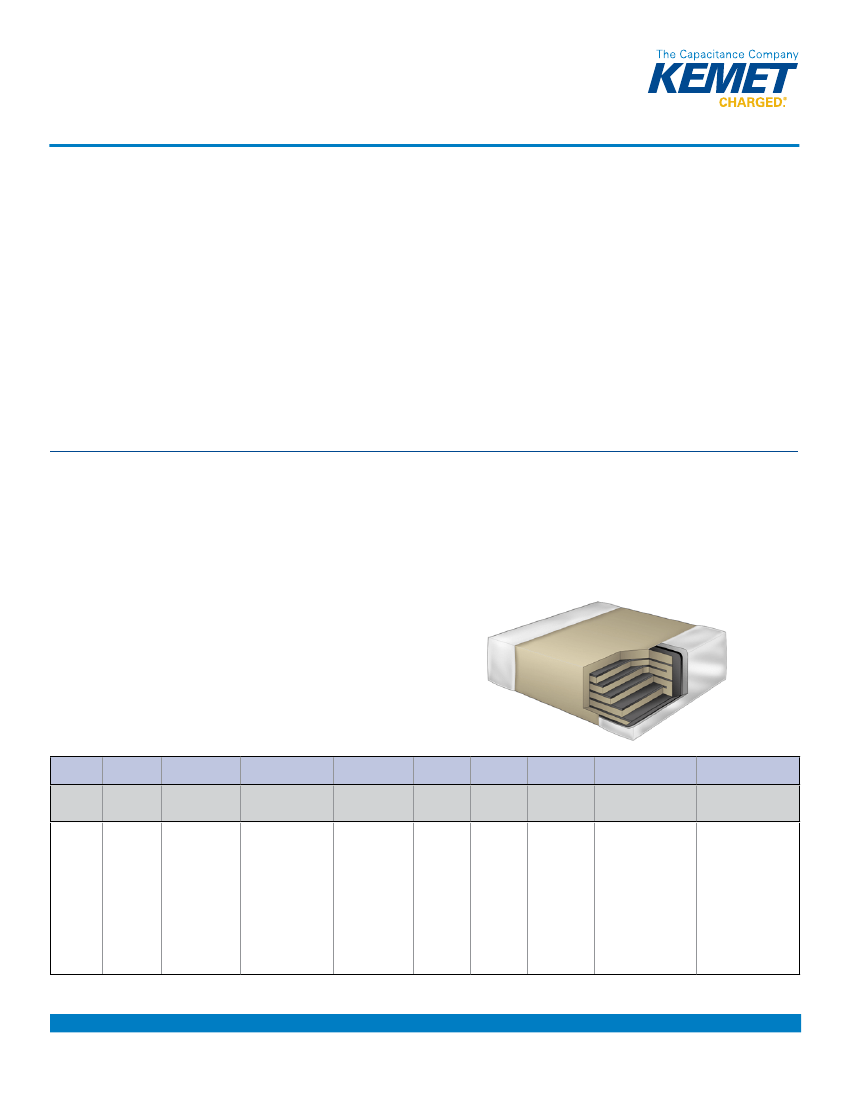

Surface Mount Multilayer Ceramic Chip Capacitors (SMD MLCCs)

Floating Electrode Design (FE-CAP) X7R Dielectric

6.3VDC-250VDC (Commercial Grade)

Overview

KEMET’s Floating Electrode (FE-CAP) multilayer ceramic

capacitor in X7R dielectric utilizes a cascading internal electrode

design configured to form multiple capacitors in series within a

single monolithic structure. This unique configuration results in

enhanced voltage and ESD performance over standard capacitor

designs while allowing for a fail-open condition if mechanically

damaged (cracked). If damaged, the device may experience

a drop in capacitance but a short is unlikely. The FE-CAP is

designed to reduce the likelihood of a low IR or short circuit

condition and the chance for a catastrophic and potentially costly

failure event.

Driven by the demand for a more robust and reliable component,

the FE-CAP was designed for critical applications where

higher operating temperatures and mechanical stress are a

concern. These capacitors are manufactured in state of the art

ISO/TS 16949:2002 certified facilities and are widely used in

power supplies (input and output filters) and general electronic

applications.

Combined with the stability of an X7R dielectric, the FE-CAP

complements KEMET’s “Open Mode” devices by providing a fail-

safe design optimized for low to mid range capacitance values.

These devices exhibit a predictable change in capacitance

with respect to time and voltage and boast a minimal change in

capacitance with reference to ambient temperature. Capacitance

change is limited to ±15% from -55°C to +125°C.

Benefits

•

-55°C to +125°C operating temperature range

Floating Electrode/fail open design

Low to mid capacitance flex mitigation

Pb-Free and RoHS compliant

EIA 0402, 0603, 0805, 1206, 1210, and 1812 case sizes

DC voltage ratings of 6.3V, 10V, 16V, 25V, 50V,100V, 200V, and 250V

Capacitance offerings ranging from 150pF to 0.22μF

Available capacitance tolerances of ±5%, ±10% and ±20%

Non-polar device, minimizing installation concerns

• 100% pure matte tin-plated termination finish allowing for

excellent solderability

• SnPb termination finish option available upon request (5% min)

Ordering Information

Ceramic

0805

Case Size

(L" x W")

0402

0603

0805

1206

1210

1812

Specification/

Series

S = Floating

Electrode

104

Capacitance

Code (pF)

2 Sig. Digits +

Number of Zeros

Capacitance

Tolerance

J = ±5%

K = ±10%

M = ±20%

Voltage

9 = 6.3V

8 = 10V

4 = 16V

3 = 25V

6 = 35V

5 = 50V

1 = 100V

2 = 200V

A = 250V

Dielectric

R = X7R

Packaging/Grade

(C-Spec)

Failure Rate/

Termination Finish

Design

A = N/A

C = 100% Matte Sn Blank = Bulk

L = SnPb (5% min) TU = 7" Reel

Unmarked

TM = 7" Reel Marked

Additional termination finish options may be available. Contact KEMET for details.

Additional reeling or packaging options may be available. Contact KEMET for details.

One WORLD

One Brand

One Strategy

One Focus

One Team

One KEMET

C1014_X7R_FE-CAP_SMD • 8/10/2011
