DME5000-315 | DME5000
LONG RANGE DISTANCE SENSORS
A
B
C
D
E
F
H
I
J
K
L
M
N
O
P
Q
R
S
T

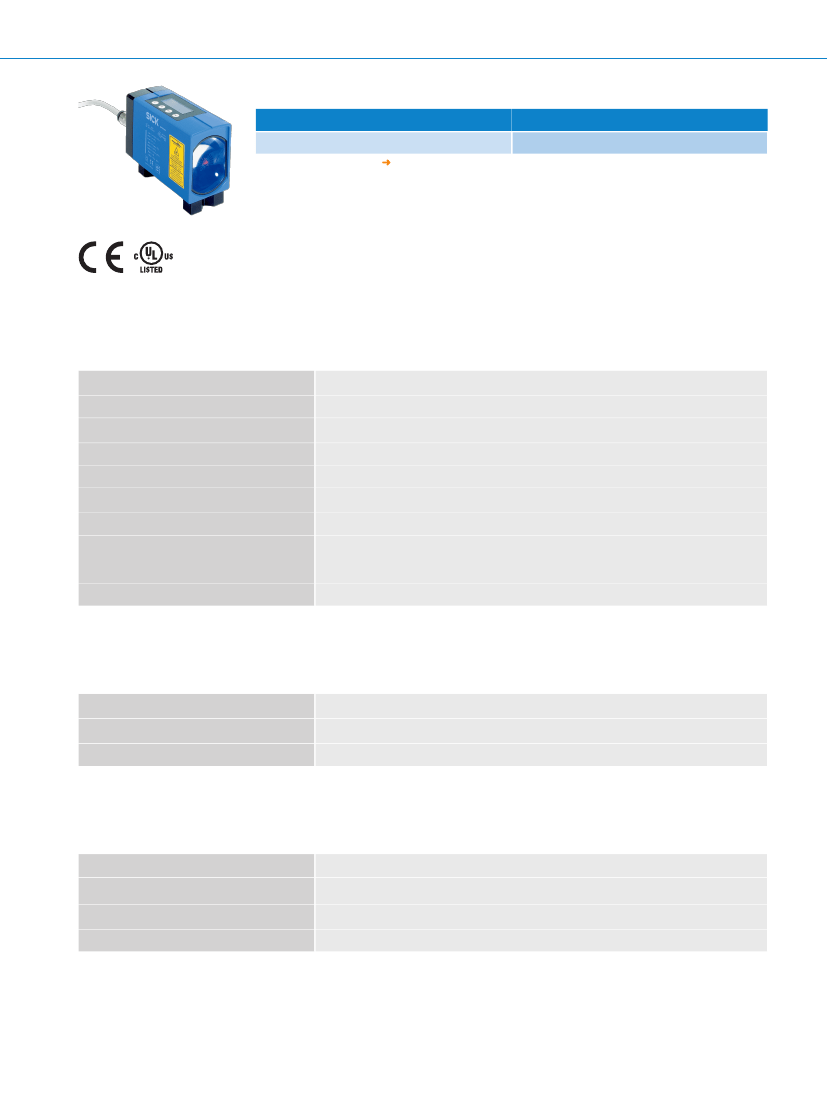

Ordering information
Type
DME5000-315
Other models and accessories
www.sick.com/DME5000
Part no.
1026003
Detailed technical data
Performance
Measuring range
Resolution
Repeatability
Accuracy
Output time
Light source
Laser class
Typ. light spot size (distance)
0.15 m ... 300 m, on reflective tape "Diamond Grade"
1)
0.05 mm ... 5 mm
2 mm
1)
2)
± 5 mm
2 ms
Laser, red
3)
2 (EN 60825-1 / CDRH)
130 mm (at 70 m)
270 mm (at 150 m)
360 mm (at 220 m)
10 m/s
Max. movement speed
1)
2)
3)
On reflective tape "Diamond Grade"
Statistical error 1 σ, environmental conditions constant, min. warm-up time 10 min.
Average service life of 50,000 h at T
A
= +25 °C.
Interfaces
Switching output
Multifunctional input (MF)
Data interface
1)
2)
3)
Push-pull: PNP/NPN (100 mA)
1)
1 x MF
2)
3)
DeviceNet
HIGH = > V
S
- 3 V / LOW = < 2 V.
HIGH = > 12 V / LOW = < 3 V.
Not reverse-polarity protected.
Mechanics/electronics
Supply voltage V
s
Ripple
Initialization time
Connection type
1)
2)
3)
DC 18 V ... 30 V, limit values
< 5 V
pp
1)
1.5 s
2)
Male connector, M12, 5-pin
May not fall short of or exceed V
S
tolerances.
After loss of reflector < 1 s at max. speed V
max
< 1 m/s.
Short-circuit protected, overload-protected. Max. 100 nF / 20 mH.
2
DISTANCE SENSORS | SICK
Online data sheet | 2016-03-17 13:18:11
Subject to change without notice
LONG RANGE DISTANCE SENSORS

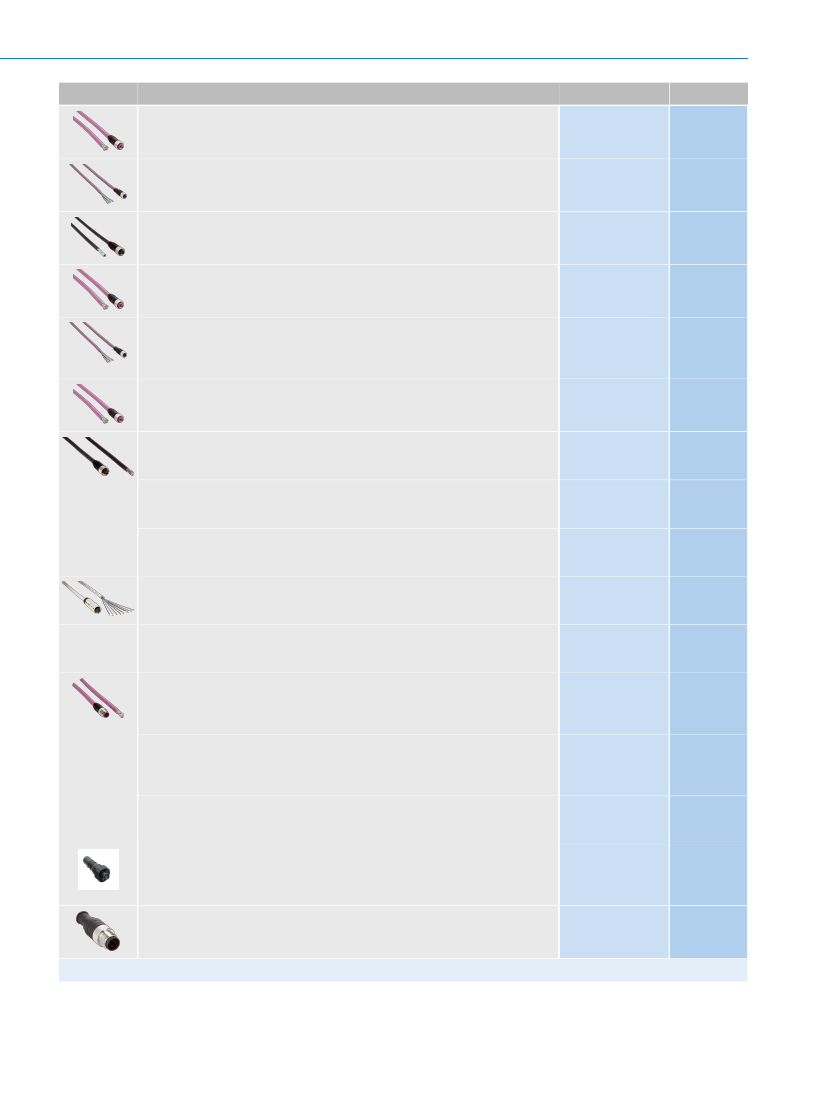

Brief description
Head A: female connector, M12, 5-pin, straight
Head B: cable
Cable: PROFIBUS DP, PUR, halogen-free, shielded, 5 m
Head A: female connector, M12, 5-pin, A-coded
Head B: cable
Cable: Power, CAN, unshielded, 5 m
Head A: female connector, M12, 5-pin, straight
Head B: cable
Cable: CANopen, Shielded cable, 6 m
Head A: female connector, M12, 5-pin, straight
Head B: cable
Cable: PROFIBUS DP, PVC, shielded, 10 m
Head A: female connector, M12, 5-pin, straight
Head B: cable
Cable: CAN/CANopen, shielded, 10 m
Shielded on pin 1
Head A: female connector, M12, 5-pin, straight
Head B: cable
Cable: PROFIBUS DP, shielded, 15 m
Head A: female connector, M12, 8-pin, straight
Head B: cable
Cable: PUR, halogen-free, shielded, 2 m
Head A: female connector, M12, 8-pin, straight
Head B: cable
Cable: drag chain use, PUR, halogen-free, shielded, 5 m
Head A: female connector, M12, 8-pin, straight
Head B: cable
Cable: PUR, halogen-free, shielded, 10 m
Head A: female connector, M16, 8-pin, straight
Head B: cable
Cable: PUR, halogen-free, shielded, 5 m
Head A: female connector, M16, 8-pin, straight
Head B: cable
Cable: PUR, halogen-free, shielded, 10 m
Head A: male connector, M12, 5-pin, straight, B-coded
Head B: cable
Cable: PROFIBUS DP, drag chain use, PUR, halogen-free, shielded, 5 m
Wire shield Al-Pt film, overall shield C-screen tin-plated
Head A: male connector, M12, 5-pin, straight, B-coded
Head B: cable
Cable: PROFIBUS DP, drag chain use, PUR, halogen-free, shielded, 10 m
Wire shield Al-Pt film, overall shield C-screen tin-plated
Head A: male connector, M12, 5-pin, straight, B-coded
Head B: cable
Cable: PROFIBUS DP, drag chain use, PUR, halogen-free, shielded, 15 m
Head A: female connector, 7/8", 5-pin, straight
Head B: -
Cable: DeviceNet, CANopen, DeviceNet Safety, terminal resistor, shielded
For field bus technology
Head A: male connector, M12, 4-pin, straight, B-coded
Cable: PROFIBUS DP, terminal resistor
DME5000-315 | DME5000
Type
DOL-1205-G05MQ
Part no.
6026006
DOL-1205-
G05M_Can
DOL-1205-G06MK
6021166
6028326
DOL-1205-G10MQ
6026008
DOL-1205-
G10M_Can
6021175
DOL-1205-G15MQ
6032637
DOL-1208-G02MAH1
6032448
DOL-1208-G05MAH1
6032449
DOL-1208-G10MAH1
6032450
DOL-1608-G05MA
2026742
DOL-1608-G10MA
2027193
STL-1205-G05MQ
6026005
STL-1205-G10MQ
6026007
STL-1205-G15MQ
6036898
DOS-7805-GKEND
6028329
STE-END-Q
6021156
Reflectors
2016-03-17 13:18:11 | Online data sheet
Subject to change without notice
DISTANCE SENSORS | SICK
5
Analog electronics
