MASW-006102-13610
HMIC™ Silicon SP6T PIN Diode Switch
with Integrated Bias Network
Rev. V3
Electrical Specifications: T
A
= +25°C, 10 mA (On-Wafer Measurements)
Parameter
Insertion Loss
Test Conditions
6 GHz
12 GHz
18 GHz
6 GHz
12 GHz
18 GHz
6 GHz
12 GHz
18 GHz
6 GHz
12 GHz
18 GHz
10 GHz
Units
dB
Min.
—
43
35
30
—
Typ.
1.0
1.3
1.9
49
43
39
18
20
16
19
22
20
80
Max.
1.4
2.0
2.9
—
Isolation
dB
Input Return Loss
dB
—
Isolation
Switching Speed
1
dB
—
—
ns
—
—
1. Typical switching speed is measured from (10% to 90% and 90% to 10% of detected RF voltage), driven by TTL compatible drivers. In the
modulating state, (the switching port is modulating, all other ports are in steady state isolation.) The switching speed is measured using an
RC network using the following values: R = 50 - 200 Ω, C = 390 - 1000 pF. Driver spike current, I
C
= C dv/dt, ratio of spike current to steady
state current, is typically 10:1.
Absolute Maximum Ratings
2,3,4
Parameter
RF CW Incident Power
Reverse Voltage
Bias Current per Port
Junction Temperature
Operating Temperature
Storage Temperature
Absolute Maximum
+33 dBm
-50 V
±50 mA @ +25°C
+175°C
-65°C to +125°C
-65°C to +150°C
Handling Procedures
Please observe the following precautions to avoid
damage:
Static Sensitivity
These electronic devices are sensitive to
electrostatic discharge (ESD) and can be damaged
by static electricity. Proper ESD control techniques
should be used when handling these Class 0
(HBM) and Class C1 (CDM) devices.
2. Exceeding any one or combination of these limits may cause
permanent damage to this device.
3. MACOM does not recommend sustained operation near these
survivability limits.
4. Maximum operating conditions for a combination of RF power,
DC bias and temperature: +33 dBm CW @ 15 mA (per diode)
@ +85°C.
2
M/A-COM Technology Solutions Inc. (MACOM) and its affiliates reserve the right to make changes to the product(s) or information contained herein without notice.
Visit
www.macom.com
for additional data sheets and product information.
For further information and support please visit:
https://www.macom.com/support
MASW-006102-13610
HMIC™ Silicon SP6T PIN Diode Switch
with Integrated Bias Network

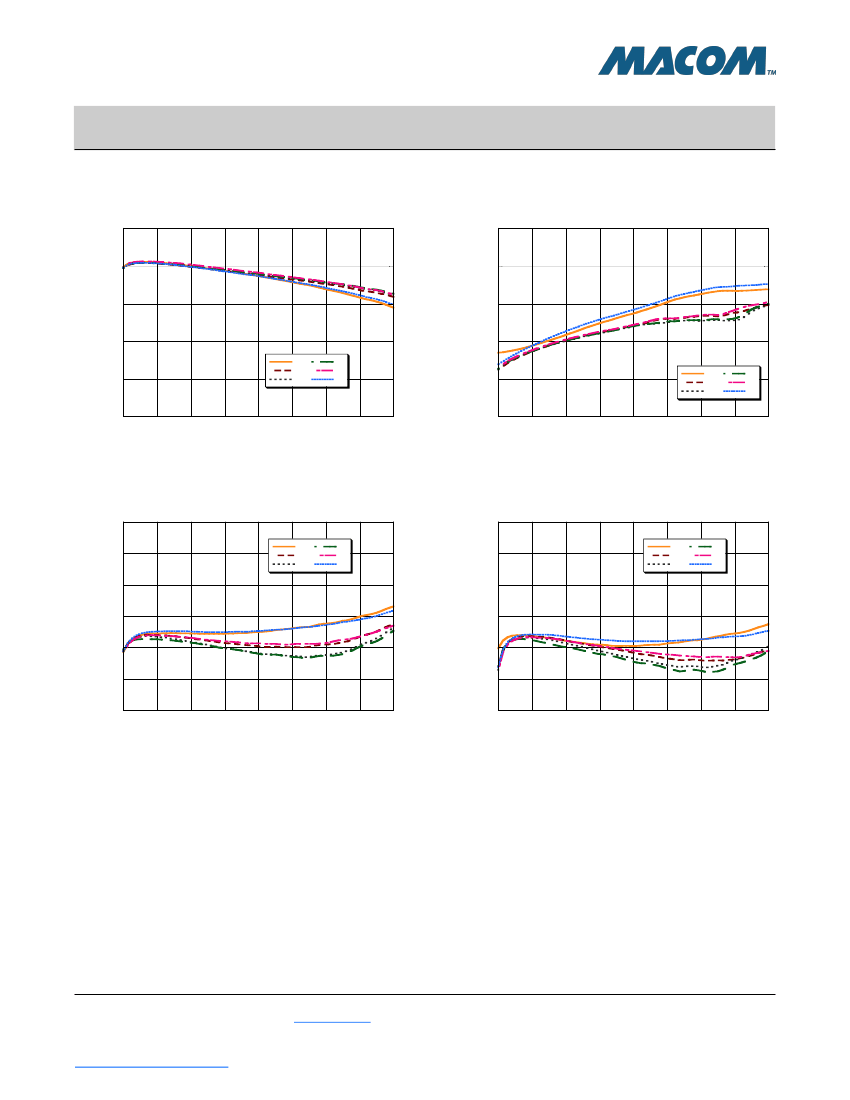

Typical Performance Curves:
Insertion Loss vs. Frequency
0
Rev. V3
Isolation vs. Frequency
-20
-1
-30
S21 (dB)
-3
J2
J3
J4
J5
J6
J7
S21 (dB)
-2
-40
-50
J2
J3
J4
J5
J6
J7
-4
-60
-5
2
4
6
8
10
12
14
16
18
-70
2
4
6
8
10
12
14
16
18
Frequency (GHz)
Frequency (GHz)
Input Return Loss vs. Frequency (Transmission)
0
-5
-10
J2
J3
J4
J5
J6
J7
Output Return Loss vs. Frequency (Termination)
0
-5
-10
J2
J3
J4
J5
J6
J7
S11 (dB)
-15
-20
-25
-30
S22 (dB)
2
4
6
8
10
12
14
16
18
-15
-20
-25
-30
2
4
6
8
10
12
14
16
18
Frequency (GHz)
Frequency (GHz)
3
M/A-COM Technology Solutions Inc. (MACOM) and its affiliates reserve the right to make changes to the product(s) or information contained herein without notice.
Visit
www.macom.com
for additional data sheets and product information.
For further information and support please visit:
https://www.macom.com/support
MASW-006102-13610
HMIC™ Silicon SP6T PIN Diode Switch
with Integrated Bias Network
Operation of the MASW-006102-13610 PIN Switch
The simultaneous application of negative DC current to the low loss port and positive DC current to the remaining
isolated ports as shown in the schematic provides successful RF operation of the MA4SW Series of PIN Diode
Switches. The backside area of the die is the RF and DC return ground plane. The DC bias return is located on
common port J1. Constant current sources should supply the DC control currents.
In the low loss state, the series diode must be forward biased and the shunt diode reverse biased. For all isolated
ports, the shunt diode is forward biased while the series diode is reverse biased.
This design improves insertion loss, P1dB, IP3, and switching speed by incorporating a voltage pull-up resistor
(~100 Ω) in the DC return path
(J1)
under insertion loss bias. A typical value of |-3 V| is achieved at the insertion
loss bias node using ±20 mA, with a Standard, ±5 V TTL controlled PIN diode driver.
Rev. V3
Typical Bias Network
J1 Input Common Port
DC Bias
J7
J2
J6
J5
J4
J3
Typical Driver Connections
DC Control Current (mA)
B2
-10
+10
+10
+10
+10
+10
B3
+10
-10
+10
+10
+10
+10
B4
+10
+10
-10
+10
+10
+10
B5
+10
+10
+10
-10
+10
+10
B6
+10
+10
+10
+10
-10
+10
B7
+10
+10
+10
+10
+10
-10
J1-J2
low loss
Isolation
J1-J3
RF Output States
J1-J4
J1-J5
J1-J6
J1-J7
Isolation Isolation Isolation Isolation Isolation
low loss
Isolation Isolation Isolation Isolation
low loss
Isolation Isolation Isolation
low loss
Isolation Isolation
low loss
Isolation
low loss
Isolation Isolation
Isolation Isolation Isolation
Isolation Isolation Isolation Isolation
Isolation Isolation Isolation Isolation Isolation
4
M/A-COM Technology Solutions Inc. (MACOM) and its affiliates reserve the right to make changes to the product(s) or information contained herein without notice.
Visit
www.macom.com
for additional data sheets and product information.
For further information and support please visit:
https://www.macom.com/support
MASW-006102-13610
HMIC™ Silicon SP6T PIN Diode Switch
with Integrated Bias Network

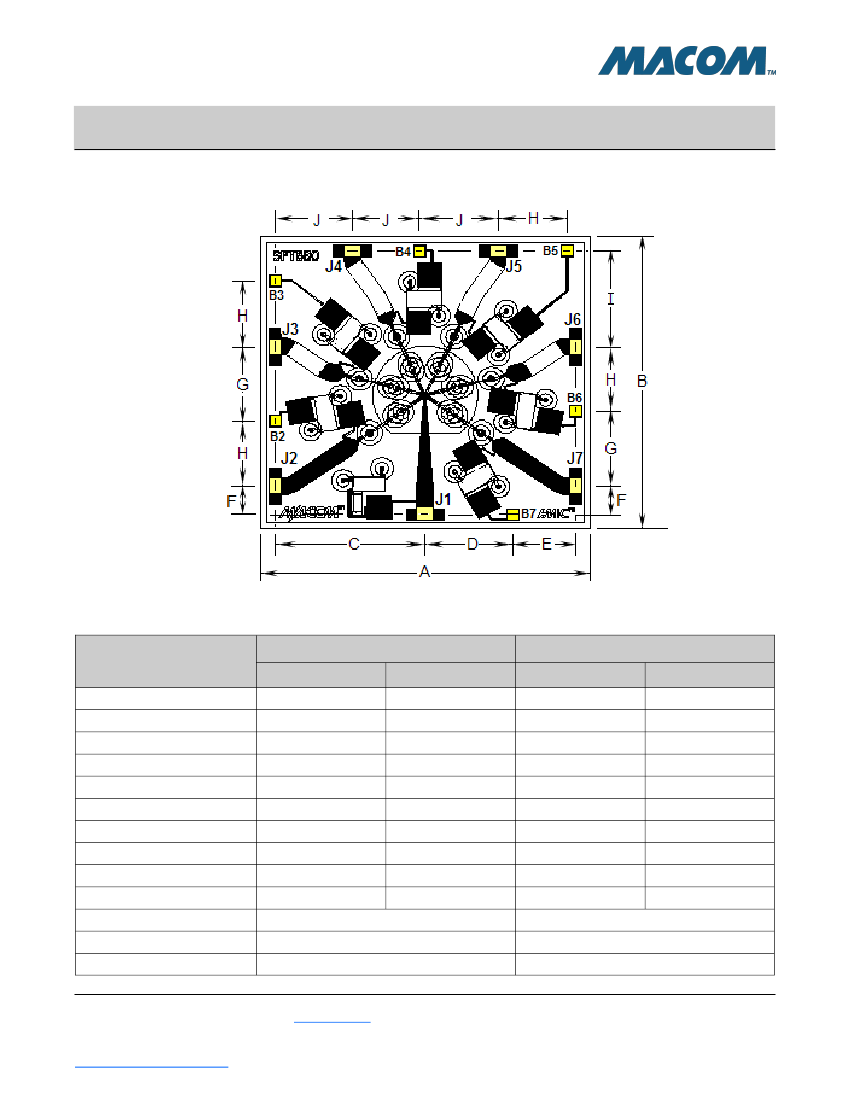

Chip Dimensions
5,6
Rev. V3
5. Topside and backside metallization is gold , 2.5 µm thick typical.
6. Yellow areas indicate wire bonding pads.
DIM
A
B
C
D
E
F
G
H
I
J
RF Bond Pads (J1-J7)
DC Bond Pads (B2-B5)
Thickness
5
INCHES
MIN
0.1325
0.1225
0.0595
0.0345
0.0245
0.0115
0.0305
0.0275
0.0395
0.0295
MAX
0.1335
0.1235
0.0605
0.0355
0.0255
0.0125
0.0315
0.0285
0.0405
0.0305
MIN
3.3655
3.1115
1.5113
0.8763
0.6223
0.2921
0.7747
0.6985
1.0033
0.7493
MILLIMETERS
MAX
3.3909
3.1369
1.5367
0.9017
0.6477
0.3175
0.8001
0.7239
1.0287
0.7747
0.016 X 0.005 REF.
0.005 X 0.005 REF.
0.005 REF.
0.4064 X 0.127 REF.
0.127 X 0.127 REF.
0.127 REF.
