The design used 3 pin diodes to provide a non linear
attenuation response across a broadband frequency
range. Both TO-8 and surface mount packages are
hermetically sealed. MIL-STD-883 environmental
screening is available.
Electrical Specifications
1
: V
CC
= 15 V, Z
0
= 50 Ω
Typical
Parameter
Frequency
Maximum Attenuation (min.)
5 - 500 MHz
500 - 1000 MHz
1000 - 2000 MHz
Insertion Loss (V
CTRL
= 15 V) (max.)
5 - 1000 MHz
1000 - 2000 MHz
VSWR (worst case in attenuation range)
5 - 2000 MHz
Flatness over Frequency (max.)
(Attenuation = min. to 15 dB, 5 - 2000 MHz)
Switching Speed (max.)
10% - 90 %
0% - 100 %
Bias Voltage
Control Voltage
Bias Current (max.)
Control Current (max.)
Units
+25°C
MHz
dB
5 - 2200
34
28
22
2.3
2.8
<1.5:0
±0.4
25
70
5
0 - 15
5.0
4
0° to +50°C
5 - 2000
31
25
20
3.0
3.5
2.2:1
±0.8
—
5
0 - 15
6.5
6
-54° to +85°C
5 - 2000
30
24
18
3.5
4.0
2.3:1
±1.0
—
5
0 - 15
7.0
7
Guaranteed
dB
dB
dB
µs
V
V
mA
mA
1. Over temperature performance limits for part MAAM-007987-000CG2 are guaranteed from 0°C to +50°C only.
1
* Restrictions on Hazardous Substances, European Union Directive 2011/65/EU.
M/A-COM Technology Solutions Inc. (MACOM) and its affiliates reserve the right to make changes to the product(s) or information contained herein without notice.
Visit
www.macom.com
for additional data sheets and product information.
For further information and support please visit:
https://www.macom.com/support
G2 / SMG2
Voltage Controlled Attenuator Module
5 - 2000 MHz
Absolute Maximum Rantings
2,3
Parameter
Short Term RF Input Power
(1 minute max.)
Peak Power (3 µs max.)
DC Voltage
DC Bias Voltage
“S” Series Burn-In
Temperature
Case Temperature
Storage Temperature
Absolute Maximum
200 mW
1W
18 V
10 V
+125°C
+125°C
-62°C to +125°C
Rev. V4
Ordering Information
Part Number
G2
SMG2
MAAM-007987-000CG2
Package
TO-8
Surface Mount
SMA Connectorized
1
1. The Connectorized version is not RoHS compliant.
Handling Procedures
Please observe the following precautions to avoid
damage:
2. Exceeding any one or combination of these limits may cause
permanent damage to this device.
3. MACOM does not recommend sustained operation near these
survivability limits.
Static Sensitivity
These electronic devices are sensitive to
electrostatic discharge (ESD) and can be damaged
by static electricity. Proper ESD control techniques
should be used when handling these devices.
Typical Performance Curves
Attenuation vs. Control Voltage
Attenuation vs. Control Voltage vs. Frequency
2
M/A-COM Technology Solutions Inc. (MACOM) and its affiliates reserve the right to make changes to the product(s) or information contained herein without notice.
Visit
www.macom.com
for additional data sheets and product information.
For further information and support please visit:
https://www.macom.com/support
G2 / SMG2
Voltage Controlled Attenuator Module
5 - 2000 MHz

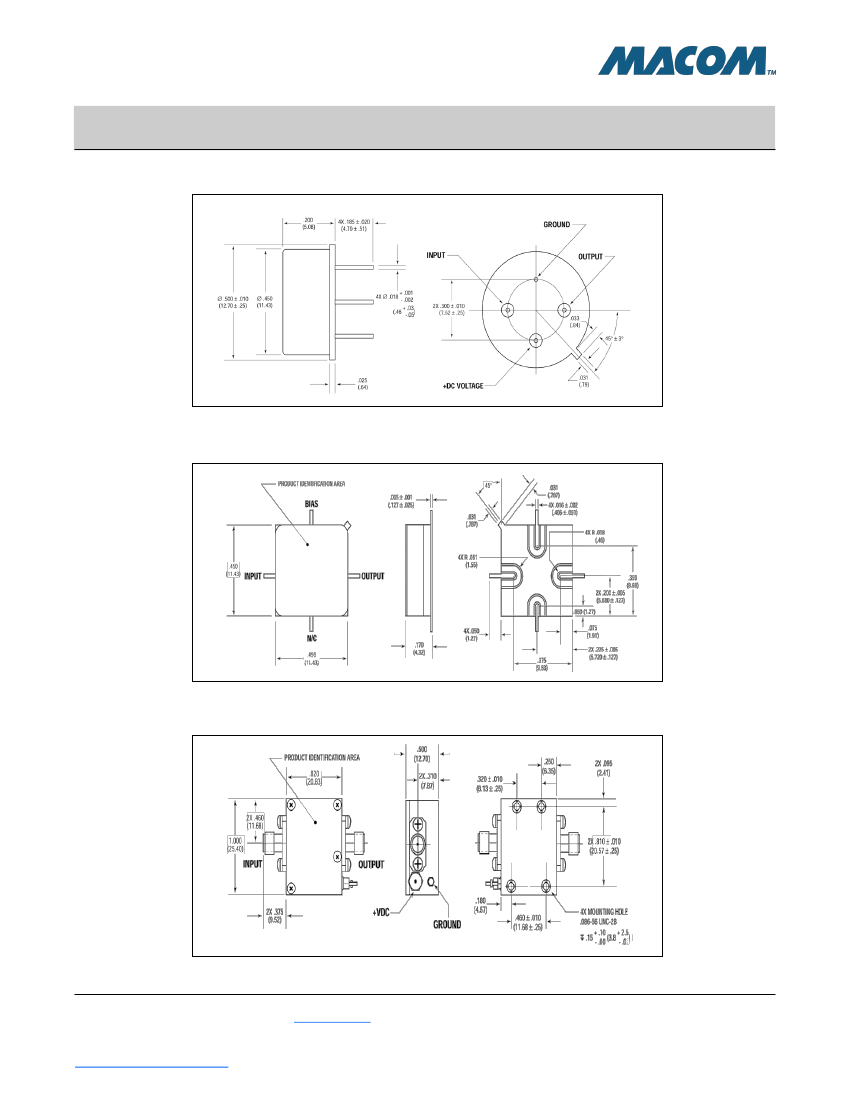

Outline Drawing: TO-8
*
Rev. V4
Outline Drawing: Surface Mount
Outline Drawing: SMA Connectorized
3
Dimensions are inches (millimeters) ±0.015 (0.38) unless otherwise specified.
M/A-COM Technology Solutions Inc. (MACOM) and its affiliates reserve the right to make changes to the product(s) or information contained herein without notice.
Visit
www.macom.com
for additional data sheets and product information.
For further information and support please visit:
https://www.macom.com/support
G2 / SMG2
Voltage Controlled Attenuator Module
5 - 2000 MHz
Rev. V4
M/A-COM Technology Solutions Inc. All rights reserved.
Information in this document is provided in connection with M/A-COM Technology Solutions Inc ("MACOM")
products. These materials are provided by MACOM as a service to its customers and may be used for
informational purposes only. Except as provided in MACOM's Terms and Conditions of Sale for such products or
in any separate agreement related to this document, MACOM assumes no liability whatsoever. MACOM
assumes no responsibility for errors or omissions in these materials. MACOM may make changes to
specifications and product descriptions at any time, without notice. MACOM makes no commitment to update
the information and shall have no responsibility whatsoever for conflicts or incompatibilities arising from future
changes to its specifications and product descriptions. No license, express or implied, by estoppels or otherwise,
to any intellectual property rights is granted by this document.
THESE MATERIALS ARE PROVIDED "AS IS" WITHOUT WARRANTY OF ANY KIND, EITHER EXPRESS OR
IMPLIED, RELATING TO SALE AND/OR USE OF MACOM PRODUCTS INCLUDING LIABILITY OR
WARRANTIES RELATING TO FITNESS FOR A PARTICULAR PURPOSE, CONSEQUENTIAL OR
INCIDENTAL DAMAGES, MERCHANTABILITY, OR INFRINGEMENT OF ANY PATENT, COPYRIGHT OR
OTHER INTELLECTUAL PROPERTY RIGHT. MACOM FURTHER DOES NOT WARRANT THE ACCURACY
OR COMPLETENESS OF THE INFORMATION, TEXT, GRAPHICS OR OTHER ITEMS CONTAINED WITHIN
THESE MATERIALS. MACOM SHALL NOT BE LIABLE FOR ANY SPECIAL, INDIRECT, INCIDENTAL, OR
CONSEQUENTIAL DAMAGES, INCLUDING WITHOUT LIMITATION, LOST REVENUES OR LOST PROFITS,
WHICH MAY RESULT FROM THE USE OF THESE MATERIALS.
MACOM products are not intended for use in medical, lifesaving or life sustaining applications. MACOM
customers using or selling MACOM products for use in such applications do so at their own risk and agree to
fully indemnify MACOM for any damages resulting from such improper use or sale.
