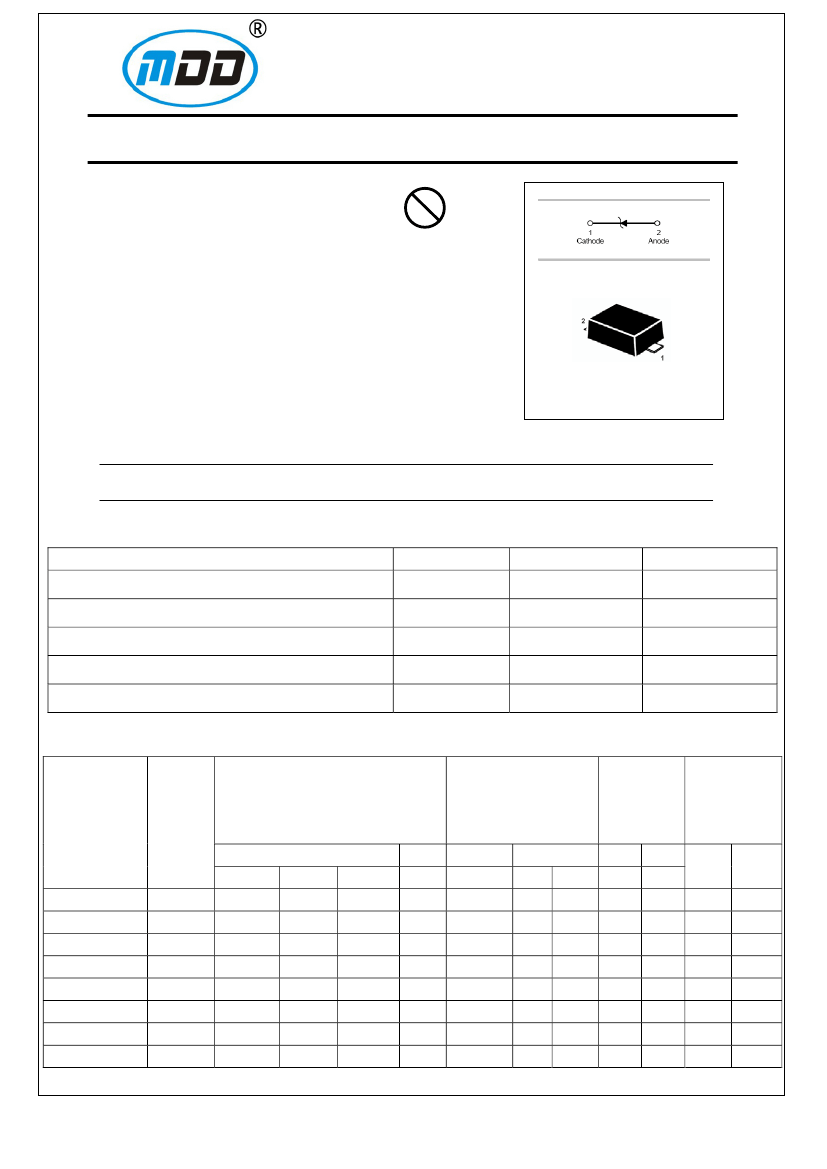

Zener Diode
FEATURES
Zener voltages:2.4V~51V.
Power dissipation P
D
:200mW.
BZX584C2V4-BZX584C51
Pb
Lead-free
APPLICATIONS
Zener
diodes.

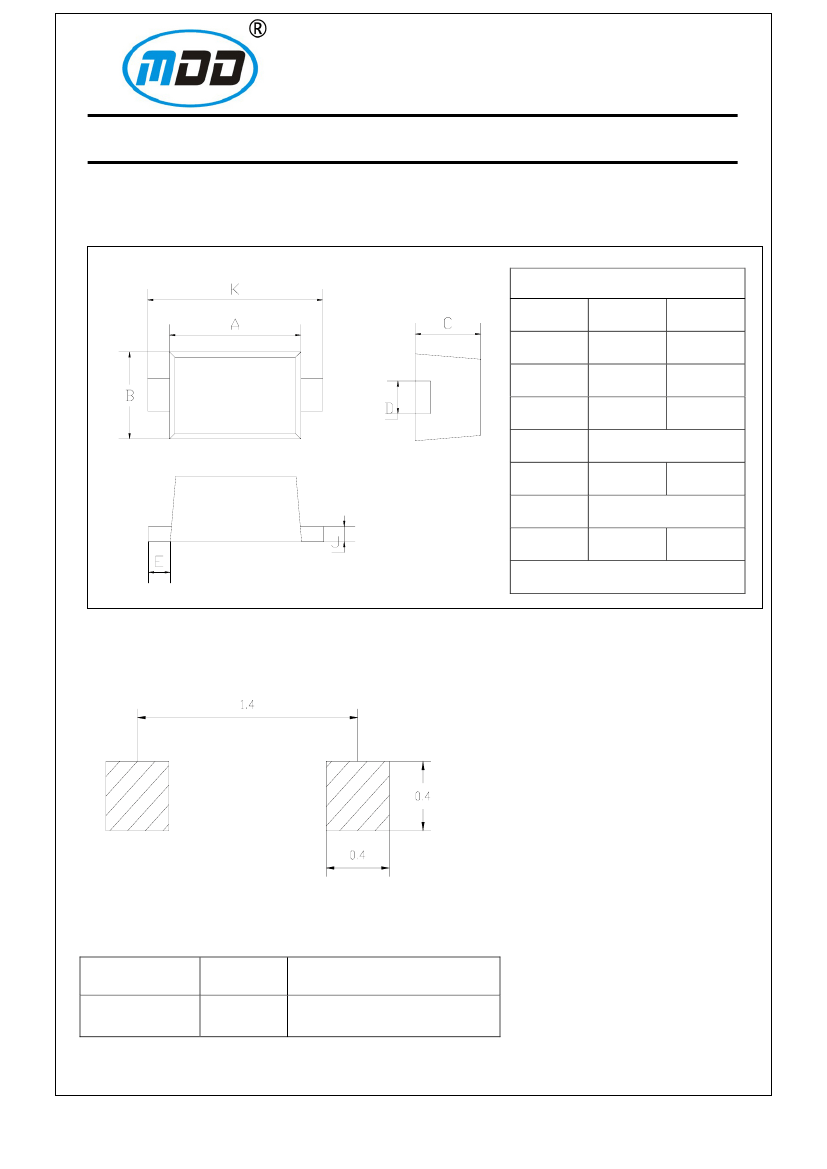

SOD-523
ORDERING INFORMATION
Type No.
BZX584C2V4-BZX584C51
Marking
see table on page 2
Package Code
SOD-523
MAXIMUM RATING
@ Ta=25℃ unless otherwise specified
Parameter
Total power dissipation
Total resistance junction to ambient
Total resistance junction to soldering point
Junction temperature
Storage temperature
Symbol
P
tot
R
θJA
R
θJS
T
j
T
stg
Limits
200
680
100
150
-65 to +150
Unit
mW
℃/W
℃/W
℃
℃
ELECTRICAL CHARACTERISTICS
@ Ta=25℃ unless otherwise specified
Zener voltage range
Type Number
Marking
V
Z
@I
ZT
Nom(V)
BZX584C2V4
BZX584C2V7
BZX584C3V0
BZX584C3V3
BZX584C3V6
BZX584C3V9
BZX584C4V3
BZX584C4V7
Z11
Z12
Z13
Z14
Z15
Z16
Z17
Z1
2.4
2.7
3.0
3.3
3.6
3.9
4.3
4.7
Min(V)
2.2
2.5
2.8
3.1
3.4
3.7
4.0
4.4
Max(V)
2.6
2.9
3.2
3.5
3.8
4.1
4.6
5.0
I
ZT
(mA)
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
Maximum zener
impedance
Z
ZT
@I
ZT
(Ω)
100
100
95
95
90
90
90
80
Z
ZK
@I
ZK
(Ω)
600
600
600
600
600
600
600
500
(mA)
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
Maximum
Reverse
current
I
R
(μA)
50
20
10
5.0
5.0
3.0
3.0
3.0
V
R
(V)
1.0
1.0
1.0
1.0
1.0
1.0
1.0
2.0
Typical
Temperature
Coeffiient @
I
ZT
mV/℃
Min
-3.5
-3.5
-3.5
-3.5
-3.5
-3.5
-3.5
-3.5
Max
0
0
0
0
0
0
0
0.2
