high power limiter which integrates the equivalent of
20 PIN, Schottky, limiter diodes, capacitors,
inductors, and resistors in a compact ceramic
package. This device provides superior low and high
signal performance from 0.3 - 1.0 GHz without DC
bias.
The MADL-011012 is ideally suitable for higher peak
and CW power receiver-protector microwave circuits
applications where higher performance surface
mount limiter assemblies are required.
3
GND
Top view
Pin Configuration
Pin No.
1
2
3
Pin Name
RF
IN
RF
OUT
Paddle
2
Description
RF Input
RF Output
Ground
Ordering Information
Part Number
MADL-011012-001
MADL-011012-001SMB
Package
bulk
Sample Test Board
2. The exposed paddle centered on the package bottom must
be connected to RF, DC, and thermal ground.
1. Hermetic Seal provides fine leak rate < 5x10
-8
atm·cc/s.
* Restrictions on Hazardous Substances, European Union Directive 2011/65/EU.
1
M/A-COM Technology Solutions Inc. (MACOM) and its affiliates reserve the right to make changes to the product(s) or information contained herein without notice.
Visit
www.macom.com
for additional data sheets and product information.
For further information and support please visit:
https://www.macom.com/support
MADL-011012
360 W CW Power Limiter
0.3 - 1.0 GHz
Electrical Specifications: T
A
= +25°C, Z
0
= 50 Ω (unless otherwise defined)
Parameter
Insertion Loss
Test Conditions
-10 dBm, 300 MHz
-10 dBm, 500 MHz
-10 dBm, 1000 MHz
10 dBm, 300 MHz
-10 dBm, 500 MHz
-10 dBm, 1000 MHz
500 MHz
500 MHz
1 ms pulse, 10% duty cycle, 500 MHz
1 ms pulse, 10% duty cycle, 500 MHz
+55.6 dBm, 1 ms pulse, 10% duty cycle,
500 MHz
+55.6 dBm, 1 ms pulse, 10% duty cycle,
500 MHz
+55.6 dBm, 1 ms pulse, 10% duty cycle,
500 MHz
-10 dBm, F1 = 500 MHz, F2 = 510 MHz
Units
dB
Min.
—
—
—
—
—
—
—
—
—
—
—
—
—
—
Typ.
0.25
0.20
0.55
20
25
11
13
55.6
55.6
20
29
0.5
3
29
Max.
—
0.35
—
—
—
—
—
—
—
—
—
—
—
—
Rev. V1
Return Loss
P1dB Input Compression Power
CW Incident Power
3
Peak Incident Power
3
Flat Leakage Power
Spike Leakage Power
Spike Leakage Energy
Recovery Time
(3 dB of Insertion Loss)
Input 3rd Order Intermodulation (IIP3)
dB
dBm
dBm
dBm
dBm
dBm
ergs
µs
dBm
3. Incident power ratings defined with 1.2:1 source VSWR and 1.2:1 maximum load VSWR.
Absolute Maximum Ratings
4,5
Parameter
Peak Incident Power
2 ms pulse, 10% duty @ +85°C
CW Incident Power @ +85°C
Junction Temperature
6
Operating Temperature
Storage Temperature
Absolute Maximum
55.6 dBm
54 dBm
175°C
-65°C to +125°C
-65°C to +150°C
Typical Performance Curve
Pulse Width vs. Peak Input Power @ +85°C
(
10% Duty Cycle, 500 MHz)
6
5
RF Pulse Width (ms)
4
3
2
1
0
4. Exceeding any one or combination of these limits may cause
permanent damage to this device.
5. MACOM does not recommend sustained operation near these
survivability limits.
6.
Operating at nominal conditions with T
J
≤ +175°C will ensure
MTTF > 1 x 10
6
hours.
2
54
55
56
57
Peak Incident Power (dBm)
M/A-COM Technology Solutions Inc. (MACOM) and its affiliates reserve the right to make changes to the product(s) or information contained herein without notice.
Visit
www.macom.com
for additional data sheets and product information.
For further information and support please visit:
https://www.macom.com/support
MADL-011012
360 W CW Power Limiter
0.3 - 1.0 GHz

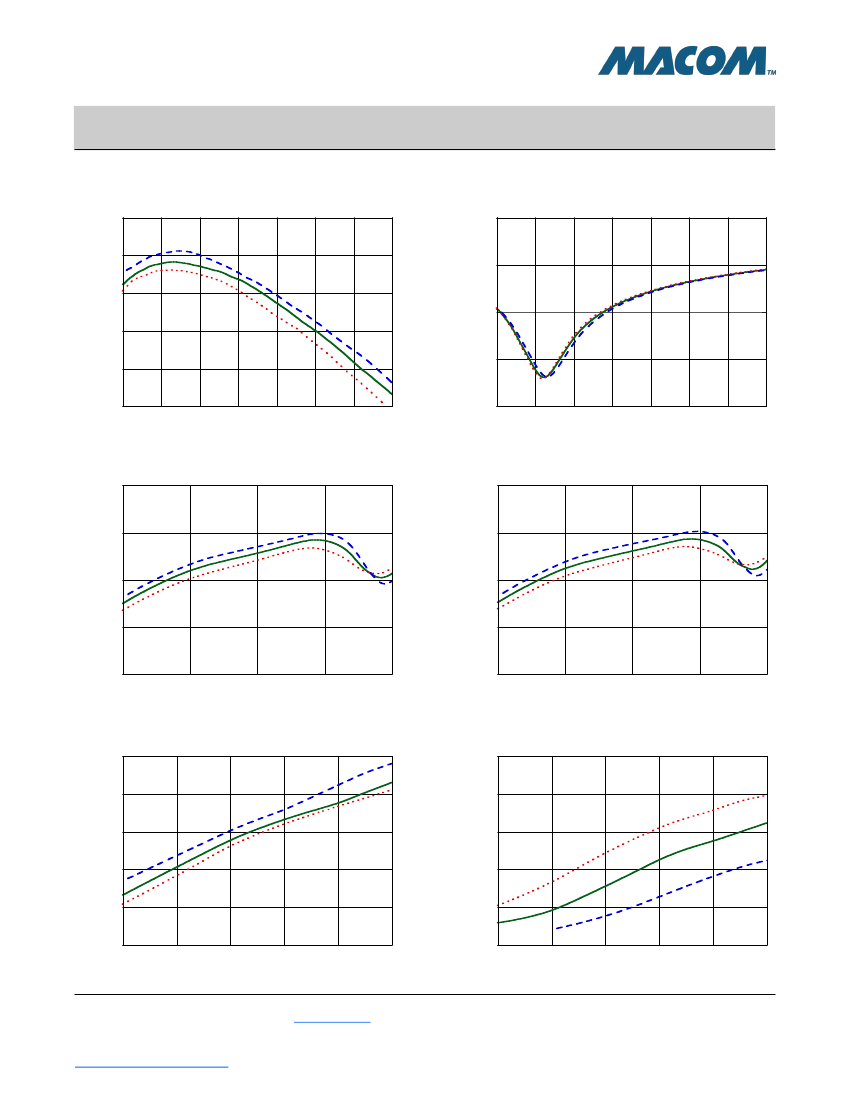

Typical Performance Curves
Insertion Loss vs. Frequency
0.0
Rev. V1
Input Return Loss vs. Frequency
0
-0.1
-10
S21 (dB)
S11 (dB)
0.4
0.5
0.6
0.7
0.8
0.9
1.0
-0.2
-20
-0.4
-0.5
-30
-0.6
0.3
-40
0.3
0.4
0.5
0.6
0.7
0.8
0.9
1.0
Frequency (GHz)
Frequency (GHz)
Pulsed Flat Leakage Power vs. P
IN
25
(1 ms Pulse, 10% Duty Cycle, 500 MHz)
CW Flat Leakage Power vs. P
IN
@ 500 MHz
25
Output Power (dBm)
15
Output Power (dBm)
15
25
35
45
55
20
20
15
10
10
5
5
15
25
35
45
55
Input Power (dBm)
Input Power (dBm)
Pulsed Spike Leakage Power vs. P
IN
(1 ms Pulse, 10% Duty Cycle, 500 MHz)
30
Pulsed 1 dB Recovery Time vs. P
IN
(1 ms Pulse, 10% Duty Cycle, 500 MHz)
5
Spike Leakage Power (dBm)
28
1 dB Recovery Time (µs)
45
47
49
51
53
55
4
26
3
24
2
22
1
20
0
45
47
49
51
53
55
3
Input Power (dBm)
Input Power (dBm)
M/A-COM Technology Solutions Inc. (MACOM) and its affiliates reserve the right to make changes to the product(s) or information contained herein without notice.
Visit
www.macom.com
for additional data sheets and product information.
For further information and support please visit:
https://www.macom.com/support
MADL-011012
360 W CW Power Limiter
0.3 - 1.0 GHz

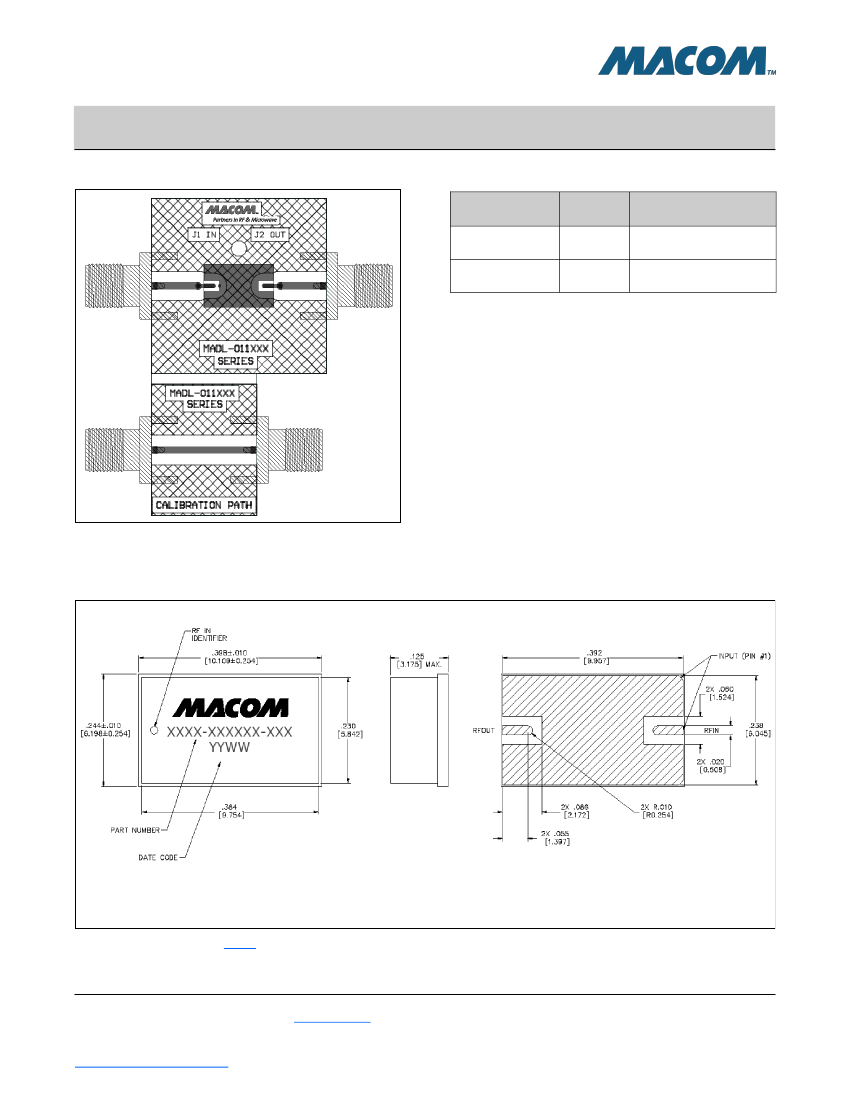

SMB Layout
SMB Layout
Part
RF Connector
Limiter
Quantity
2
1
Part Number
Johnson 142-0701-851
MADL-011012
Rev. V1
Handling Procedures
Please observe the following precautions to avoid
damage:
Static Sensitivity
These devices are sensitive to electrostatic
discharge (ESD) and can be damaged by static
electricity. Proper ESD control techniques should
be used when handling these HBM Class 1B
devices.
Lead-Free 10.1 x 6.2 x 3.2
mm
3
2-Lead package
†
NOTES:
REFERENCE JEDEC MO-153-AB FOR ADDITIONAL DIMENSIONAL AND TOLERANCE INFORMATION.
ALL DIMENSIONS SHOWN AS INCHES/MM.
†
Reference Application Note
S2083
for lead-free solder reflow recommendations.
Plating is Au over Ni over Cu.
4
M/A-COM Technology Solutions Inc. (MACOM) and its affiliates reserve the right to make changes to the product(s) or information contained herein without notice.
Visit
www.macom.com
for additional data sheets and product information.
For further information and support please visit:
https://www.macom.com/support
MADL-011012
360 W CW Power Limiter
0.3 - 1.0 GHz
Application Section
Rev. V1
Transmit-Receive Block Diagram
using the UHF Band MADL-011012 Limiter
Ant
Circulator
Circulator
PA
LNA
50
Ω
High
Power Load
MADL-011012
Limiter
5
M/A-COM Technology Solutions Inc. (MACOM) and its affiliates reserve the right to make changes to the product(s) or information contained herein without notice.
Visit
www.macom.com
for additional data sheets and product information.
