712-13-145-41-001 datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> socket> 712-13-145-41-001

Preview

712-13-145-41-001: DescriptionIC Socket, SIP45, 45 Contact(s); CategoryThe connector socket; File Size146KB，1 Pages; ManufacturerMill-Max; Websitehttps://www.mill-max.com; Environmental Compliance

Download Datasheet Parametric View All

712-13-145-41-001 Overview

IC Socket, SIP45, 45 Contact(s)

712-13-145-41-001 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	1546602697
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	LOW PROFILE
Contact to complete cooperation	GOLD (30) OVER NICKEL
Contact completed and terminated	GOLD (10) OVER NICKEL
Contact material	NOT SPECIFIED
Device slot type	IC SOCKET
Type of equipment used	SIP45
Shell material	GLASS FILLED POLYETHYLENE POLYESTER
JESD-609 code	e4
Manufacturer's serial number	712
Number of contacts	45

Preview

Download Datasheet

View All

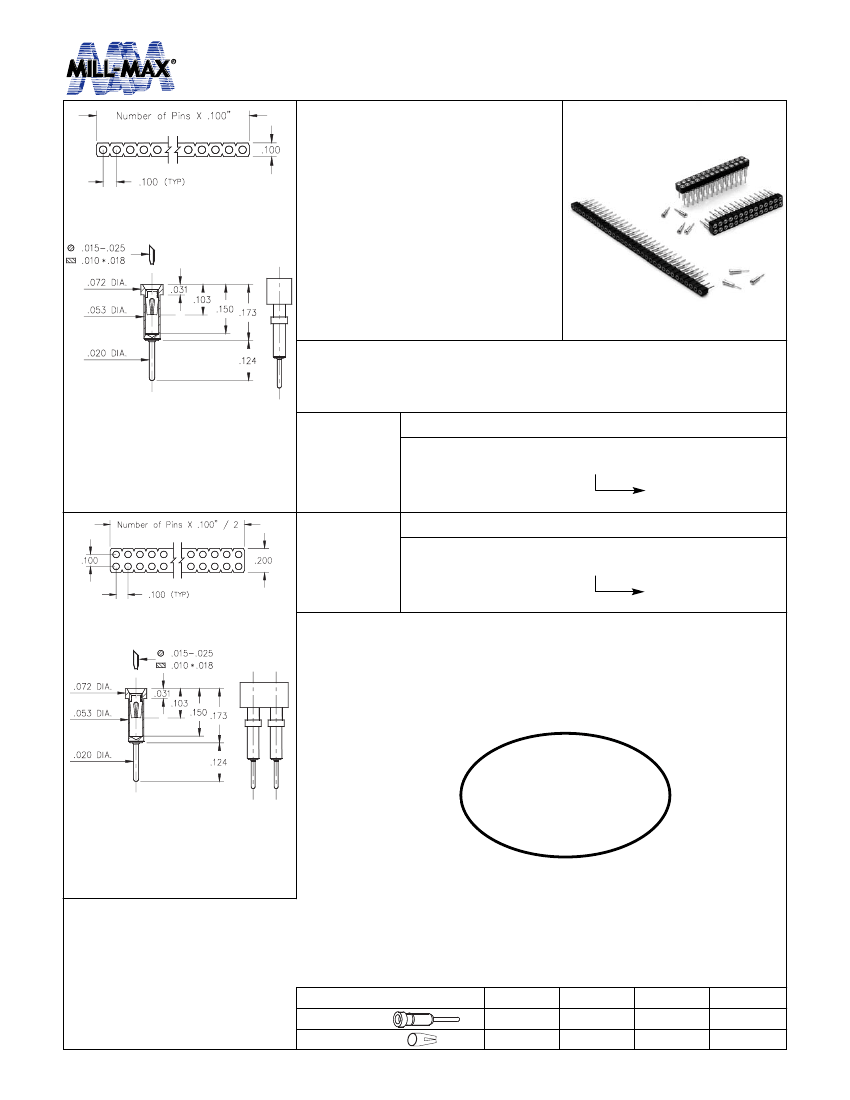

SINGLE-IN-LINE SOCKETS

Carrier with Solder Tail

Single and Double Row

•

Series 712

Standard solder tail receptacles

can be mounted as a low profile

receptacle or by the solder tail for

use in smaller diameter holes.

Series 712 uses M-M# 0255 pin.

See page 134 for details.

Hi-Rel #30 BeCu contact is rated

at 3 amps. See page 208 for

details.

•

Ordering Information

Single Row (.028 or .055 min. mounting holes)

Fig. 1

712-XX-1_ _-41-001

Specify # of pins

01-64

Double Row (.028 or .055 min. mounting holes)

Fig. 2

712-XX-2_ _-41-001

Specify # of pins

02-64

XX= Plating Code

See Below

Fig. 2

SPECIFY PLATING CODE XX=

13

10µ” Au

30µ” Au

93

200µ” Sn/Pb

30µ” Au

Sleeve (Pin)

Contact (Clip)

w w w. m i l l - m a x . c o m

56

516-922-6000
