GRM2163U1H820JZ01D: DescriptionCeramic Capacitor, Multilayer, Ceramic, 50V, 5% +Tol, 5% -Tol, UJ, -750+/-120ppm/Cel TC, 0.000082uF, Surface Mount, 0805, CHIP; CategoryPassive components capacitor; File Size320KB，1 Pages; ManufacturerMurata; Websitehttps://www.murata.com; Environmental Compliance

Download Datasheet Parametric Compare View All

GRM2163U1H820JZ01D Overview

Ceramic Capacitor, Multilayer, Ceramic, 50V, 5% +Tol, 5% -Tol, UJ, -750+/-120ppm/Cel TC, 0.000082uF, Surface Mount, 0805, CHIP

GRM2163U1H820JZ01D Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	1626888423
package instruction	, 0805
Reach Compliance Code	compliant
ECCN code	EAR99
capacitance	0.000082 µF
Capacitor type	CERAMIC CAPACITOR
dielectric materials	CERAMIC
high	0.6 mm
JESD-609 code	e3
length	2 mm
Installation features	SURFACE MOUNT
multi-layer	Yes
negative tolerance	5%
Number of terminals	2
Maximum operating temperature	85 °C
Minimum operating temperature	-25 °C
Package shape	RECTANGULAR PACKAGE
Package form	SMT
method of packing	TR, PAPER, 7 INCH
positive tolerance	5%
Rated (DC) voltage (URdc)	50 V
size code	0805
surface mount	YES
Temperature characteristic code	UJ
Temperature Coefficient	-750+/-120ppm/Cel ppm/°C
Terminal surface	Tin (Sn)
Terminal shape	WRAPAROUND
width	1.25 mm

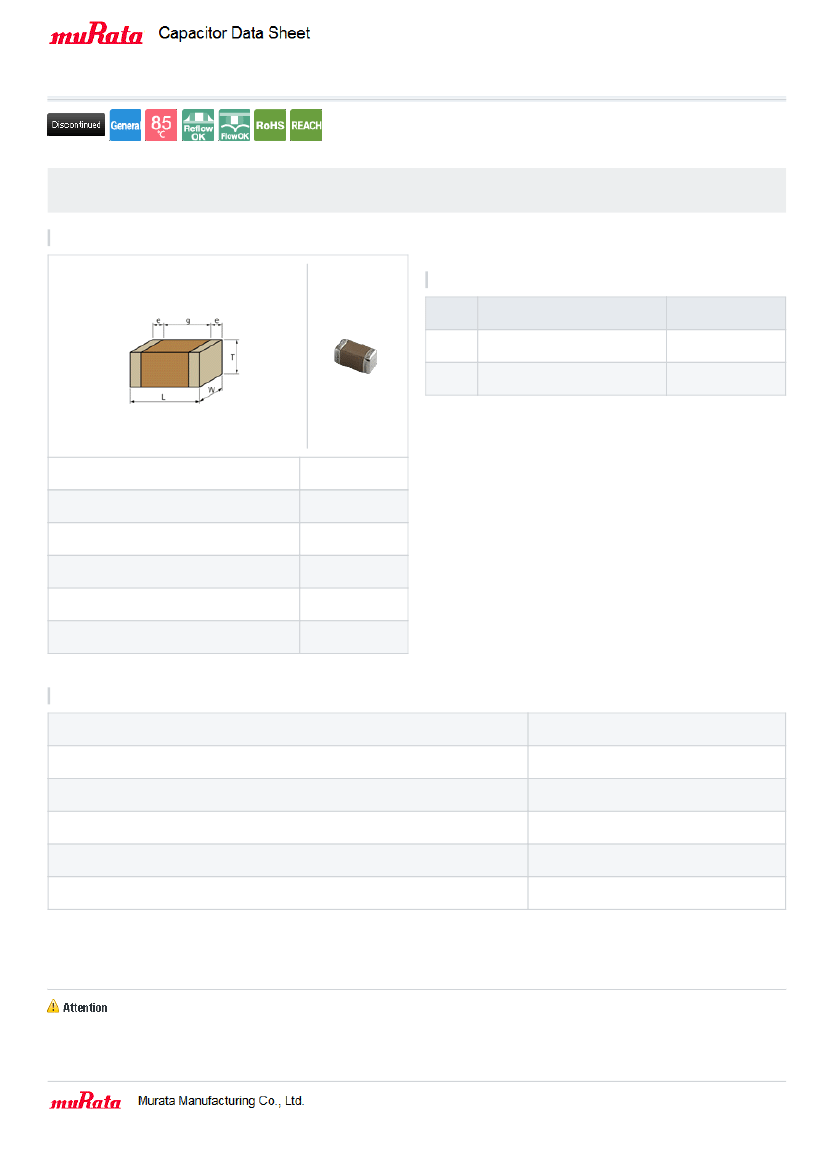

Preview

Download Datasheet

View All

GRM2163U1H820JZ01#

Date of discontinuation: 31 Mar 2014

< List of part numbers with package codes >

“#” indicates a package specification code.

GRM2163U1H820JZ01D , GRM2163U1H820JZ01J

Shape

References

Packaging

D

J

Specifications

φ180mm

Paper taping

φ330mm

Paper taping

Minimum quantity

4000

10000

L size

W size

T size

External terminal width e

Distance between external terminals g

Size code in inch(mm)

2.0 ±0.1mm

1.25 ±0.1mm

0.6 ±0.1mm

0.2 to 0.7mm

0.7mm min.

0805 (2012M)

Specifications

Capacitance

Rated voltage

Temperature characteristics (complied standard)

Temperature coefficient

Temperature range of temperature characteristics

Operating temperature range

82pF ±5%

50Vdc

UJ(JIS)

-750±120ppm/℃

20 to 85℃

-25 to 85℃

1 of 1

1.This datasheet is downloaded from the website of Murata Manufacturing Co., Ltd. Therefore, it’s specifications are subject to change or our products in it may be discontinued

without advance notice. Please check with our sales representatives or product engineers before ordering.

2.This datasheet has only typical specifications because there is no space for detailed specifications.

Therefore, please review our product specifications or consult the approval sheet for product specifications before ordering.

URL : http://www.murata.com/

Last updated: 2017/02/22

GRM2163U1H820JZ01D Related Products

	GRM2163U1H820JZ01D	GRM2163U1H820JZ01J
Description	Ceramic Capacitor, Multilayer, Ceramic, 50V, 5% +Tol, 5% -Tol, UJ, -750+/-120ppm/Cel TC, 0.000082uF, Surface Mount, 0805, CHIP	Ceramic Capacitor, Multilayer, Ceramic, 50V, 5% +Tol, 5% -Tol, UJ, -750+/-120ppm/Cel TC, 0.000082uF, Surface Mount, 0805, CHIP
Is it Rohs certified?	conform to	conform to
Objectid	1626888423	1626888424
package instruction	, 0805	, 0805
Reach Compliance Code	compliant	compliant
ECCN code	EAR99	EAR99
capacitance	0.000082 µF	0.000082 µF
Capacitor type	CERAMIC CAPACITOR	CERAMIC CAPACITOR
dielectric materials	CERAMIC	CERAMIC
high	0.6 mm	0.6 mm
JESD-609 code	e3	e3
length	2 mm	2 mm
Installation features	SURFACE MOUNT	SURFACE MOUNT
multi-layer	Yes	Yes
negative tolerance	5%	5%
Number of terminals	2	2
Maximum operating temperature	85 °C	85 °C
Minimum operating temperature	-25 °C	-25 °C
Package shape	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE
Package form	SMT	SMT
method of packing	TR, PAPER, 7 INCH	TR, PAPER, 13 INCH
positive tolerance	5%	5%
Rated (DC) voltage (URdc)	50 V	50 V
size code	0805	0805
surface mount	YES	YES
Temperature characteristic code	UJ	UJ
Temperature Coefficient	-750+/-120ppm/Cel ppm/°C	-750+/-120ppm/Cel ppm/°C
Terminal surface	Tin (Sn)	Tin (Sn)
Terminal shape	WRAPAROUND	WRAPAROUND
width	1.25 mm	1.25 mm
