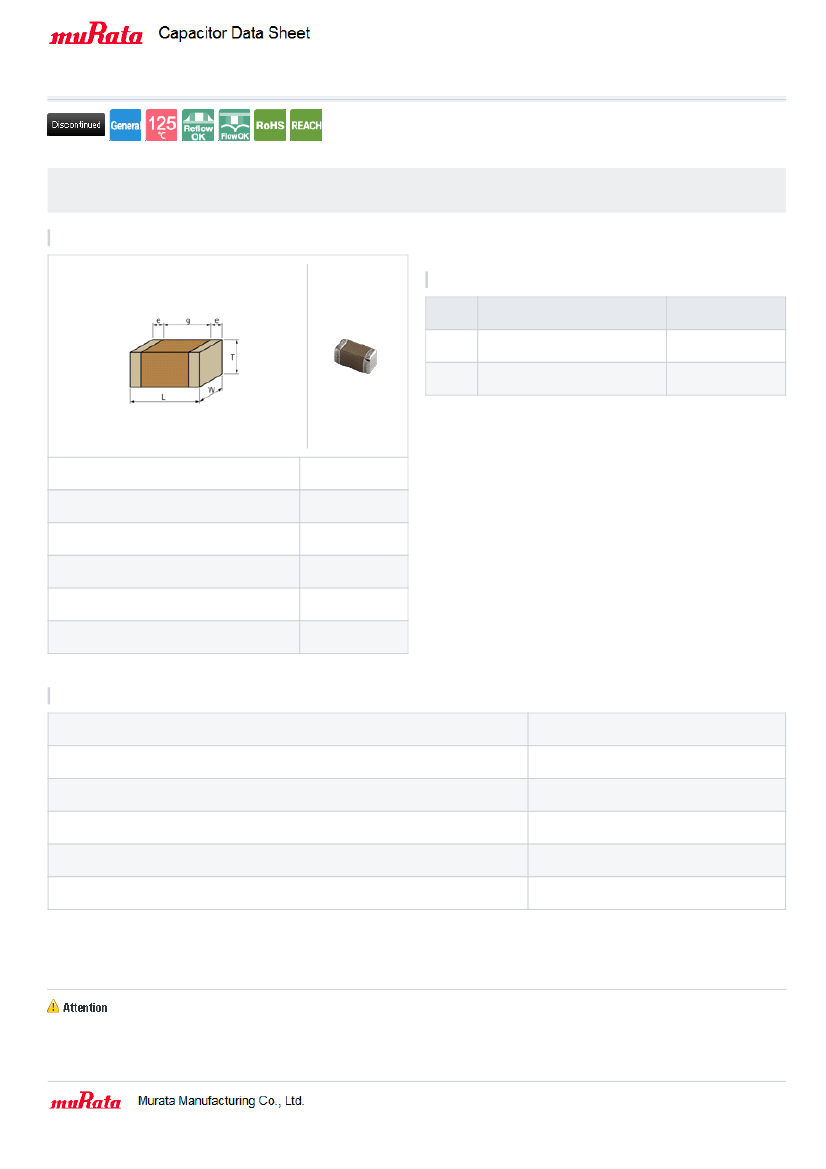

Preview

GRM2164C1H1R2CD01D: DescriptionCeramic Capacitor, Multilayer, Ceramic, 50V, 20.83% +Tol, 20.83% -Tol, CK, 250ppm/Cel TC, 0.0000012uF, Surface Mount, 0805, CHIP, ROHS COMPLIANT; CategoryPassive components capacitor; File Size319KB，1 Pages; ManufacturerMurata; Websitehttps://www.murata.com; Environmental Compliance

Download Datasheet Parametric Compare View All

GRM2164C1H1R2CD01D Overview

Ceramic Capacitor, Multilayer, Ceramic, 50V, 20.83% +Tol, 20.83% -Tol, CK, 250ppm/Cel TC, 0.0000012uF, Surface Mount, 0805, CHIP, ROHS COMPLIANT

GRM2164C1H1R2CD01D Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Objectid	1824024198
package instruction	, 0805
Reach Compliance Code	unknown
ECCN code	EAR99
capacitance	0.0000012 µF
Capacitor type	CERAMIC CAPACITOR
dielectric materials	CERAMIC
high	0.6 mm
length	2 mm
Installation features	SURFACE MOUNT
multi-layer	Yes
negative tolerance	20.83%
Number of terminals	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package shape	RECTANGULAR PACKAGE
Package form	SMT
method of packing	TR, PAPER, 7 INCH
positive tolerance	20.83%
Rated (DC) voltage (URdc)	50 V
size code	0805
surface mount	YES
Temperature characteristic code	CK
Temperature Coefficient	250ppm/Cel ppm/°C
Terminal shape	WRAPAROUND
width	1.25 mm

Preview

Download Datasheet

View All

GRM2164C1H1R2CD01#

Date of discontinuation: 31 Mar 2014

< List of part numbers with package codes >

“#” indicates a package specification code.

GRM2164C1H1R2CD01D , GRM2164C1H1R2CD01J

Shape

References

Packaging

D

J

Specifications

φ180mm

Paper taping

φ330mm

Paper taping

Minimum quantity

4000

10000

L size

W size

T size

External terminal width e

Distance between external terminals g

Size code in inch(mm)

2.0 ±0.1mm

1.25 ±0.1mm

0.6 ±0.1mm

0.2 to 0.7mm

0.7mm min.

0805 (2012M)

Specifications

Capacitance

Rated voltage

Temperature characteristics (complied standard)

Temperature coefficient

Temperature range of temperature characteristics

Operating temperature range

1.2pF ±0.25pF

50Vdc

CK(JIS)

0±250ppm/℃

20 to 125℃

-55 to 125℃

1 of 1

1.This datasheet is downloaded from the website of Murata Manufacturing Co., Ltd. Therefore, it’s specifications are subject to change or our products in it may be discontinued

without advance notice. Please check with our sales representatives or product engineers before ordering.

2.This datasheet has only typical specifications because there is no space for detailed specifications.

Therefore, please review our product specifications or consult the approval sheet for product specifications before ordering.

URL : http://www.murata.com/

Last updated: 2017/02/22

GRM2164C1H1R2CD01D Related Products

	GRM2164C1H1R2CD01D	GRM2164C1H1R2CD01J
Description	Ceramic Capacitor, Multilayer, Ceramic, 50V, 20.83% +Tol, 20.83% -Tol, CK, 250ppm/Cel TC, 0.0000012uF, Surface Mount, 0805, CHIP, ROHS COMPLIANT	Ceramic Capacitor, Multilayer, Ceramic, 50V, 20.83% +Tol, 20.83% -Tol, CK, 250ppm/Cel TC, 0.0000012uF, Surface Mount, 0805, CHIP, ROHS COMPLIANT
Is it lead-free?	Lead free	Lead free
Is it Rohs certified?	conform to	conform to
Objectid	1824024198	1824024199
package instruction	, 0805	, 0805
Reach Compliance Code	unknown	unknown
ECCN code	EAR99	EAR99
capacitance	0.0000012 µF	0.0000012 µF
Capacitor type	CERAMIC CAPACITOR	CERAMIC CAPACITOR
dielectric materials	CERAMIC	CERAMIC
high	0.6 mm	0.6 mm
length	2 mm	2 mm
Installation features	SURFACE MOUNT	SURFACE MOUNT
multi-layer	Yes	Yes
negative tolerance	20.83%	20.83%
Number of terminals	2	2
Maximum operating temperature	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C
Package shape	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE
Package form	SMT	SMT
method of packing	TR, PAPER, 7 INCH	TR, PAPER, 13 INCH
positive tolerance	20.83%	20.83%
Rated (DC) voltage (URdc)	50 V	50 V
size code	0805	0805
surface mount	YES	YES
Temperature characteristic code	CK	CK
Temperature Coefficient	250ppm/Cel ppm/°C	250ppm/Cel ppm/°C
Terminal shape	WRAPAROUND	WRAPAROUND
width	1.25 mm	1.25 mm
