Snap Action Switch
Single Pole General Purpose
E13, E14, G13
Features
•
•
•
•
•
Choice of 3 current ratings
Long life coil spring, snap action mechanism
Agency approved extended life versions available
RoHS compliant
High temperature versions available – contact factory
Typical Applications
•
•
•
•
•
Household appliances
Automated assembly lines
Brake switch on utility vehicles
Industrial and accessible door openers
Vending machines
Part Number Breakdown
E13-00E0
1
Example: E13-00E0 is a 15 A, normally open SPDT pole switch with a standard ratio button
actuator.
Series Type
Single pole
E13
15 A
Single pole
E14
25 A
Single pole
G13
0.1 A
1
Type
Standard ratio actuator
0
or button
5
High ratio actuator
Circuitry
0
1
2
Double Throw
Normally Open
Normally Closed
Actuator
A
E
H
J
K
M
1
Button for E14
Button for E13
Lever
Button with ferrule
Roller
Button with extra
over-travel and
ferrule
Actuator Type 5 only available with H and K actuators
Electrical Specifications per UL1054
E13
E14
2
6000 operations; 100,000 available – contact factory
6000 operations
100,000 operations
2
G13
2
15 A, 125 / 250 VAC
¾ HP, 125 VAC / 1 ½
2
HP, 250 VAC
2 A, 48 VDC
25 A, 125 / 250 VAC
1 HP, 125 VAC / 2
2
HP, 250 VAC
2 A, 48 VDC
0.1 A, 125 VAC
0.1 A, 30 VDC
DC ratings to 105
⁰C
(221
⁰F)
only
Commonly Stocked Distributor Parts
E13-00E0
E13-00H0
E13-00J0
E13-00K0
E13-00M0
E13-01E0
E13-01H0
E13-50H0
E14-00A0
E14-00H0
E14-00K0
E14-00M0
E14-01M0
E14-50H0
G13-00M0
G13-50H0
Notes:
Part numbers with a leading 0 are functionally no different than without a leading 0 (ex.: 0E13-00E0 is the same switch as E13-00E0).
Quick-connect terminals are standard; for custom screw terminals, contact the factory or your distributor.
For configurable part numbers not listed above or for custom part numbers, contact the factory or your distributor
www.cherryswitches.com
Page 1 of 3, Last update 2015-04-08, Specifications subject to change without notice.
Actuator Specifications
E13/G13 Series
Actuator
3
E
H
H
J
K
K
M
High ratio
High ratio
Max
Operating
Force
g (lb)
425 (0.94)
100 (0.22)
65 (0.14)
425 (0.94)
100 (0.22)
63 (0.14)
425 (0.94)
Max
Pre-Travel
mm (in)
1.27 (0.050)
6.35 (0.250)
8.71 (0.343)
1.27 (0.050)
6.35 (0.250)
10.24 (0.403)
1.27 (0.050)
Operating Point
4
mm (in)
7.24 ± 0.51 (0.285 ± 0.020)
7.93 ± 1.57 (0.312 ± 0.062)
7.14 ± 1.57 (0.281 ± 0.062)
17.02 ± 0.76 (0.670 ± 0.030)
18.24 ± 1.57 (0.718 ± 0.062)
17.45 ± 1.57 (0.687 ± 0.062)
20.63 ± 0.76 (0.812 ± 0.030)
Min Over-
Travel
mm (in)
2.54 (0.100)
4.75 (0.187)
4.75 (0.187)
2.74 (0.108)
4.75 (0.187)
4.75 (0.187)
5.54 (0.218)
Max
Movement
Differential
mm (in)
0.38 (0.015)
2.36 (0.093)
3.56 (0.14)
0.38 (0.015)
2.36 (0.093)
2.36 (0.093)
0.38 (0.015)
Actuation
Length
5
mm (in)
N/A
38.10 (1.500)
44.45 (1.750)
N/A
35.33 (1.391)
41.28 (1.625)
N/A
E14 Series
Max
Max
Operating Point
4
Min Over-
Max
Actuation
Operating
Pre-Travel
Travel
Movement
Length
5
Force
Differential
g (lb)
mm (in)
mm (in)
mm (in)
mm (in)
mm (in)
A
850 (1.87)
2.54 (0.100)
6.30 ± 0.66 (0.248 ± 0.026)
1.27 (0.050)
0.38 (0.015)
N/A
H
280 (0.62)
7.93 (0.312)
11.89 ± 1.57 (0.468 ± 0.062)
2.67 (0.105)
1.27 (0.050)
20.85 (0.821)
H
High ratio
170 (0.37) 13.34 (0.525)
11.10 ± 1.57 (0.437 ± 0.062)
5.54 (0.218)
2.03 (0.080)
27.20 (1.071)
J
850 (1.87)
2.54 (0.100)
16.08 ± 0.76 (0.633 ± 0.030)
1.27 (0.050)
0.38 (0.015)
N/A
K
285 (0.63)
8.84 (0.348)
21.84 ± 1.57 (0.860 ± 0.062)
3.30 (0.130)
1.14 (0.045)
17.48 (0.688)
K
High ratio
211 (0.47)
12.27 (0.483)
21.03 ± 1.57 (0.828 ± 0.062)
5.54 (0.218)
1.85 (0.073)
23.95 (0.943)
M
850 (1.87)
2.54 (0.100)
19.69 ± 0.76 (0.775 ± 0.030)
4.27 (0.168)
0.38 (0.015)
N/A
3
Contact factory regarding combinations not shown
4
Measured above reference line; refer to dimensional drawing below
5
Actuator tolerances ± 0.791 mm (0.031”); G13 has operating point tolerance of ± 7.62 (0.30); E14 H and K actuators are shorter and formed up
11⁰ at the button
Actuator

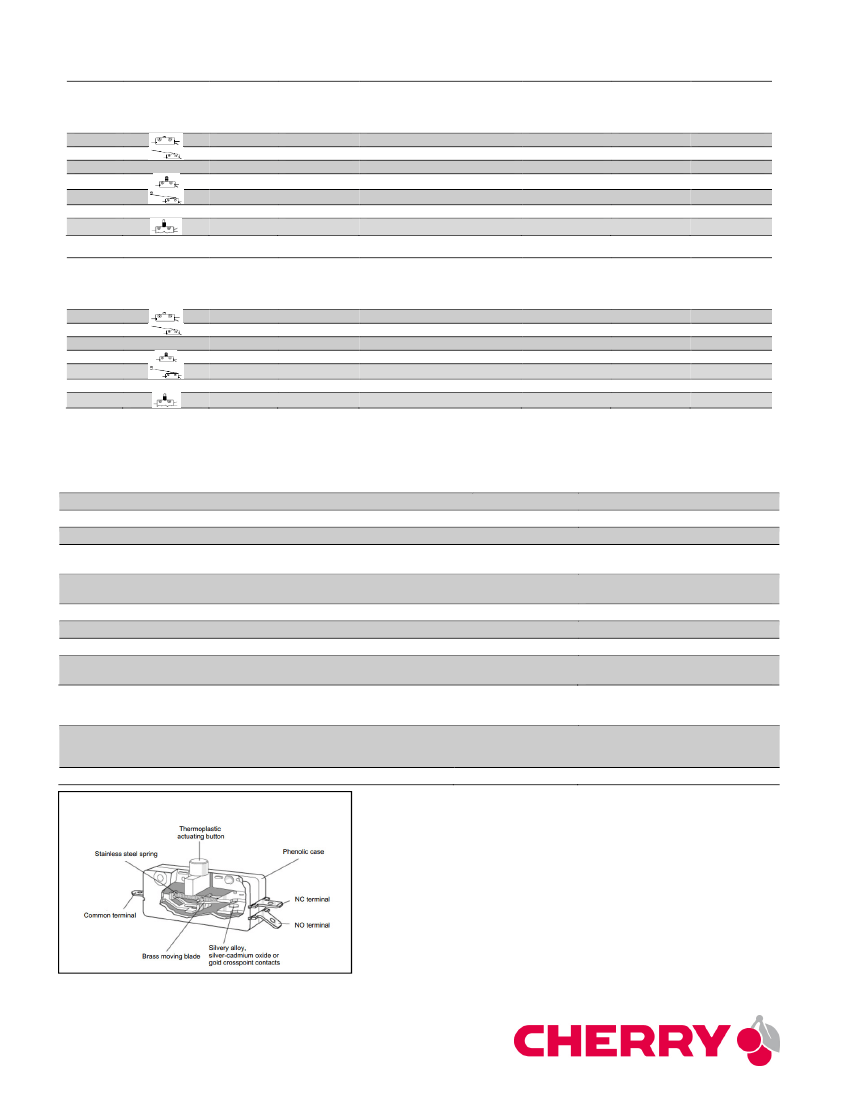

Material Specifications
Case
Actuating Button
Common Terminal
NO and NC Terminal
Moving Blade
Spring
Auxiliary Actuators
Roller
Contacts
General Purpose Phenolic
Thermoplastic
Copper Alloy
Copper Alloy (E13, G13)
Copper (E14)
Copper Alloy (E13, G13)
Copper (E14)
Stainless Steel
Cold-Rolled Steel (Nickel-Plated)
Sintered Stainless Steel
Gold Crosspoint (G13)
Silver Alloy (E13, E14)
Environmental Specifications
Temperature Rating
Flammability Rating
105
⁰C
(221
⁰F)
standard
150
⁰C
(302
⁰F)
available
200
⁰C
(392
⁰F)
available for E13
UL94HB
Dimensions – see page 3
www.cherryswitches.com
Page 2 of 3, Last update 2015-04-08, Specifications subject to change without notice.

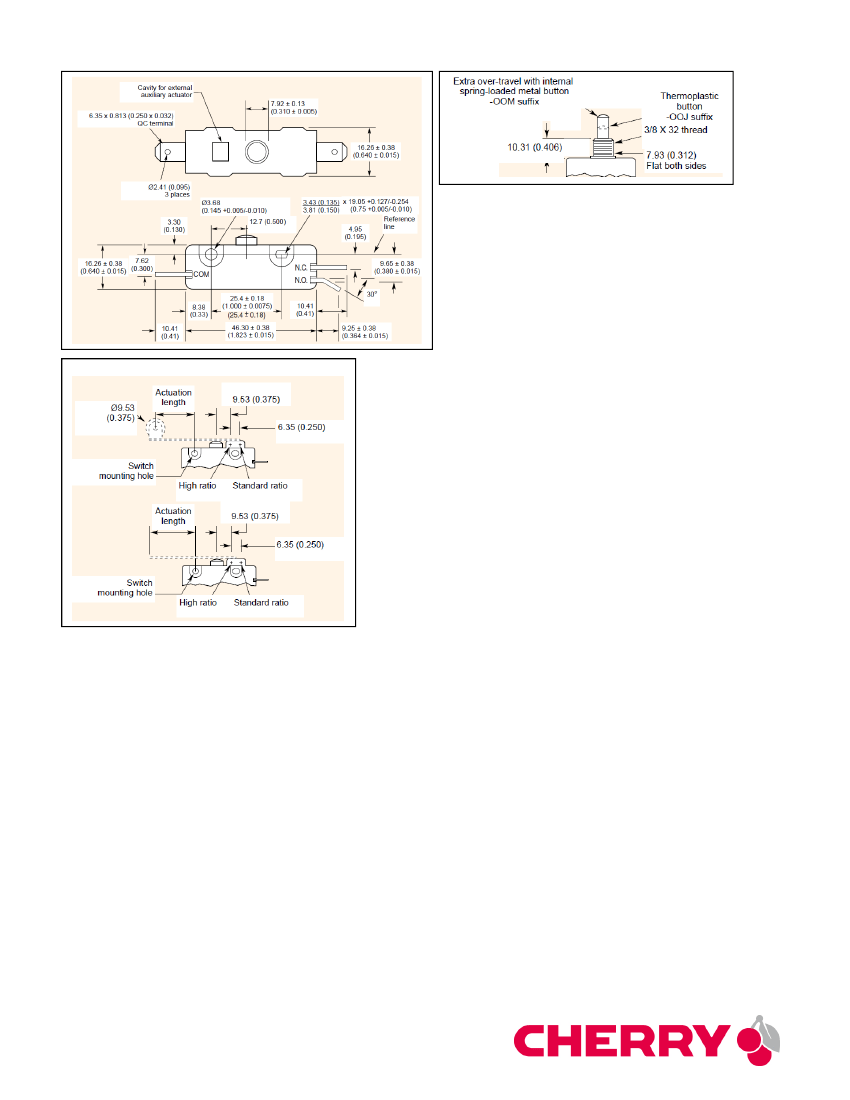

Dimensions – mm (inches)
