LVT673-Q1R1-3 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > LED optoelectronic/LED> photoelectric> LVT673-Q1R1-3

LVT673-Q1R1-3: DescriptionSURFACE-MOUNT/AXIAL LED LAMP,GREEN,CLEAR,LED-8D; CategoryLED optoelectronic/LED photoelectric; File Size140KB，13 Pages; ManufacturerOsram Opto Semiconductor; Websitehttps://www.osram.com/index-2.jsp

Download Datasheet Parametric View All

LVT673-Q1R1-3 Overview

SURFACE-MOUNT/AXIAL LED LAMP,GREEN,CLEAR,LED-8D

LVT673-Q1R1-3 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Objectid	103623257
Reach Compliance Code	unknown
color@wavelength	Green
Maximum forward current	0.02 A
Maximum forward voltage	4.2 V
JESD-609 code	e0
Lens type	CLEAR
Maximum operating temperature	125 °C
Minimum operating temperature	-40 °C
total height	2.1 mm
peak wavelength	503 nm
Maximum reverse voltage	5 V
Terminal surface	Tin/Lead (Sn/Pb)
perspective	120 deg

Preview

Download Datasheet

View All

Hyper TOPLED

Hyper-Bright LED

LB T673, LV T673, LT T673

Besondere Merkmale

•

Gehäusetyp:

weißes P-LCC-2 Gehäuse

•

Besonderheit des Bauteils:

extrem breite Ab-

strahlcharakteristik; ideal für Hinterleuchtungen

und Einkopplungen in Lichtleiter

•

Wellenlänge:

470 nm (blau), 505 nm (verde),

528 nm (true green)

•

Abstrahlwinkel:

Lambertscher Strahler (120°)

•

Technologie:

InGaN

•

optischer Wirkungsgrad:

2 lm/W (blau),

6 lm/W (verde), 8 lm/W (true green)

•

Gruppierungsparameter:

Lichtstärke,

Wellenlänge

•

Verarbeitungsmethode:

für alle

SMT-Bestücktechniken geeignet

•

Lötmethode:

IR Reflow Löten und

Wellenlöten (TTW)

•

Vorbehandlung:

nach JEDEC Level 2

•

Gurtung:

8 mm Gurt mit 2000/Rolle, ø180 mm

oder 8000/Rolle, ø330 mm

Anwendungen

• Ampelanwendung

• Informationsanzeigen im Außenbereich

• optischer Indikator

• Hinterleuchtung (LCD, Schalter, Tasten,

Displays, Werbebeleuchtung,

Allgemeinbeleuchtung)

• Innenbeleuchtung im Automobilbereich

(z.B. Instrumentenbeleuchtung, u. ä.)

• Markierungsbeleuchtung (z.B. Stufen,

Fluchtwege, u.ä.)

• Signal- und Symbolleuchten

• Scanner

Features

•

package:

white P-LCC-2 package

•

feature of the device:

extremely wide viewing

angle; ideal for backlighting and coupling in

light guides

•

wavelength:

470 nm (blue), 505 nm (verde),

528 nm (true green)

•

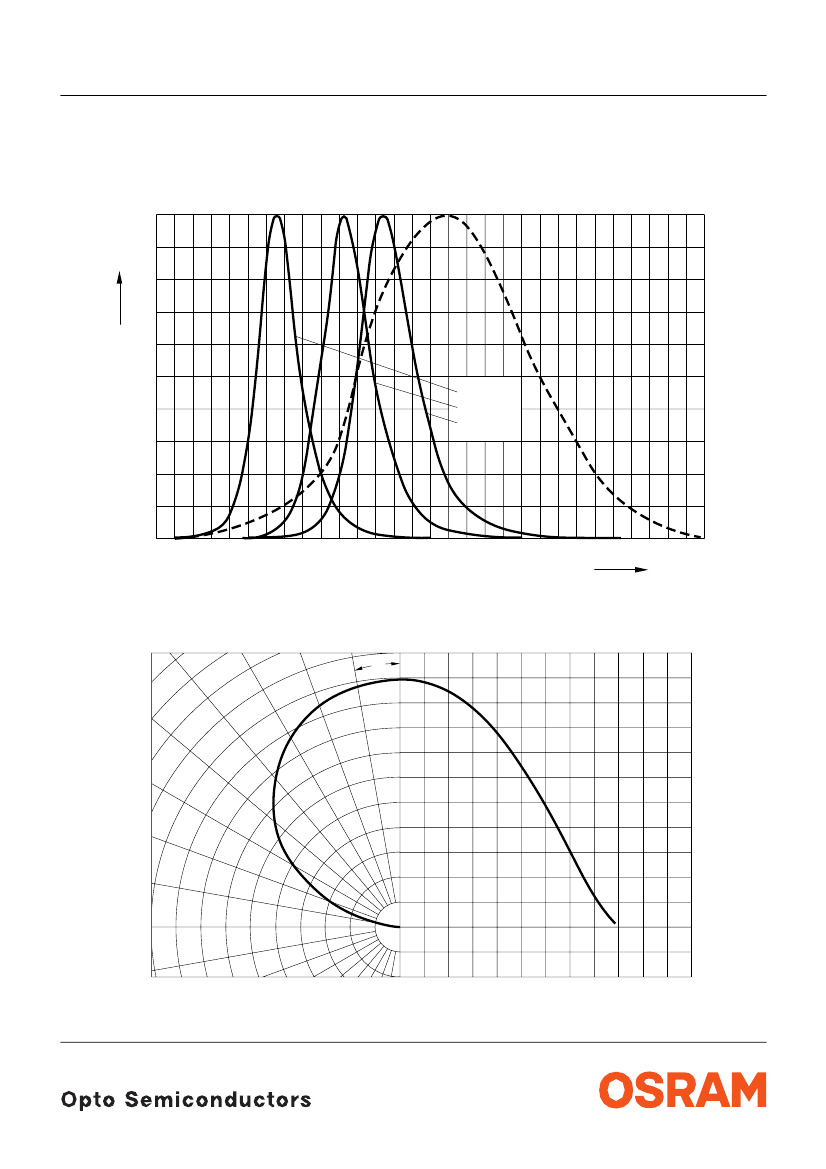

viewing angle:

Lambertian Emitter (120°)

•

technology:

InGaN

•

optical efficiency:

2 lm/W (blue),

6 lm/W (verde), 8 lm/W (true green)

•

grouping parameter:

luminous intensity,

wavelength

•

assembly methods:

suitable for all

SMT assembly methods

•

soldering methods:

IR reflow soldering and

TTW soldering

•

preconditioning:

acc. to JEDEC Level 2

•

taping:

8 mm tape with 2000/reel, ø180 mm or

8000/reel, ø330 mm

Applications

• traffic lights

• outdoor displays

• optical indicators

• backlighting (LCD, switches, keys, displays,

illuminated advertising, general lighting)

• interior automotive lighting (e.g. dashboard

backlighting, etc.)

• marker lights (e.g. steps, exit ways, etc.)

• signal and symbol luminaire

• scanners

2000-11-27
