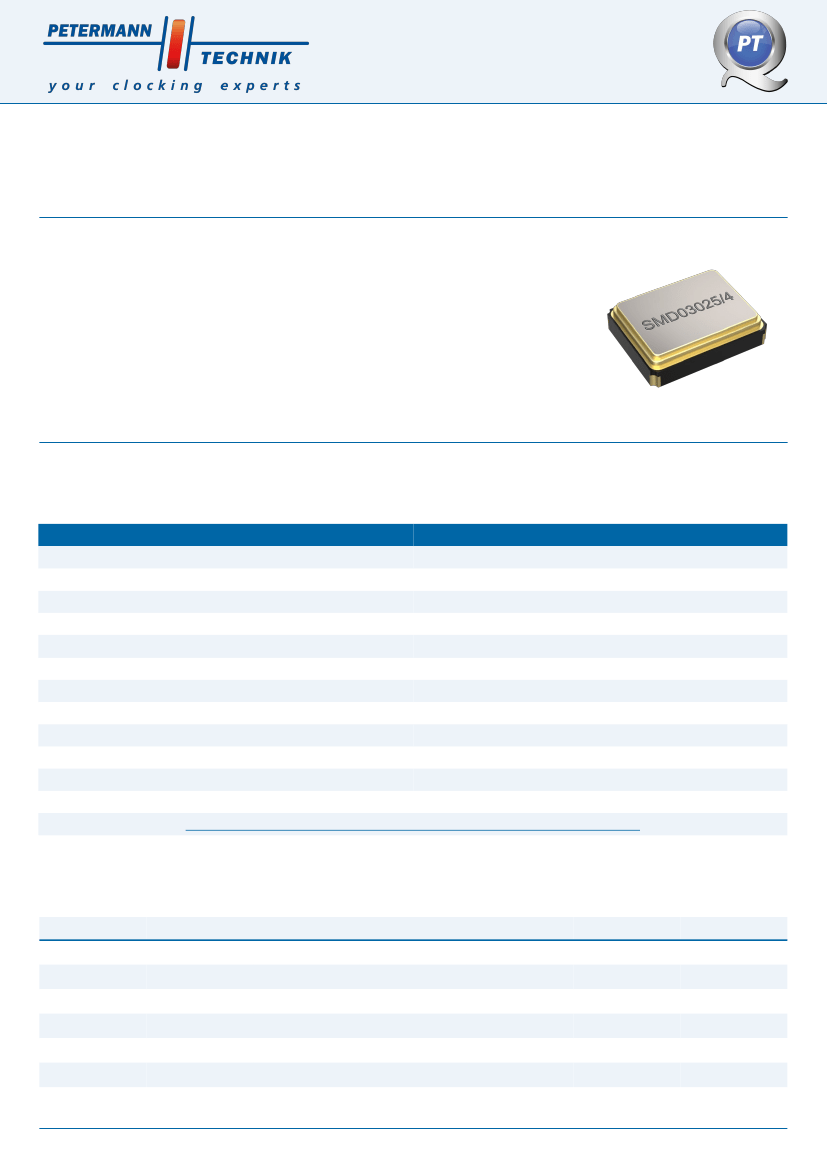

SMD QUARTZ CRYSTAL
SERIES SMD03025/4 (4 pad housing 3.2x2.5mm)
FEATURES
+ Cheapest available miniature SMD-Crystal in ceramic package
+ High reliability for low cost
+ Optimized low ESR resonator design for fast oscillation start-up
+ Our top quality promise / depth of production:
Only use of crystal blanks from our in-house production
Excellent product features guaranteed by multiple 100% tests
100% quality monitoring from crystal raw material to the end product
PB FREE / ROHS-2 2011/65/EU COMPLIANT
GENERAL DATA
PARAMETERS
SMD-CRYSTAL SERIES
NUMBER OF SOLDER PADS
FREQUENCY RANGE
FREQUENCY TOLERANCES AT 25°C
LOAD CAPACITANCE (C
L
)
WORKING TEMPERATURE RANGES
SHUNT CAPACITANCE (Co)
DRIVE LEVEL
AGING
INSULATION RESISTANCE
STORAGE TEMPERATURE
DELIVERY FORM
PRODUCT FEATURES AND CONDITIONS
SMD03025/4
4
12.0 ~ 80.0 MHz AT-Fundamental
±10 ppm ~ ±50 ppm
6 pF ~ 30 pF (12 pF standard), or Series
0/+50°C ~ -40/+125°C
3 pF max.
10 μW ~ 100 μW typ. / 200 μW max. ( 500 μW available on request)
±3 ppm per year standard (±1 or ±2 ppm available on request)
>500 MΩ DC/100V ±10%
-55°/+125°C
Tape and Reel (3.000 pcs per reel, other quantities available on request)
OTHER PARAMETERS ARE AVAILABLE ON REQUEST / CREATE HERE YOUR SPECIFICATION
FREQUENCY STABILITY VS. TEMPERATURE
±8ppm
0°/+50°C
-10°/+60°C
0°/+70°C
-20°/+70°C
-40°/+85°C
-40°/+125°C
±10ppm
±15ppm
±20ppm
±30ppm
±50ppm
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
CRYSTALS ∙ OSCILLATORS ∙ CERAMIC RESONATORS ∙ CERAMIC FILTERS ∙ SAW COMPONENTS
PAGE 1 OF 4
I
SPEC 01
I
REV.02
I
DECEMBER 2017
PETERMANN-TECHNIK GmbH
Lechwiesenstr. 13 ∙ D-86899 ∙ Landsberg am Lech
Tel: +49/8191/305395 ∙ Fax: +49/8191/305397
info@petermann-technik.com ∙ www.petermann-technik.com

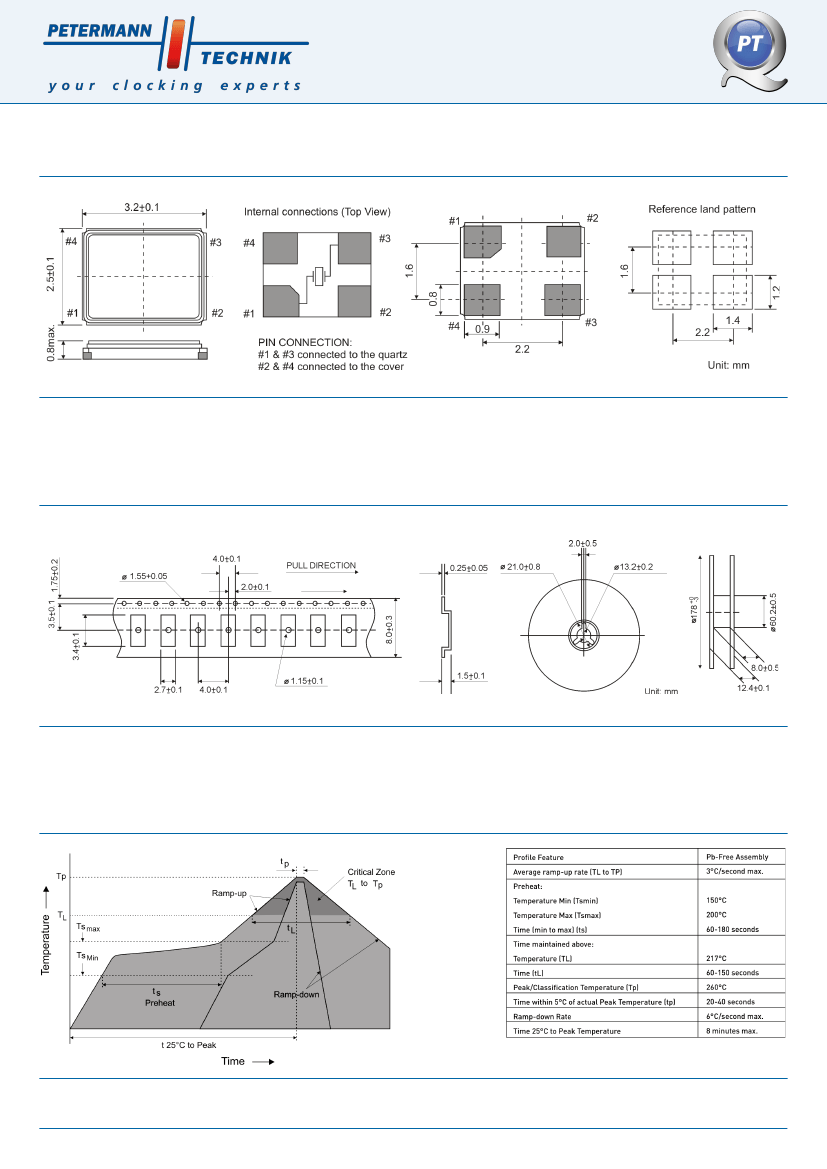

DIMENSIONS
REEL SPECIFICATION
REFLOW SOLDER PROFILE
CRYSTALS ∙ OSCILLATORS ∙ CERAMIC RESONATORS ∙ CERAMIC FILTERS ∙ SAW COMPONENTS
PAGE 2 OF 4
I
SPEC 01
I
REV.02
I
DECEMBER 2017
PETERMANN-TECHNIK GmbH
Lechwiesenstr. 13 ∙ D-86899 ∙ Landsberg am Lech
Tel: +49/8191/305395 ∙ Fax: +49/8191/305397
info@petermann-technik.com ∙ www.petermann-technik.com
RESONANCE RESISTANCE
FREQUENCY IN MHz
12.0 ~ 20.0 MHz
20.0 ~ 40.0 MHz
40.0 ~ 80.0 MHz
VIBRATION MODE
AT Fund.
AT Fund.
AT Fund.
ESR MAX. IN Ω
70
40
25
ORDERING INFORMATION
SERIES
SMD03025/4
FREQUENCY
12.0 ~ 80.0 MHz
AT-Fundamental
FREQUENCY
TOLERANCE
AT 25°C
TEMPERATURE
RANGE
0°/+50°C
-10°/+60°C
0°/+70°C
-20°/+70°C
-40°/+85°C
-40°/+125°C
±10 PPM ~ ±50 PPM
SMD03025/4 26.000 MHz 10/10/0+70/12pF
TEMPERATURE
STABILITY
See Table
„FREQUENCY
STABILITY VS.
TEMPERATURE“
LOAD
CAPACITANCE
6 pF ~ 30 pF (12 pF
standard), or Series
EXAMPLE: SMD03025/4 26.000 MHz 10/10/0+70/12pF
PLEASE INDICATE YOUR REQUIRED PARAMETERS
CRYSTALS ∙ OSCILLATORS ∙ CERAMIC RESONATORS ∙ CERAMIC FILTERS ∙ SAW COMPONENTS
PAGE 3 OF 4
I
SPEC 01
I
REV.02
I
DECEMBER 2017
PETERMANN-TECHNIK GmbH
Lechwiesenstr. 13 ∙ D-86899 ∙ Landsberg am Lech
Tel: +49/8191/305395 ∙ Fax: +49/8191/305397
info@petermann-technik.com ∙ www.petermann-technik.com
REVISION HISTORY
REVISION
RELEASE DATE
AMENDMENTS SUMMARY
00
01
02
MARCH 2015
+
Initial Data Sheet (SPEC 01/REV.00)
DECEMBER 2016
+
Revised load capacitance, shunt capacitance and drive level
DECEMBER 2017
+
Revised housing height
PREMIUM QUALITY BY
PETERMANN-TECHNIK
OUR COMPANY IS CERTIFIED ACCORDING TO ISO 9001:2015 IN
OCTOBER 2016 BY THE DMSZ CERTIFIKATION GMBH.
