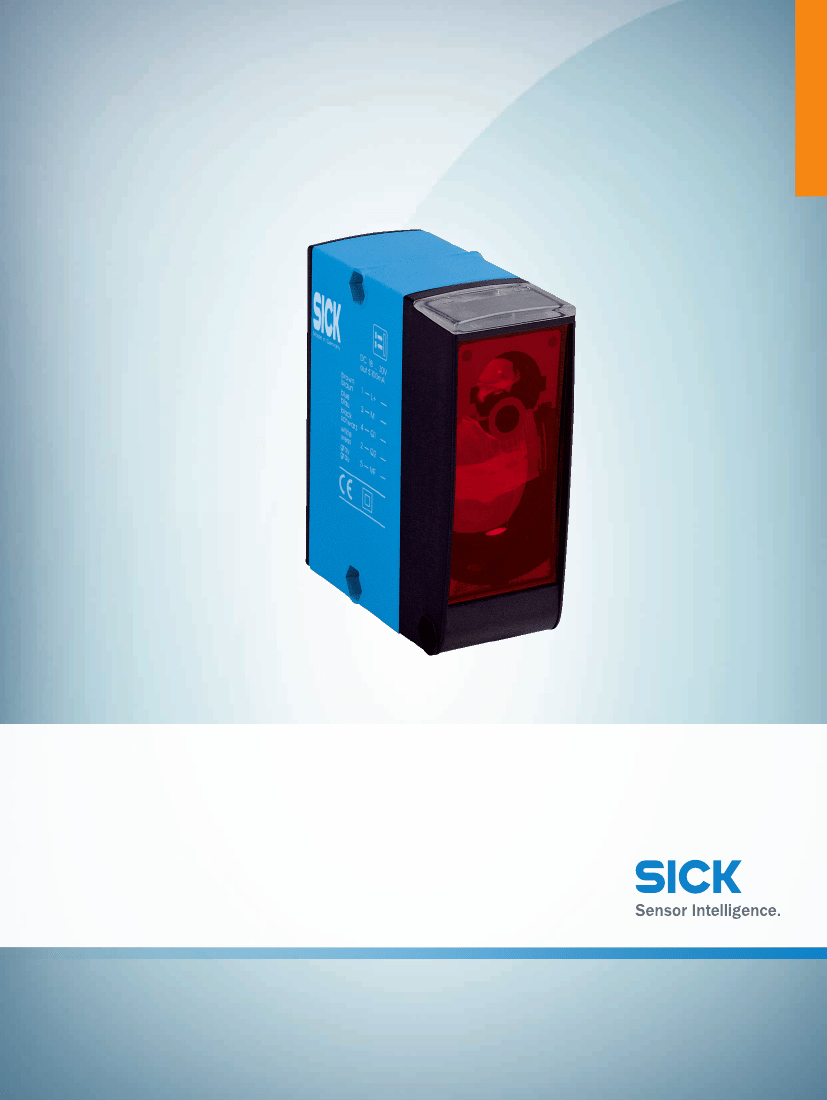

DS60-P51311
Dx60
MID RANGE DISTANCE SENSORS
Online data sheet
DS60-P51311 | Dx60
MID RANGE DISTANCE SENSORS
A
B
C
D
E
F

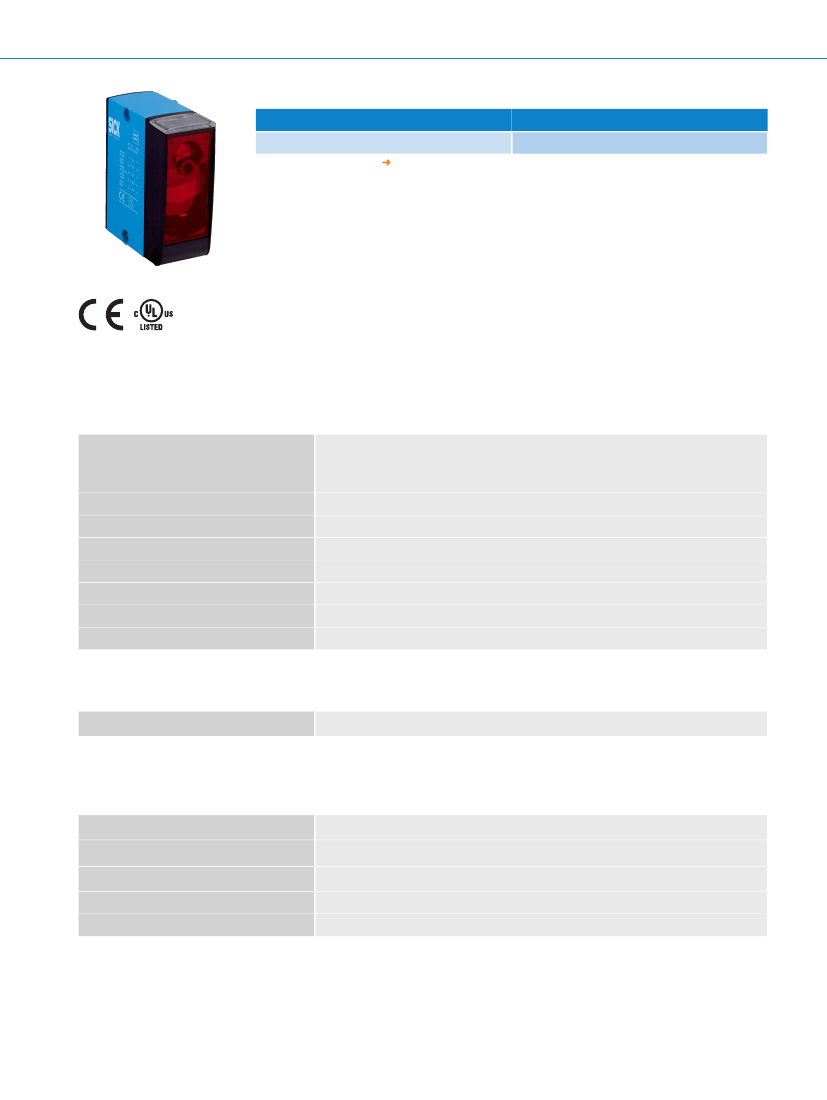

Detailed technical data
Performance
Ordering information
Type
DS60-P51311
Other models and accessories
www.sick.com/Dx60
Part no.
1016697
H
I
J
K
L
M
N
O
P
Q
R
S
T
Measuring range
80 mm ... 6,000 mm, 90 % remission
1)
80 mm ... 5,000 mm, 18 % remission
1)
80 mm ... 2,600 mm, 6 % remission
1)
Response time
Switching frequency
Light source
Laser class
Typ. light spot size (distance)
Additional function
Laser service life (MTTF at 25 °C)
1)
50 ms
10 Hz
Laser, infrared
1 (EN 60825-1)
12 mm x 12 mm (at 6 m)
Invertable switching output, ObSB mode
50,000 h
Teach-in from 200 … 6,000 mm.
Interfaces
Switching output
1)
2)
2x PNP (100 mA)
1)
2)
Output Q short-circuit protected.
PNP: HIGH = V
S
- (< 2.5 V) / LOW = < 2.5 V; NPN: HIGH = < 2.5 V / LOW = V
S
.
Mechanics/electronics
Supply voltage V
s
Ripple
Power consumption
Connection type
Weight
1)
2)
3)
DC 18 V ... 30 V
1)
≤ 5 V
pp
2)
≤ 3 W
3)
Male connector, M12, 5-pin
202 g
Limit values, reverse-polarity protected, operation in short-circuit protected network: max. 8 A.
May not fall short of or exceed V
S
tolerances.
Without load.
2
DISTANCE SENSORS | SICK
Online data sheet | 2016-03-17 13:18:11
Subject to change without notice
MID RANGE DISTANCE SENSORS
Ambient data
Enclosure rating
Protection class
Electromagnetic compatibility (EMC)
Ambient temperature
IP 67
II
EN 61000-6-2
EN 60947-5-2
Operation: –25 °C ... +55 °C
Storage: –25 °C ... +75 °C
DS60-P51311 | Dx60
Dimensional drawing
(Dimensions in mm (inch))
38
(1.50)
Ø 5.5
87
(3.43)
54
(2.13)
(0.22)
1
2
3
4
5
93
(3.66)
104.5
(4.11)
81.5
(3.21)
62.9
(2.48)
47.2
(1.86)
6
① Status
indicator switching output 1
② Status
indicator switching output 2
③ Optical
axis sender
④ Optical
axis receiver
⑤ Mounting
hole, Ø 5.2 mm
⑥ Male
connector M12, 5-pin
42
(1.65)
69
(2.72)
Connection type
Male connector M12, 5-pin
Connection diagram
brn
blk
blu
wht
gra
1
4
3
2
5
L+
Q
1
M
Q
2
nc
2016-03-17 13:18:11 | Online data sheet
Subject to change without notice
5.5
5
5
12
(0.47)
(0.22)
DISTANCE SENSORS | SICK
3
DS60-P51311 | Dx60
MID RANGE DISTANCE SENSORS
A
B
C
D
E
F
H
I
J
K
L
M
N
O
P
Q
R
S
T
Adjustment possible
Q
2
Run Q
1
Q
2
¯
Q
1
¯
7
Align
8
Teach
⑦ Rotary
switch
⑧ Control
element
Sensing distance
24
20
1
10/s
16
12
% of sensing distance
2
8
4
3
0
1,000 2,000 3,000 4,000 5,000 6,000 7,000
(39.37) (78.74) (118.11) (157.48) (196.85) (236.22) (275.59)
0
Sensing distance in mm (inch)
① 6 %
/ 90 %
② 18 %
/ 90 %
③ 90 %
/ 90 %
4
DISTANCE SENSORS | SICK
Online data sheet | 2016-03-17 13:18:11
Subject to change without notice
MID RANGE DISTANCE SENSORS
Recommended accessories
Other models and accessories
www.sick.com/Dx60
DS60-P51311 | Dx60
Brief description
Type
Part no.
Mounting brackets and mounting plates
Mounting bracket, steel, zinc coated, without mounting hardware
BEF-WN-DS60
4032937
Plug connectors and cables
Head A: female connector, M12, 5-pin, straight
Head B: cable
Cable: PVC, unshielded, 2 m
Head A: female connector, M12, 5-pin, straight
Head B: cable
Cable: PVC, unshielded, 5 m
Head A: female connector, M12, 5-pin, straight
Head B: cable
Cable: PVC, unshielded, 10 m
Head A: female connector, M12, 5-pin, angled
Head B: cable
Cable: PVC, unshielded, 2 m
Head A: female connector, M12, 5-pin, angled
Head B: cable
Cable: PVC, unshielded, 5 m
Head A: female connector, M12, 5-pin, angled
Head B: cable
Cable: PVC, unshielded, 10 m
DOL-1205-G02M
6008899
DOL-1205-G05M
6009868
DOL-1205-G10M
6010544
DOL-1205-W02M
6008900
DOL-1205-W05M
6009869
DOL-1205-W10M
6010542
Reflectors
"Diamond grade" reflective tape, self-adhesive, ready to assemble from the sheet,
74.9 cm x 91.4 cm , self-adhesive
1)
REF-DG-K
4019634
1)
Customizable
length by sheet.
Width max.
74.9 cm, length
max. 91.4 cm.
2016-03-17 13:18:11 | Online data sheet
Subject to change without notice
DISTANCE SENSORS | SICK
