A77 / SMA77
Cascadable Amplifier
5 to 500 MHz
Features
High Gain: 16.5 dB (typ.)
High Level Output: +16.5 dBm (typ.)
High Third Order OIP3: +30 dBm (typ.)
Low VSWR: 1.3:1 (typ.)
Rev. V3

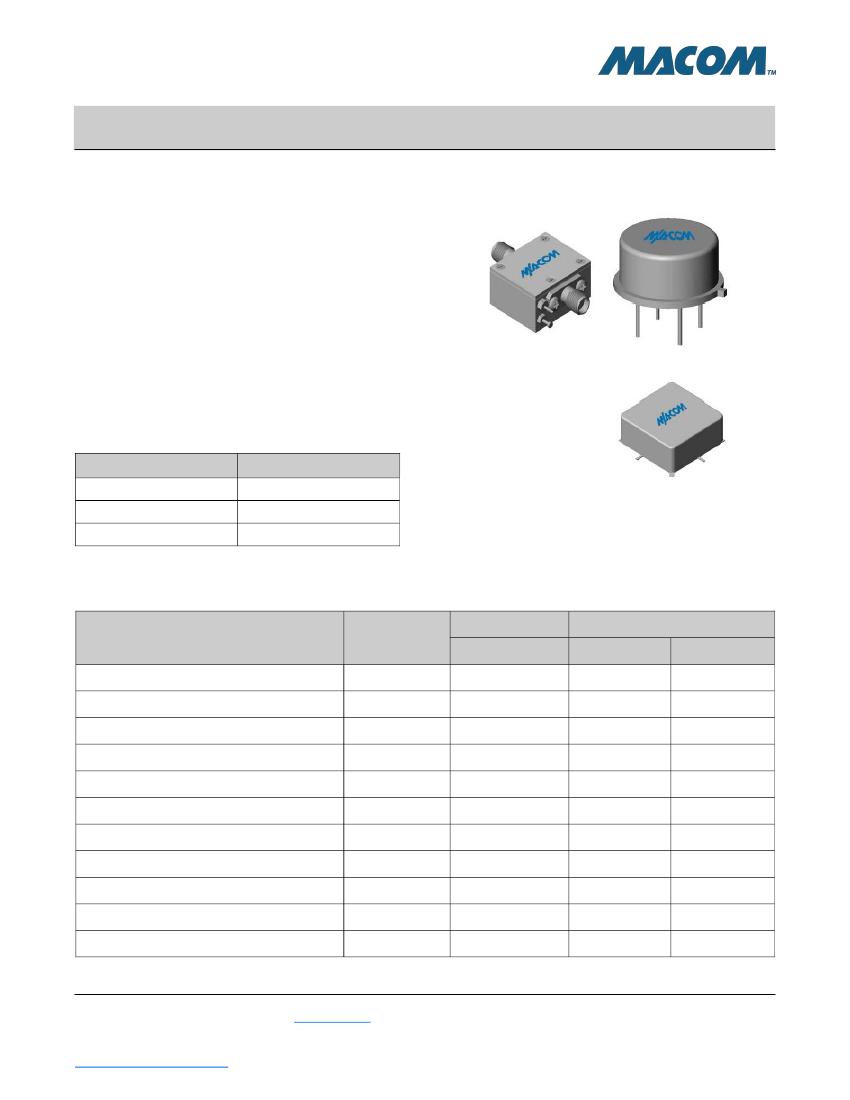

Product Image
Description
The A77 RF amplifier is a discrete hybrid design,
which uses thin film manufacturing processes for
accurate performance and high reliability. The single
stage bipolar transistor feedback amplifier design
displays impressive performance over a broadband
frequency range. Both TO-8 and Surface Mount
packages are hermetically sealed, and MIL-STD-883
environmental screening is available.
Ordering Information
Part Number
A77
SMA77
CA77**
Package
TO-8
Surface Mount
SMA Connectorized
** The connectorized version is not RoHs compliant.
Electrical Specifications:
Z
0
= 50, V
CC
= 15 V
DC
Nominal
*
Parameter
Frequency
Small Signal Gain (min.)
Gain Flatness (max.)
Reverse Isolation
Noise Figure (max.)
Power Output @ 1 dB comp. (min.)
IP3
IP2
Second Order Harmonic IP
VSWR Input / Output (max.)
DC Current (max.)
1
Units
MHz
dB
dB
dB
dB
dBm
dBm
dBm
dBm
—
mA
Typical
25ºC
2-600
16.5
±0.3
17
4.5
16.5
+30
+43
+49
1.3:1 / 1.3:1
50
Guaranteed
0º to 50ºC
5-500
16.0
±0.7
—
5.0
15.0
—
—
—
1.7:1 / 1.7:1
53
-54º to +85ºC
5-500
15.0
±1.0
—
5.5
14.5
—
—
—
2.0:1 / 2.0:1
56
Over temperature performance limits for part number CA77, guaranteed from 0
o
C to +50
o
C only.
M/A-COM Technology Solutions Inc. (MACOM) and its affiliates reserve the right to make changes to the product(s) or information contained herein without notice.
Visit
www.macom.com
for additional data sheets and product information.
For further information and support please visit:
https://www.macom.com/support
A77 / SMA77
Cascadable Amplifier
5 to 500 MHz
Absolute Maximum Ratings
Parameter
Storage Temperature
Case Temperature
DC Voltage
Continuous Input Power
Short Term Input power
(1 minute max..)
Peak Power (3 µsec max..)
“S” Series Burn-In
Temperature (case)
Rev. V3
Thermal Data: V
CC
= 15 V
DC
Parameter
Thermal Resistance θ
jc
Transistor Power Dissipation P
d
Junction Temperature Rise
Above Case T
JC
Absolute Maximum
-62ºC to +125ºC
125ºC
+17 V
+13 dBm
100 mW
0.5 W
125ºC
Rating
130ºC/W
0.464 W
60ºC

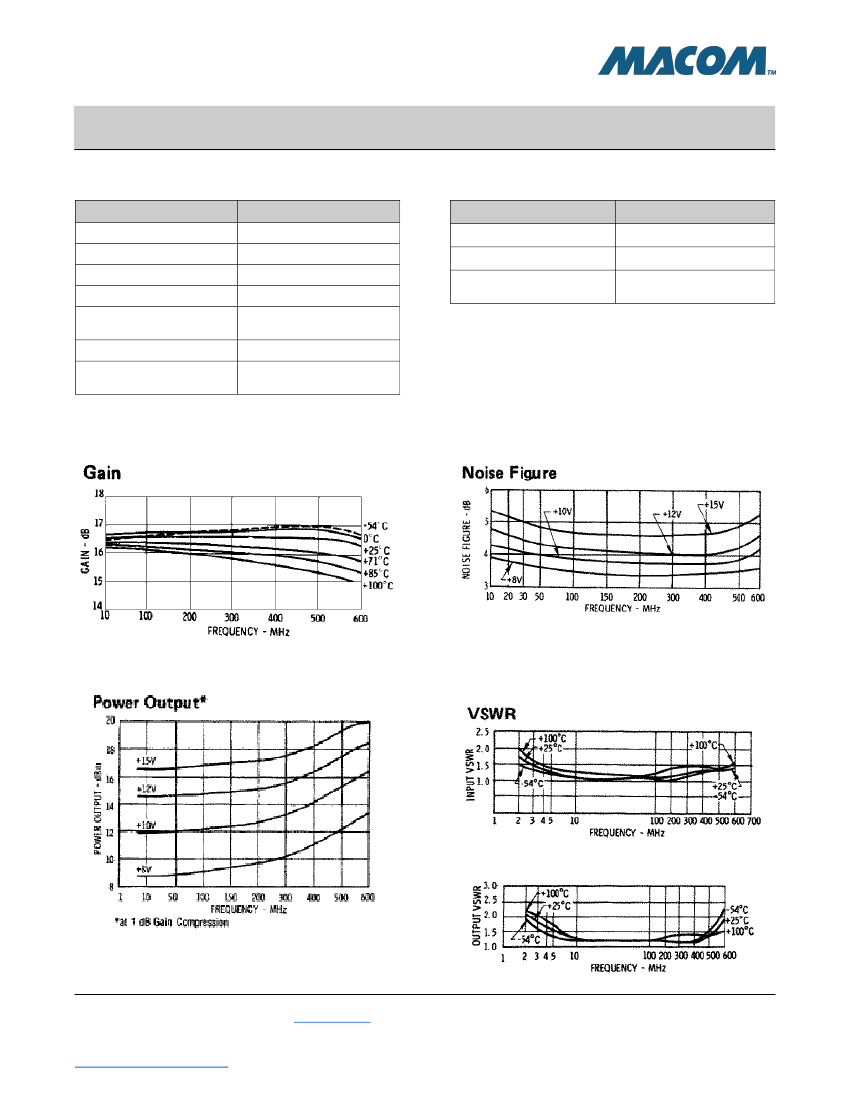

Typical Performance Curves
2
M/A-COM Technology Solutions Inc. (MACOM) and its affiliates reserve the right to make changes to the product(s) or information contained herein without notice.
Visit
www.macom.com
for additional data sheets and product information.
For further information and support please visit:
https://www.macom.com/support
A77 / SMA77
Cascadable Amplifier
5 to 500 MHz

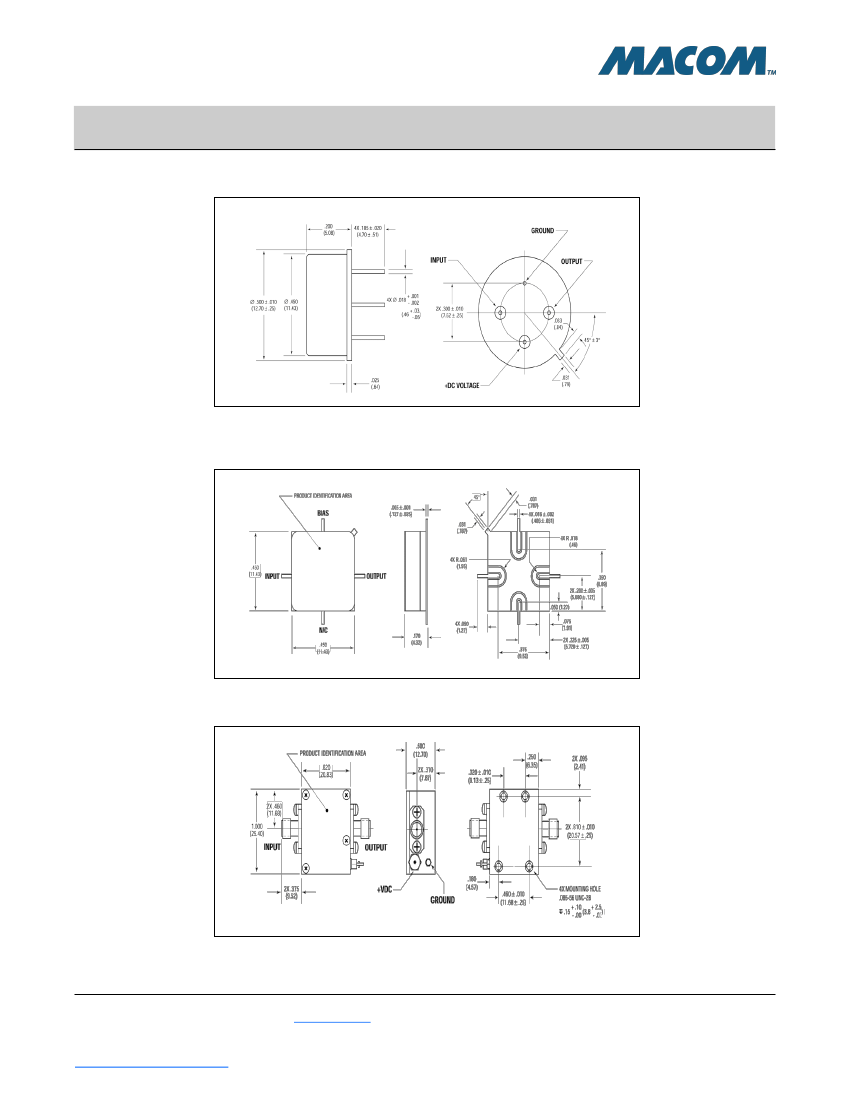

Outline Drawing: TO-8
*
