A66 / SMA66
Cascadable Amplifier
10 to 1200 MHz
Features
HIGH GAIN - TWO STAGES: 23.5 dB (TYP.)
LOW NOISE: <3.8 dB (TYP.)
HIGH OUTPUT LEVEL:+15.0 dBm (TYP.)
WIDE POWER SUPPLY RANGE: 5 TO 15 VOLTS
Rev. V3

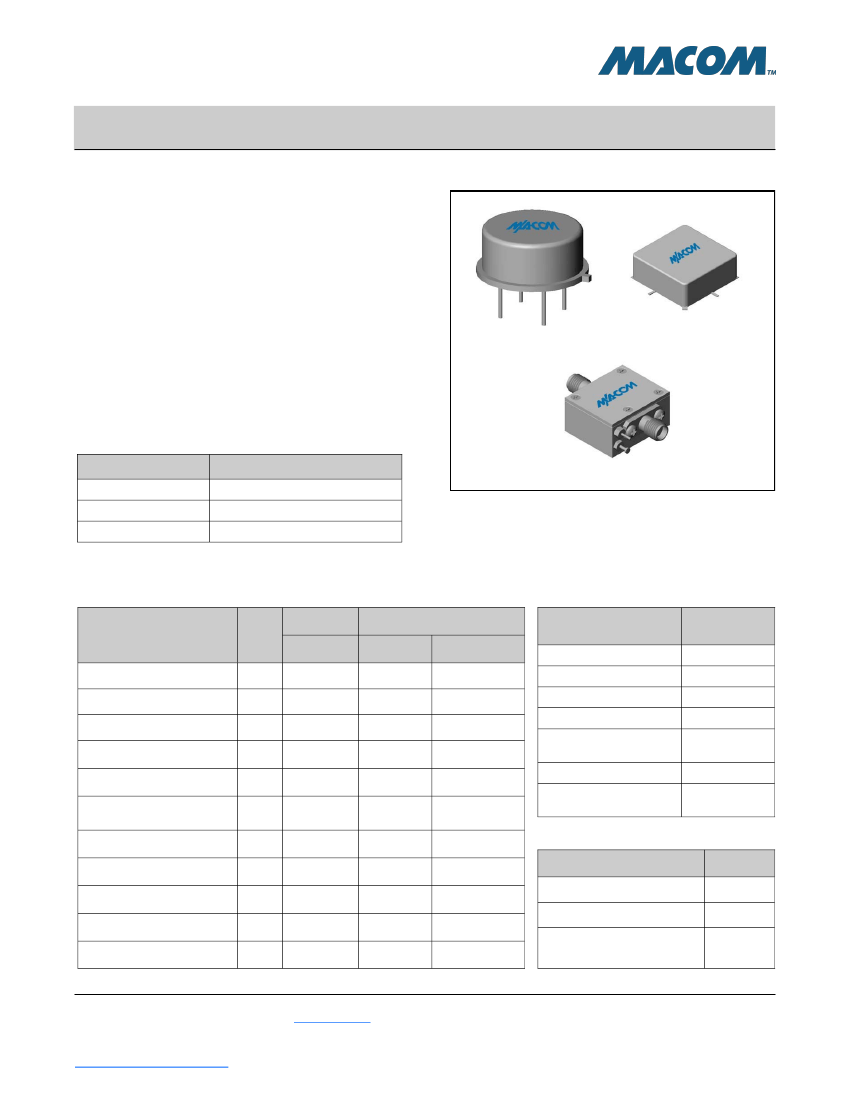

Product Image
Description
The A66 RF amplifier is a discrete hybrid design, which uses
thin film manufacturing processes for consistent performance
and high reliability.
This 2 stage bipolar transistor feedback amplifier design
displays impressive performance over a broadband
frequency range. An active DC biasing network insures
temperature-stable performance.
Both TO-8 and Surface Mount packages are hermetically
sealed, and MIL-STD-883 environmental screening is available.
Ordering Information
Part Number
A66
SMA66
CA66 **
Package
TO-8
Surface Mount
SMA Connectorized
** The connectorized version is not RoHs compliant.
Electrical Specifications: Z
0
= 50, V
CC
= +15 V
DC
Parameter
Frequency
Small Signal Gain (min)
Gain Flatness (max)
Reverse Isolation
Noise Figure (max)
Power Output
@ 1 dB comp. (min)
IP3
IP2
Second Order Harmonic IP
VSWR Input / Output (max)
DC Current @ 15 Volts (max)
1
mA
Absolute Maximum Ratings
Parameter
Storage Temperature
Case Temperature
DC Voltage
Continuous Input Power
Short Term Input power
(1 minute max.)
Peak Power (3 µsec max.)
“S” Series Burn-In
Temperature (case)
Units
MHz
dB
dB
dB
dB
dBm
dBm
dBm
dBm
Typical
25ºC
5-1250
23.5
±0.3
32
4.0
15.0
+28
+40
+45
1.5:1 / 1.5:1
64
5.0
14.0
Guaranteed
0º to 50ºC
10-1200
22.0
±0.7
Absolute
Maximum
-62ºC to +125ºC
+125ºC
+17 V
10 dBm
100 mW
0.5 W
+125ºC
-54º to +85ºC*
10-1200
21.0
±1.0
5.5
13.5
Thermal Data: V
CC
= +15 V
DC
Parameter
Thermal Resistance θ
jc
1.9:1 / 1.9:1
67
2.0:1 / 2.0:1
70
Transistor Power Dissipation P
d
Junction Temperature Rise
Above Case T
jc
Rating
145ºC/W
0.405 W
59ºC
* Over temperature performance limits for part number CA66, guaranteed from 0
o
C to +50
o
C only.
M/A-COM Technology Solutions Inc. (MACOM) and its affiliates reserve the right to make changes to the product(s) or information contained herein without notice.
Visit
www.macom.com
for additional data sheets and product information.
For further information and support please visit:
https://www.macom.com/support
A66 / SMA66
Cascadable Amplifier
10 to 1200 MHz

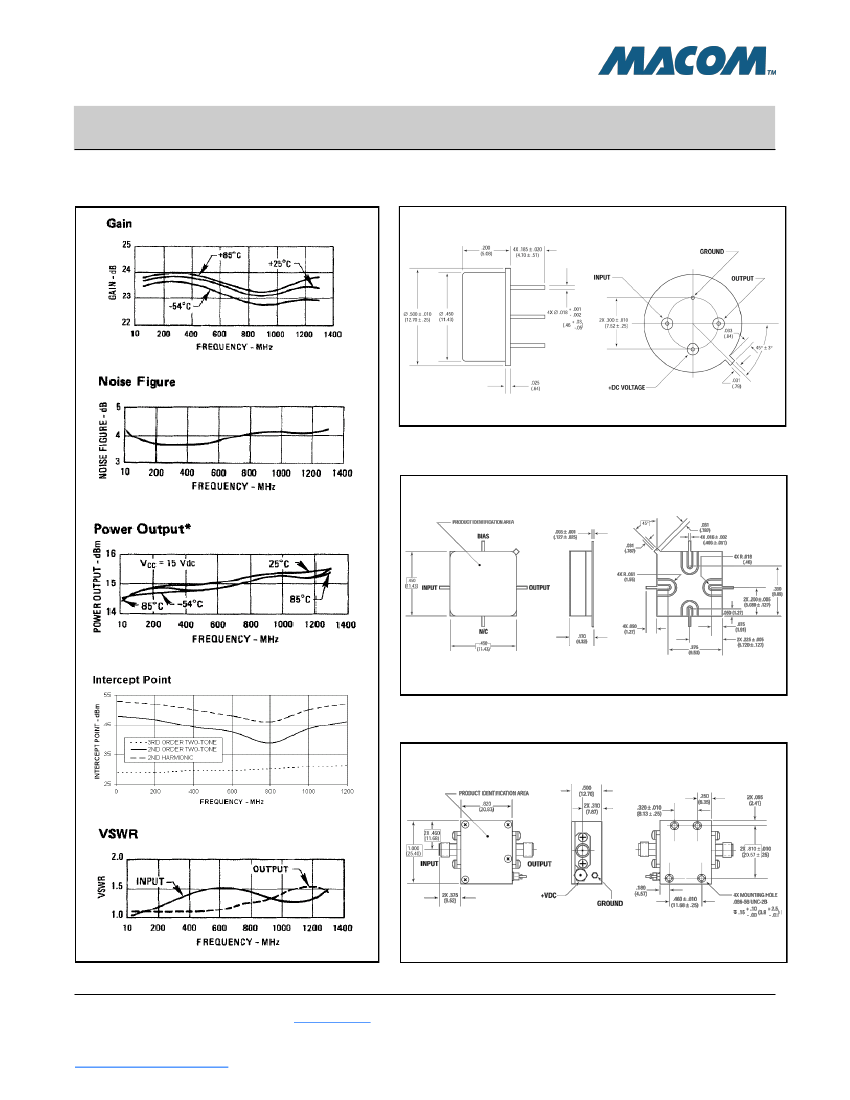

Typical Performance Curves at +25°C
