NSVS1104 Apr. 2013
NewJRC SAW FILTER
NSVS1104
Application
433.92MHz R.K.E.

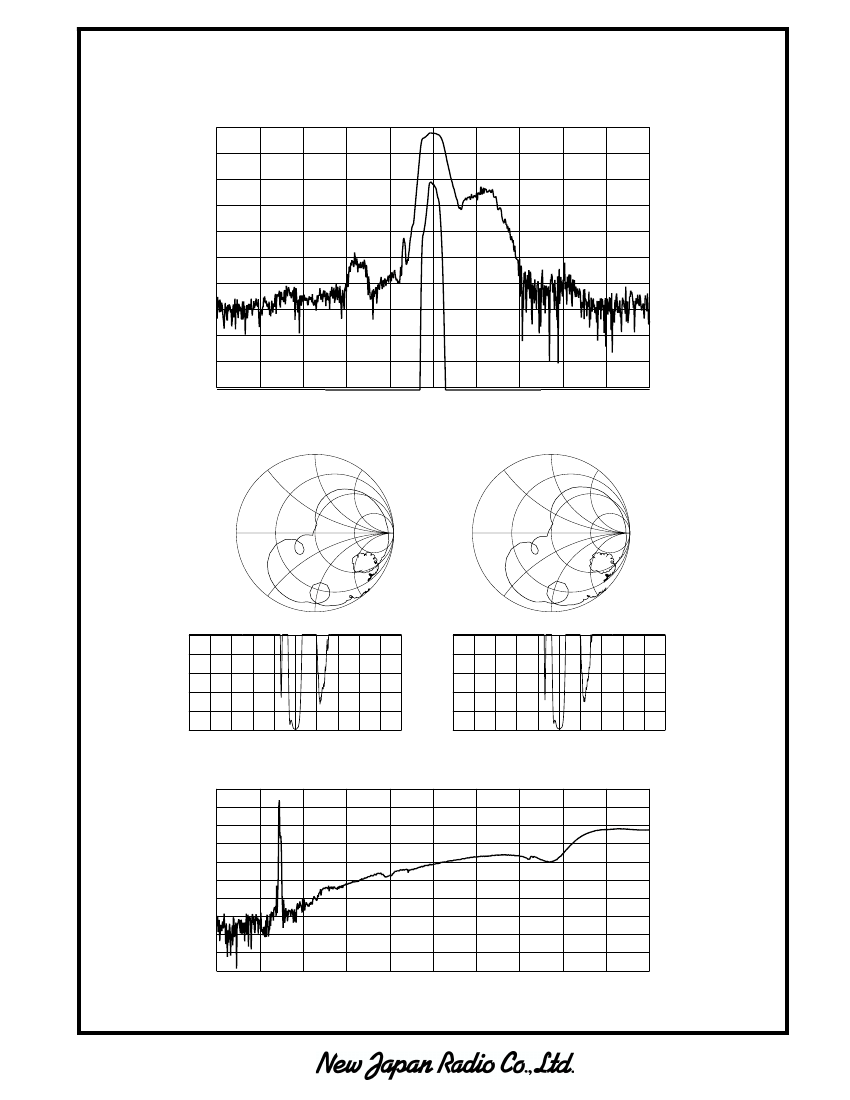

Electrical Specification: (Table 1)
The device characteristics are measured in the circuit shown in Fig.1.
Table 1. Electrical Specifications
Item
Spec.
Typ.
Input and Output Impedance
-
50Ω
Nominal Center Frequency (f0)
433.92MHz
-
Insertion Loss
433.42~434.42MHz
3.5dB max.(*4.0dB)
2.5dB
Response Variation
433.42~434.42MHz
1.5dB max.(*2.0dB)
0.5dB
Input and Output VSWR
433.42~434.42MHz
2.5 max.
1.5
Out of Band Rejection
412.52 MHz
50dB min.
60dB
(Relative to Through Level)
455.32 MHz
45dB min.
50dB
(Operating Temperature Range: -10~+60ºC)
(*Operating Temperature Range: -40~+85ºC)
Maximum Rating: (Table 2)
Table 2. Maximum Ratings
Item
Maximum Input Power
Maximum DC Voltage
Operating Temperature Range
Storage Temperature
Rating
+20dBm
7.5V
-40~+85ºC
-45~+90ºC

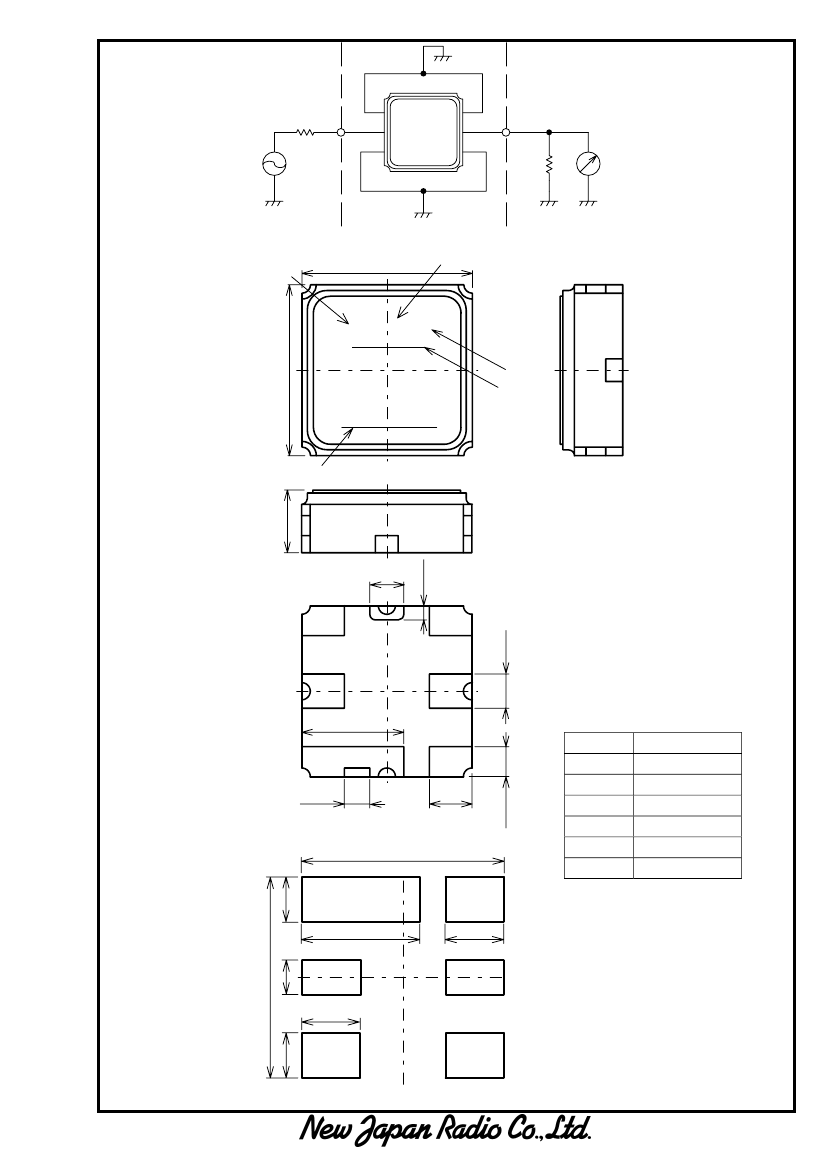

Mechanical Specifications: (Fig.2)
Package is designed as small as 3.0x3.0x1.15[mm
3
] for SMD (Surface Mount Device) type.
Notice:
This part is electrostatic discharge sensitive and may be damaged by improper handling.
http://www.njr.co.jp/products/device/index.html
http://www.njr.com/products/device/index.html
(Japanese)
(English)
NSVS1104 Apr. 2013
Notice
1. Use this component within operating temperature range. It might not be
satisfied with electrical specification without operating temperature range.
When it is used less than -40ºC or more than +85ºC, it might be a cause of
degradation or destruction of the component. Even if it endures during a short
time, it causes degradation of qualification.
2. When soldering iron is used, solder with the temperature at the tip of soldering
iron: 350ºC max., the time of soldering: 10 seconds max., the power of
soldering iron: 30W max..
3. Notice that the allowed time of soldering with soldering iron is accumulated
time, when soldering is repeated.
4. As rapid temperature change for cleaning after reflow soldering might be a
cause of destruction clean this component after confirming that temperature of
this component goes down to room temperature.
5. Confirm that there are not any influence for qualification to this component in
mounting on PCB when this component is cleaned.
6. As it might be a cause of degradation of destruction to apply static electricity to
this component, do not apply static electricity or excessive voltage while
assembling and measuring. And do not transport this component with bare
hand.
7. As it might be a cause of degradation or destruction to apply D.C. voltage
between each terminal, apply D.C. voltage 7.5V max. in actual circuit.
Note
1. This specification specifies the quality of this component as a single unit. Make
sure that this component is evaluated and confirmed against this specification
when it is mounted to your products.
2. The information contained herein may be changed without prior notice. It is
therefore advisable to contact New Japan Radio Company before proceeding
with the design of equipment incorporating this product.
3.
The products are designed to be used with ordinary electronic equipment (data
and communications equipment, office equipment, audio-video equipment,
measuring instruments, etc). New Japan Radio Company does not assume any
liability for the case using the products with the application required high
reliability or safety extremely (such as space equipment, sea-bottom equipment,
medical equipment etc). When intending to use any our product please
contact our sales representatives in advance.
