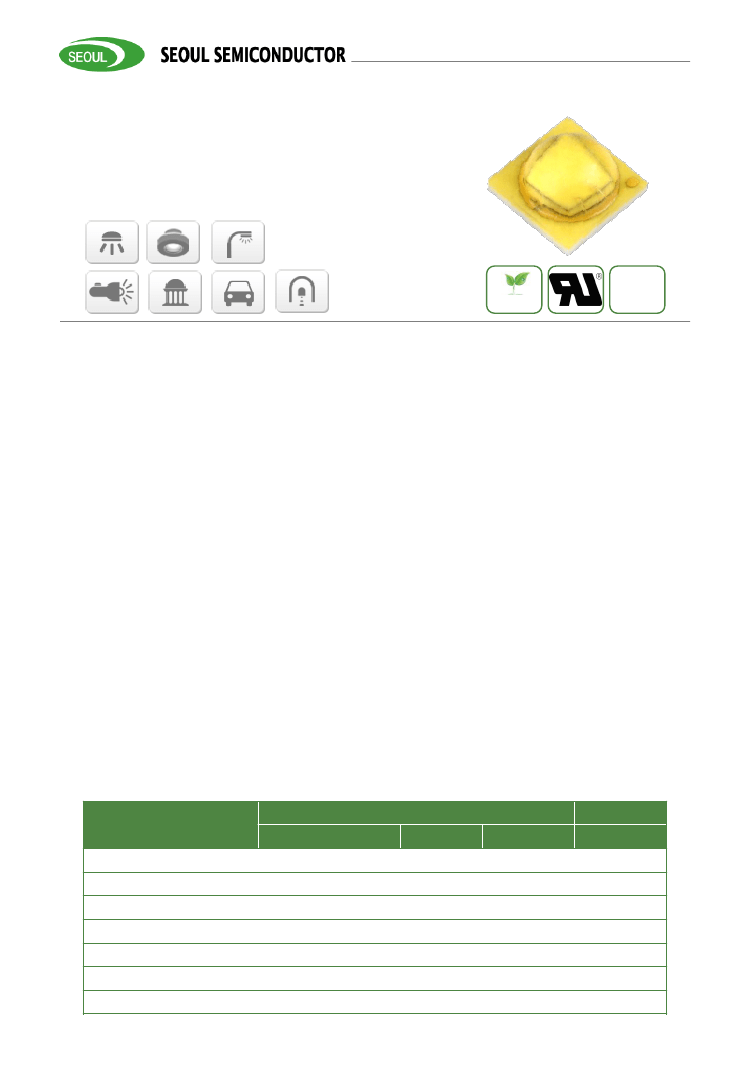

Product Data Sheet
SZ5-M2-WX-XX - High-power LED
Superior Efficacy & Lumen output with Small Form Factor
Z Power LED – Z5-M2
SZ5-M2-WX-XX (Cool, Neutral, Warm)
RoHS
MacAdam
3-Step
Product Brief
Description
•
The Z-Power series is designed for high
flux output applications with high current
operation capability.
It incorporates state of the art SMD
design and low thermal resistant
material.
The Z Power LED is ideal light sources
for directional lighting applications such
as Spot Lights, various outdoor
applications, automotive lightings and
high performance torches .
Features and Benefits
•
•
•
•
•
•
•
•
High Lumen Output and Efficacy
Designed for high current operation
Low Thermal Resistance
Wide CCT range 2600~7000K
High Color quality with CRI Min.80(R9>0)
ANSI compliant Binning
MacAdam 3 Step
RoHS compliant
•
•
Key Applications
•
•
•
•
•
Architectural
Industrial
Outdoor area
Automotive Exterior Lighting
Commercial
Table 1. Product Selection Table
CCT
Part Number
Color
SZ5-M2-W0-00
SZ5-M2-W0-C8
SZ5-M2-WN-00
SZ5-M2-WN-C8
SZ5-M2-WW-00
SZ5-M2-WW-C8
SZ5-M2-WW-C9
Cool White
Cool White
Neutral White
Neutral White
Warm White
Warm White
Warm White
Min.
4700K
4700K
3700K
3700K
2600K
2600K
2600K
Max.
7000K
7000K
4700K
4700K
3700K
3700K
3700K
Min
70
80
70
80
70
80
90
CRI
Rev3.1, Feb 01, 2016
www.seoulsemicon.com
Product Data Sheet
SZ5-M2-WX-XX - High-power LED
Table of Contents
Index
•
•
•
•
•
•
•
•
•
•
•
•
•
Product Brief
Table of Contents
Performance Characteristics
Characteristics Graph
Color Bin Structure
Mechanical Dimensions
Recommended Solder Pad
Reflow Soldering Characteristics
Packaging Information
Product Nomenclature
Handling of Silicone Resin for LEDs
Precaution For Use
Company Information
1
2
3
5
10
20
21
22
23
25
26
27
30
Rev3.1, Feb 01, 2016
2
www.seoulsemicon.com
Product Data Sheet
SZ5-M2-WX-XX - High-power LED
Performance Characteristics
Table 2. Product Selection Guide
CCT [K]
Part Number
Min.
Max.
Group
Flux
[lm]
@85
°C
135
144
153
123
135
144
135
144
153
104
114
123
114
123
135
104
114
123
82
90
99
Flux
[lm]
@25
°C
150
160
170
140
150
160
150
160
170
118.5
130
140
130
140
150
118.5
130
140
91
100
109
700mA
1000mA
1500mA
Min.
[1]
Min. Luminous Flux
[2]
Ф
V [3]
[lm]
@ 350mA
Min. Luminous Flux
[2]
Ф
V [3]
[lm]
@ 85
°C
CRI
[4]
,
R
a
W1
SZ5-M2-W0-00
4,700
7,000
W2
W3
V3
SZ5-M2-W0-C8
4,700
7,000
W1
W2
W1
SZ5-M2-WN-00
3,700
4,700
W2
W3
V1
SZ5-M2-WN-C8
3,700
4,700
V2
V3
V2
SZ5-M2-WW-00
2,600
3,700
V3
W1
V1
SZ5-M2-WW-C8
2,600
3,700
V2
V3
U1
SZ5-M2-WW-C9
2,600
3,700
U2
U3
240
256
272
218
240
256
240
256
272
185
203
218
203
218
240
185
203
218
132
145
159
311
331
352
284
311
331
311
331
352
241
264
284
264
284
311
241
264
284
173
189
208
410
437
464
374
410
437
410
437
464
316
347
374
347
374
410
316
347
374
217
238
262
90
80
70
80
70
80
70
Notes :
(1) Correlated Color Temperature is derived from the CIE 1931 Chromaticity diagram.
Color coordinate :
0.005,
CCT
5%
tolerance.
(2) Seoul Semiconductor maintains a tolerance of
7%
on flux and power measurements.
(3) Ф
V
is the total luminous flux output as measured with an integrating sphere.
(4) Tolerance is
2.0
on CRI measurements.
Rev3.1, Feb 01, 2016
3
www.seoulsemicon.com
Product Data Sheet
SZ5-M2-WX-XX - High-power LED
Performance Characteristics
Table 3. Absolute Maximum Ratings
Value
Parameter
Forward Current
[1]
Peak Pulsed Forward Current
Reverse Voltage
Power Dissipation
Forward Voltage (@700mA, 85ºC)
Junction Temperature
Operating Temperature
Storage Temperature
Viewing angle
Thermal resistance (J to S)
[3]
ESD Sensitivity(HBM)
[4]
[2]
Symbol
Min.
I
F
I
F
V
R
P
D
V
F
T
j
T
opr
T
stg
θ
Rθ
J-S
-
-
-
-
-
- 40
- 40
-
-
-
-
-
-
118
3.45
Class 3A JESD22-A114-E
-
-
Typ.
-
Max.
1500
2000
5
5.22
3.0
150
125
125
Unit
mA
mA
V
W
V
ºC
ºC
ºC
degree
K/W
Notes :
(1) At Junction Temperature 85℃ condition.
(2) Pulse width ≤10ms, duty cycle ≤ 10% condition.
(3) Rθ
J-S
is tested at 700mA.
(4) The zener diode is included to protect the product from ESD.
•
Thermal resistance can be increased substantially depending on the heat sink design/operating
condition, and the maximum possible driving current will decrease accordingly.
Rev3.1, Feb 01, 2016
4
www.seoulsemicon.com
Product Data Sheet
SZ5-M2-WX-XX - High-power LED
Characteristics Graph

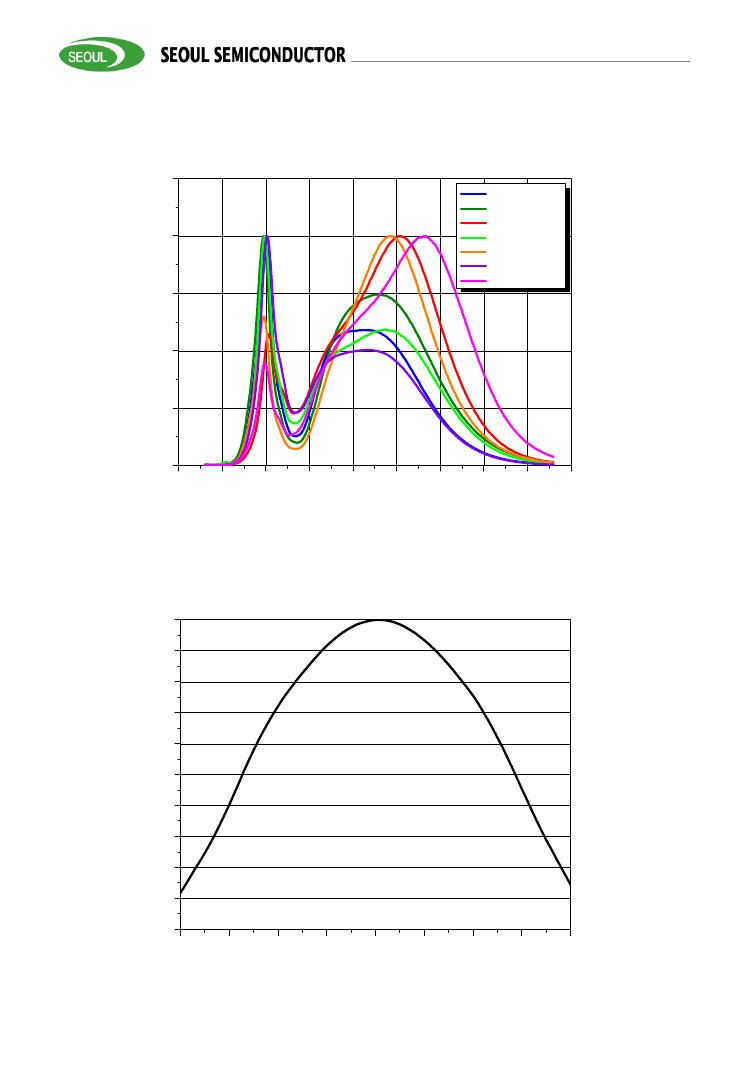

Fig 1. Color Spectrum, T
j
=25℃
1.25
Cool CRI70
Neutral CRI70
Warm CRI80
Neutral CRI80
Warm CRI70
Cool CRI80
Warm CRI90
Relative Radiant Power [%]
1.00
0.75
0.50
0.25
0.00
350
400
450
500
550
600
650
700
750
800
Wavelength [nm]
Fig 2. Typical Spatial Distribution
100
90
Relative Luminous Intensity [%]
80
70
60
50
40
30
20
10
0
-80
-60
-40
-20
0
20
40
60
80
Angular Displacement [degrees]
Rev3.1, Feb 01, 2016
5
www.seoulsemicon.com
