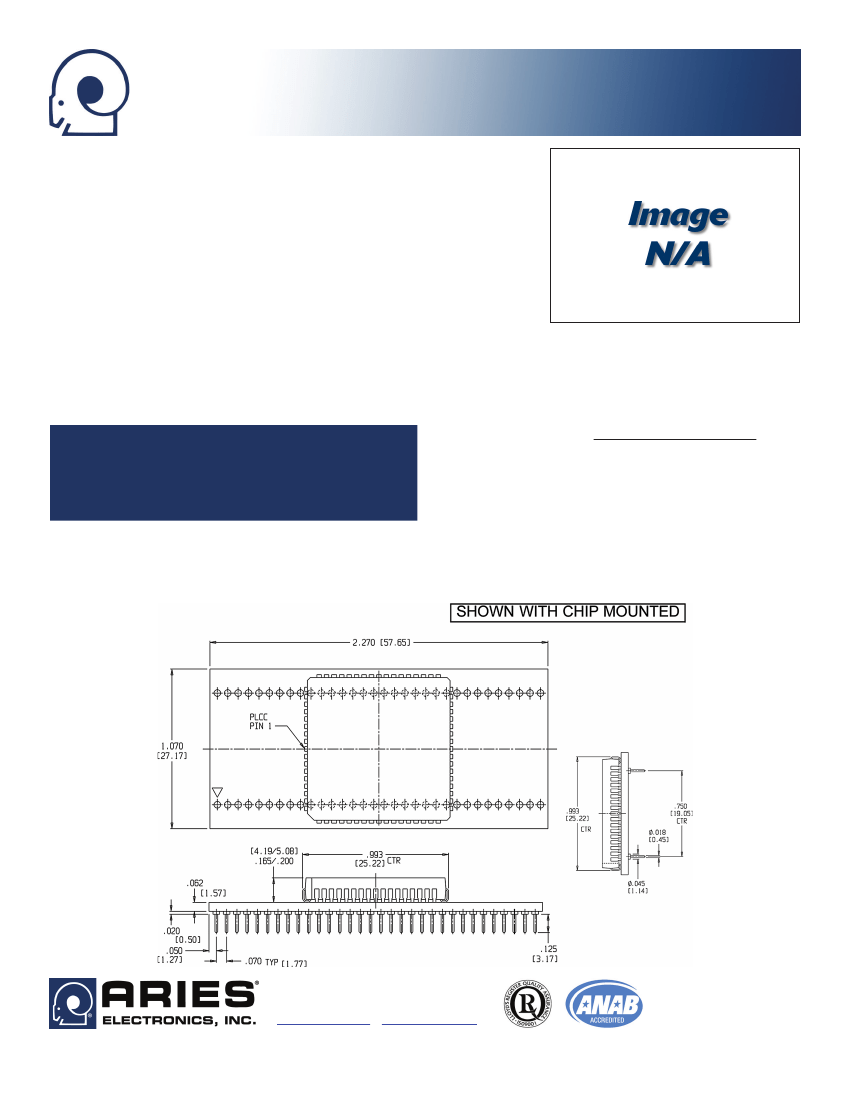

Zilog Z80180 68-Pin
PLCC-to-64-Pin DIP
FEATURES
• Replace difficult-to-obtain PLCC devices with common DIP packages.
GENERAL SPECIFICATIONS
• PCB: FR-4, 0.062 [1.56] or 0.094 [2.39] thick
• MALE PIN: Brass 360 1/2-hard per UNS C36000, ASTM B16/B16M
• OPERATING TEMPERATURE: 221°F [105°C]
• MALE PIN PLATING: 200µ [5.08µ] Sn/Pb 93/7 per ASTM B579-73 over 100µ
[2.54µ] Ni per SAE-AMS-QQ-N-290
MOUNTING CONSIDERATIONS
• Mounts in socket or 0.028 dia. [0.711] thru hole standard HASL PLCC pads on
top of adapter
CUSTOMIZATION:
In addition to the standard products shown
on this page, Aries specializes in custom design and production.
Special materials, platings, sizes, and configurations can be
furnished, depending on the quantity.
NOTE:
Aries reserves the
right to change product general specifications without notice.
ALL DIMENSIONS: INCHES [MILLIMETERS]
ALL TOLERANCES: ±0.005 [0.13] UNLESS OTHERWISE SPECIFIED
CONSULT FACTORY FOR OTHER SIZES AND CONFIGURATIONS
ORDERING INFORMATION
P/N 1109477
68-Pin PLCC-to-64-Pin DIP
P/N 1109477-P
Panelized Form
Bristol, PA 19007-6810 USA
TEL (215) 781-9956 • FAX (215) 781-9845
WWW.ARIESELEC.COM • INFO@ARIESELEC.COM
PRINTOUTS OF THIS DOCUMENT MAY BE OUT OF DATE AND SHOULD BE CONSIDERED UNCONTROLLED
18050
Rev. 1.2
