400W
High
Density
Medical/Industrial
Grade
Open
Frame
Power
Supplies
ASM400S/BSM400S
Medical
Safety
Approval
–
60601-‐1
3
rd
Edition
–
2
MOPP
Class
2
for
home
use
medical
applications
(BSM400)
Single
output
with
5V
Auxiliary
and
12V
fan
output
400
Watts
in
compact
3”x
5”x
1.4”
footprint
High
Efficiency,
up
to
92%
@
230Vac
High
Power
Density
up
to
19W/Inch
3
Universal
90-‐264
VAC
INPUT,
50/60
Hz
230W
rating
with
natural
convection
ORDERING
INFORMATION
—
SEE
PAGE
6
Model
Output
Voltage
Output
Current,
A
Forced/Natural
Convection
5V
Aux.
A
Forced/Natural
Convection
12V
Fan
Output
current,
A
Forced/Natural
Convection
Efficiency,
typ.
230/115VAC
A(B)SM400S-‐12
A(B)SM400S-‐15
A(B)SM400S-‐20
A(B)SM400S-‐24
A(B)SM400S-‐28
A(B)SM400S-‐36
A(B)SM400S-‐48
A(B)SM400S-‐54
12
VDC
15
VDC
20
VDC
24
VDC
28
VDC
36
VDC
48
VDC
54
VDC
33.3/19.17
26.67/15.34
20/12.5
16.7/10.4
14.3/9
11.11/7
8.33/5.2
7.4/4.6
2A/1A
2A/1A
2A/1A
2A/1A
2A/1A
2A/1A
2A/1A
2A/1A
1A/0.5A
1A/0.5A
1A/0.5A
1A/0.5A
1A/0.5A
1A/0.5A
1A/0.5A
1A/0.5A
90/86
90/86
91/88
91/88
91/88
91/88
91/88
91/88
PRODUCT
DESCRIPTION
The
Astrodyne
ASM
and
BSM
400
Series
are
miniature
open
frame
power
supplies
designed
for
medical
applications.
The
ASM400
is
Class
1
and
BSM400
is
Class
2
with
2
MOPP
(method
of
patient
protection)
isolation
and
BF
leakage
current
and
have
been
certified
by
Underwriters
Laboratories
for
compliance
with
the
latest
edition
of
the
international
medical
safety
standard,
IEC
60601-‐1
3
rd
Edition
using
the
CB
reporting
scheme.
They
are
also
certified
to
be
compliant
with
the
collateral
standard
60601-‐1-‐2
for
EMC
and
bear
the
UL
Recognized
component
marks
for
North
America
and
the
EU
and
the
CE
mark.
These
products
operate
over
the
input
voltage
range
of
90
to
264
VAC
and
50,
60Hz
frequency
and
produce
400
Watts
of
regulated
DC
output
power
in
a
standard
3
x
5
(inch)
form
factor
that
is
1U
height
compatible.
Page
1
of
7
A(B)SM400S
series
08-‐25-‐15
REV.J
www.astrodynetdi.com
©2015
Astrodyne
Corporation
400W
High
Density
Medical/Industrial
Grade
Open
Frame
Power
Supplies
ASM400S/BSM400S
INPUT
SPECIFICATIONS
Input
Voltage
Range
Range
of
Nominal
Input
Voltages
Input
Frequency
Input
Current
Inrush
Current
90-‐264
VAC
100-‐240
VAC
47-‐63
Hz
(50/60
Hz
Nom.)
4.5
A
Max
at
115VAC
2.5A
Max
at
230VAC
30A
Max
at
115VAC,
60
Hz
60A
Max
at
230VAC,
50
Hz
300uA
Max
at
264VAC,
50Hz
OVERALL
SPECIFICATIONS
(cont.)
Hold-‐up
Time
Power
Density
Switching
Frequency
MTBF
16ms
typ.
Full
Load,
115VAC
19
W/in³
200
KHz
typ.
100K
hrs.
(typ.)
per
MIL-‐
HDBK-‐217F
ISOLATION
SPECIFICATIONS
Input
to
Output
Input
to
Earth
Output
to
Earth
4000VAC,
2
MOPP
1500VAC,
1
MOPP
500VAC
Earth
Leakage
Current
ASM400S
Patient
Leakage
Current
100uA
Max
at
264VAC,
50Hz
BSM400S
BF
rating
Input
Fusing
8A
fuse
in
both
L
and
N
lines
Power
Factor
0.95
min.,
230VAC
50Hz
PROTECTION
Over
Current
Inception
Short
Circuit
Over
Voltage
Protection
Over
Temperature
Protection
105
to
135%
Rated
Current
Hiccup
Mode,
Automatic
recovery
130%
Vo
max.
Latching,
Recycle
Input
to
Reset
Automatic
recovery
MAIN
OUTPUT
SPECIFICATIONS
Output
Voltage
Output
Power
Minimum
Load
Set
Point
Accuracy
Load
Regulation
Line
Regulation
Temp.
Drift
Transient
Response
Excursion
Transient
Response
Recovery
Time
Ripple
and
Noise
12V,
15V,
20V,
24V,
28V,
36V,
48V
or
54V
nominal
400
W
Continuous
–
See
temp.
&
Airflow
derating
curves
No
minimum
load
required
±
1%
±
1%
Max,
0
to
Full
Load
±
0.5%
Max,
90
to
264
VAC
±
0.025
%/°C
Less
than
±
5%
50
to
100%
Load
Step
1A/us
Slew
Rate
2ms
Max
50
to
100%
Load
Step
1A/us
Slew
Rate
1%
pk-‐pk
Max.
20MHz
BW
Measured
with
47uF
Alum
and
0.1uF
Ceramic
at
output
MECHANICAL
SPECIFICATIONS
Size
Weight
Input
Connector
Input
Mating
Connector
Output
Connector
Output
Mating
Connector
See
Outline
Drawings
for
mechanical
options
1lbs.
(453.6g)
Molex
41791
Housing
Molex
2139
Contact
2478
See
Outline
Drawings
for
mechanical
options
See
Outline
Drawings
for
mechanical
options
OVERALL
SPECIFICATIONS
Efficiency
Standby
Power
Start-‐up
Delay
Start-‐up
Rise
Time
Refer
to
Ordering
Information
table
<1W
230
VAC
2s
maximum
50ms
maximum
ENVIRONMENTAL
SPECIFICATIONS
Operating
Temp.
Range
Storage
Temp.
Range
Humidity
-‐20
to
+40°C
at
Full
Load
with
derating
-‐40
to
+85°C
0
to
95%,
non-‐condensing
Page
2
of
7
A(B)SM400S
series
08-‐25-‐15
REV.J
www.astrodynetdi.com
©2015
Astrodyne
Corporation
400W
High
Density
Medical/Industrial
Grade
Open
Frame
Power
Supplies
ASM400S/BSM400S
ENVIRONMENTAL
SPECIFICATIONS
(cont.)
Altitude
Shock
Vibration
0
to
10,000
ft.
0
to
3048
m
30G
pk.
Half
sine,
6
axis
2
G
RMS,
5
Hz
to
500
Hz
3
axis,
30
min
EMC
CERTIFICATIONS
(cont.)
Radiated
Emissions
ESD
Susceptibility
Air
Discharge
ESD
Susceptibility
Contact
Discharge
Radiated
Susceptibility
EFT/Burst
Surge
Conducted
Susceptibility
All
Specifications
are
typical
at
nominal
input,
full
load,
25°C
unless
specified
otherwise.
•
For
EMC
Compliance,
electrically
bond
4
mounting
holes
to
a
conductive
surface.
SAFETY
CERTIFICATIONS
UL/cUL
UL
EU
AAMI
ES60601-‐1:
2005
A1
2012/CSA
22.2
60601-‐1
2014
EN60601-‐1:
2006
3
rd
Edition
A1
2013
CB
Scheme
IEC 60601-‐1:
2005
A1
2012
EMC
CERTIFICATIONS
Conducted
Emissions
EN60601-‐1-‐2
Class
B
EN55011/A1
Class
B
EN60601-‐1-‐2
Class
B
EN55011/A1
Class
B
EN61000-‐4-‐2
Criteria
A
Level
3
EN61000-‐4-‐2
Criteria
A
Level
2
EN61000-‐4-‐3
Criteria
A
Level
2
EN61000-‐4-‐4
Criteria
A
Level
3
EN61000-‐4-‐5
Criteria
A
Level
2
EN61000-‐4-‐6
Criteria
A
Level
2
Note: Keep 6mm minimum between PCB bottom side to system chassis
18mm
Air
Flow
50mm
Ambient
Thermal
Sensor
AC
IN
PUT
PSU
DC
OUT
PUT
18mm
Page
3
of
7
A(B)SM400S
series
08-‐25-‐15
REV.J
www.astrodynetdi.com
©2015
Astrodyne
Corporation
400W
High
Power
Density
Medical
Grade
Open
Frame
Power
Supplies
ASM400S/BSM400S

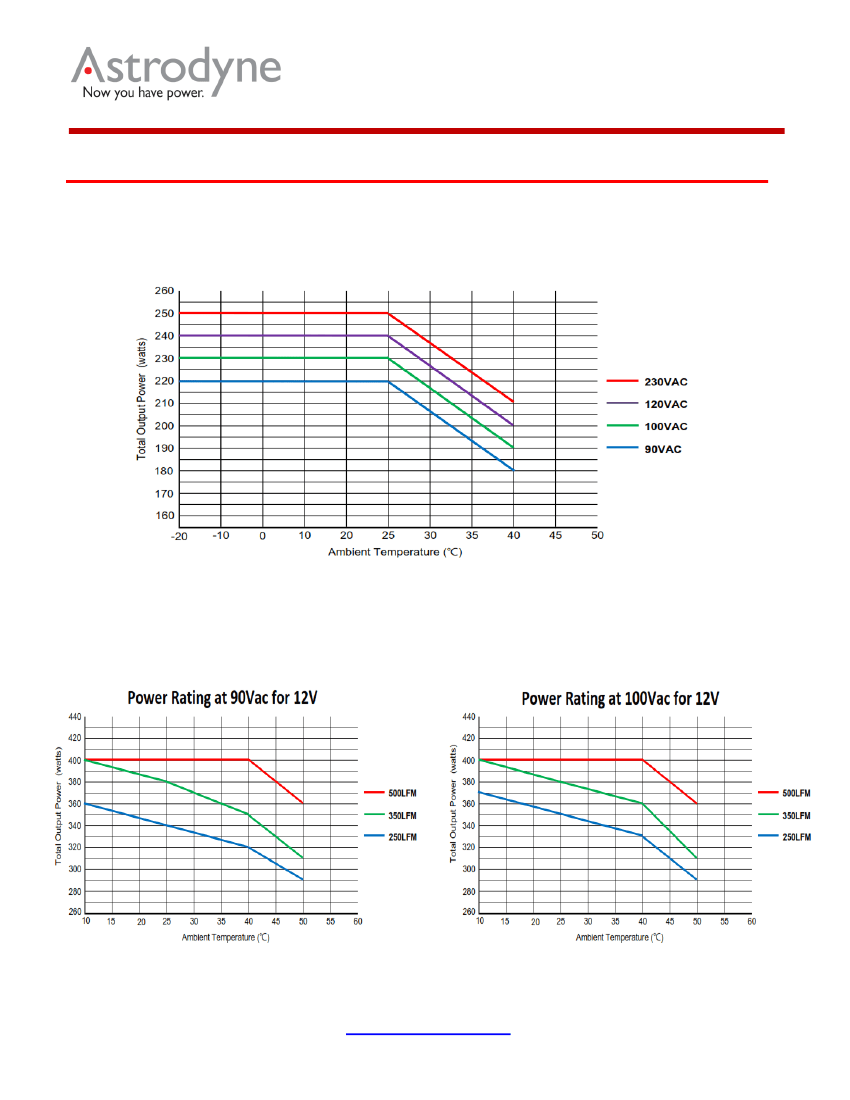

OUTPUT
DERATING
Output
Power
Derating
Information
Natural
Convection
-‐
Output
Power
vs.
Ambient
Temperature
and
Input
Voltage
for
all
models:

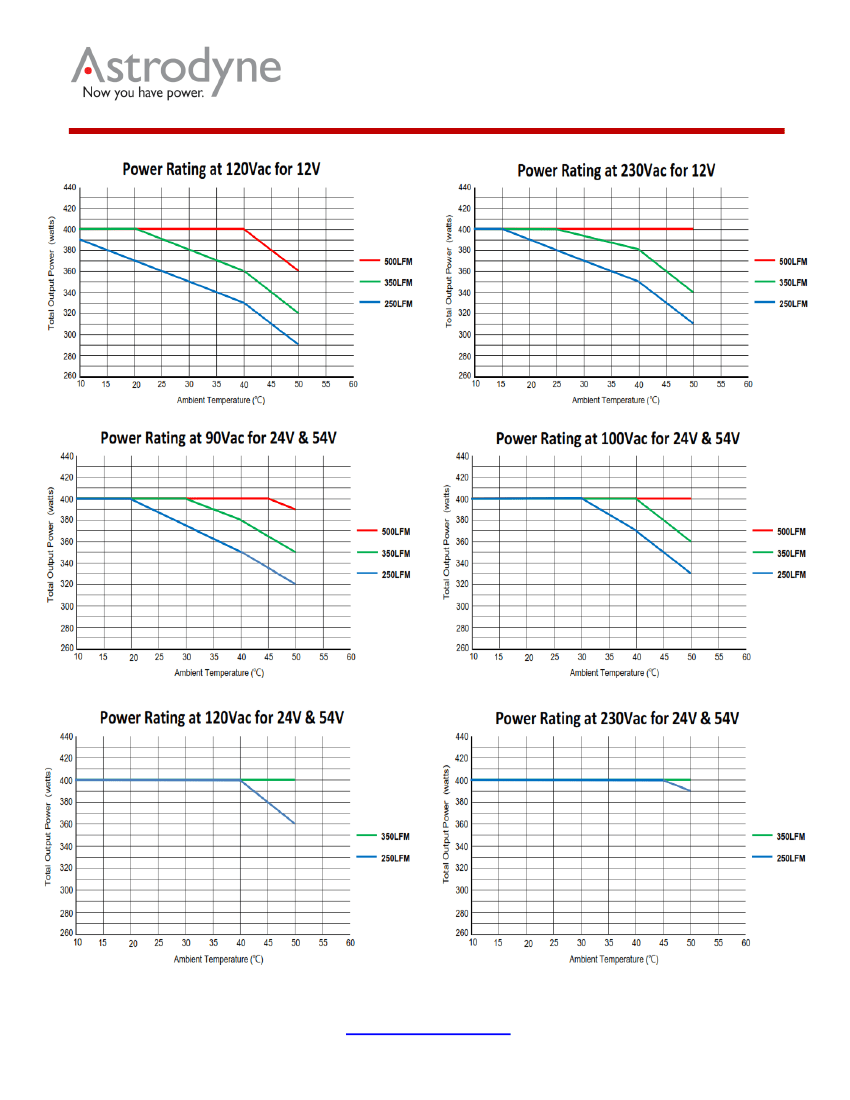

Forced
Convection
-‐
Output
Power
vs.
Ambient
Temperature,
Airflow
and
Input
Voltage:
Page
4
of
7
A(B)SM400S
series
08-‐25-‐15
REV.J
www.astrodynetdi.com
©2015
Astrodyne
Corporation
400W
High
Power
Density
Medical
Grade
Open
Frame
Power
Supplies
ASM400S/BSM400S
Page
5
of
7
A(B)SM400S
series
08-‐25-‐15
REV.J
www.astrodynetdi.com
©2015
Astrodyne
Corporation
