RP132x Series
AEC-Q100 Compliant
Low on Resistance / Low Voltage 1 A LDO for Automotive Applications
NO.EC-265-190408
OUTLINE
The RP132x Series are voltage-regulators with a built-in low ON-resistance transistor and output current is 1A
capability. These ICs have two versions: fixed output voltage type and externally adjustable output voltage type.
The minimum output voltage can be set from 1.4V. Otherwise, the load regulation of RP132x has much improved
when compared with conventional regulators. It's Typ.5mV at I
OUT
½0.1mA
to 1A.

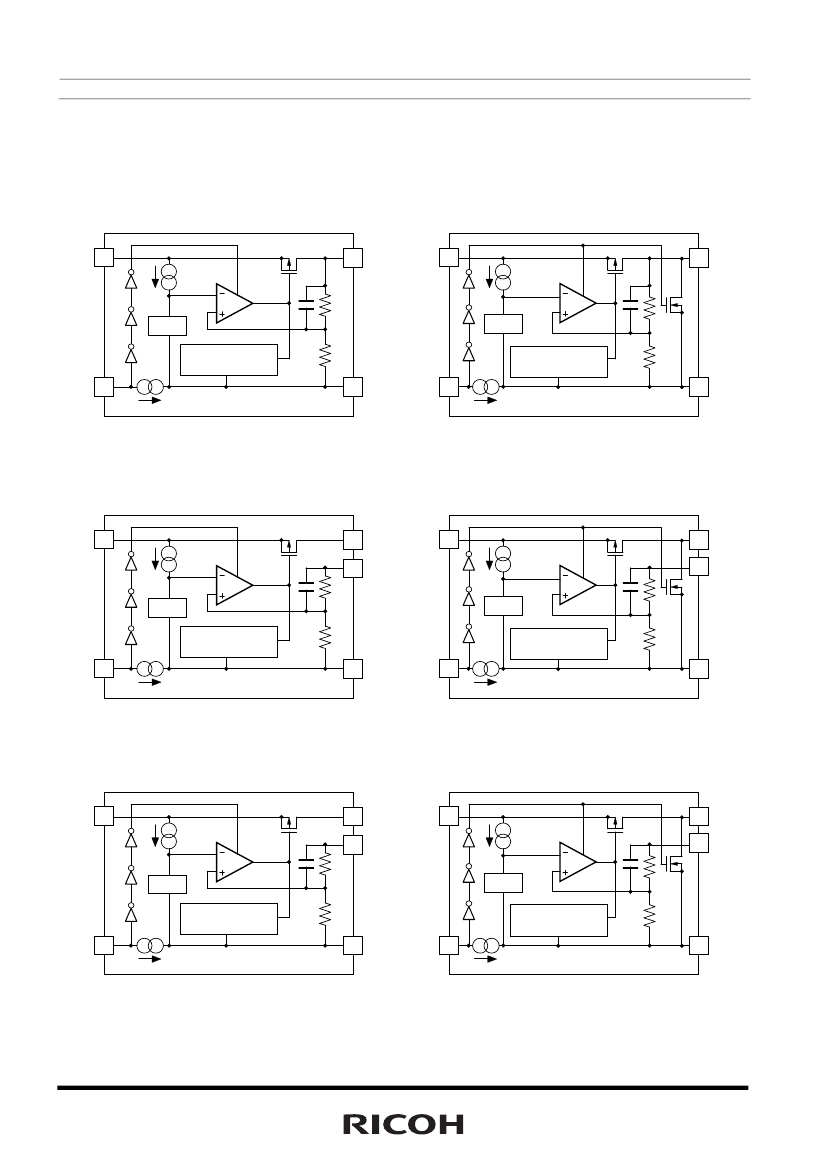

Each of these ICs consists of a voltage reference unit, an error amplifier, a resistor net for setting output voltage,
current limit circuits to prevent over-current and a thermal-shutdown circuit. A standby mode with ultra low supply
current can be realized with the chip enable function.
The packages for these ICs are SOT-89-5, HSOP-6J and TO-252-5-P2. They range from high-density mounting
to ultra high wattage.
FEATURES
Input Voltage Range (Maximum Rating) ...................... 1.4V to 6.5V (7V)
Operating Temperature Range .................................... −40C to 105C
Output Current ........................................................... Min. 1A
Supply Current ............................................................. Typ. 65A
Standby Current ......................................................... Typ. 0.15A
Output Voltage Range.................................................. 0.8V, 1.05V, 1.2V, 1.5V, 1.8V, 2.5V, 3.0V, 3.3V, 5.0V
*Contact Ricoh sales representatives for other voltages.
Adjustable Output Voltage Type: 0.8V to 5.5V
Dropout Voltage ......................................................... Typ. 0.52V (V
OUT
½3.0V,
I
OUT
½1A)
Ripple Rejection ........................................................... Typ. 70dB (f½1kHz, V
OUT
½3.0V)
Output Voltage Accuracy..............................................
1.0%
Output Voltage Temperature-Drift Coefficient .............. Typ.
60ppm/C
Line Regulation ............................................................ Typ. 0.052%/V
Load Regulation ......................................................... Typ. 3mV at I
OUT
½300mA,
Typ. 5mV at I
OUT
½1A
Packages .................................................................... SOT-89-5, HSOP-6J, TO-252-5-P2
Inrush Current Limit Circuit ........................................ Typ. 500mA
B/D version: Inrush current limit time is 500s.
Fold-Back Protection Circuit ....................................... Typ. 250mA (Current at short mode)
Thermal Shutdown Circuit .......................................... Thermal Shutdown Temperature: Typ. 165C
Released Temperature: Typ. 95C
Auto Discharge Function ............................................ D version
Ceramic capacitors are recommended to be used with this IC ..... 2.2F or more (V
OUT
≤ 3.6V)
4.7F or more (V
OUT
3.6V)
APPLICATIONS
Power source for accessories such as car audios, car navigation systems, and ETC systems
Power source for control units including EV inverter and charge control.
1
RP132x
NO.EC-265-190408
SELECTION GUIDE
The output voltage, the auto discharge function*, and the package type for the ICs can be selected at the user’s
request.
Product Name
RP132H001-T1-#E
RP132Hxx2-T1-#E
RP132S001-E2-#E
RP132Sxx2-E2-#E
RP132J001-T1-#E
RP132Jxx1-T1-#E
Package
SOT-89-5
HSOP-6J
TO-252-5-P2
Quantity per Reel
1,000 pcs
1,000 pcs
3,000 pcs
Pb Free
Yes
Yes
Yes
Halogen Free
Yes
Yes
Yes
RP132x001x is the adjustable output voltage type.
xx: Specify the set output voltage (V
SET
) of the fixed output voltage type.
0.8V(08), 1.2V(12), 1.5V(15), 1.8V(18), 2.5V(25), 3.0V(30), 3.3V(33), 5.0V(50)
1.05V(RP132x10xx5)
*Contact Ricoh sales representatives for other voltages.
The
auto discharge function at off state options are as follows.
(B) without auto discharge function* at off state
(D) with auto discharge function* at off state
# : Specify Automotive Class Code
Operating
Temperature Range
A
J
-40°C to 105°C
-40°C to 105°C
Guaranteed Specs
Temperature Range
25°C
-40°C to 105°C
Screening
High Temperature
High and Low Temperature
* Auto-discharge function quickly lowers the output voltage to 0V, when the chip enable signal is switched from the active
mode to the standby mode, by releasing the electrical charge accumulated in the external capacitor.
3
RP132x
NO.EC-265-190408
PIN DESCRIPTIONS
SOT-89-5
5
4
HSOP-6J
6
5
4
TO-252-5-P2
*1
1
2
3
1
2
3
1
2
3
4
5
SOT-89-5
Pin No.
1
2
3
4
5
Symbol
CE
V
FB
GND
GND
CE
V
DD
V
OUT
Pin Description
Chip Enable Pin ("H" Active) (RP132Hxx2B/D)
Feed Back Pin (RP132H001B/D)
Ground Pin
Ground Pin (RP132Hxx2B/D)
Chip Enable Pin ("H" Active) (RP132H001B/D)
Input Pin
Output Pin
When using Fixed Output Voltage Type (RP132Hxx2x), No.2 pin and No. 3 pin must be wired each other
when mounted on boards. When using Adjstable Output Voltage Type (RP132H001x), please follow "Notes on
Adjustable Output Voltage Type Settings".
HSOP-6J
Pin No.
1
2
3
4
5
6
Symbol
V
OUT
GND
GND
V
FB
CE
GND
V
DD
Output Pin
Ground Pin
Ground Pin (RP132Sxx2B/D)
Feed Back Pin (RP132S001B/D)
Chip Enable Pin ("H" Active)
Ground Pin
Input Pin
Pin Description
When using Fixed Output Voltage Type (RP132Hxx2x),No.2 pin, No. 3 pin, and No.5 pin must be wired each
other when mounted on boards. When using Adjstable Output Voltage Type (RP132S001x), please follow
"Notes on Adjustable Output Voltage Type Settings".
4
RP132x
NO.EC-265-190408
TO-252-5-P2
Pin No.
1
2
3
4
5
Symbol
CE
V
DD
GND
V
OUT
V
FB
Input Pin
Ground Pin
Output Pin
Feed Back Pin
Pin Description
Chip Enable Pin ("H" Active)
*1
Tab
is GND level. (They are connected to the reverse side of this IC.) The tab is better to be connected to the
GND, but leaving it open is also acceptable.
When using Fixed Output Voltage Type(RP132Jxx1x),V
OUT
pin and V
FB
pin should be connected. When using
Adjstable Output Voltage Type (RP132J001x), please follow "Notes on the Adjustable Output Voltage Type
Settings".
5
