FERRITE CHIP BEADS
1. PART NO. EXPRESSION :
Z0 SERIES
(e) R : Reel
(f) Current : E = 500mA
(g) 10: Standard
11 ~ 99 : Internal control number
Z 0 K 2 2 0 - R E -
□□
(a)(b)(c) (d)
(e)(f)
(g)
(a) Series code
(b) Dimension code
(c) Material code
(d) Impedance code : 220 = 22.0Ω
2. CONFIGURATION & DIMENSIONS :
A
D
B
L
C
G
Recommended PC Board Pattern
Unit:m/m
A
0.60± 0.03
B
C
D
G
0.30 Ref.
H
0.30 Ref.
L
0.80 Ref.
0.30± 0.03 0.30± 0.03 0.15± 0.05
3. SCHEMATIC :
4. MATERIALS :
b
a
Ag(100%)
Ni(100%)-1.5um(min.)
Sn(100%)-3.0um(min.)
(a) Body : Ferrite
(b) Termination : Ag/Ni/Sn
5. GENERAL SPECIFICATION :
a) Operating temp. : -40° C to +125° C ( including self-temperature. rise )
b) Storage condition (component in its packaging)
i) Temperature : -10 to 40° C
ii) Humidity : 60%
NOTE : Specifications subject to change without notice. Please check our website for latest information.
H
19.01.2015
SUPERWORLD ELECTRONICS (S) PTE LTD
PG. 1
FERRITE CHIP BEADS
6. ELECTRICAL CHARACTERISTICS :
Impedance
(
Ω
)
22 ± 25%
33 ± 25%
80 ± 25%
120 ± 25%
240 ± 25%
600 ± 25%
60 ± 25%
120 ± 25%
240 ± 25%
470 ± 25%
600 ± 25%
10 ± 25%
22 ± 25%
33 ± 25%
47 ± 25%
56 ± 25%
80 ± 25%
120 ± 25%
Test
Frequency
( MHz )
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
DC Resistance
(
Ω
)
Max.
0.065
0.07
0.40
0.45
0.65
1.20
0.25
0.40
0.80
1.05
1.20
0.25
0.45
0.55
0.70
1.00
1.30
1.50
Z0 SERIES
Rated Current
( mA )
Max.
500
500
200
200
200
150
200
200
200
100
100
200
200
150
150
100
100
100
Part Number
Z0K220-RE-10
Z0K330-RE-10
Z0K800-RB-10
Z0K121-RB-10
Z0K241-RB-10
Z0K601-RB-10
Z0H600-RB-10
Z0H121-RB-10
Z0H241-RB-10
Z0H471-RA-10
Z0H601-RA-10
Z0B100-RB-10
Z0B220-RB-10
Z0B330-RB-10
Z0B470-RB-10
Z0B560-RA-10
Z0B800-RA-10
Z0B121-RA-10
NOTE : Specifications subject to change without notice. Please check our website for latest information.
19.01.2015
SUPERWORLD ELECTRONICS (S) PTE LTD
PG. 2

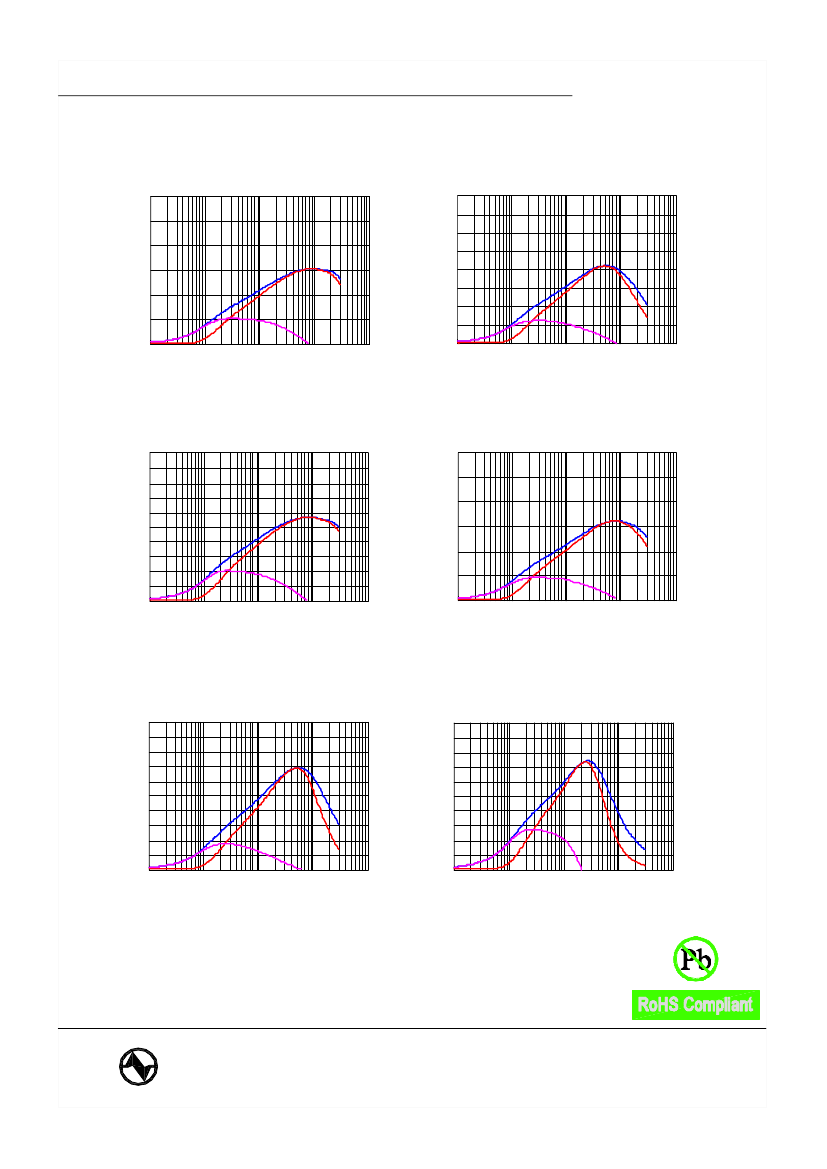

FERRITE CHIP BEADS
7. CHARACTERISTICS CURVES :
Z0K220-RE-10
FCM0 603WF-220T05
60
80
Z0 SERIES
Z0K330-RE-10
FCM0603WF- 330T05
IMPEDANCE(Ohm)
40
IMPEDANCE(Ohm)
60
40
Z
20
Z
20
X
R
0
1
10
100
1000
10000
X
0
1
10
R
100
1000
10000
FREQ NCY(M )
UE
Hz
FREQ NCY(M )
UE
Hz
Z0K800-RB-10
FCM0603WF-800T02
200
300
Z0K121-RB-10
FCM0603WF-121T02
160
IMPEDANCE(Ohm)
IMPEDANCE(Ohm)
200
120
Z
80
Z
100
40
X
R
1
10
100
1000
10000
0
1
10
X
R
100
1000
10000
0
FREQ NCY(M )
UE
Hz
FREQ NCY(M )
UE
Hz
Z0K241-RB-10
FCM0 603WF-241T02
500
1000
Z0K601-RB-10
FCM0603WF-601T01
400
800
IMPEDANCE(Ohm)
IMPEDANCE(Ohm)
300
Z
600
Z
200
400
X
200
100
X
R
1
10
100
1000
10000
R
0
1
10
100
1000
10000
0
FREQ NCY(M )
UE
Hz
FRE
QUENCY(MHz)
NOTE : Specifications subject to change without notice. Please check our website for latest information.
19.01.2015
SUPERWORLD ELECTRONICS (S) PTE LTD
PG. 3

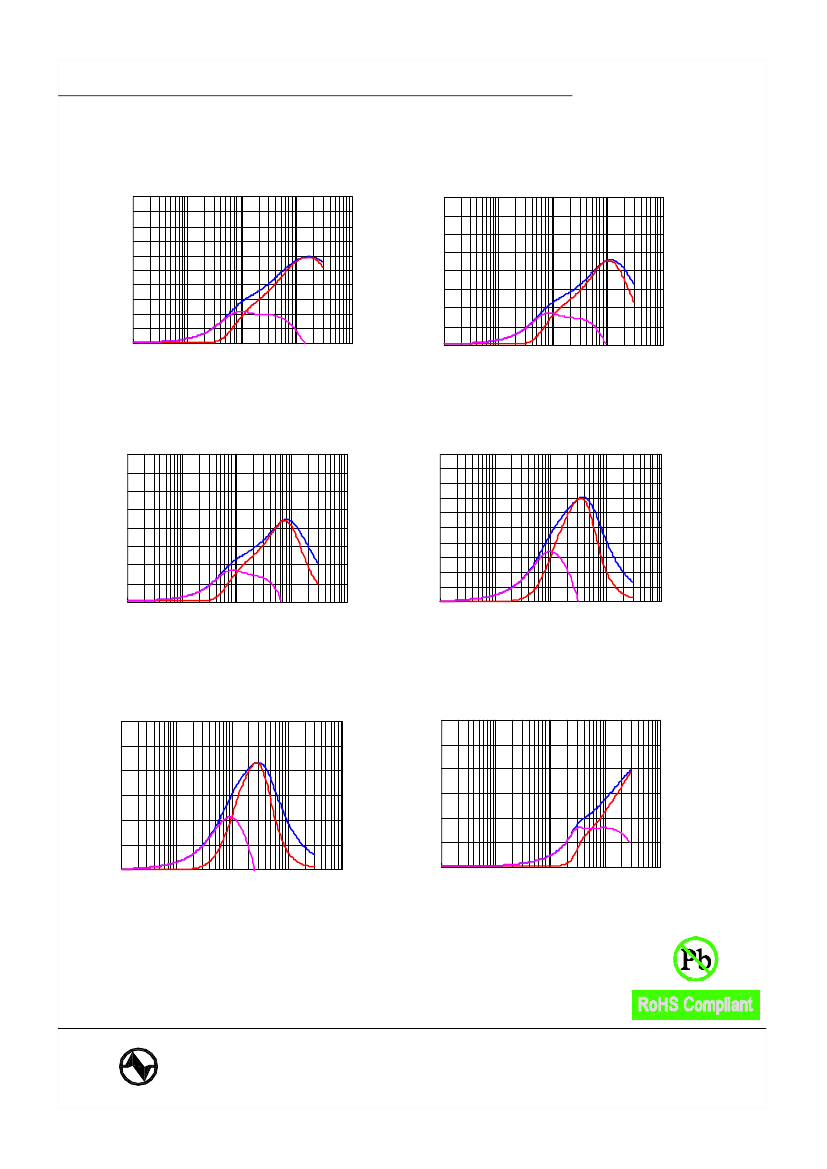

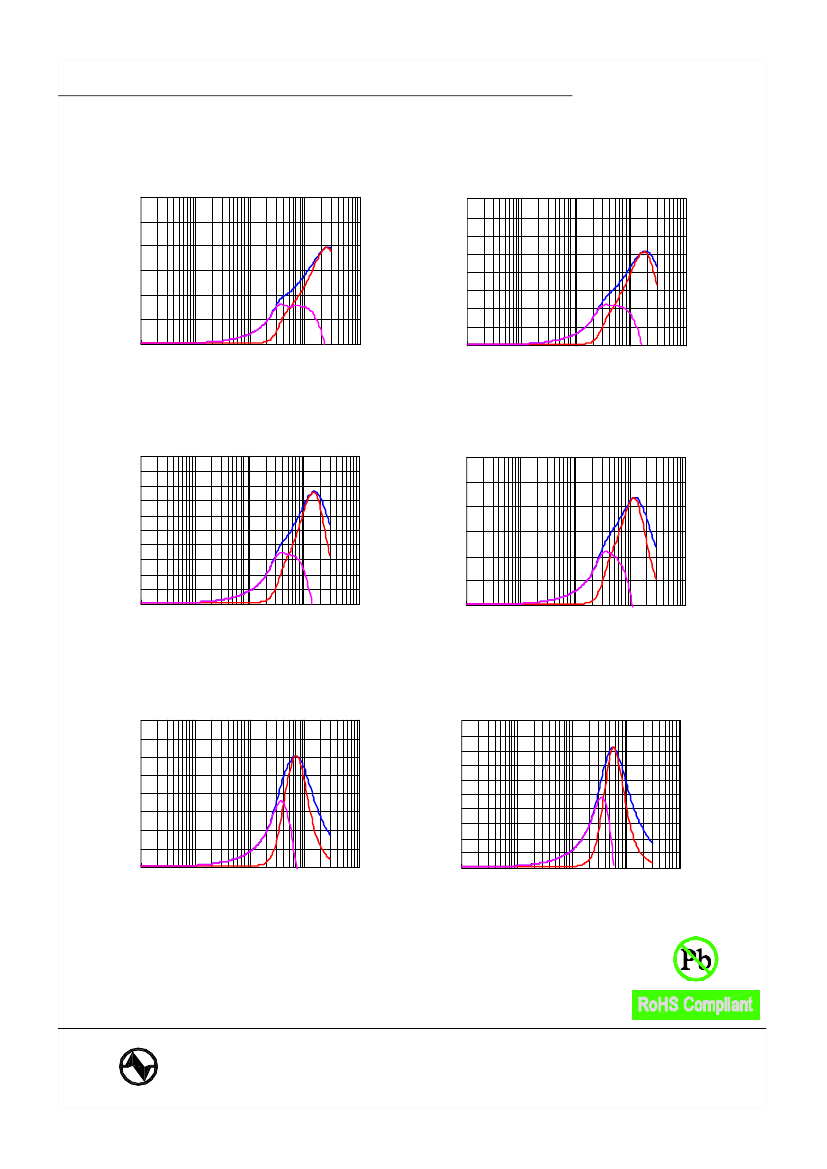

FERRITE CHIP BEADS
Z0 SERIES
Z0H121-RB-10
FCM0 603HF- 121T02
400
Z0H600-RB-10
FCM0 603HF- 600T02
200
160
IMPEDANCE(Ohm)
120
IMPEDANCE(Ohm)
300
Z
80
200
Z
100
40
X
R
X
R
0
1
10
100
1000
10000
0
1
10
100
1000
10000
FREQ NCY(M )
UE
Hz
FREQ NCY(M )
UE
Hz
Z0H241-RB-10
FCM0603HF- 241T02
800
1000
Z0H471-RA-10
FCM0603HF-471T01
800
IMPEDANCE(Ohm)
IMPEDANCE(Ohm)
600
600
Z
400
Z
200
400
X
200
X
R
0
1
10
100
10 00
10000
R
0
1
10
10 0
1 000
10000
FREQ NCY(M )
UE
Hz
FREQUENCY
(MHz)
Z0H601-RA-10
FCM0603HF-601T01
1200
120
Z0B100-RB-10
FCM0603BF-100T02
IMPEDANCE(Ohm)
IMPEDANCE(Ohm)
800
80
Z
Z
40
400
X
X
R
0
1
10
10 0
1000
10000
R
0
1
10
100
1000
10000
FREQUENCY
(MHz)
FREQUENCY(M
Hz)
NOTE : Specifications subject to change without notice. Please check our website for latest information.
19.01.2015
SUPERWORLD ELECTRONICS (S) PTE LTD
PG. 4
FERRITE CHIP BEADS
Z0 SERIES
Z0B330-RB-10
FCM0603BF-330T01
400
Z0B220-RB-10
FCM0603BF-220T02
300
IMPEDANCE(Ohm)
200
IMPEDANCE(Ohm)
300
Z
100
200
Z
X
100
X
R
R
0
1
10
100
10 00
10000
0
1
10
100
1000
10000
FREQUENCY(M
Hz)
FREQUENCY(M
Hz)
Z0B470-RB-10
FCM0603BF-470T01
500
600
Z0B560-RA-10
FCM0603BF-560T01
400
IMPEDANCE(Ohm)
IMPEDANCE(Ohm)
400
300
Z
200
Z
200
100
X
R
X
R
0
1
10
100
1000
10000
0
1
10
100
1000
10000
FREQUENCY(M
Hz)
FREQUENCY(M
Hz)
Z0B800-RA-10
FCM0603BF-800T01
800
1000
Z0B121-RA-10
FCM0 603BF- 121T01
800
IMPEDANCE(Ohm)
IMPEDANCE(Ohm)
600
Z
400
600
Z
400
200
X
R
0
1
10
100
1000
10000
200
X
R
0
1
10
100
1000
10000
FREQUENCY(M
Hz)
FREQ
UENCY(MHz)
NOTE : Specifications subject to change without notice. Please check our website for latest information.
19.01.2015
SUPERWORLD ELECTRONICS (S) PTE LTD
PG. 5
