Glass Passivated Bridge Rectifiers
4GBJ4005-G Thru. 4GBJ410-G
Reverse Voltage: 50 to 1000V
Forward Current: 4.0A
RoHS Device
Features
-Surge overload rating -150 amperes peak.
-Ideal for printed circuit board.
-UL recognized file # E217139
R
4GBJ
Φ0.134(3.4)
Φ0.122(3.1)
0.996(25.3)
0.972(24.7)
0.118(3.00)*45°
0.189(4.8)
0.173(4.4)
0.150(3.8)
0.134(3.4)
Φ0.134(3.4)
Φ0.122(3.1)
0.114(2.9)
0.098(2.5)
Mechanical Data
-Epoxy: U/L 94V-0 rate flame retardant.
-Case: Molded plastic, 4GBJ
-Mounting position: Any
-Weight: 4.27 gram
(approx.).
0.057(1.45)
0.041(1.05)
0.083(2.1)
0.067(1.7)
0.043(1.1)
0.035(0.9)
+ ~ ~
0.075(1.9)
0.059(1.5)
_
0.157
(4.0)
0.602(15.3)
0.579(14.7)
0.150(3.8)
0.130(3.3)
0.708(18.0)
0.669(17.0)
0.382(9.7)
0.366(9.3)
0.303(7.7)
0.287(7.3)
0.303(7.7)
0.287(7.3)
0.303(7.7)
SPACING
0.287(7.3)
0.031(0.8)
0.023(0.6)
Dimensions in inches and (millimeter)
Maximum ratings and electrical characteristics
Rating at 25°C ambient temperature unless otherwise specified.
Single phase, half wave ,60Hz, resistive or inductive load.
For capacitive load, derate current by 20%
Parameter
Maximum Recurrent Peak Reverse Voltage
Maximum RMS Voltage
Maximum DC Blocking Voltage
Maximum Average Forward (With heatsink Note2)
Rectified Current @Tc=100°C (without hestsink)
Symbol
V
RRM
V
RMS
V
DC
I
(AV)
I
FSM
4GBJ
4005-G
50
35
50
4GBJ
401-G
100
70
100
4GBJ
402-G
200
140
200
4GBJ
404-G
400
280
400
4.0
2.4
135
1.0
1.1
10.0
500
93
45
2.2
-55 to +150
-55 to +150
4GBJ
406-G
600
420
600
4GBJ
408-G
800
560
800
4GBJ
410-G
1000
700
1000
Unit
V
V
V
A
A
Peak Forward Surage Current ,
8.3ms Single Half Sine-Wave
Super Imposed On Rated Load
(JEDEC Method)
Maximum Forward Voltage at 2.0A DC
Maximum Forward Voltage at 4.0A DC
Maximum DC Reverse Current
At Rated DC Blocking Voltage
I T Rating for Fusing (t<8.3ms)
Typical Junction Capacitance Per Element
(Note 1)
T
Typical Thermal Resistance
Operating Temperature Range
Storage Temperature Range
2
V
F
V
μA
A s
pF
°C/W
°C
°C
2
@T
J
=25°C
@T
J
=125°C
I
R
It
C
J
R
θJC
T
J
T
STG
2
Notes:
1. Measured at 1.0MHz and applied reverse voltage of 4.0V DC.
2. Device mounted on 50mm*50mm*1.6mm Cu plate heatsink.
Company reserves the right to improve product design , functions and reliability without notice.
QW-BBR86
REV: A
Page 1
Comchip Technology CO., LTD.
Glass Passivated Bridge Rectifiers

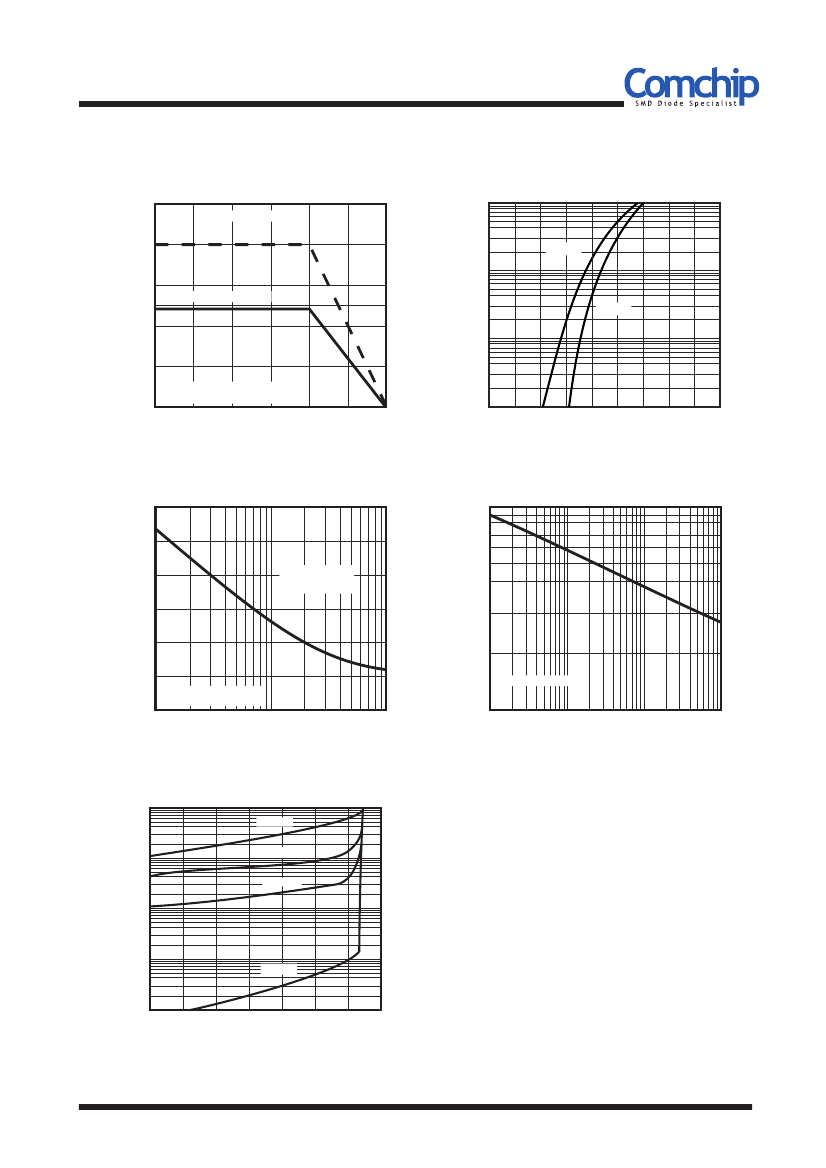

Rating and Characteristics Curves (4GBJ4005-G Thru. 4GBJ410-G)
Fig.1 - Forward Current Derating Curve
5.0
O
WITH HEATSINK
C
Fig.2 - Typical Forward Characteristics
10.0
4.0
Instantaneous Forward Current, (A)
Average Forward Current, (A)
TJ=150°C
1.0
3.0
O
WITHOUT HEATSINK
C
TJ=25°C
2.0
0.1
1.0
O
SINGLE PHASE HALF WAVE 60HZ
C
RESISTIVE OR INDUCTIVE LOAD
0.0
0
25
50
75
100
125
150
0.01
0
0.2
0.4
0.6
0.8
1.0
1.2
1.4
1.6
1.8
Case Temperature, (°C)
Instantaneous Forward Voltage, (V)
Fig.3 - Maximum Non-Repetitive
Surge Current
150
100
Fig.4 - Typical Junction Capacitance
Peak Forward Surge Current, (A)
125
TJ=25°C
HALF-SINE-WAVE
(JEDEC METHOD)
100
75
50
25
SINGLE HALF-SINE-WAVE
(JEDEC METHOD)
Capacitance, (pF)
O
T
J
=25°C,f=1MHz
C
0
1
10
100
10
1
1.0
10.0
100
Number of cycles at 60Hz
Reverse Voltage , (V)
Fig.5 - Typical Reverse Characteristics
1000
O
T
J
=150°C
C
Instantaneous Reverse Current, (μA)
100
O
T
J
=125°C
C
T
J
=100°C
10
1.0
T
J
=25°C
0.1
0
20
40
60
80
100
120
140
Percent of Rated Peak Reverse Voltage, (%)
Company reserves the right to improve product design , functions and reliability without notice.
QW-BBR86
REV: A
Page 2
Comchip Technology CO., LTD.
