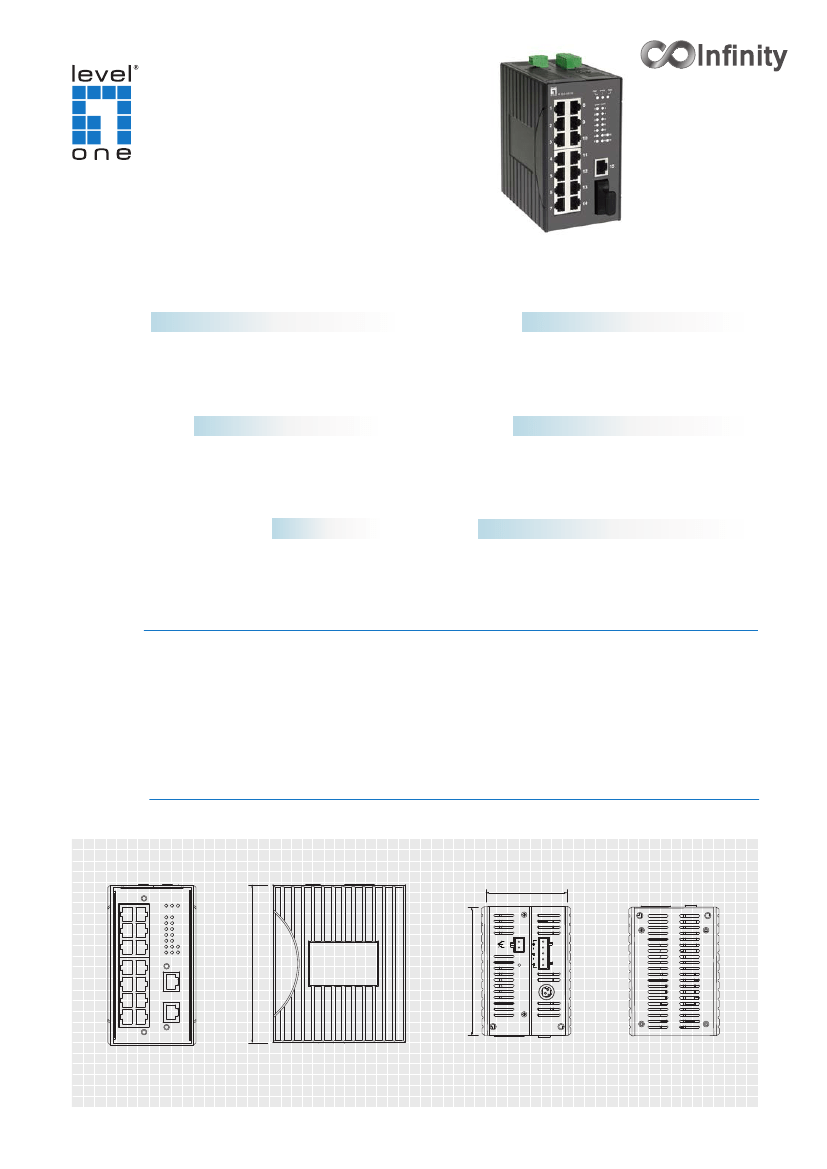

IES-1621
Overview
15 FE + 1 MM SC Unmanaged Switch -40 to 75, DIN-rail
Redundancy
LevelOne IES-1621 Industry Ethernet Switch provides 15 ports of
10/100Base-TX Ethernet plus 1 port 100FX MM SC ber to enable high
speed network at mission-critical environment. This device is designed
to be mounted on an industry standard DIN-rail, plus the clearly visible
status LEDs provide simple monitoring of port link activity.
This redundant power system is designed to meet the challenge of
power failure to ensure reliability and constant availability. Single power
design works ne in non-critical network applications, but it falls short
drastically for network applications in transportation, automate
production or banking.
High Reliability
All components are built to withstand harsh environment applications
without compromise where humidity, temperature variation and even
shock vibration are concerns, including Electric & Utility, Critical
Infrastructure, Transportation and Surveillance Security. This device
operates under -40 to 75 Celsius (-40 to 167 Fahrenheit) temperature.
Plug & Play
This unmanaged Industrial Ethernet Switch is designed for the
demanding industrial environments at businesses in need of instant
connectivity with no setup or con gure required, truly plug and play.
Tra c Control Application
This device is certi ed by NEMA (National Manufacturers Association)
TS2 Environmental requirements for the Tra c Control Equipment that
withstand extreme temperatures, operating voltage and humidity
uctuation, vibration and shock commonly experienced in severe
outdoor environments.
Safety
This device has been tested under UL508 standard for Industrial Control
Equipment to endurance under test turn on and o 6,000 times while
loaded, with no single failure. It’s highly reliability and safety
measurement to ensure eld hardened, especially for the harsh
environment.
Features
- Provides exibility of 15 10/100BASE-TX ports and 1 100BASE-FX port
- Supports 10/100Mbps-Full/Half-duplex, Auto-Negotiation,
Auto-MDI/MDIX
- Redundant power inputs (12 - 48VDC) with Terminal Block and DC
Jack (12VDC)
- Alarms for power failure by relay output
- -40°C to 75°C (-40°F to 167°F) operating temperature range, tested for
functional operation @ -40°C to 85°C (-40°F to 185°F).
- Provides DIN-rail, panel or rack mounting
- Complies with NEMA TS2 Environmental requirements for Tra c
control equipment
- Complies with IEC61000-6-2 EMC Generic standard immunity for
Industrial environment
Diagrams
Unit: mm
75.5
Po
w
er
1
+
Po
w
er
2
110
+
135
w
Po
er
1
Po
w
er
3
Front
Side
Top
Buttom
Speci cations
Technology
Standards
Environment
IEEE802.3 10BASE-T, IEEE802.3u 100BASE-
TX/100BASE-FX, IEEE802.3x
Operating
Temperature
Storage
Temperature
Ambient
Relative
Humidity
MTBF
-40°C to 75°C (-40°F to 167°F)
Tested @ -40°C to 85°C (-40°F to 185°F)
-40°C to 85°C (-40°F to 185°F)
5% to 95% (non-condensing)
Forward and
Filtering Rate
Packet Buffer
Memory
Processing
Type
14,880pps for 10Mbps
148,810pps for 100Mbps
1.625M bits
Store-and-Forward
Half-duplex back-pressure and IEEE802.3x full-duplex
flow control
4096 MAC addresses
Less than 10μs
59.96 years
Regulatory Approvals
ISO
Safety
EMI
Address Table
Size
Latency
Manufactured in an ISO9001 facility
UL508
FCC Part 15, Class A, VCCI
EN61000-6-4
- EN55022
- EN61000-3-2
- EN61000-3-3
EN61000-6-2
- EN61000-4-2 (ESD Standards)
Contact: + / - 6KV; Criteria B
Air: + / - 8KV; Criteria B
- EN61000-4-3 (Radiated RFI Standards)
10V/m, 80 to 1000MHz; 80% AM Criteria A
3V/m, 1400 to 2000MHz; 80% AM Criteria A
1V/m, 2000 to 2700MHz; 80% AM Criteria A
- EN61000-4-4 (Burst Standards)
Signal Ports: + / - 4KV; Criteria B
D.C. Power Ports: + / - 4KV; Criteria B
- EN61000-4-5 (Surge Standards)
Signal Ports: + / - 1KV; Line-to-Line; Criteria B
D.C. Power Ports: + / - 0.5KV; Line-to-Earth; Criteria B
- EN61000-4-6 (Induced RFI Standards)
Signal Ports: 10Vrms @ 0.15 - 80MHz; 80% AM Criteria A
D.C. Power Ports: 10Vrms @ 0.15 - 80MHz; 80%
AM Criteria A
- EN61000-4-8 (Magnetic Field Standards)
30A/m @ 50, 60Hz; Criteria A
IEC60068-2-6 Fc (Vibration Resistance)
5g @ 10 - 150KHz, Amplitude 0.35mm
(Operation/Storage/Transport)
IEC60068-2-27 Ea (Shock)
25g @ 11ms (Half-Sine Shock Pulse; Operation)
50g @ 11ms (Half-Sine Shock Pulse; Storage/Transport)
IEC60068-2-32 Ed (Free Fall)
1M (3.281ft.)
Power
Input
Input Voltage:
12 to 48VDC (Terminal Block)
12VDC (DC Jack)
EMS
Power
Consumption
Overload
Current
Protection
7.4W Max. 0.6A @ 12VDC, 0.3A @ 24VDC, 0.15A @
48VDC
Present
Mechanical
Casing
Aluminum case
IP30
Dimensions
75.5mm (W) x 110mm (D) x 135mm (H)
(2.98" (W) x 4.33" (D) x 5.31" (H))
Weight
0.87Kg (1.92lbs.)
Installation
DIN-Rail (Top hat type 35mm), Panel, Rack Mounting
Interface
Ethernet Port
10/100BASE-TX: 16, 15 or 14 ports
100BASE-FX: 0, 1 or 2 ports
Environmental
Test
Compliance
LED Indicators
Per Unit: Power Status (Power 1, Power 2, Power 3)
Per Port: 10/100TX, 100FX: Link/Activity
Alarm Contact
One relay output with current 1A @ 24VDC
Order Information
IES-1621
-
15 FE + 1 MM SC Unmanaged Switch -40 to 75, DIN-rail
Package Contents
IES-1621
Quick Installation Guide
