IFS-0502 Version: 1
5-Port Industrial Fast Ethernet Switch, 1 x SC
Multi-Mode Fiber, 2km
The LevelOne IFS-0502 Industrial Fast Ethernet Switch provides four ports at 10/100M TX and one multi-
modal fiber port at 100M FX SC to enable high speed networks in mission-critical environments. With an
industrial standard DIN-rail mount, this switch can be installed in a cabinet, and clearly visible status LEDs
provide simple monitoring of port link activity. The multi-modal fiber port allows connections of up to 2km.
The switch is housed in a solid metal case rated at IP30, keeping it safe from dust, vibration, heat and
humidity, while an operational temperature range of -40°C to +75°C makes it suitable for deployment in
almost any environment.
Key Features
-
-
-
-
-
-
-
-
Multi-mode fiber with SC connector for transmission of up to 2km
Provides flexibility of 4 x 10/100BASE-TX ports
10/100Mbps-Full/Half-duplex, Auto-Negotiation, Auto-MDI/MDIX
-40°C to 75°C (-40°F to 167°F) operating temperture range
Provides DIN-rail, wall or desktop mounting
IP30 metal case
Redundant power inputs with Terminal Block
Supports 9 to 56VDC power inputs
Specifications
System Specifications
Standards & Protocols:
IEEE 802.3 10Base-T Ethernet
IEEE 802.3u 100Base-TX Fast Ethernet
IEEE 802.3u 100Base-FX Fast Ethernet
IEEE802.3x Flow Control and Back Pressure
Memory:
1M
Buffer Memory:
1M
Connectors and Cabling:
4 x 10/100M TX
1 x 100M SC MM 2km
1 x Terminal block
www.level1.com
Page 1 of 5
Indicator:
PW1 (Power 1) : Green / PW2 (Power 2) : Green /
SW( Relay) : Amber
LNK (RJ45) : Green
SFP : Green (Link / Active)
Transmission Method:
Store-and-Forward
Power:
Redundant Dual DC 9V-56V
Alarm Relay Output 1A @ 24VDC
Performance
Backplane (Gbps):
1G
MAC Address Table:
1K
Data Transfer Rate:
10/100Mbps
Packet Forwarding Rate:
100Mbps port - 148,000pps
10Mbps port - 14,880pps
Environment
Temperature (°C):
Operating: - 40°C ~ 75°C
Storage: - 40°C ~ 85°C
Humidity (Non-condensing):
Storage: 5% ~ 95%
Operating: 5% ~ 95%
Deployment:
Desk, din rail, wall mount
Physical Specifications
Dimensions (W x D x H mm):
36.2 x 105 x 142 mm
Weight (g):
460 g
Reliability
MTBF:
150,000 hrs at 25°C
Others
Approval and Compliance:
FCC, CE, VCCI, Safety EN60950-1
EN55022/24
EN55011
EN50121-3-2
EN50121-4 (pending)
EN50155 (pending)
EN60068-2-6
EN60068-2-27
EN60068-2-32
www.level1.com
Page 2 of 5

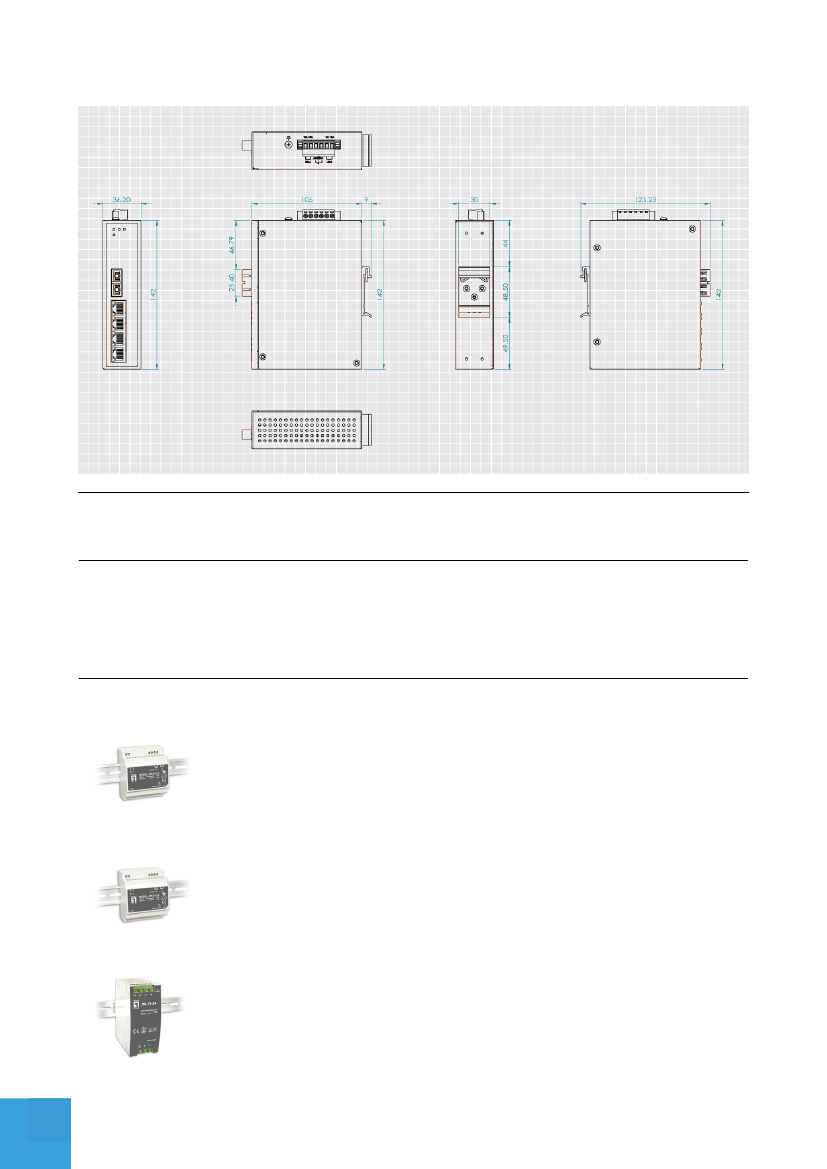

Diagram
Order Information
IFS-0502
Package Contents
IFS-0502
Power Terminal Block
Mounting Kit
Quick Installation Guide
Optional Accessory
POW-2410
Industrial Power Supply, 24VDC, 30W, DIN-Rail
POW-2420
Industrial Power Supply, 60W, 24VDC, DIN-Rail
POW-2430
Industrial Power Supply, 24VDC, 75W, DIN-Rail
www.level1.com
Page 3 of 5

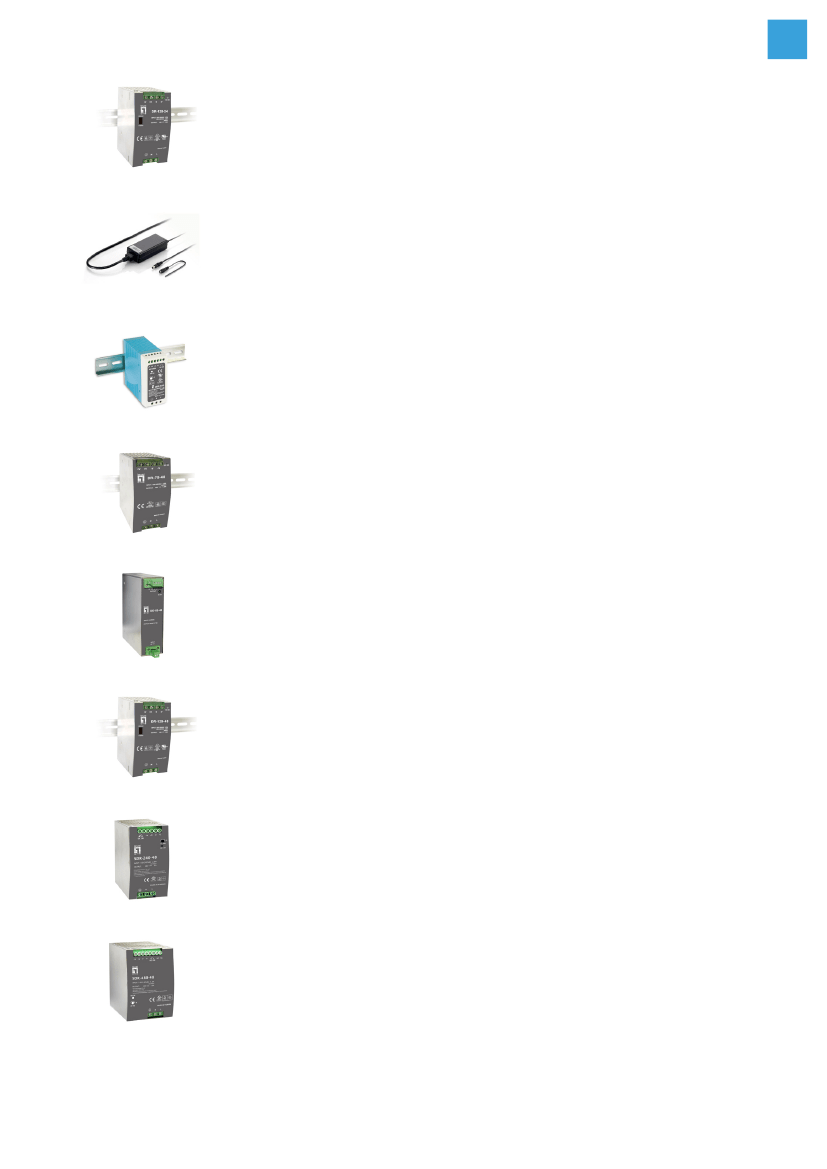

POW-2440
Industrial Power Supply, 120W, 24VDC, DIN-Rail
POW-4801
48V DC Power Adapter
POW-4810
Industrial Power Supply, 48VDC, 40W, DIN-Rail, PoE Ready
POW-4820
Industrial Power Supply, 48VDC, 75W, DIN-Rail, PoE Ready
POW-4830
Industrial Power Supply, 48VDC, 85W, DIN-Rail, PoE Ready
POW-4840
Industrial Power Supply, 120W, 48VDC, DIN-Rail, PoE Ready
POW-4850
Industrial Power Supply, 48VDC, 240W, DIN-Rail, PoE Ready
POW-4860
Industrial Power Supply, 48VDC, 480W, DIN-Rail, PoE Ready
www.level1.com
Page 4 of 5
POW-5510
Industrial Power Supply, 55VDC, 85W, DIN-Rail
No liability or responsibility for any errors or omissions in the content.
Specifications are subject to change without notice.
All mentioned brand names are registered trademarks and property of their owners.
Copyright © Digital Data Communications GmbH, Germany. All Rights Reserved.
