TMM41257AT-10 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > storage> storage> TMM41257AT-10

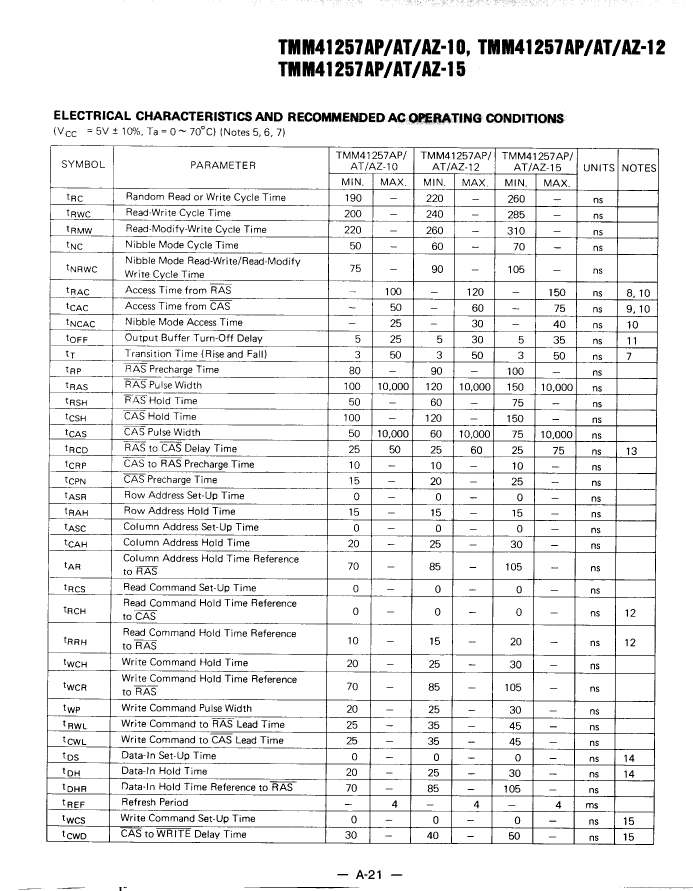

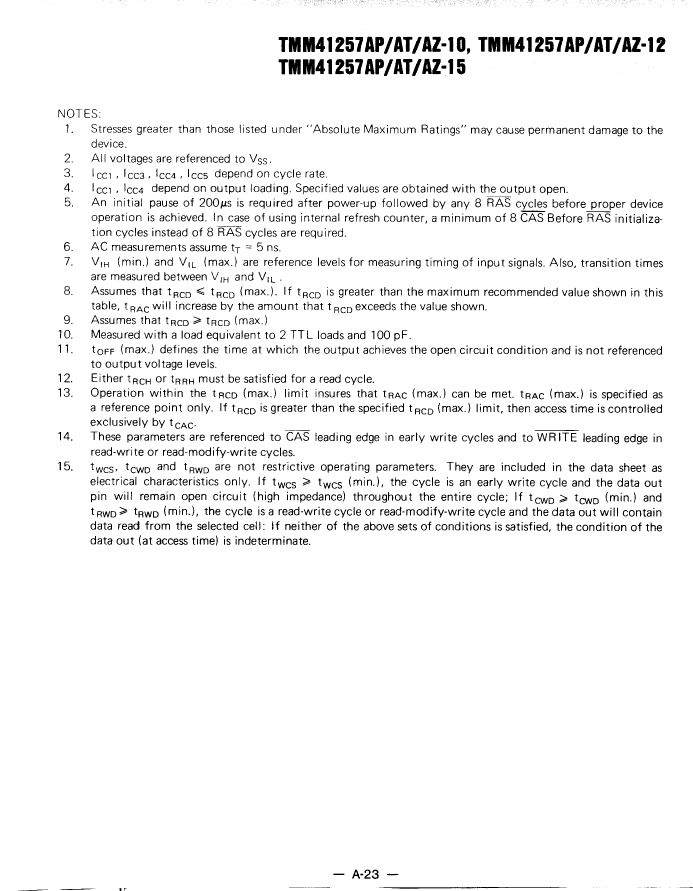

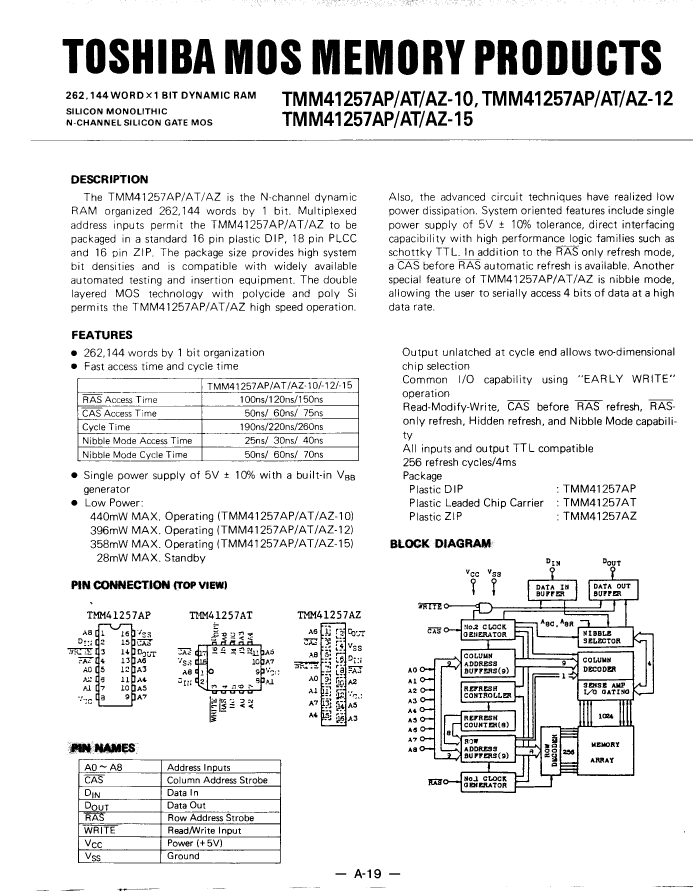

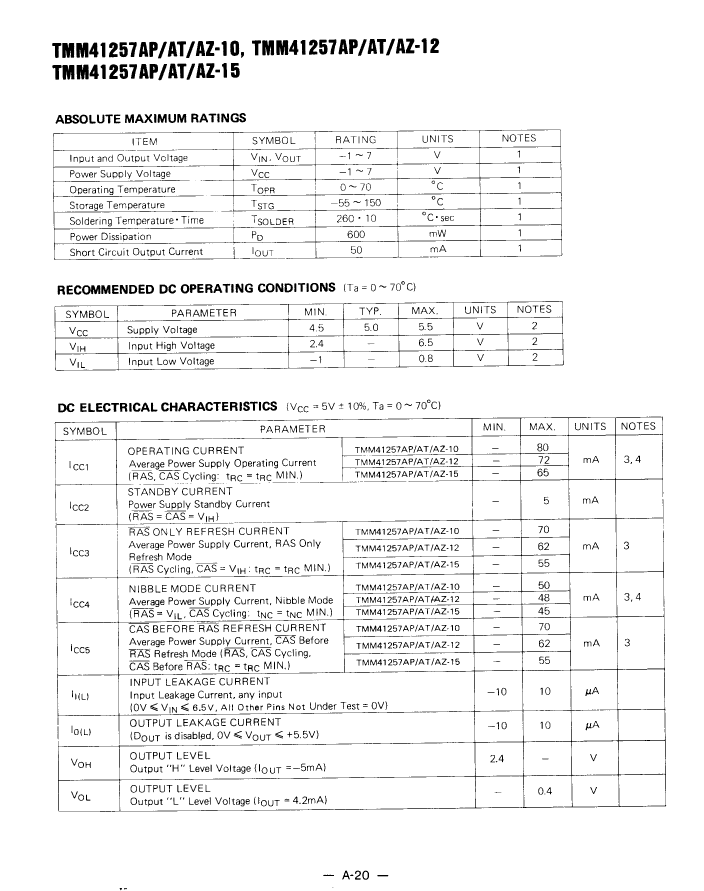

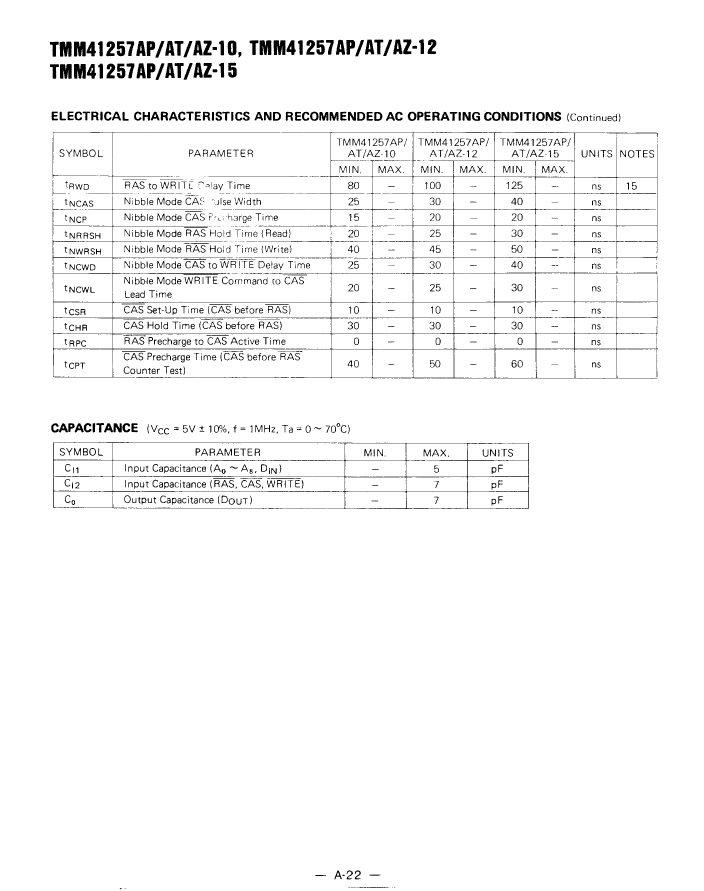

TMM41257AT-10: DescriptionIC,DRAM,NIBBLE MODE,256KX1,MOS,LDCC,18PIN,PLASTIC; Categorystorage storage; File Size945KB，16 Pages; ManufacturerToshiba Semiconductor; Websitehttp://toshiba-semicon-storage.com/

Download Datasheet Parametric Compare View All

TMM41257AT-10 Overview

IC,DRAM,NIBBLE MODE,256KX1,MOS,LDCC,18PIN,PLASTIC

TMM41257AT-10 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Objectid	101067752
package instruction	QCCJ, LDCC18,.33X.53
Reach Compliance Code	unknown
ECCN code	EAR99
Maximum access time	100 ns
I/O type	SEPARATE
JESD-30 code	R-PQCC-J18
JESD-609 code	e0
memory density	262144 bit
Memory IC Type	NIBBLE MODE DRAM
memory width	1
Number of terminals	18
word count	262144 words
character code	256000
Maximum operating temperature	70 °C
Minimum operating temperature
organize	256KX1
Output characteristics	3-STATE
Package body material	PLASTIC/EPOXY
encapsulated code	QCCJ
Encapsulate equivalent code	LDCC18,.33X.53
Package shape	RECTANGULAR
Package form	CHIP CARRIER
power supply	5 V
Certification status	Not Qualified
refresh cycle	256
Maximum slew rate	0.08 mA
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	MOS
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	J BEND
Terminal pitch	1.27 mm
Terminal location	QUAD

Preview

Download Datasheet

View All

TMM41257AT-10 Related Products

	TMM41257AT-10	TMM41257AT-12	TMM41257AZ-10	TMM41257AZ-12	TMM41257AZ-15
Description	IC,DRAM,NIBBLE MODE,256KX1,MOS,LDCC,18PIN,PLASTIC	IC,DRAM,NIBBLE MODE,256KX1,MOS,LDCC,18PIN,PLASTIC	IC,DRAM,NIBBLE MODE,256KX1,MOS,ZIP,16PIN,PLASTIC	IC,DRAM,NIBBLE MODE,256KX1,MOS,ZIP,16PIN,PLASTIC	IC,DRAM,NIBBLE MODE,256KX1,MOS,ZIP,16PIN,PLASTIC
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible
Objectid	101067752	101067759	101067790	101067795	101067804
package instruction	QCCJ, LDCC18,.33X.53	QCCJ, LDCC18,.33X.53	ZIP, ZIP16,.1	ZIP, ZIP16,.1	ZIP, ZIP16,.1
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99
Maximum access time	100 ns	120 ns	100 ns	120 ns	150 ns
I/O type	SEPARATE	SEPARATE	SEPARATE	SEPARATE	SEPARATE
JESD-30 code	R-PQCC-J18	R-PQCC-J18	R-PZIP-T16	R-PZIP-T16	R-PZIP-T16
JESD-609 code	e0	e0	e0	e0	e0
memory density	262144 bit	262144 bit	262144 bit	262144 bit	262144 bit
Memory IC Type	NIBBLE MODE DRAM	NIBBLE MODE DRAM	NIBBLE MODE DRAM	NIBBLE MODE DRAM	NIBBLE MODE DRAM
memory width	1	1	1	1	1
Number of terminals	18	18	16	16	16
word count	262144 words	262144 words	262144 words	262144 words	262144 words
character code	256000	256000	256000	256000	256000
Maximum operating temperature	70 °C	70 °C	70 °C	70 °C	70 °C
organize	256KX1	256KX1	256KX1	256KX1	256KX1
Output characteristics	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	QCCJ	QCCJ	ZIP	ZIP	ZIP
Encapsulate equivalent code	LDCC18,.33X.53	LDCC18,.33X.53	ZIP16,.1	ZIP16,.1	ZIP16,.1
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	CHIP CARRIER	CHIP CARRIER	IN-LINE	IN-LINE	IN-LINE
power supply	5 V	5 V	5 V	5 V	5 V
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
refresh cycle	256	256	256	256	256
Maximum slew rate	0.08 mA	0.072 mA	0.08 mA	0.072 mA	0.065 mA
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V	5 V
surface mount	YES	YES	NO	NO	NO
technology	MOS	MOS	MOS	MOS	MOS
Temperature level	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	J BEND	J BEND	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE
Terminal pitch	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm
Terminal location	QUAD	QUAD	ZIG-ZAG	ZIG-ZAG	ZIG-ZAG
