LQP18MN18NG02J datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> inductor> LQP18MN18NG02J

LQP18MN18NG02J: Description1 ELEMENT, 0.018 uH, GENERAL PURPOSE INDUCTOR, SMD; CategoryPassive components inductor; File Size64KB，2 Pages; ManufacturerMurata; Websitehttps://www.murata.com; Environmental Compliance

Download Datasheet Parametric Compare View All

LQP18MN18NG02J Overview

1 ELEMENT, 0.018 uH, GENERAL PURPOSE INDUCTOR, SMD

LQP18MN18NG02J Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
package instruction	0603
Reach Compliance Code	compli
ECCN code	EAR99
uppercase and lowercase codes	0603
structure	Chi
DC Resistance	1.5 Ω
Nominal inductance(L)	0.018 µH
Inductor Applications	RF INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR
JESD-609 code	e3
Number of functions	1
Number of terminals	2
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Package height	0.5 mm
Package length	1.6 mm
Package form	SMT
Package width	0.8 mm
method of packing	TR, Paper, 13 Inch
Minimum quality factor (at nominal inductance)	17
Maximum rated current	0.1 A
self resonant frequency	2300 MHz
Shape/Size Description	RECTANGULAR PACKAGE
shield	NO
special characteristics	Q MEASURED AT 500 MHZ
surface mount	YES
Terminal surface	Tin (Sn)
Terminal location	DUAL ENDED
Terminal shape	WRAPAROUND
Test frequency	500 MHz
Tolerance	2%
Base Number Matches	1

Preview

Download Datasheet

View All

LQP18MN18NG02#

# indicates a package specification code.

< List of part numbers with package codes >

LQP18MN18NG02D , LQP18MN18NG02J , LQP18MN18NG02B

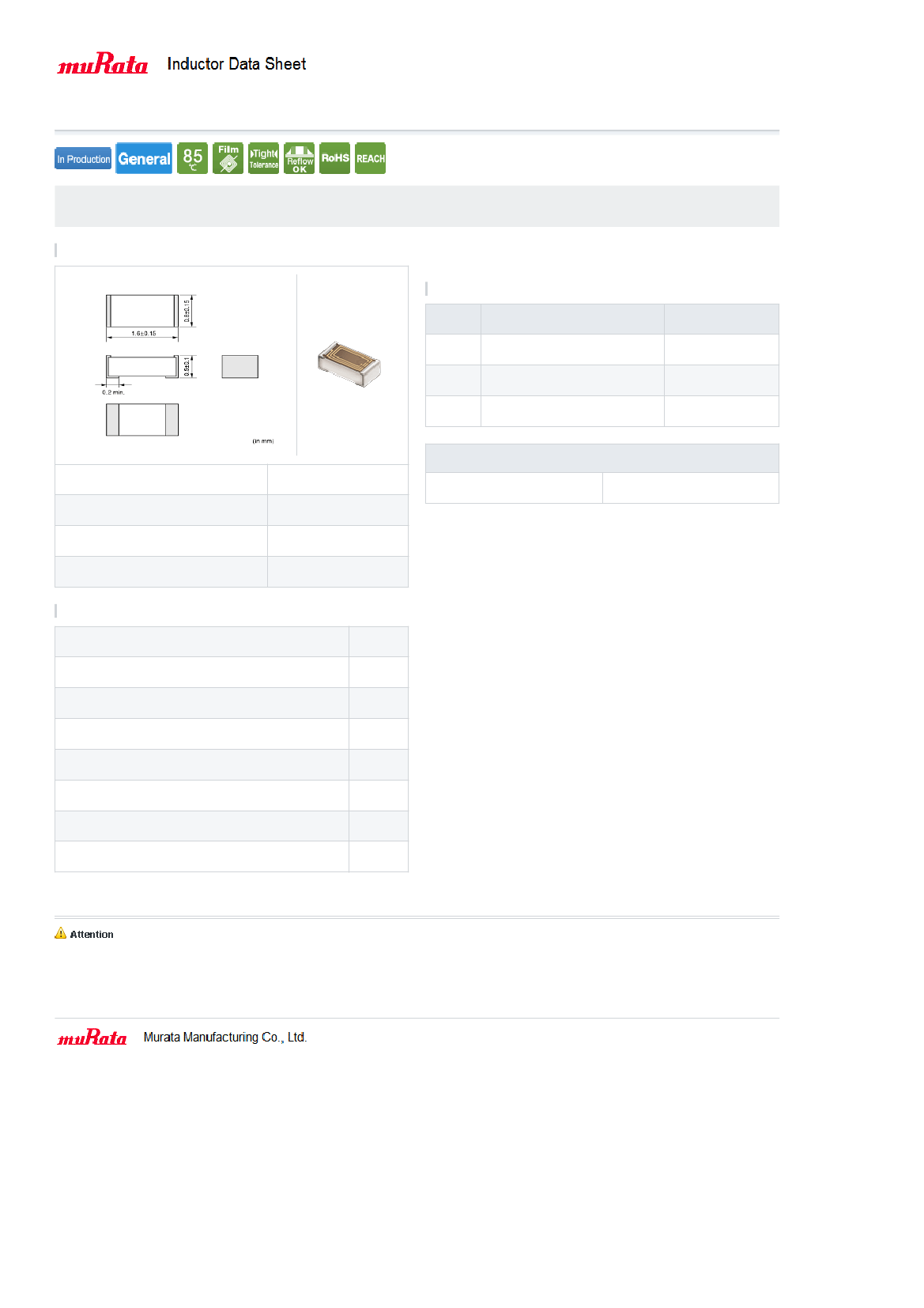

Shape

References

Packaging

code

Specifications

φ180mm Paper taping

φ330mm Paper taping

Packing in bulk

Minimum quantity

4000

10000

500

Mass (Typ.)

L size

W size

T size

Size code in inch (mm)

1.6 ±0.15mm

0.8 ±0.15mm

0.5 ±0.1mm

0603 (1608)

1 piece

0.002g

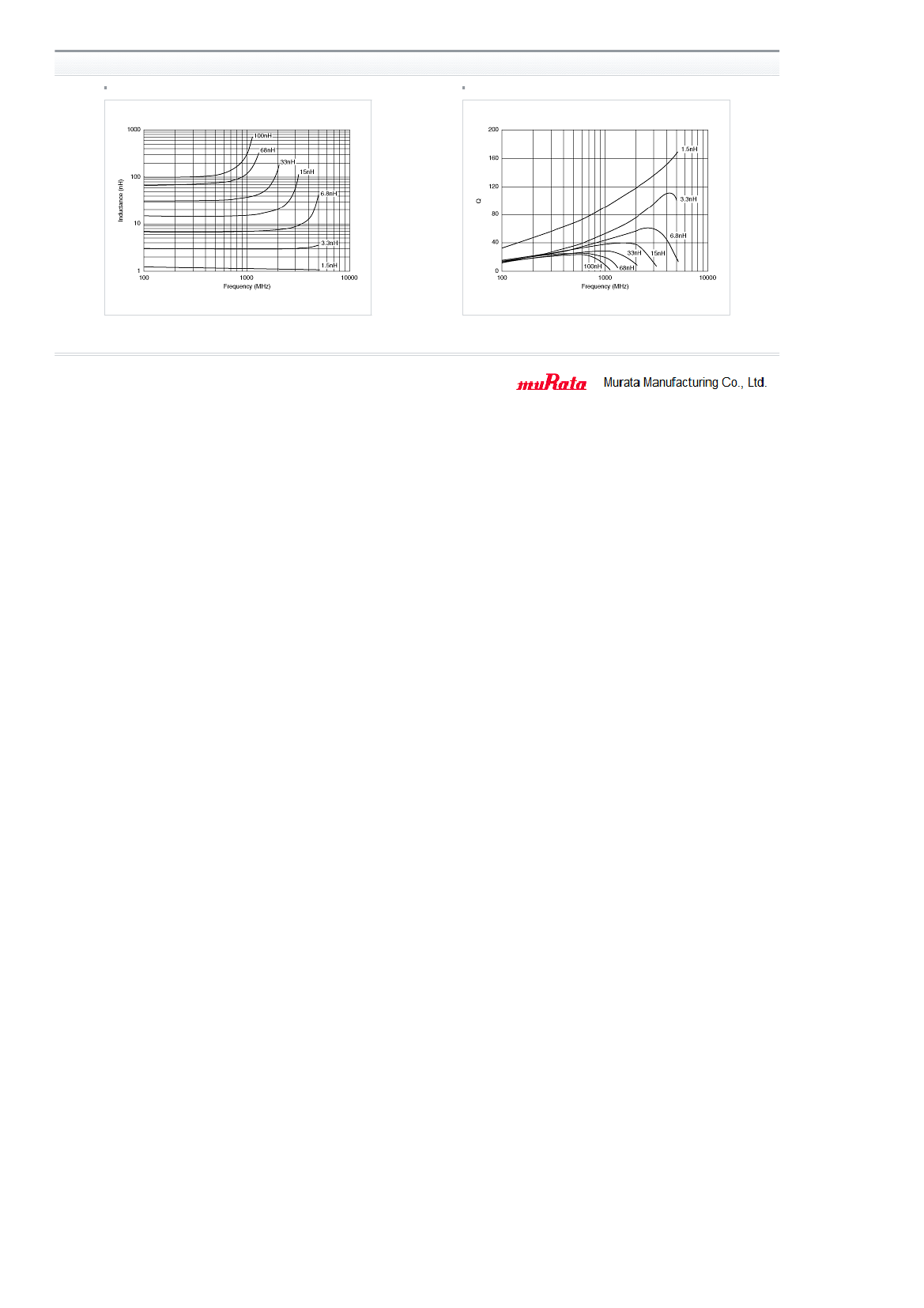

Specifications

Inductance

Inductance test frequency

Rated current (Itemp) (Based on Temperature rise)

Max. of DC resistance

Q (min.)

Q test frequency

Self resonance frequency (min.)

Operating temperature range (Self-temperature rise is not included)

18nH ±2%

500MHz

100mA

1.5Ω

500MHz

2300MHz

-40∼85℃

1 of 2

1.This datasheet is downloaded from the website of Murata Manufacturing Co., Ltd. Therefore, it s specifications are subject to change or our products in it may be discontinued

without advance notice. Please check with our sales representatives or product engineers before ordering.

2.This datasheet has only typical specifications because there is no space for detailed specifications.

Therefore, please review our product specifications or consult the approval sheet for product specifications before ordering.

URL : http://www.murata.com/

Last updated: 2016/04/18

LQP18MN18NG02J Related Products

	LQP18MN18NG02J	LQP18MN18NG02	LQP18MN18NG02B
Description	1 ELEMENT, 0.018 uH, GENERAL PURPOSE INDUCTOR, SMD	1 ELEMENT, 0.018 uH, GENERAL PURPOSE INDUCTOR, SMD	1 ELEMENT, 0.018 uH, GENERAL PURPOSE INDUCTOR, SMD
Is it lead-free?	Lead free	Lead free	Lead free
Is it Rohs certified?	conform to	conform to	conform to
Reach Compliance Code	compli	compli	compli
ECCN code	EAR99	EAR99	EAR99
DC Resistance	1.5 Ω	1.5 Ω	1.5 Ω
Nominal inductance(L)	0.018 µH	0.018 µH	0.018 µH
Inductor Applications	RF INDUCTOR	RF INDUCTOR	RF INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR
JESD-609 code	e3	e3	e3
Number of functions	1	1	1
Number of terminals	2	2	2
Maximum operating temperature	85 °C	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C
Minimum quality factor (at nominal inductance)	17	17	17
Maximum rated current	0.1 A	1.5 A	0.1 A
self resonant frequency	2300 MHz	2300 MHz	2300 MHz
Shape/Size Description	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE
shield	NO	NO	NO
surface mount	YES	YES	YES
Terminal surface	Tin (Sn)	Tin (Sn)	Tin (Sn)
Terminal location	DUAL ENDED	DUAL ENDED	DUAL ENDED
Terminal shape	WRAPAROUND	WRAPAROUND	WRAPAROUND
Test frequency	500 MHz	500 MHz	500 MHz
Tolerance	2%	2%	2%
Base Number Matches	1	1	1
package instruction	0603	-	0603
uppercase and lowercase codes	0603	-	0603
structure	Chi	-	Chi
Package height	0.5 mm	-	0.5 mm
Package length	1.6 mm	-	1.6 mm
Package form	SMT	-	SMT
Package width	0.8 mm	-	0.8 mm
method of packing	TR, Paper, 13 Inch	-	Bulk
special characteristics	Q MEASURED AT 500 MHZ	-	Q MEASURED AT 500 MHZ
