50 Ohm SMA High Power Noise Source With A Noise
Output ENR Of 30 dB From 8 GHz to 12 GHz
TECHNICAL DATA SHEET
PE8508
50 Ohm SMA High Power Noise Source With A Noise Output ENR Of 30 dB From 8 GHz to 12 GHz
Configuration
Design
DC Input Connector
DC Input Impedance
RF Output Connector
High
SMA Female
50 Ohms
SMA Male
Electrical Specifications
Frequency Range, GHz
Noise Output ENR, dB
Bias Voltage, Volts
Bias Current, mA
Rise / Fall Time, µs
Noise Flatness, dB
Maximum Noise Output vs VDC, db/%V
8 to 12
30
28
25
1
±1
0.1
Mechanical Specifications
Temperature
Operating Range,deg C
Size
Length, in [mm]
Width/Dia., in [mm]
Height, in [mm]
.
-55 to +85
2.5 [63.5]
0.5 [12.7]
0.5 [12.7]
DC Input Connector
Type
RF Output Connector
Type
Hex Size, in.
SMA Female
SMA Male
5/16
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications:
50 Ohm SMA High Power Noise Source With A Noise Output ENR Of 30 dB From 8 GHz to
12 GHz PE8508
PE8508 REV 01
1
50 Ohm SMA High Power Noise Source With A Noise
Output ENR Of 30 dB From 8 GHz to 12 GHz
TECHNICAL DATA SHEET
Compliance Certifications
(visit www.Pasternack.com for current document)
Plotted and Other Data
Notes:
Values at 25 °C, sea level
PE8508
50 Ohm SMA High Power Noise Source With A Noise Output ENR Of 30 dB From 8 GHz to 12 GHz from Pasternack Enterprises
has same day shipment for domestic and International orders. Our RF, microwave and fiber optic products maintain a 99%
availability and are part of the broadest selection in the industry.
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications:
50 Ohm SMA High Power Noise Source With A Noise Output ENR Of 30 dB From 8 GHz to 12
GHz PE8508
URL:
http://www.pasternack.com/50-ohm-sma-noise-source-output-30-db-8000-mhz-12000-mhz-pe8508-p.aspx
PE8508 REV 01
2
PE8508

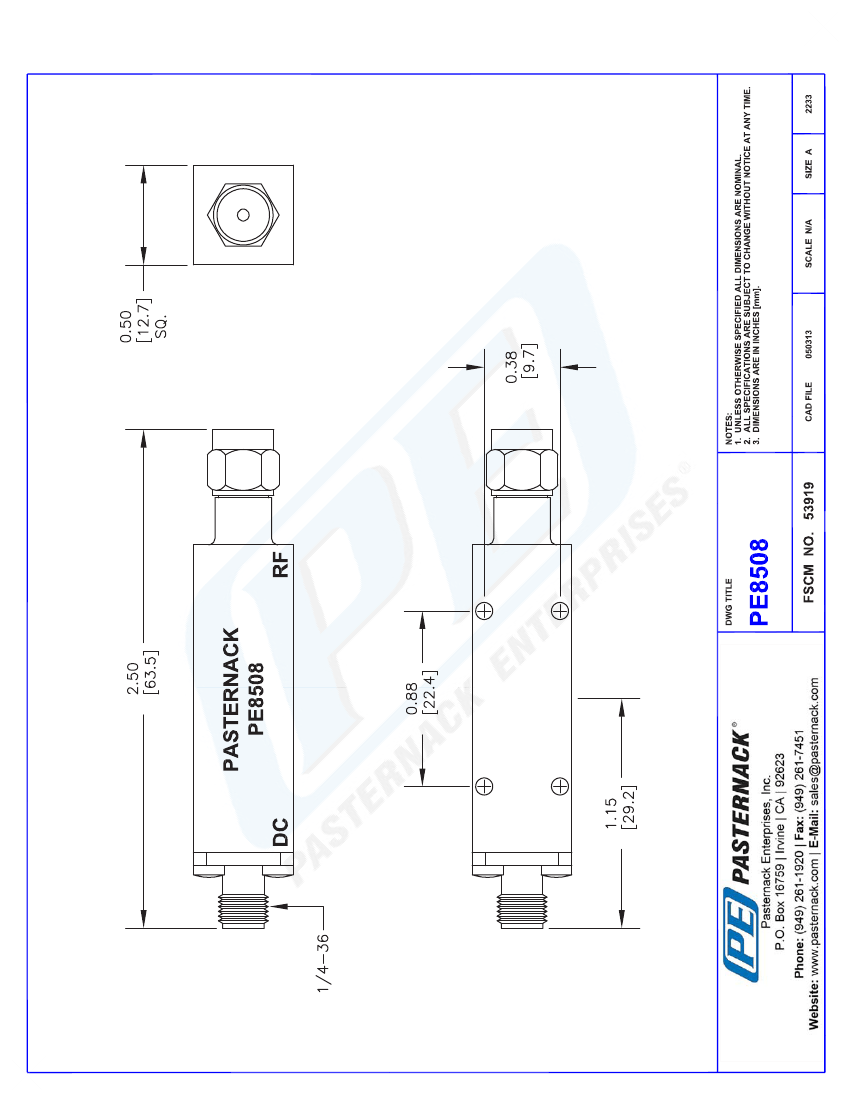

CAD Drawing
50 Ohm SMA High Power Noise Source With A Noise
Output ENR Of 30 dB From 8 GHz to 12 GHz
© 2013 Pasternack Enterprises All Rights Reserved
PE8508 REV 01
3
