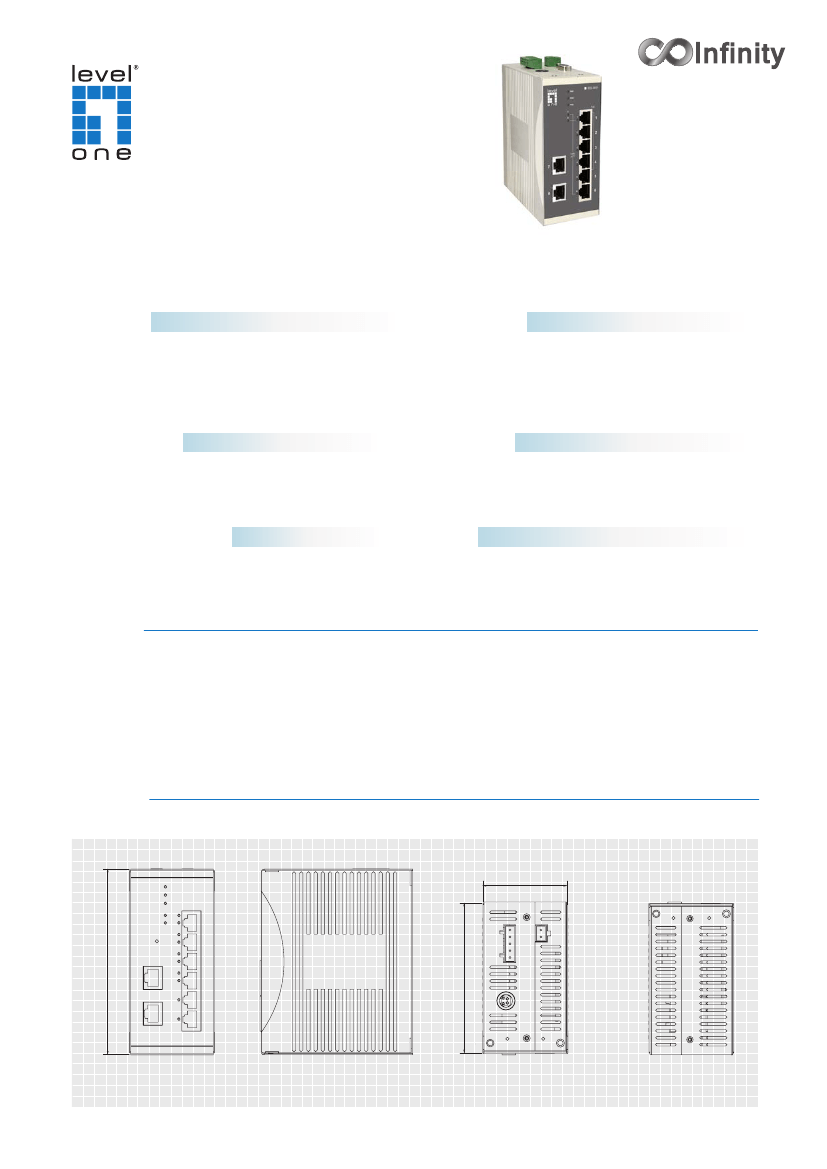

IES-0811
Overview
4 x 802.3af + 4 FE Unmanaged Switch
-10 to 60C, DIN-rail
LevelOne IES-0811 Industry Ethernet Switch provides 4 PoE ports of
10/100Base-TX plus 4 ports of 10/100Base-TX Ethernet to enable high
speed network at mission-critical environment. This device is designed
to be mounted on an industry standard DIN-rail, plus the clearly visible
status LEDs provide simple monitoring of port link activity.
Redundancy
This redundant power system is designed to meet the challenge of
power failure to ensure reliability and constant availability. Single power
design works ne in non-critical network applications, but it falls short
drastically for network applications in transportation, automate
production or banking.
Cost E ective
This device operates under -10 to 60 Celsius (-14 to 140 Fahrenheit)
temperature that o ers optimal suitability for industrial applications at
low cost while maintaining all components built to withstand harsh
environment applications without compromise reliability and stability.
Plug & Play
This unmanaged Industrial Ethernet Switch is designed for the
demanding industrial environments at businesses in need of instant
connectivity with no setup or con gure required, truly plug and play.
Power over Ethernet
This switch is Power Sourcing Equipment (PSE), and it is fully complied
with IEEE 802.3af PoE standard at maximum 15.4W power budget per
port. It helps to save infrastructure wiring costs dramatically by
eliminating electric wiring and less UPS needed.
Safety
Features
- Provides exibility of 8 Ethernet ports that con gure in combinations
of copper and ber optic interfaces
- -10°C to 60°C (14°F to 140°F) and is tested for functional operation @
-20°C to 70°C (-4°F to 158°F)
- Port1 - 4 support IEEE802.3af Power over Ethernet (PoE) Power
Sourcing Equipment (PSE)
- Provides DIN-rail, panel or rack mounting
This device has been tested under UL508 standard for Industrial Control
Equipment to endurance under test turn on and o 6,000 times while
loaded, with no single failure. Plus, it is the E-Mark complied to ensure
reliability at rolling stock applications. It’s highly reliability and safety
measurement to ensure eld hardened, especially for the harsh
environment.
- Alarms for power and port link failure by relay output
- Redundant power inputs with Terminal Block and DC Jack
- Complies with IEC61000-6-2 EMC Generic standard immunity for
Industrial environment
- Complies with NEMA TS2 Environmental requirements for Tra c
control equipment
- 10/100Mbps-Full/Half-duplex, Auto-Negotiation, Auto-MDI/MDIX
Diagrams
Unit: mm
62
135
Front
Side
110
Top
Buttom
Speci cations
Technology
Standards
Environment
IEEE802.3 10BASE-T, IEEE802.3u 100BASE-TX/FX,
IEEE802.3x, IEEE802.3af
Operating
Temperature
Storage
Temperature
Ambient
Relative
Humidity
MTBF
-10°C to 60°C (14°F to 140°F)
Tested @ -20°C to 70°C (-4°F to 158°F)
-40°C to 85°C (-40°F to 185°F)
Forward and
Filtering Rate
Packet Buffer
Memory
Processing
Type
14,880pps for 10Mbps
148,810pps for 100Mbps
1M bits
5% to 95% (non-condensing)
Store-and-Forward
Half-duplex back-pressure and IEEE802.3x full-duplex
30.93 years
Address Table
Size
1024 MAC addresses
Regulatory Approvals
ISO
Manufactured in an ISO9001 facility
Power
Power Input
Safety
UL508 (Pending)
Redundant power inputs:
Terminal Block: 47 - 55VDC
DC Jack: 47 - 55 VDC
EMI
Power
Consumption
Device: Max. 10W (without PoE)
PoE power budget (depends on power input):
61.6W Max.
EMS
FCC Part 15, Class A, VCCI
EN61000-6-4
- EN55022
- EN61000-3-2
- EN61000-3-3
EN61000-6-2
- EN61000-4-2 (ESD Standards)
Contact: + / - 4KV; Criteria B
Air: + / - 8KV; Criteria B
- EN61000-4-3 (Radiated RFI Standards)
10V/m, 80 to 1000MHz; 80% AM Criteria A
3V/m, 1400 to 2000MHz; 80% AM Criteria A
1V/m, 2000 to 2700MHz; 80% AM Criteria A
- EN61000-4-4 (Burst Standards)
Signal Ports: + / - 4KV; Criteria B
D.C. Power Ports: + / - 4KV; Criteria B
- EN61000-4-5 (Surge Standards)
Signal Ports: + / - 1KV; Line-to-Line; Criteria B
D.C. Power Ports: + / - 0.5KV; Line-to-Earth; Criteria B
- EN61000-4-6 (Induced RFI Standards)
Signal Ports: 10Vrms @ 0.15 - 80MHz; 80% AM Criteria A
D.C. Power Ports: 10Vrms @ 0.15 - 80MHz; 80% AM
Criteria A
- EN61000-4-8 (Magnetic Field Standards)
30A/m @ 50, 60Hz; Criteria A
IEC60068-2-6 Fc (Vibration Resistance)
5g @ 10 - 150Hz, Amplitude 0.35mm
(Operation/Storage/Transport)
IEC60068-2-27 Ea (Shock)
25g @ 11ms (Half-Sine Shock Pulse; Operation)
50g @ 11ms (Half-Sine Shock Pulse; Storage/Transport)
IEC60068-2-32 Ed (Free Fall)
1M (3.281ft.)
PoE Power
Output
Port 1 to 4
IEEE802.3af: up to 15.4W/port, 47 - 55VDC, 350mA Max
Supports overload current protection
Supports reverse polarity protection
Mechanical
Casing
Aluminum case
IP30
Dimensions
62mm (W) x 110mm (D) x 135mm (H)
(2.44" (W) x 4.33" (D) x 5.31" (H))
Weight
1Kg (2.2lbs.)
Installation
DIN-Rail (Top hat type 35mm), Panel, Rack Mounting
Interface
Ethernet Port
10/100BASE-TX: 8, 7 or 6 ports
100BASE-FX: 0, 1 or 2 ports
Environmental
Test
Compliance
LED Indicators
Per Unit: Power Status (Power 1, Power 2, Power 3)
Per Port: 10/100TX, 100FX: Link/Activity
Alarm Contact
One relay output with current 1A @ 24VDC
Order Information
IES-0811
-
4 x 802.3af + 4 FE Unmanaged Switch -10 to 60C, DIN-rail
Package Contents
IES-0811
Quick Installation Guide
