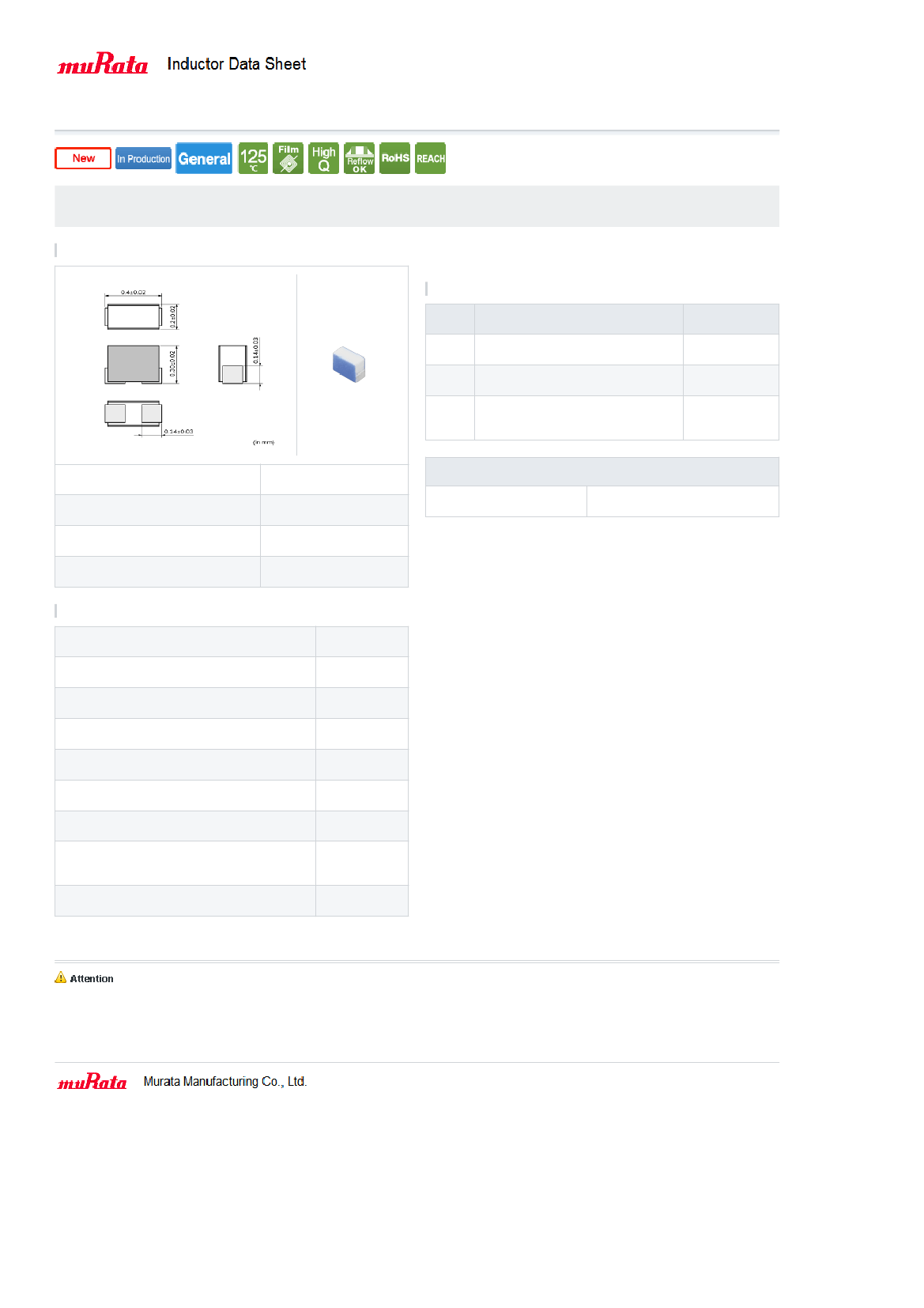

LQP02HQ16NJ02#
# indicates a package specification code.
< List of part numbers with package codes >
LQP02HQ16NJ02E , LQP02HQ16NJ02L , LQP02HQ16NJ02B
Shape
References
Packaging
code
Specifications
φ180mm Embossed taping
Packing in bulk
φ180mm Embossed taping (W8P2*)
*Width : 8mm, Pocket pitch : 2mm
Minimum quantity
30000
500
15000
L size
W size
T size
Size code in inch (mm)
0.4 ±0.02mm
1 piece
0.2 ±0.02mm
0.3 ±0.02mm
01005 (0402)
Mass (Typ.)
0.00085g
Specifications
Inductance
Inductance test frequency
Rated current (Itemp) (Based on Temperature rise)
Max. of DC resistance
Q (min.)
Q test frequency
Self resonance frequency (min.)
Operating temperature range (Self-temperature rise is not
included)
Class of magnetic shield
16nH ±5%
500MHz
170mA
1.53Ω
13
500MHz
4GHz
-55∼125℃
No magnetic shield
1 of 2
1.This datasheet is downloaded from the website of Murata Manufacturing Co., Ltd. Therefore, it s specifications are subject to change or our products in it may be discontinued
without advance notice. Please check with our sales representatives or product engineers before ordering.
2.This datasheet has only typical specifications because there is no space for detailed specifications.
Therefore, please review our product specifications or consult the approval sheet for product specifications before ordering.
URL : http://www.murata.com/
Last updated: 2016/04/18
Chart of characteristic data (The charts below may show another part number which shares its characteristics.)
Inductance-Frequency characteristics (Typ.)
Q-Frequency characteristics (Typ.)
2 of 2
This PDF data has only typical specifications because there is no space
for detailed specifications.
Therefore, please reviewour product specifications or consult the
approval sheet for product specifications before ordering.
Last updated: 2016/04/18
