5.0 SMLJ SERIES
SURFACE MOUNT TRANSIENT VOLTAGE SUPPRESSOR
VOLTAGE-12 TO 170 Volts
5000 Watt Peak Pulse Power
FEATURES
• For surface mounted applications in order to
optimize board space
• Halogen-Free
• Typical maximum temperature coefficent
VBR=0.1%xVBR@25 x T
• Low profile package
• Built-in strain relief
• Glass passivated junction
• Low inductance
• Excellent clamping capability
• Repetition rate (duty cycle):0.01%
• Fast response time: typically less than
1.0 ps from 0 volts to BV for unidirectional types
• Typical IR less than 2µA above 12V
• High temperature soldering:
260°C/40 seconds at terminals
• Plastic package has Underwriters Laboratory
Flammability Classification 94 V-O
• Matte Tin Lead-free plated

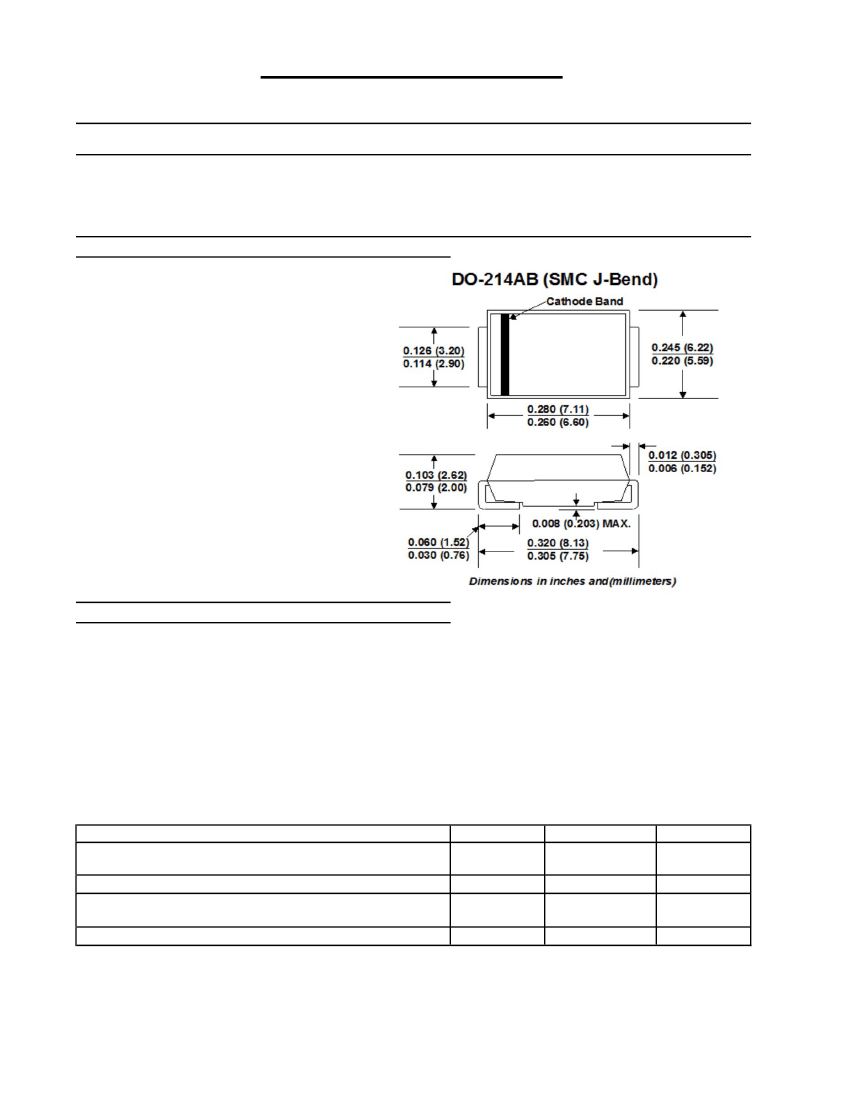

MECHANICAL DATA
Case: JEDEC DO214AB. Molded plastic over glass
passivated junction
Terminals: Solder plated, solderable per
MIL-STD-750, Method 2026
Polarity: Color band denoted positive end (cathode)
except Bidirectional
Standard Packaging: 16mm tape (EIA STD RS-481)
Weight: 0.007 ounces, 0.021 grams)
MAXIMUM RATINGS AND CHARACTERISTICS
Ratings at 25°C ambient temperature unless otherwise specified.
RATING
Peak Pulse Power Dissipation on 10/1000 µs
waveform
(NOTE 1, 2, Fig.1)
Peak Pulse Current of on 10/1000 µs waveform
(Note 1,Fig 3)
Peak Forward Surge Current, 8.3ms Single Half Sine-wave
Superimposed on Rated Load,
(JEDEC Method)(Note2, 3)
Operating Junction and Storage Temperature Range
SYMBOL
P
PPM
I
PPM
VALUE
Minimum 5000
SEE TABLE 1
300
-55 +150
UNITS
Watts
Amps
Amps
°C
I
FSM
T
J
, T
STG
NOTES:
1. Non-repetitive current pulse, per Fig.3 and derated above TA=25 °C per Fig.2.
2. Mounted on 8.0x8.0mm Copper Pads to each terminal.
3. 8.3ms single half sine-wave, or equivalent square wave, Duty cycle=4 pulses per minute maximum.
Certified RoHS Compliant
UL File # E223026
3/10/2016
MDE Semiconductor, Inc.
78-150 Calle Tampico, Unit 210, La Quinta, CA., USA 92253 Tel : 760-564-8656 • Fax : 760-564-2414
1-800-831-4881 Email: sales@mdesemiconductor.com Web: www.mdesemiconductor.com
5000 Watt Surface Mount TVS
UNI-POLAR
BI-POLAR
DEVICE
MARKING
CODE
UNI
BI
REVERSE
REVERSE BREAKDOWN BREAKDOWN
TEST
MAXIMUM
PEAK
VOLTAGE CURRENT CLAMPING
VOLTAGE
STANDOFF
PULSE LEAKAGE
V
BR
(V)
V
BR
(V)
VOLTAGE
(I
T
)
VOLTAGE CURRENT @ V
RWM
V
RWM
(V)
@I
PP
V
C
(V)
I
PP
(A)
MIN. @ I
T
MAX. @ I
T
I
R
(µA)
mA
5.0SMLJ12A
5.0SMLJ13A
5.0SMLJ14A
5.0SMLJ15A
5.0SMLJ16A
5.0SMLJ17A
5.0SMLJ18A
5.0SMLJ20A
5.0SMLJ22A
5.0SMLJ24A
5.0SMLJ26A
5.0SMLJ28A
5.0SMLJ30A
5.0SMLJ33A
5.0SMLJ36A
5.0SMLJ40A
5.0SMLJ43A
5.0SMLJ45A
5.0SMLJ48A
5.0SMLJ51A
5.0SMLJ54A
5.0SMLJ58A
5.0SMLJ60A
5.0SMLJ64A
5.0SMLJ70A
5.0SMLJ75A
5.0SMLJ78A
5.0SMLJ85A
5.0SMLJ90A
5.0SMLJ100A
5.0SMLJ110A
5.0SMLJ120A
5.0SMLJ130A
5.0SMLJ150A
5.0SMLJ160A
5.0SMLJ170A
5.0SMLJ12CA
5.0SMLJ13CA
5.0SMLJ14CA
5.0SMLJ15CA
5.0SMLJ16CA
5.0SMLJ17CA
5.0SMLJ18CA
5.0SMLJ20CA
5.0SMLJ22CA
5.0SMLJ24CA
5.0SMLJ26CA
5.0SMLJ28CA
5.0SMLJ30CA
5.0SMLJ33CA
5.0SMLJ36CA
5.0SMLJ40CA
5.0SMLJ43CA
5.0SMLJ45CA
5PEP
5PEQ
5PER
5PES
5PET
5PEU
5PFV
5PEW
5PEX
5PEZ
5PFE
5PFG
5PFK
5PFM
5PFP
5PFR
5PFT
5PFV
5PFX
5PFZ
5PGE
5PGG
5PGK
5PGM
5PGP
5PGR
5PGT
5PGV
5PGX
5PGZ
5PHE
5PHG
5PHK
5PHM
5PHP
5PHR
5BEP
5BEQ
5BER
5BES
5BET
5BEU
5BFV
5BEW
5BEX
5BEZ
5BFE
5BFG
5BFK
5BFM
5BFP
5BFR
5BFT
5BFV
12.00
13.00
14.00
15.00
16.00
17.00
18.00
20.00
22.00
24.00
26.00
28.00
30.00
33.00
36.00
40.00
43.00
45.00
48.00
51.00
54.00
58.00
60.00
64.00
70.00
75.00
78.00
85.00
90.00
100.00
110.00
120.00
130.00
150.00
160.00
170.00
13.30
14.40
15.60
16.70
17.80
18.90
20.00
22.20
24.40
26.70
28.90
31.10
33.30
36.70
40.00
44.40
47.80
50.00
53.30
56.70
60.00
64.40
66.70
71.10
77.80
83.30
86.70
94.40
100.00
111.00
122.00
133.00
144.00
167.00
178.00
189.00
14.70
15.90
17.20
18.50
19.70
20.90
22.10
24.50
26.90
29.50
31.90
34.40
36.80
40.60
44.20
49.10
52.80
55.30
58.90
62.70
66.30
71.20
73.70
78.60
86.00
92.10
95.80
104.00
111.00
123.00
135.00
147.00
159.00
185.00
197.00
209.00
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
19.9
21.5
23.2
24.4
26.0
27.6
29.2
32.4
35.5
38.9
42.1
45.4
48.4
53.3
58.1
64.5
69.4
72.7
77.4
82.4
87.1
93.6
96.8
103.0
113.0
121.0
126.0
137.0
146.0
162.0
177.0
193.0
209.0
243.0
259.0
275.0
252.0
233.0
216.0
205.0
193.0
181.0
172.0
155.0
141.0
129.0
119.0
110.0
103.0
93.9
86.1
77.6
72.1
68.8
64.7
60.7
57.5
53.5
51.7
48.6
44.3
41.4
39.7
36.5
34.3
30.9
28.3
26.0
24.0
20.6
19.3
18.2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
For bidirectional type having Vrwm of 20 volts and less, the IR limit is double.
For parts without A , the VBR is ± 10%
Certified RoHS Compliant
UL File # E223026
3/10/2016
MDE Semiconductor, Inc.
78-150 Calle Tampico, Unit 210, La Quinta, CA., USA 92253 Tel : 760-564-8656 • Fax : 760-564-2414
1-800-831-4881 Email: sales@mdesemiconductor.com Web: www.mdesemiconductor.com

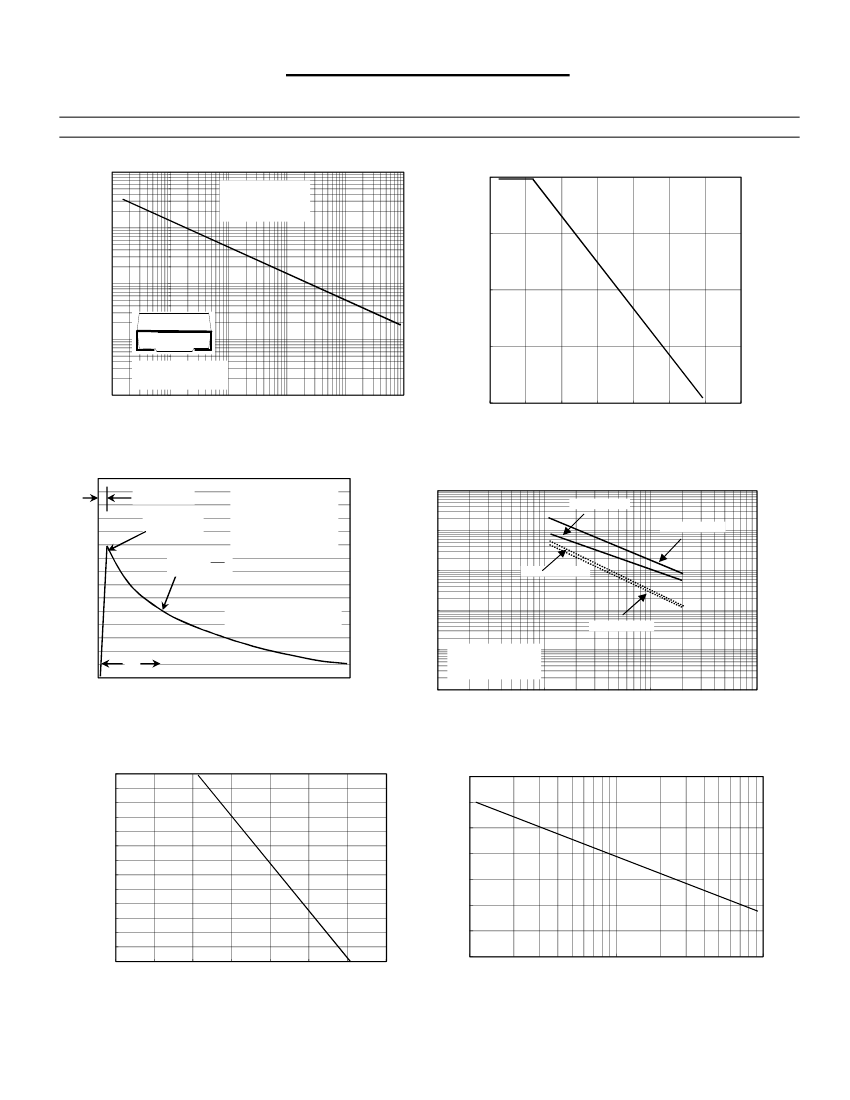

RATING AND CHARACTERISTIC CURVES 5.0SMLJ SERIES
Fig. 1 - Peak Pulse Power Rating Curve
1000
100
Non-repetitive pulse
waveform shown in
Fig.3 T
A
= 25°C
Fig.2 - Pulse Derating Curve
P
PPM
-Peak Pulse Power (kW)
100
Peak Pulse Power (P
PP
) or Current (I
PPM
)
Derating in Percentage,%
10ms
75
10
50
1
0.31x031"(8.0x8.0mm)
Copper Pad Areas
25
0.1
0.1μs
1.0μs
10μs
100μs
1.0ms
0
0
25
50
75
100
125
150
175
t
d
- Pulse Width (sec.)
T
A
- Ambient Temperature (°C)
Fig.3 - Pulse Waveform
150
Fig. 4 - Typical Junction Capacitance
100000
I
PPM
- Peak Pulse Current,% I
RSM
Peak Value
I
PPM
100
Half Value- I
PPM
2
C
J
,
Junction Capacitance
（pF）
t
r
= 10μsec.
T
J
= 25°C
Pulse Width(td)is defined
as the point where the
peak current decays to
50% of I
PPM
Bi-directional v-0v
10000
Uni-directional v-0v
1000
Uni-directional @VR
50
10/1000μsec.Waveform
as defined by R.E.A.
100
Bi-directional @VR
10
t
d
0
0
1.0
2.0
T
J
= 25°C
f = 1.0MH
Z
Vsig = 50mVp-p
3.0
3.0
4.0
4.0
1
t - Time(ms)
1
10
100
1000
V
BR
- Reverse Breakdown Voltage (V)
Fig. 5 - Steady State Power Derating Curve
6
5.5
5
4.5
4
3.5
3
2.5
2
1.5
1
0.5
0
0
25
50
75
100
125
150
175
Fig.6 - Maximum Non-repetitive Forward
Surge current uni-directional only
I
FSM
,Peak Forward Surge Currnet
350
300
250
200
150
100
50
0
1
10
Number of Cycles at 60 H
Z
100
6.5
Steady State Power
Dissipation (W)
T
L
- Lead Temperature (°C)
Certified RoHS Compliant
UL File # E223026
3/10/2016
MDE Semiconductor, Inc.
78-150 Calle Tampico, Unit 210, La Quinta, CA., USA 92253 Tel : 760-564-8656 • Fax : 760-564-2414
1-800-831-4881 Email: sales@mdesemiconductor.com Web: www.mdesemiconductor.com
5.0 SMLJ SERIES
SURFACE MOUNT TRANSIENT VOLTAGE SUPPRESSOR
VOLTAGE-12 TO 170 Volts
5000 Watt Peak Pulse Power

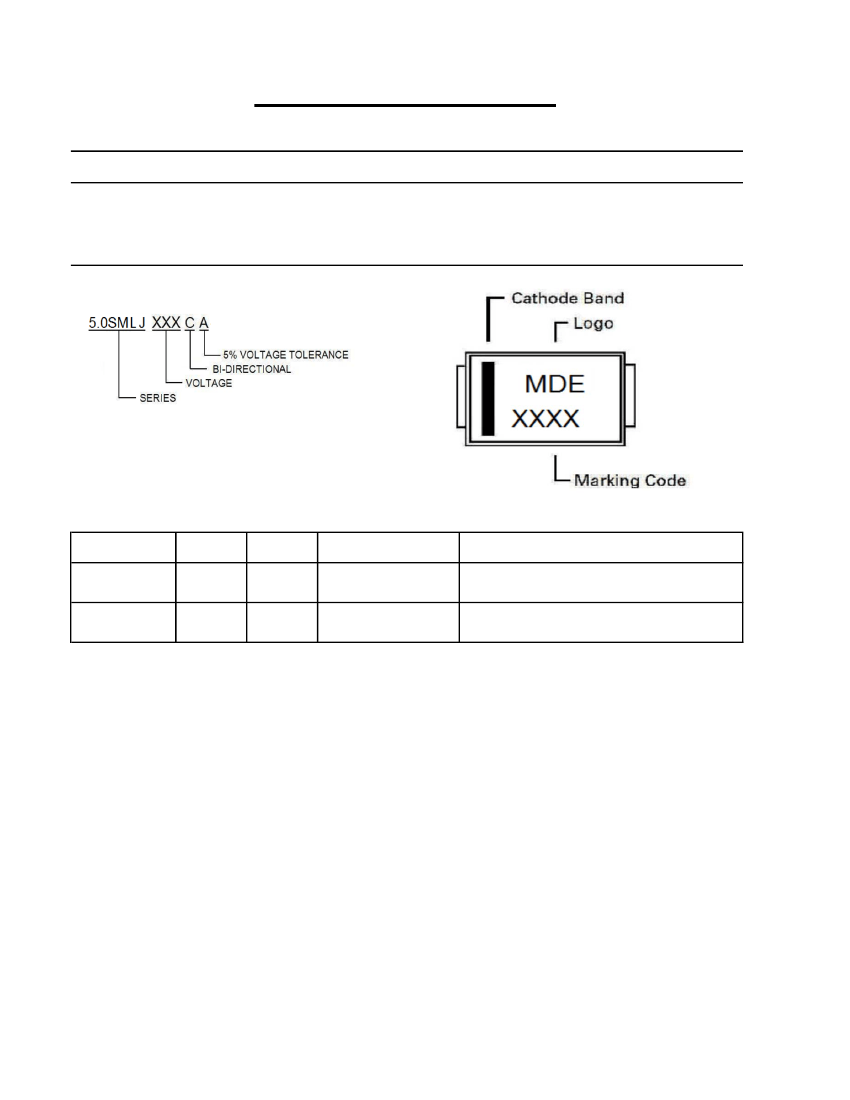

Part number
5.0SMLJxxxXX
5.0SMLJxxxXX
Component
Package
DO-214AB
DO-214AB
Quantity
3000
500
Packaging Option
Tape & Reel - 16mm/13"
tape
Tape & Reel - 16mm/ 7"
tape
Packaging Specification
EIA STD RS-481
EIA STD RS-481
