LQW18AN9N5C80 Overview

Inductor

Preview

Download Datasheet

View All

LQW18AN9N5C80#

# indicates a package specification code.

< List of part numbers with package codes >

LQW18AN9N5C80D , LQW18AN9N5C80J , LQW18AN9N5C80B

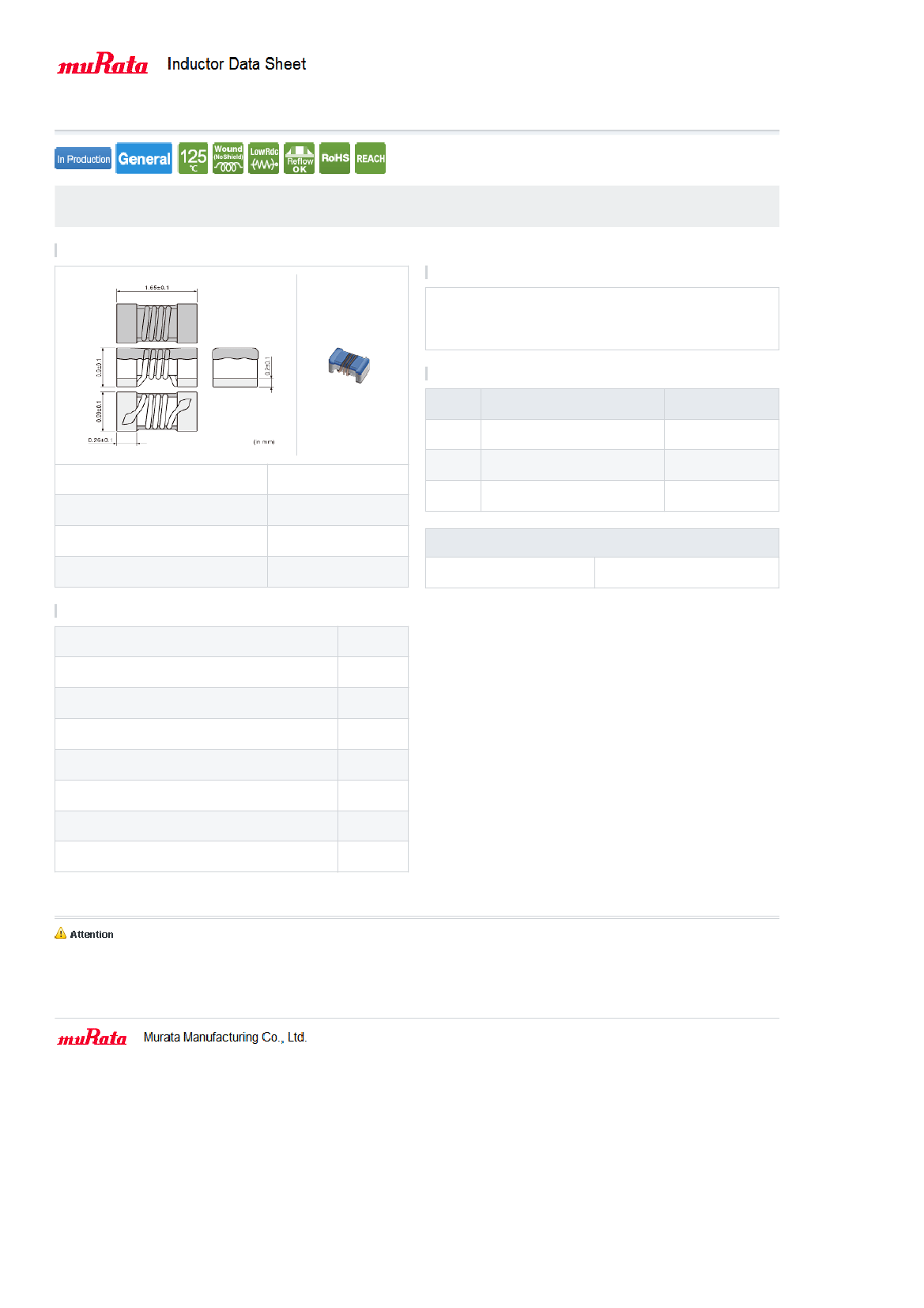

Shape

Notes

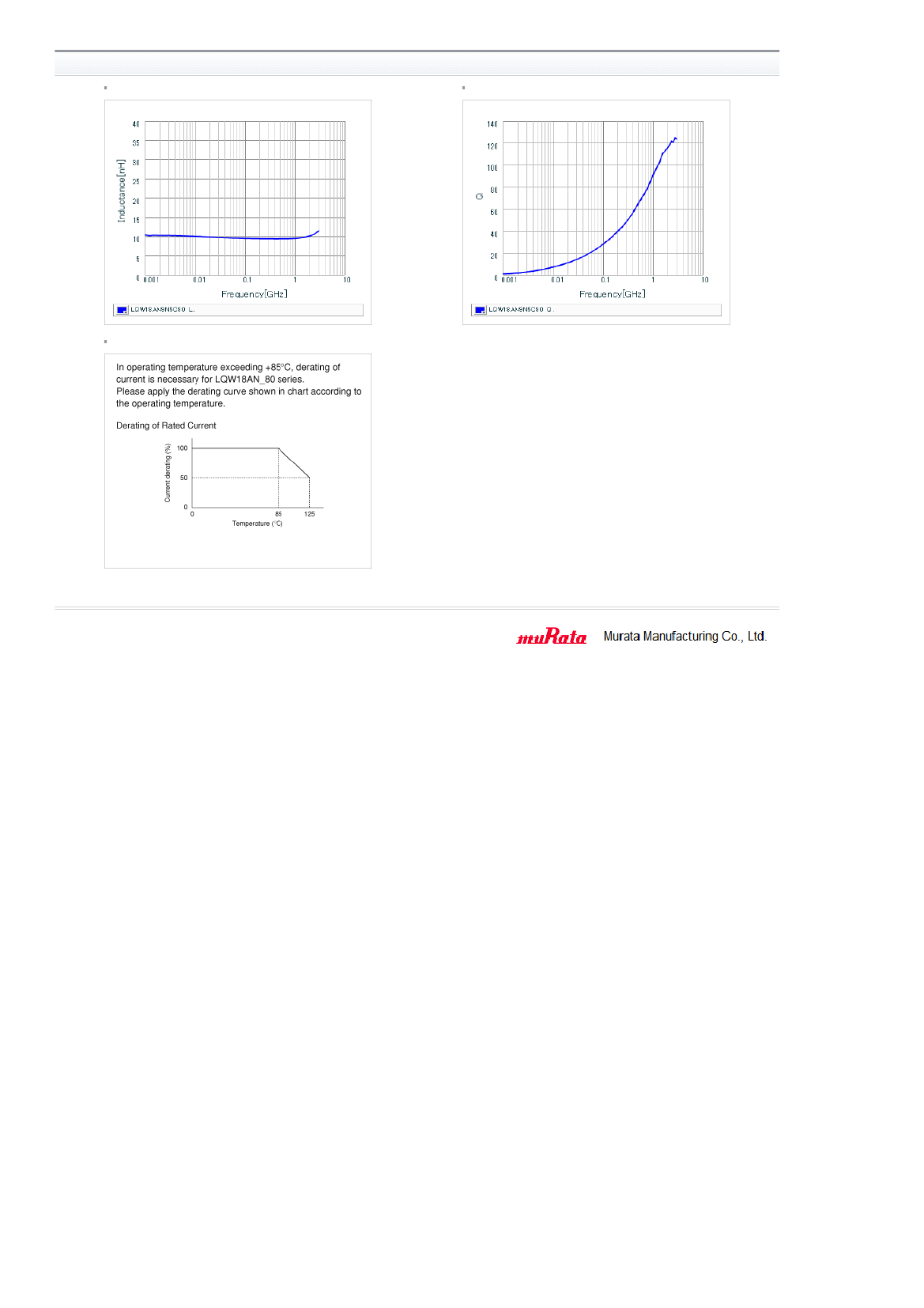

In operating temperature exceeding +85℃, derating of current is necessary for

LQW18AN_80 series.

Please apply the derating curve shown in chart according to the operating

temperature.

Please confirm the below "Notice (Rating)".

References

Packaging

code

Specifications

φ180mm Paper taping

φ330mm Paper taping

L size

W size

T size

Size code in inch (mm)

1.65 ±0.1mm

Packing in bulk

0.99 ±0.1mm

0.90 ±0.1mm

0603 (1608)

500

Minimum quantity

4000

10000

Mass (Typ.)

1 piece

0.0034g

Specifications

Inductance

Inductance test frequency

Rated current (Itemp) (Based on Temperature rise)

Max. of DC resistance

Q (min.)

Q test frequency

Self resonance frequency (min.)

Operating temperature range (Self-temperature rise is not included)

9.5nH ±0.2nH

100MHz

1600mA

0.052Ω

250MHz

4750MHz

-55∼125℃

1 of 2

1.This datasheet is downloaded from the website of Murata Manufacturing Co., Ltd. Therefore, it s specifications are subject to change or our products in it may be discontinued

without advance notice. Please check with our sales representatives or product engineers before ordering.

2.This datasheet has only typical specifications because there is no space for detailed specifications.

Therefore, please review our product specifications or consult the approval sheet for product specifications before ordering.

URL : http://www.murata.com/

Last updated: 2016/01/11
