SOM-5991P4-S6A1E datasheet, PDF

Datasheet> All Categories > SOM-5991P4-S6A1E

Preview

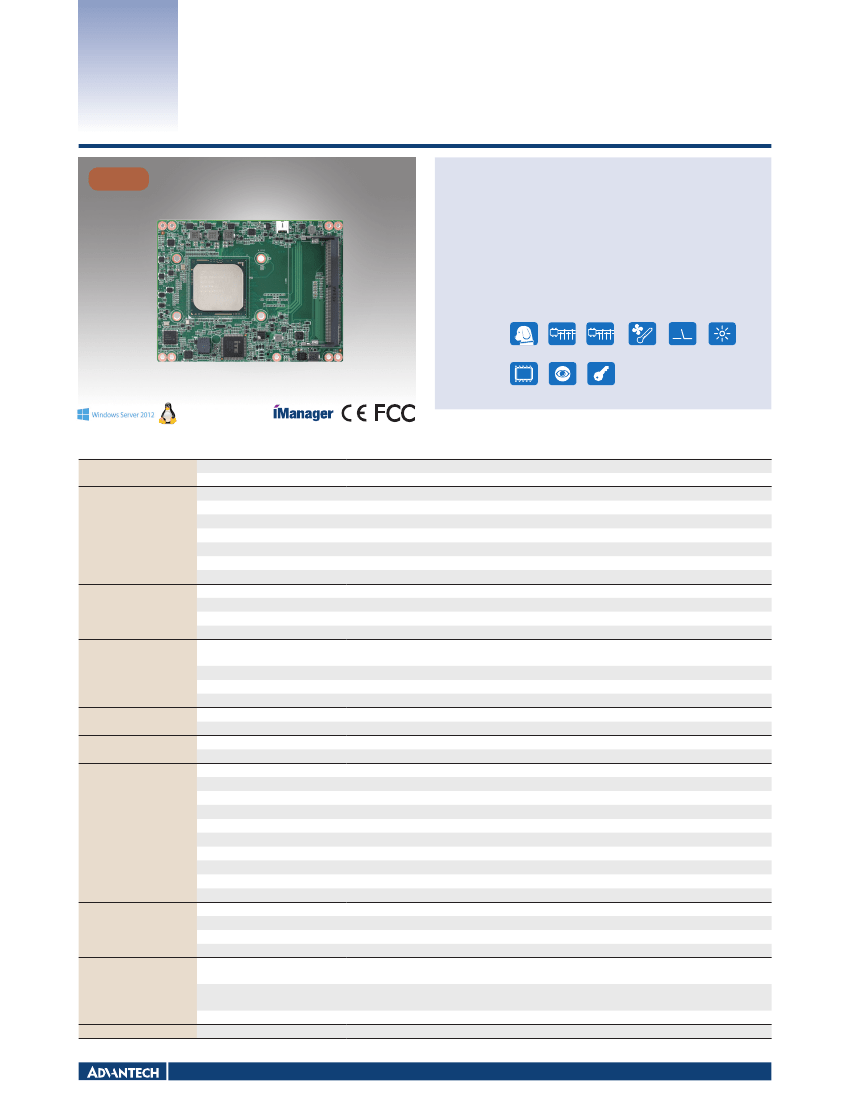

SOM-5991P4-S6A1E: DescriptionIntelÂ® XeonÂ® Processor D-1500 Product Family COM ExpressÂ® Basic Module Type 6; File Size790KB，2 Pages; ManufacturerAdvantech; Websitehttp://www.advantech.com/

Download Datasheet Compare View All

SOM-5991P4-S6A1E Overview

IntelÂ® XeonÂ® Processor D-1500 Product Family COM ExpressÂ® Basic Module Type 6

Preview

Download Datasheet

View All

SOM-5991

NEW

Intel

Xeon

Processor D-1500 Product

Family COM Express

Basic Module Type 6

Features

Intel

Xeon

Processor D-1500 Product Family

COM Express R2.1 Basic Module Type 6 pin out compatible

Up to 16 core with TDP 45W

Dual DDR4 2400, 1.2V Low Power Memory, up to 32GB

Integrated high speed 10GbE interface

PCIe x16, 8 PCIe x1, 2 x 10GBASE-KR interface

Supports iManager, and Embedded Software APIs

Software APIs:

Watchdog

SMBus

H/W Monitor

GPIO

Brightness

Control

Utilities:

BIOS flash Monitoring Embedded

Security ID

Specifications

Form Factor

Pin-out Type

CPU

Base Frequency

Max Single Core Turbo Frequency

Core

LLC

CPU TDP

BIOS

Technology

ECC Support

Max. Capacity

Socket

PCI Express x16

Expansion

10GBASE-KR

PCI Express x1

LPC

SMBus

C Bus

Controller

Speed

SATA

USB3.0

USB2.0

SPI Bus

GPIO

Watchdog

COM Port

Express Card

TPM

Smart Fan

Type

Supply Voltage

Power Consumption (Max.)

Power Consumption (Idle)

Temperature

Environment

Mechanical

Humidity

Vibration Resistance

Dimensions

COM Express Basic Module

COM Express R2.1 Type 6 compatible

Xeon D-1548

Pentium D1508

2.0 GHz

2.2 GHz

2.6 GHz

12MB

3MB

45W

25W

AMI UEFI 128Mbit

DDR4 up to 2400MHz

ECC and non-ECC

up to 32GB

Dual Channel 260P SODIMM

1 port support up to Gen3 8.0 GT/s

Bifurcatable to 2 x8, 1 x8 & 2 x4, or 4 x4

2 x 10GBASE-KR Interfaces, with side-band MDIO and I

C control signals

8 ports support up to Gen2 5.0 GT/s

Yes

Support 100Kb/s & 400Kb/s devices. Default master mode, optional slave mode

Intel

i210AT

10/100/1000 Mbps

4 ports support SATA III 6.0Gb/s

4 ports

Yes (BIOS only)

8-bit GPIO

65536 level, 0 ~ 65535 sec

2 ports (2-wire)

2 ports

TPM2.0

2 ports. 1 port on COM Module support 12V Fan ; 1 port on Carrier Board

ATX: Vin, VSB, AT: Vin

Vin: 8.5(9-5%)~20V(19+5%), VSB: 5V±5%, RTC Battery: 2.0-3.3V

D-1548 (32GB DDR4 2400) +12V @ 55.6W

D-1548 (32GB DDR4 2400) +12V @ 11W

Operating Standard: 0 ~ 60° C (32 ~ 140° F)

Storage: -40 ~ 85° C (-40 ~ 185° F)

Operating: 40° C @ 95% relative humidity, non-condensing

Storage: 60° C @ 95% relative humidity, non-condensing

3.5 Grms, IEC 60068-2-64, random, 5 ~ 500 Hz, 1 hr/axis.

125 x 95 mm (4.92" x 3.74")

Processor System

Memory

Serial Bus

Ethernet

I/O

Power

Computer On Modules

All product specifications are subject to change without notice.

Last updated: 18-Jul-2017
