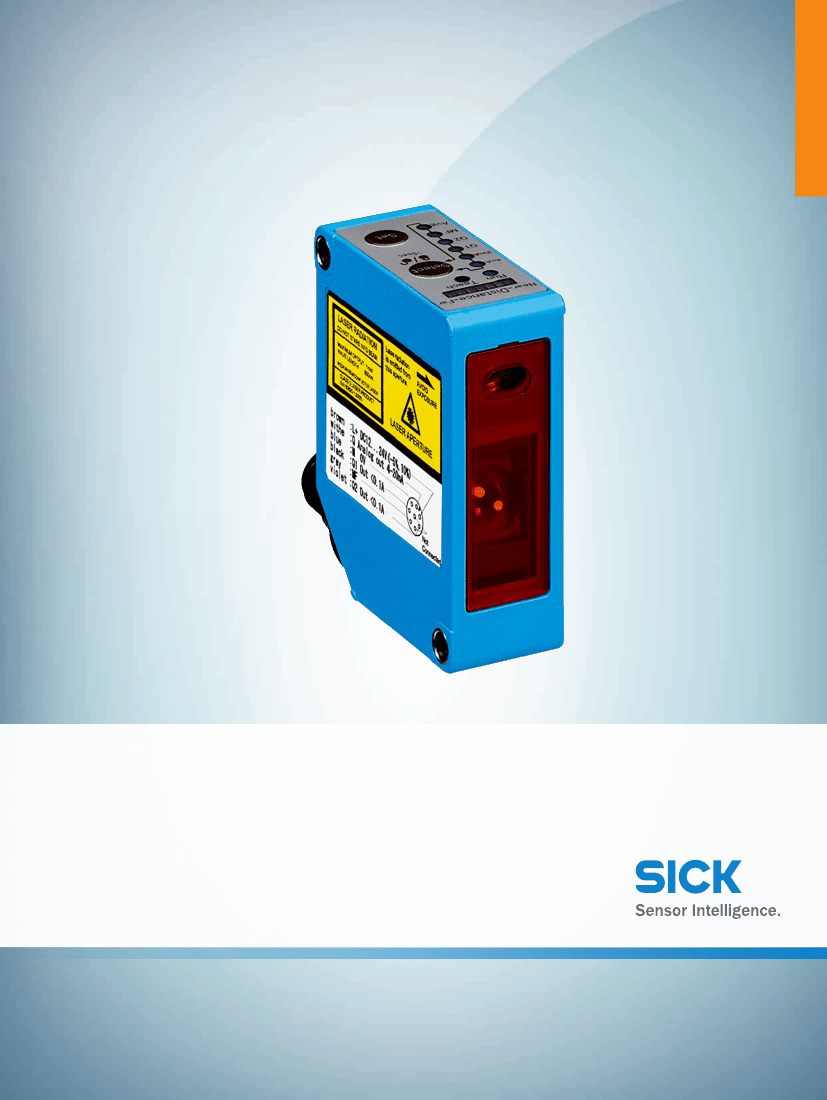

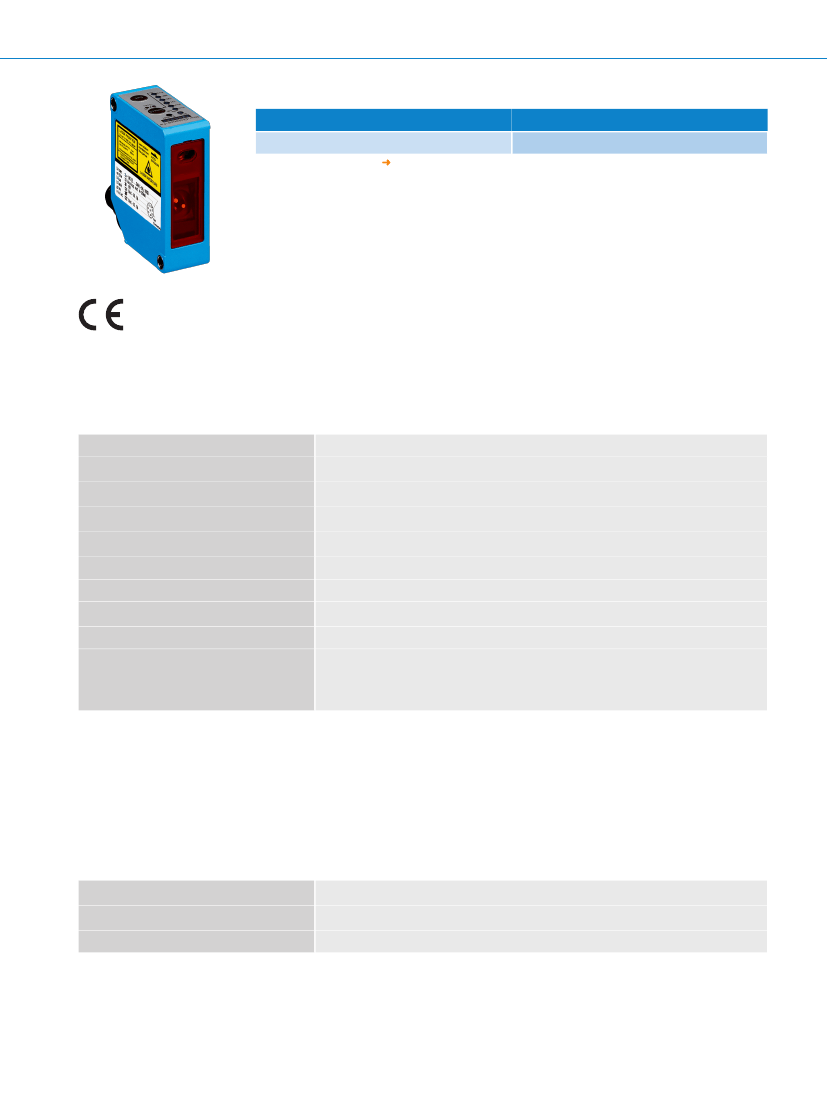

OD2-P30W04I2
OD Value
DISPLACEMENT MEASUREMENT SENSORS
Online data sheet
OD2-P30W04I2 | OD Value
DISPLACEMENT MEASUREMENT SENSORS
A
B
C
D
E
F
Detailed technical data
Performance
Ordering information
Type
OD2-P30W04I2
Other models and accessories
www.sick.com/OD_Value
Part no.
6036576
H
I
J
K
L
M
N
O
P
Q
R
S
T
Measuring range
Resolution
Repeatability
Linearity
Response time
Measuring frequency
Light source
Laser class
Typ. light spot size (distance)
Additional function
26 mm ... 34 mm, 6 % ... 90 % remission
2 µm
1)
6 µm
2)
1)
3)
4)
± 8 µm
1)
5)
4)
6)
1 ms / 10 ms / 35 ms
7)
2 kHz
Laser, red
2 (EN 60825-1)
8)
0.1 mm x 0.1 mm (30 mm)
Mean-value setting 1 … 64x, automatic sensitivity adjustment, Analog outputs can be taught
in, Invertable analog output, Teach-in of switching output, Invertable switching output, multi-
functional input: laser-off / external teach-in / trigger, switching mode: distance to object (DtO),
switching mode: window (Wnd)
1)
2)
3)
4)
5)
6)
7)
8)
At averaging function medium.
6 % ... 90 % remission.
Constant ambient conditions.
For best performance consider warm up time ≤ 5 minutes.
Measurement on 90 % remission (ceramic, white)
When calibrated in the application regularly.
Automatic sensitivity adjustment ≤ 4 ms, 6 ms for the models with measuring range of 100 mm ... 400 mm.
Wavelength: 655 nm, max. output: 1 mW.
Interfaces
Switching output
Multifunctional input (MF)
Data interface
1)
2)
2 x PNP (100 mA)
1)
1 x MF
2)
1 x 4 mA ... 20 mA (< 300 Ω)
PNP: HIGH = V
S
- (< 2 V) / LOW = < 2 V; NPN: HIGH = < 2 V / LOW = V
S
.
MF can be used as laser-off, trigger, external teach-in, or deactivated; response time ≤ 3 ms.
2
DISTANCE SENSORS | SICK
Online data sheet | 2016-03-17 13:18:11
Subject to change without notice
DISPLACEMENT MEASUREMENT SENSORS
Mechanics/electronics
Supply voltage V
s
Power consumption
Warm-up time
Housing material
Connection type
Indication
Weight
1)
2)
OD2-P30W04I2 | OD Value
DC 12 V ... 24 V
1)
≤ 2.88 W
2)
≤ 30 min
PBT housing with PMMA lens
Cable, 2 m
Distance bar graph, up to 8 status LEDs
70 g
DC 12 V (-5 %) ... 24 V (+10 %); DC 18 V (-5 %) ... DC 24 V (+10 %) when using analog voltage output.
Without load, with current output.
Ambient data
Enclosure rating
Protection class
Ambient temperature
Relative air humidity (non-condensing)
Temperature drift
Typ. Ambient light immunity
Vibration resistance
Shock resistance
IP 67
III
Operation: –10 °C ... +40 °C
Storage: –20 °C ... +60 °C
35 % ... 95 %
± 0.08 % FS/K (FS = Full Scale = Measuring range of sensor)
Artificial light: ≤ 3,000 lx
Sunlight: ≤ 10,000 lx
10 Hz ... 55 Hz (amplitude 1.5 mm, x-, y-, z-axis 2 hours each)
50 G (x, y, z axis 3 times each)
Dimensional drawing
(Dimensions in mm (inch))
OD2-x30W04xx
50
(1.97)
42.4
(1.67)
20.4
3.8
(0.15)
(0.80)
4.3
(0.17)
2
51.4
(2.02)
60
(2.36)
3
4
(1.19)
(0.68)
1
2
Ø 5.5
(0.22)
Ø 4.5
(0.18)
16.1
(0.63)
① 2 m
cable or M12 connector; 90° rotatable
② Mounting
hole, Ø 4.5 mm
③ Optical
axis sender
④ Optical
axis receiver
2016-03-17 13:18:11 | Online data sheet
Subject to change without notice
30.2
1
17.3
DISTANCE SENSORS | SICK
3
OD2-P30W04I2 | OD Value
DISPLACEMENT MEASUREMENT SENSORS
A
B
C
D
E
F
H
I
J
K
L
M
N
O
P
Q
R
S
T
Connection type
OD2-xxxxxxA2 OD2-xxxxxxC2 OD2-xxxxxxI2 OD2-xxxxxxU2 cable
Connection diagram
brn
wht
blu
blk
gra
pnk
vio
ora
1
2
3
4
5
6
7
8
L+ (12 ... 24 V)
Q
A
(4 ... 20 mA)
M
Q
1
MF
nc
Q
2
nc
1
2
2
① Multifunctional
input (MF)
② Not
assigned
Adjustment possible
OD2-xxxxxxIx
Near-Distance-Far
Run Teach
5
6
7
4 mA
Select
20mA
Q
1
Q
2
MF
Avg
>5 sec
Set
7
8
⑤ Distance
indicator
⑥ Mode
indicator (Run/Teach)
⑦ Operating
elements
⑧ Status
indicator in- and outputs (Run-mode)/menu indicator (Teach-mode)
4
DISTANCE SENSORS | SICK
Online data sheet | 2016-03-17 13:18:11
Subject to change without notice
DISPLACEMENT MEASUREMENT SENSORS
Light spot size
OD2-x30W04xx
100 x 100 μm
150 x 150 μm 150 x 150 μm
Sensor
OD2-P30W04I2 | OD Value
25
(0.98)
30
(1.18)
34
(1.34)
Distance
All dimensions in mm (inch)
Linearity
OD2-x30xxxxx
Linearity [%FS]
0.40
0.35
0.30
0.25
0.20
0.15
0.10
0.05
0.00
–0.05
–0.10
–0.15
–0.20
–0.25
–0.30
–0.35
–0.40
26
27
3
2
1
28
29
30
31
32
33
34
(1.02) (1.06) (1.10) (1.14) (1.18) (1.22) (1.26) (1.30) (1.34)
Distance in mm (inch)
① White
ceramic
② Black
paper
③ Stainless
steel
Recommended accessories
Other models and accessories
www.sick.com/OD_Value
Brief description
Type
Part no.
Plug connectors and cables
2016-03-17 13:18:11 | Online data sheet
Subject to change without notice
DISTANCE SENSORS | SICK
5
