CPCI-3615D525M2G

Description
Up to 4GB DDR3-800 soldered memory
File Size541KB,2 Pages
ManufacturerETC2
Download Datasheet Compare View All

CPCI-3615D525M2G Overview

Up to 4GB DDR3-800 soldered memory

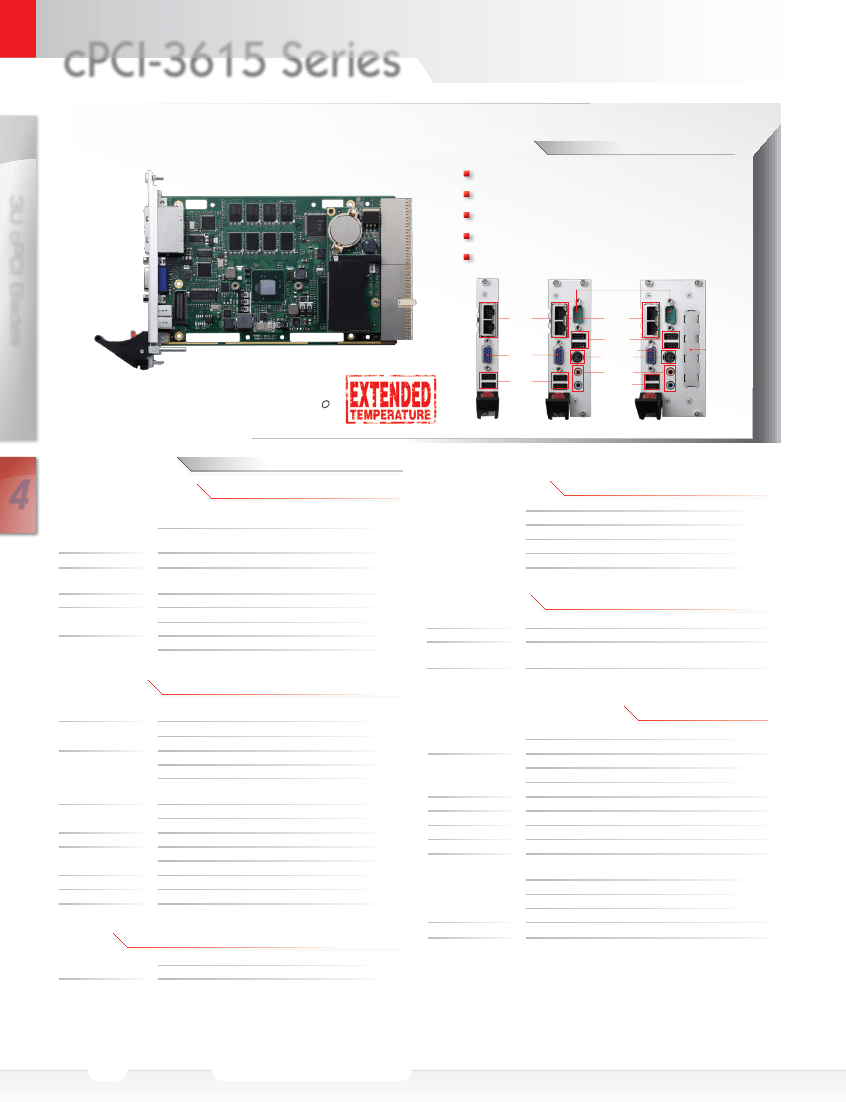

cPCI-3615 Series
3U cPCI Blades
3U CompactPCI
®
Dual-Core Intel
®
Atom™
Entry Level Processor Blade
Features
Supports dual-core Intel
®
Atom
TM
D525
Up to 4GB DDR3-800 soldered memory
Fanless operation with Atom™ N455
Optional PMC/XMC site
Up to QXGA 2048x1536 RGB display
COM
LAN
USB
VGA
KB/MS
Audio
USB
PMC/XMC
LAN
VGA
USB
CompactPCI
R
cPCI-3615
cPCI-3615D
cPCI-3615P
4

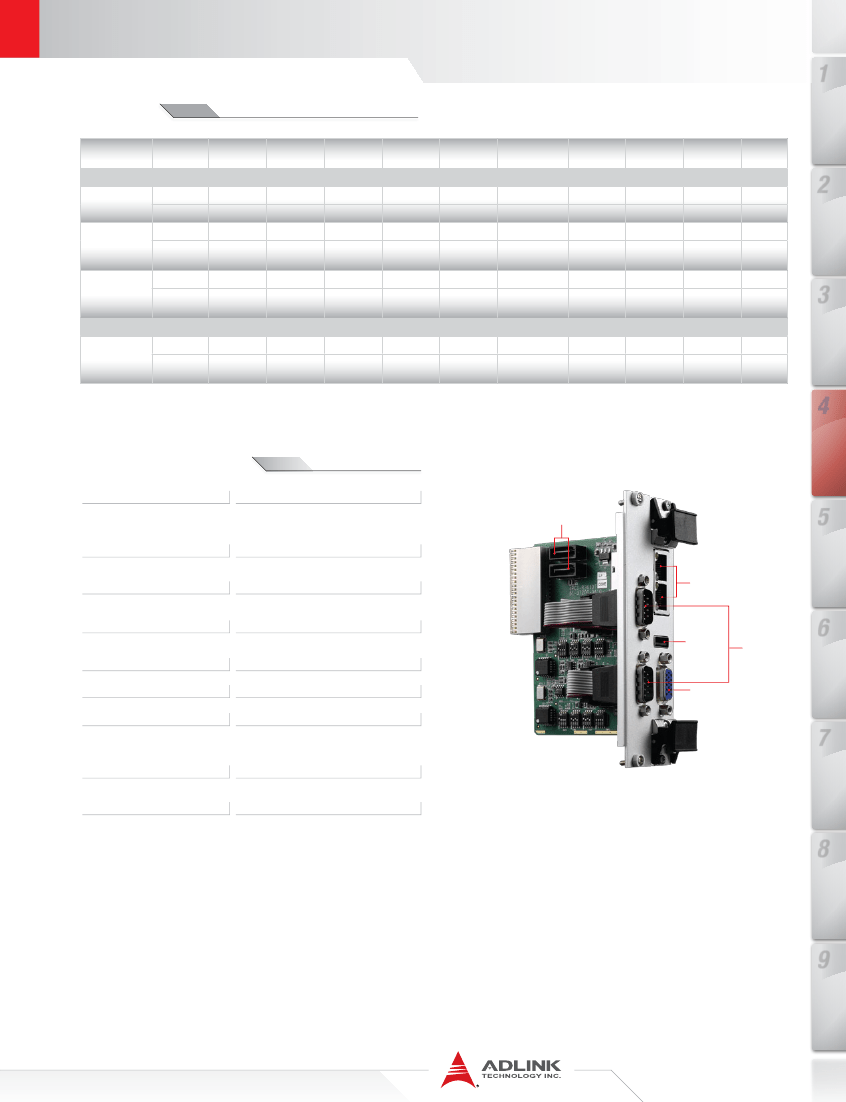

Specifications
Processor & System
CPU
μFC-BGA Intel
®
Atom
TM
Processor N455 1.66GHz,
512KB L2 cache, TDP 6.5W
μFC-BGA dual-core Intel
®
Atom
TM
Processor D525 1.8GHz,
1MB L2 cache, TDP 13W
Intel
®
ICH8M I/O Controller Hub
Single channel DDR3-800 SDRAM soldered onboard,
up to 2GB for N455 processor, 4GB for D525 processor
AMIBIOS
®
8, 16Mbit SPI flash memory
PCI 32-bit/33 MHz, 3.3V or 5V universal V (I/O)
Host only
PICMG
®
2.0 CompactPCI
®
R3.0
PICMG
®
2.1 Hot Swap R2.0
Operating System
OS
Microsoft Windows
®
XP Professional, x64 Edition
Microsoft Windows
®
7
Fedora
TM
8, 12
Red Hat Enterprise Linux 5.3
Wind River VxWorks 6.8, 6.6, 5.5.1
(Please contact ADLINK for other OS support)
Chipset
Memory
BIOS
CompactPCI Bus
PICMG Standards
Miscellaneous
LED
Battery
Watchdog Timer
Hardware Monitor
Power (green), WDT (red)
Coin cell lithium battery onboard for RTC CMOS RAM
System Reset and NMI, with programmable interval,
1-65535 seconds or minutes
Monitors CPU temperature, system temperature and
DC voltages
Connectivity
PMC/XMC
Ethernet
Graphics
One optional PCI 32-bit/66 MHz PMC site or PCI-E x1 XMC
site on 2nd or 3rd layer
Two PCI-E Intel
®
82574L Gigabit Ethernet controllers
Two 10/100/1000BASE-T front panel ports, switchable to rear
Integrated in Intel
®
Atom
TM
processor
DB-15 VGA port on front panel, switchable to rear
Analog monitor support up to QXGA 2048x1536 pixels
@60Hz, 32-bit
Up to four USB 2.0 front panel ports
One USB port on RTM
Front panel PS/2 KB/MS port*
Three RS-232/422/485/485+ selectable serial ports
One DB-9 port on front panel*, two on rear
Line-in and line-out ports on front panel*
One PCI-Express lane to J2
Four GPIO pins to J2
Mechanical & Environmental
Form Factor
3U 4HP/8HP/12HP CompactPCI
®
100mm x 160mm (LxW)
Operating Temperature 0˚C to +60˚C
-20˚C to +70˚C extended temperature (cPCI-ET3615)
-40˚C to +85˚C extreme extended temperature (cPCI-EX3615)
Storage Temperature
-40˚C to +85˚C
Rel. Humidity
95% non-condensing
Shock
15G peak-to-peak, 11ms duration, non-operating
Vibration
2 Grms random vibration, 5-500Hz, each axis, operating
Power Consumption
Atom™ D525 1.8GHz, 4GB soldered DDR3-800 memory
under Windows
®
XP with 100% CPU loading
Current(A)
Power(W)
5V
3.48
17.4
Total
17.4
Weight
Net weight 466g (8HP dual slot version with heatsink)
Certifications
CE/ FCC
USB
PS/2
Serial Port
Audio
PCI-Express
GPIO
Storage
SBC
RTM
One Serial ATA direct connector for 2.5” onboard HDD*
CompactFlash socket
Two 7-pin SATA signal connectors
*Note: 8HP & 12HP versions only.
